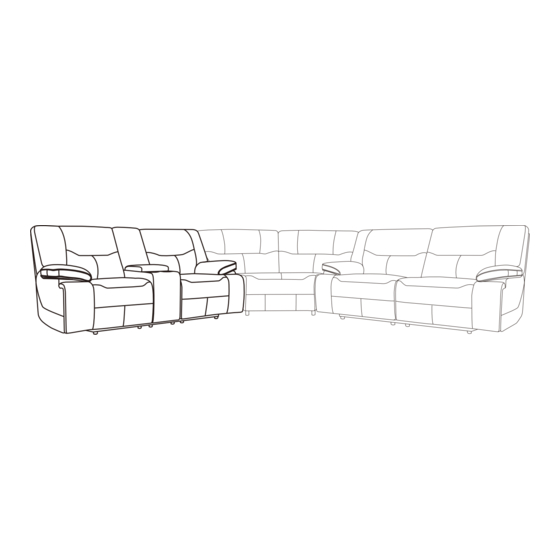

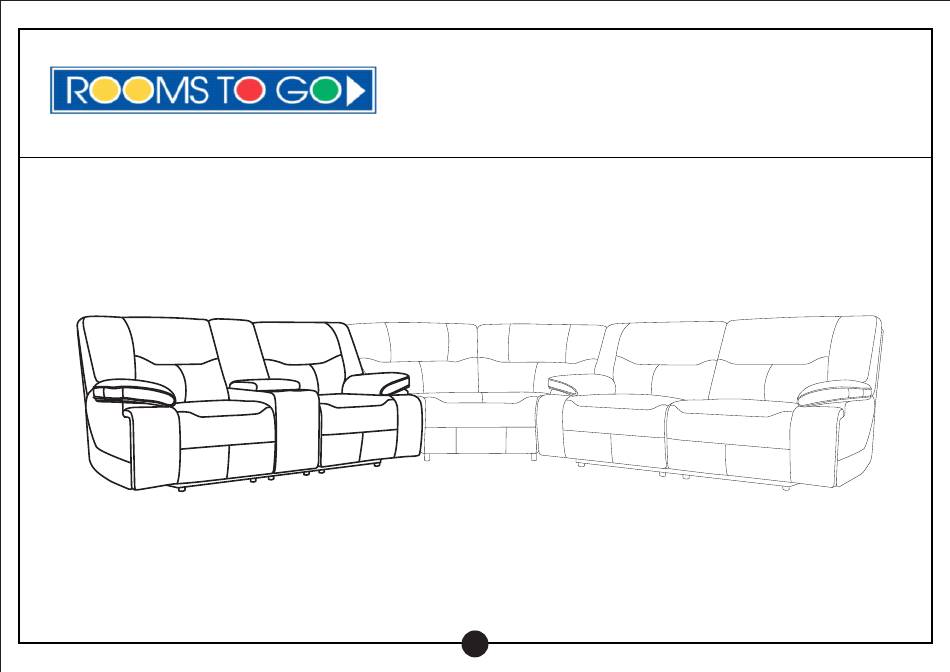

- Page 1 YOUZ E2968 SKU:15429687 RECLINING CONSOLE SKU:15429699 LOVESEAT Manufactured for Rooms To Go...
-
Page 2: List Of Parts
List of Parts TOOLS REQUIRED:NO TOOLS REQUIRED PART LIST Description Sketch Quantity LAFBack RAFBack BODY LAF ARM RAF ARM CONSOLE BACK 1.77"*45*Φ0.23" 4 sets Screw and Nut 0. 79"* M6... - Page 3 ASSEMBLY INSTRUCTIONS STEP 1: Attach 2 screws onto bottom of armrest (D), then install armrest (D) by inserting 2 screws into pre-drilled holes on arm frame of sofa body (C). Screw up nuts clockwise from bottom to fix the armrest. RAF Armrest (E) installation is same as LAF armrest(D).
-
Page 4: Manual Controls
Manual Controls STEP 4 1.Pull to recliner chair 2.Press footresttorestoretoseatposition... - Page 5 WARNINGS *Keep unit at least 24" from all heat sources. *Avoid placing unit in areas where unit can be exposed to direct sunlight other powerful light sources, as fading or discoloration may occur. *Maintain minimum of 6″space between thefurniture backs and wall. ″...
-
Page 6: Care And Cleaning
*If unit must be moved, do not drag. Unit must be lifted in order to be moved. *Do not continuously operate mechanism for more than one minute or unit may go into protection mode by shutting down to prevent overheating. *Unplug unit from power source prior to cleaning mechanism. -
Page 7: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Check Step 4 Not Reclining Ensure the backrests are properly clipped into the male posts located on seat mechanism.(Step 2,3) Backrests gaps Check that brackets ate not loose, positioned improperly or bent.
