ROOMS TO GO HLLC 8933-50HP Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may have come loose
inside the carton during shipment.
TOOLS REQUIRED : NO TOOLS REQUIRED
PART LIST
A
BODY
WALL PLUG
B
TRANSFORMER
C PLASTIC LEGS
D
WASHER
STEP 2: Connecting the Wall Plug Transformer
Attach the matching end of the wall plug transformer power cable to
the power inlet located at the rear of each LAF / RAF dual power recliner
as seen below.
ASSEMBLY INSTRUCTIONS
HLLC 8933-50HP DUAL PWR RECLINER
DUAL POWER
RECLINER
1
1
4
4
The Home Button is
not programmable
B
Attention: The wall plug transformer, the plastic legs and the
washers can be found under the seat attached to the mechanism.
It can be found by following the red ribbon.
STEP 1: Attaching the four legs
D
C
A
D
C
Headrest Open Mechanism Open
Home Button
Headrest Close
Mechanism Close

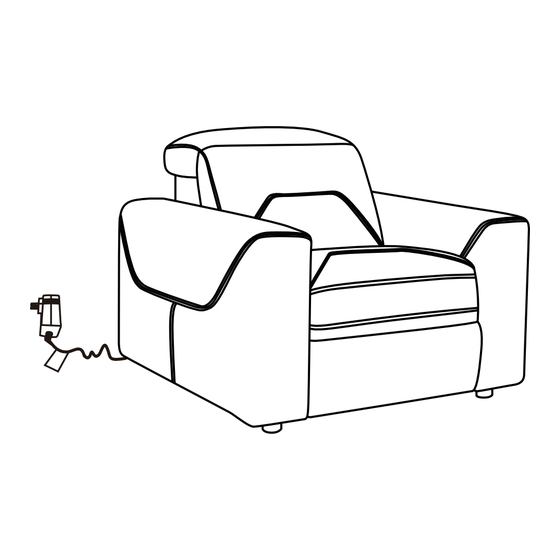

After assembly is complete your product should
look as seen below.
SKU 13989338
SKU 13989340
D C
D
C
Both A&C USB Ports
Can Charge Most
Electronic Devices With a
Charging Requirement of
2.0 Amps or Less
Front of Arm/Seat
Type"C"
USB Port
