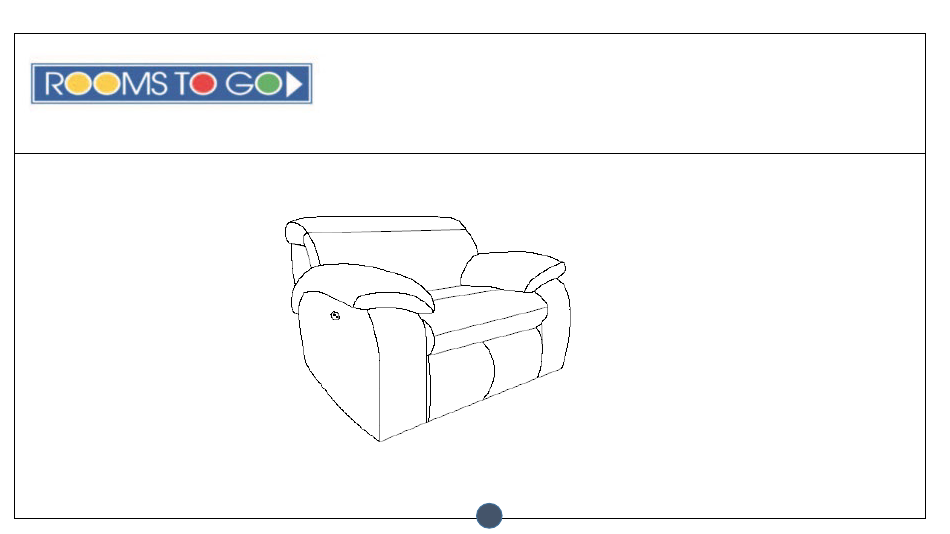

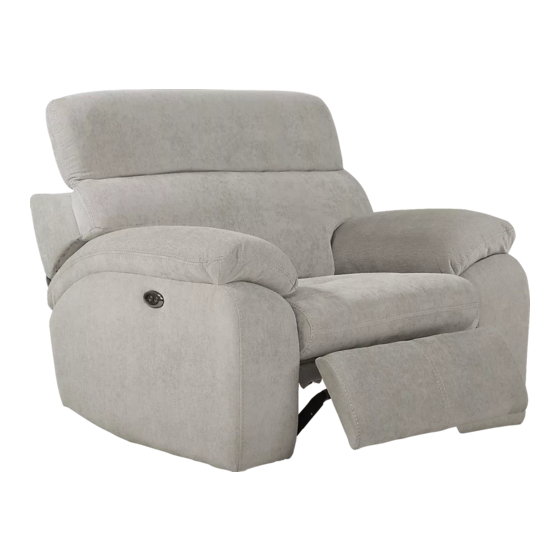

- Page 1 HELO SKU:13730040 SKU:13730052 PX3002-01P1 POWER RECLINER W/POWER SEAT W/USB/DC POWER Manufactured for Rooms To Go...
-
Page 2: List Of Parts
LIST OF PARTS TOOLS REQUIRED:NO TOOLS REQUIRED PART LIST Item Description Quantity Backrest Seat... - Page 3 INSTRUCTIONS ASSEMBLY STEP: 1 Position the KD receivers of the back (A) over the mechanism post on the recliner body (B). Check to assure both sides of the mechanism post are positioned inside of the KD receivers on the back frame,pushing in a downward motion from the top of the back frame until a clicking sound is heard.
-
Page 4: Power Connections
POWER CONNECTIONS STEP:2 2 USB FRONT... - Page 5 POWER CONNECTIONS Adjust the angle upward to a/b/c/d position, as shown, enjoy different angle as you want.
- Page 6 POWER CONNECTIONS...
- Page 7 WARNINGS *Keep unit at least 24" from all heat sources. *Avoid placing unit in areas where unit can be exposed to direct sunlight other powerful light sources, as fading or discoloration may occur. *Do not reach under seat when mechanism is operating or serious injury may occur. *Reclining mechanism should only be operated while seated properly.
- Page 8 The electrical warning label page/product instruction sheet outlined below should be included in the instruction manual. Two pages should be printed, one in English & one in Spanish. ENGLISH SPANISH IMPORTANT SAFETY INSTRUCTIONS INSTRUCCIONES DE SEGURIDAD IMPORANTES WARNING WARNING Misuse can result in FIRE or DEATH by ELECTRICAL SHOCK El mal uso puede provocar INCENDIO o MUERTE por DESCARGA ELÉCTRICA Read all instructions before using this furnishing.
-
Page 9: Care And Cleaning
*If unit must be moved. do not draa. Unit must be lifted in order to be moved *Do not continuously operate mechanism for more than one minute or unit may go into protection mode by shutting down to prevent overheating. *Unplug unit from power source prior to cleaning mechanism. -
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Not Reclining Ensure that wall power outlet in operation Step 3,4 USB not working Check all the connections Step 3,4 Ensure the backrests are properly clipped into the male posts located Backrests gaps on seat mechanism.(step 1) Check that brackets are not loose , positioned improperly or bent...
