Fitting - KBR multimess D9-PQ Quick Manual

3.3

Fitting

The multimess D9-PQ is suitable for the following installation location and should only be
operated in this environment
 Mounting in a control cabinet and small distribution board
The multimess D9-PQ can be installed in any position of use by snap-on mounting with
three mounting elements on a 35 mm wide top-hat rail to EN60715. For mounting, the
device is guided at an angle to the top-hat rail from above and snapped in at the bottom.
The lower mounting element audibly snaps into place behind the top-hat rail.
The device can be removed from the top-hat rail with the aid of a screwdriver by pulling
out the lower fastening element.

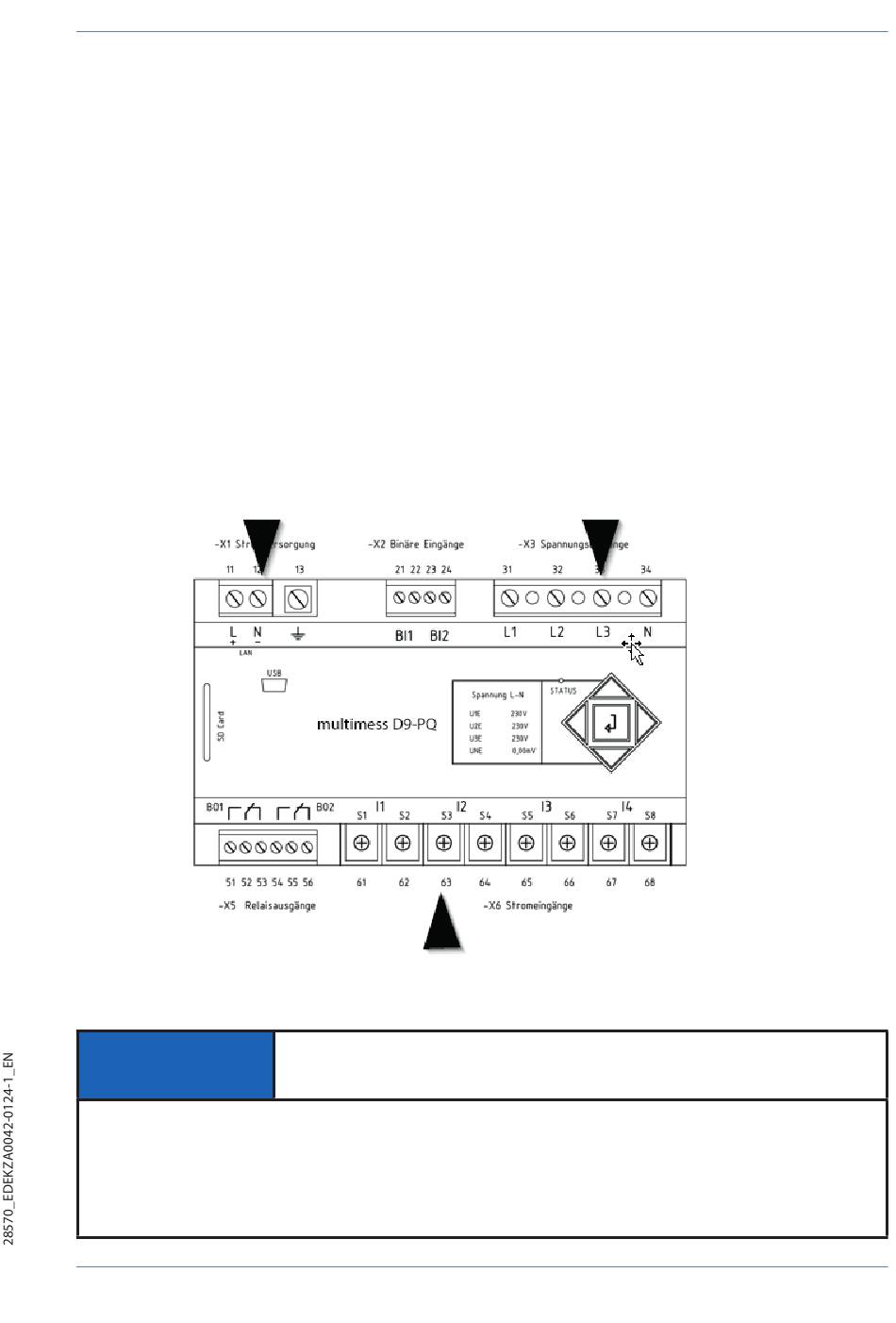

Position of the mounting elements
NOTICE!
Non-observance of the installation instructions or incorrect installation can damage
the device!
 Pay attention to the audible snapping of the mounting elements
Material damage due to non-observance
of the installation instructions!
