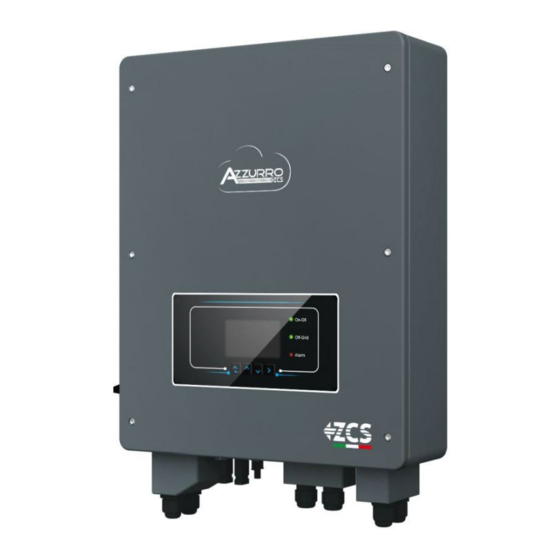

ZUCCHETTI AZZURRO 1PH HYD3000-HYD6000-ZSS User Manual
  1. Manuals
  2. Brands
  3. ZUCCHETTI Manuals
  4. Inverter
  5. AZZURRO 1PH HYD3000-HYD6000-ZSS
  6. User manual

ZUCCHETTI AZZURRO 1PH HYD3000-HYD6000-ZSS User Manual

Single-phase hybrid storage inverters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AZZURRO 1PH HYD3000-HYD6000-ZSS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZUCCHETTI AZZURRO 1PH HYD3000-HYD6000-ZSS

Summary of Contents for ZUCCHETTI AZZURRO 1PH HYD3000-HYD6000-ZSS

  • Page 2 Hybrid Inverter 1PH HYD3000-HYD6000-ZSS User Manual Zucchetti Centro Sistemi S.p.A. - Green Innovation Division Via Lungarno, 248 - 52028 Terranuova Bracciolini - Arezzo, Italy tel. +39 055 91971 - fax. +39 055 9197515 innovation@zcscompany.com - zcs@pec.it – www.zcsazzurro.com Pile Reg. IT12110P00002965 - Share Capital € 100,000.00 fully paid up AR Company Reg.

  • Page 3: Table Of Contents

    Table of Contents Introduction ......................................7 Preliminary safety instructions ..............................8 2.1. Safety Notes ....................................9 2.2. Assembly and maintenance diagram ..........................10 2.3. Symbols on the inverter ................................ 11 Installation ......................................12 3.1. Product overview ..................................12 3.2. Contents of the packaging ..............................13 3.3.
  • Page 4 4.6. Connecting a WeCo 4k4 LT battery ..........................44 4.6.1. Connecting a single battery 4k4 LT ........................44 4.6.2. Connecting multiple batteries in parallel 4k4-LT ..................... 45 4.6.3. Weco 4k4 LT configuration ............................48 4.6.4. Switching on WeCo 4k4-LT batteries ........................49 4.6.5.
  • Page 5 4.17.2. Measurement of exchange through current sensor ..................104 Buttons and indicator lights ............................... 107 5.1. Buttons: ..................................... 107 5.2. Indicator lights and operating status ..........................107 Operation ......................................108 6.1. Preliminary checks ................................108 6.2. First start-up of the inverter ............................108 6.3.
  • Page 6 11.3. 4G adapter ....................................163 11.3.1. Installation ....................................163 11.3.2. Verification ....................................165 11.4. Datalogger ....................................168 11.4.1. Preliminary notes on how to configure the datalogger..................169 11.4.2. Electrical connections and configuration ........................170 11.4.3. ZSM-DATALOG-04 AND ZSM-DATALOG-10 DEVICES ................... 174 11.4.4.
  • Page 7 The manual must always accompany the equipment, even when it is transferred to another user or plant. Copyright of this manual belongs to Zucchetti Centro Sistemi S.p.A. No part of this manual (including the Copyright statement software, etc.) may be copied, reproduced or distributed in any form or by any means without the permission...

  • Page 8: Introduction

    Preface General information Please read this manual carefully before installation, operation or maintenance. This manual contains important safety instructions that must be followed during installation and maintenance of the system. This manual describes the assembly, installation, electrical connections, commissioning, maintenance and Scope troubleshooting of the 1PH HYD3000-HYD6000-ZSS hybrid inverter.

  • Page 9: Preliminary Safety Instructions

    The 1PH HYD3000-HYD6000-ZSS inverter can operate in automatic mode and in time-of-use charge, charge/discharge mode. In automatic mode, when the energy produced by the PV field is greater than that required by the utilities, the 1PH HYD3000-HYD6000-ZSS inverter charges the battery using the photovoltaic energy in excess, and when the photovoltaic energy is lower than that required, the inverter uses the energy stored in the battery to supply current to the local load.

  • Page 10: Safety Notes

    If necessary, request assistance from an installer of photovoltaic systems or from Zucchetti Centro Sistemi SpA. Transport of the equipment, especially by road, must be carried out with vehicles suitable to protect the components (in particular, electronic components) against violent knocks, humidity, vibrations, etc.

  • Page 11: Assembly And Maintenance Diagram

    • Damage caused by improper installation/operation is NOT covered by the product warranty. 2.2. Assembly and maintenance diagram The battery must be protected against short circuits during transport and installation. The inverter 1PH HYD3000-HYD6000-ZSS/batteries must be located in well-ventilated areas. Do not place •...

  • Page 12: Symbols On The Inverter

    2.3. Some safety symbols are located on the inverter. Read and understand the content of the symbols before Symbols on the inverter installing the inverter. This symbol indicates a hazardous situation which, if not avoided, will result in injury. Risk of electric shock; wait at least 5 minutes before switching off the 1PH HYD3000-HYD6000-ZSS inverter.

  • Page 13: Installation

    Positive polarity and negative polarity of the DC voltage (Photovoltaic and Battery). This side up. The 1PH HYD3000-HYD6000-ZSS inverter must always be transported, handled and stored in such a way that the arrows are always pointing upwards. Installation 3.1. The 1PH HYD3000-HYD6000-ZSS inverter is subjected to strict controls and inspection before packaging and Product overview delivery.

  • Page 14: Contents Of The Packaging

    DC switch Current transformer port Figure 2 - Diagram of a system on which an 1PH HYD3000-HYD6000-ZSS hybrid is installed Battery input terminals Critical load connection port PV input terminals Grid connection port Wi-Fi/GPRS adaptor BMS communication interface Vent valve 3.2.

  • Page 15: Installation Environment

    1 user manual 1 current transformer 1 warranty 1 quality certificate 2 PV + input terminals 2 PV - input terminals 1 NTC (3M long) 1 Pylontech/AZZURRO battery communication cable Figure 3 – Components and accessories inside in the packaging 3.3.
  • Page 16 Screwdriver Used for the wiring Cable stripper Used for stripping the wires Used for tightening the screws to 4mm Allen key connect the rear panel to the inverter Crimping tools Used for crimping the power cables Used for checking the grounding Multi-meter connection Marker...

  • Page 17: Wall Installation Position

    Dust mask Must be worn by operators 3.5. Wall installation position The 1PH HYD3000-HYD6000-ZSS inverter must be mounted vertically (to ensure rapid heat dissipation). Install the 1PH HYD3000-HYD6000-ZSS inverter in a location protected from direct sunlight and from possible snow accumulation.
  • Page 18 Figure 4 - Installation location of the inverter 1PH HYD3000-HYD6000-ZSS 17/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...

  • Page 19: Assembly Instructions

    3.6. Assembly instructions Step 1: Position the mounting bracket on the wall, mark the 8 fixing points using the marker. Drill 8 holes (6 mm drill bit) in the wall. Step 2: Insert the expansion screws vertically into the hole, make sure that the insertion depth is neither too shallow nor too deep.
  • Page 20 Inverters and/or battery packs installed at higher heights must be moved to the ground before they can be repaired or serviced. Figure 5 – Instructions for installing the storage inverter and battery pack 19/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev.

  • Page 21: Electrical Connections

    Electrical connections • Carefully assess the risks deriving from electric shocks and chemical hazards! • Use a multi-metre to check the DC polarity of the battery and cables before connecting the power supply between the batteries and inverter. NOTE: an inverted polarity connection may cause irreparable damage to the inverter and batteries. Note: the Pylontech batteries, as well as the Azzurro, WeCo batteries do not require a disconnecting device for connecting to the storage inverter.
  • Page 22 Figure 6 – Electrical Connections 21/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...

  • Page 23: Connecting The Battery

    4.1. Connecting the battery Figure 7 – Connecting the battery (measure polarity/voltage of the battery cables before connection) Step 1: Unscrew the 4 screws (A) using a screwdriver. Step 2: Remove the waterproof cover (B), loosen the cable gland (C), and then remove the cap (G). Step 3: Pass the battery cables (F) through the cable gland, then connect the battery wires using the OT terminal (E).

  • Page 24: Connecting A Pylontech Battery Us2000

    4.2. Connecting a Pylontech battery US2000 4.2.1. Connecting a single battery US2000 This cable must be connected to the battery by inserting the RJ45 (8 pin) plug into the appropriate connection: 1. In the case of Pylontech batteries, insert the plug into the BMS CAN port of the single battery. Figure 8 - Pylontech communication cable to be inserted into the battery communication input Pinout communication cable between Pylontech battery and Inverter from left to right...

  • Page 25: Connecting Multiple Batteries In Parallel Us2000

    Figure 9 - Connecting the communication cable to the Pylontech battery 4.2.2. Connecting multiple batteries in parallel US2000 If multiple batteries are present, check the parallel connections between one battery and another. The communication cables must be connected starting from the master battery and inserting the short jumper (supplied with the battery) or a jumper with a length of 0.6 m or 1.5 m (available on request, codes ZST-CABLE-0.6M and ZST-CABLE-1.5M) in the LINK connection PORT;...
  • Page 26 NOTE: the position of the DIP switches (white on a red background, as shown in the figure below) should not be changed. If it is changed by accident, contact the ZCS Service Centre at the toll-free number 800 72 74 64 (available only in Italy) or open a ticket by going to the “support”...

  • Page 27: Pylontech Us2000 Configuration

    4.2.3. Pylontech US2000 configuration To correctly configure the battery parameters: 1. Press the first button on the left of the display: 2. Press the last arrow on the right (enter) to access the advanced settings (enter password 0715): 1. Basic settings 2.

  • Page 28: Connecting A Pylontech Battery Us5000

    1.Battery type Pylon-AH US2000 4.Depth of Discharge 6.Save 4.3. Connecting a Pylontech battery US5000 4.3.1. Connecting a single battery US5000 This cable must be connected to the battery by inserting the RJ45 (8 pin) plug into the appropriate connection: 1. In the case of Pylontech batteries, insert the plug into the CAN port of the single battery. Figure 11 - Pylontech communication cable to be inserted into the battery communication input Pinout communication cable between Pylontech battery and Inverter from left to right...

  • Page 29: Connecting Multiple Batteries In Parallel Us5000

    : When connecting Pylontech batteries, use the communication cable contained in the inverter kit, as shown in the figure. NOTE Figure 12 - Connecting the communication cable to the Pylontech battery Figure 2- Connecting the power cable from the Pylontech battery to the inverter 4.3.2.
  • Page 30 Figure 14 - Connecting the communication cable between three Pylontech batteries NOTE: the position of the DIP switches (white on a red background, as shown in the figure below) should not be changed. If it is changed by accident, contact the ZCS Service Centre at the toll-free number 800 72 74 64 (available on in Italy) or open a ticket by going to the support section of our website: https://www.zcsazzurro.com/it/support.

  • Page 31: Pylontech Us5000 Configuration

    4.3.3. Pylontech US5000 configuration To correctly configure the battery parameters: 1. Press the first button on the left of the display: 2. Press the last arrow on the right (enter) to access the advanced settings (enter password 0715): 1. Basic settings 2.
  • Page 32 1.Battery type Pylon-AH US5000 4.Depth of Discharge 6.Save 31/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...

  • Page 33: Connecting A Weco 4K4 Battery

    4.4. Connecting a WeCo 4k4 battery 4.4.1. Connecting a single battery 4k4 The same cable must be connected to the battery by inserting the RJ45 (8 pin) plug into the appropriate inlet: a. Insert the plug into the BMS CAN port of the single battery. Figure 12 - Communication cable between the inverter and the WeCo PRO 4k4 battery Pinout communication cable between Weco battery and Inverter from left to right...

  • Page 34: Connecting Multiple Batteries In Parallel 4K4

    Inv-Batt communication cable Positive power cable Negative power cable Ground cable (PE) Figure 13 – Connecting the WeCo 4k4 battery 4.4.2. Connecting multiple batteries in parallel 4k4 If multiple batteries are present: a. Check that the batteries have the same voltage level by switching them on and disconnecting them one at a time, measuring the + and - terminals with the tester.
  • Page 35 Figure 14 – Communication cable between WeCo 4k4 PRO batteries e. In case of additional batteries, the communication cable will be connected as indicated above for connecting the MASTER battery to SLAVE 1. The last battery will only have the RS485-A port connected. Figure 15 –...
  • Page 36 Figure 17 – Parallel connection of four WeCo 4k4 batteries Figure 18 – Parallel connection of five WeCo 4k4 batteries 35/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...

  • Page 37: Weco 4K4 Configuration

    4.4.3. Weco 4k4 configuration To correctly configure the battery parameters: 1. Press the first button on the left of the display: 2. Press the last arrow on the right (enter) to access the advanced settings (enter password 0715): 1. Basic settings 2.
  • Page 38 1.Battery type Weco 4.Depth of Discharge 6.Save 37/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...

  • Page 39: Connecting A Weco 4K4 Pro Battery

    4.5. Connecting a WeCo 4k4 PRO battery 4.5.1. Connecting a single battery 4k4 PRO The same cable must be connected to the battery by inserting the RJ45 (8 pin) plug into the appropriate inlet: a. Insert the plug into the CAN-A port of the single battery. Figure 19 - Communication cable between the inverter and the WeCo 4k4 PRO battery Pinout communication cable between Weco battery and Inverter from left to right...

  • Page 40: Connecting Multiple Batteries In Parallel 4K4 Pro

    Inv-Batt communication cable Positive power cable Negative power cable Ground cable (PE) Figure 20 – Connecting the WeCo 4k4 PRO battery 4.5.2. Connecting multiple batteries in parallel 4k4 PRO If multiple batteries are present: a. Check that the batteries have the same voltage level by switching them on and disconnecting them one at a time, measuring the + and - terminals with the tester.
  • Page 41 Figure 21 – Communication cable between WeCo 4k4 PRO batteries e. In case of additional batteries, the communication cable will be connected as indicated above for connecting the MASTER battery to SLAVE 1. The last battery will only have the RS485-A port connected. Figure 22 –...
  • Page 42 Figure 24 – Parallel connection of four WeCo 4k4 PRO batteries Figure 25 – Parallel connection of five WeCo 4k4 PRO batteries 41/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...

  • Page 43: Weco 4K4 Configuration

    4.5.3. Weco 4k4 configuration To correctly configure the battery parameters: 1. Press the first button on the left of the display: 2. Press the last arrow on the right (enter) to access the advanced settings (enter password 0715): 1. Basic settings 2.
  • Page 44 1.Battery type Weco 4.Depth of Discharge 6.Save 43/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...

  • Page 45: Connecting A Weco 4K4 Lt Battery

    4.6. Connecting a WeCo 4k4 LT battery 4.6.1. Connecting a single battery 4k4 LT The same cable must be connected to the battery by inserting the RJ45 (8 pin) plug into the appropriate inlet: a. Insert the plug into the CAN-A port of the single battery. Figure 22 - Communication cable between the inverter and the WeCo LT 4k4 battery Pinout communication cable between Weco battery and Inverter from left to right...

  • Page 46: Connecting Multiple Batteries In Parallel 4K4-Lt

    Inv-Batt communication cable Positive power cable Negative power cable Ground cable (PE) Figure 23 – Connecting the WeCo 4k4 LT battery Figure 4- Connecting the power cable from the Weco 4k4-LT battery to the inverter 4.6.2. Connecting multiple batteries in parallel 4k4-LT If multiple batteries are present: 45/194 User’s Manual 1PH HYD3000-HYD6000-ZSS...
  • Page 47 a. Check that the batteries have the same voltage level by switching them on and disconnecting them one at a time, measuring the + and - terminals with the tester. Make sure that the difference between the voltages of all the batteries is less than 2 Volts. b.
  • Page 48 Figure 26 – Parallel connection of three WeCo 4k4 LT batteries Figure 27 – Parallel connection of four WeCo 4k4 LT batteries Figure 28 – Parallel connection of five WeCo 4k4 LT batteries 47/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev.

  • Page 49: Weco 4K4 Lt Configuration

    4.6.3. Weco 4k4 LT configuration To correctly configure the battery parameters: 1. Press the first button on the left of the display: 2. Press the last arrow on the right (enter) to access the advanced settings (enter password 0715): 1. Basic settings 2.

  • Page 50: Switching On Weco 4K4-Lt Batteries

    1.Battery type Weco 4.Depth of Discharge 6.Save 4.6.4. Switching on WeCo 4k4-LT batteries In order to carry out the correct switch-on procedure: 1. The batteries must all be switched off (side switch to 0); 2. Inverter DC rotary switch set to OFF; 3.

  • Page 51: Weco 4K4-Lt Battery And Weco 4K4 Pro Batteries In Parallel

    4.6.5. WeCo 4k4-LT battery and WeCo 4k4 PRO batteries in parallel For a new system, we do not recommend installing a mixed solution with WeCo 4k4PRO and WeCo 4k4-LT batteries. When using WeCo 4k4PRO and WeCo 4k4-LT batteries, the WeCo 4k4-LT batteries must be installed first and then the 4k4PRO batteries as shown in the figure.
  • Page 52 d. ….. e. Positive input (+) of slave N-1 battery (second-last) connected to positive input (+) of slave N battery (last). Negative input (-) of slave N-1 battery (second-last) connected to negative input (-) of slave N battery (last). g. Negative input (-) of slave N battery (second-last) connected to negative input (-) of inverter. NOTE: When switched on for the first time, the WeCo batteries receive a command from the inverter to start regular operation only when all of them have collectively reached a state of full charge (i.e.

  • Page 53: Connecting A Weco 5K3 Battery

    4.7. Connecting a WeCo 5k3 battery 4.7.1. Connecting a single battery 5k3 : To connect the WeCo batteries, use the blue or grey communication cable contained in the battery kit. NOTE The same cable must be connected to the battery by inserting the RJ45 (8 pin) plug into the appropriate inlet: Insert the plug into the BMS CAN port of the single battery.
  • Page 54 Low Voltage High Voltage (HV) (LV) connection connection Attention: When connecting 5k3 batteries to 3000SP inverters or single-phase hybrid inverters, only the low voltage section must be used. To prevent damage to the batteries or inverters, do not use the high voltage section.

  • Page 55: Connecting Multiple Batteries In Parallel 5K3

    Figure 27 - Connecting the WeCo 5k3 battery 4.7.2. Connecting multiple batteries in parallel 5k3 If multiple batteries are present: a. Check that the batteries have the same voltage level by switching them on and disconnecting them one at a time, measuring the + and - terminals with the tester. Make sure that the difference between the voltages of all the batteries is less than 2 Volts.
  • Page 56 e. In case of additional batteries, the communication cable will be connected as indicated for connecting the MASTER battery to SLAVE 1. The last battery will only have the RS485-A port connected. As for the power connections, all the batteries must be connected in parallel using the power cables supplied, making sure that the cable does not exceed a length of 2.5 metres.
  • Page 57 Figure 31 – Parallel connection of four WeCo 5k3 batteries Figure 32 – Parallel connection of five WeCo 5k3 batteries 56/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...

  • Page 58: Weco 5K3 Configuration

    4.7.3. Weco 5k3 configuration To correctly configure the battery parameters: 1. Press the first button on the left of the display: 2. Press the last arrow on the right (enter) to access the advanced settings (enter password 0715): 1. Basic settings 2.

  • Page 59: Connecting A Weco 5K3Xp Battery

    1.Battery type Weco 4.Depth of Discharge 6.Save 4.8. Connecting a WeCo 5K3XP battery 4.8.1. Connecting a single battery 5K3XP : To connect the WeCo batteries, use the blue or grey communication cable contained in the battery kit. NOTE The same cable must be connected to the battery by inserting the RJ45 (8 pin) plug into the appropriate inlet: Insert the plug into the BMS CAN port of the single battery.
  • Page 60 Make sure that the DIP switches are set as shown in the figure. k. Connect the ground cable to the battery through the threaded hole. Note: Switch off the batteries each time the position of the DIP switches is changed. To access the battery connection, remove the cover of the LV section located on the left hand side by unscrewing the crosshead screws.
  • Page 61 Inv-Batt communication cable Positive power cable Negative power cable Ground cable (PE) Figure 34 - Connecting the WeCo 5K3XP battery 60/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...

  • Page 62: Connecting Multiple Batteries In Parallel 5K3Xp

    4.8.2. Connecting multiple batteries in parallel 5K3XP If multiple batteries are present: g. Check that the batteries have the same voltage level by switching them on and disconnecting them one at a time, measuring the + and - terminals with the tester. Make sure that the difference between the voltages of all the batteries is less than 2 Volts.
  • Page 63 Figure 36 – Parallel connection of two WeCo 5K3XP batteries Figure 37 – Parallel connection of three WeCo 5K3XP batteries Figure 38 – Parallel connection of four WeCo 5K3XP batteries 62/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev.

  • Page 64: Weco 5K3Xp Configuration

    Figure 39 – Parallel connection of five WeCo 5K3XP batteries 4.8.3. Weco 5K3XP configuration To correctly configure the battery parameters: 1. Press the first button on the left of the display: 2. Press the last arrow on the right (enter) to access the advanced settings (enter password 0715): 1.

  • Page 65: Switching On Weco 5K3Xp Batteries

    3. Now press the last arrow on the right to access the battery parameters 1. Battery parameters 2. Logic interface 3. Factory reset 4. Reset Bluetooth 5. CT Calibration 6. Active battery 4. Check that the parameters are set correctly: 1.Battery type Weco 4.Depth of Discharge...
  • Page 66 3. Set all batteries, via the side switch, to 1 without switching them on (do not press the round metal button); 4. Switch on the master battery ONLY by pressing the button until the LED lights up; 5. The batteries will automatically switch on in succession (each module will turn on independently and the side switch will flash for 3 seconds;...

  • Page 67: Weco 5K3Xp Battery And 5K3 Batteries In Parallel

    4.8.5. Weco 5K3XP battery and 5K3 batteries in parallel Figure 34 – Parallel connection of WeCo 5K3XP and WeCo 5K3XP batteries (Example 1) Figure 34 – Parallel connection of WeCo 5K3XP and WeCo 5K3XP batteries (Example 2) 66/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev.
  • Page 68 In case of 5K3XP and 5K3 in parallel:  Always provide as master the 5K3XP battery (if they are more than one set them as first Slaves);  The DIP switches of the 5K3 batteries must be set according to the Slave number as shown in the table above;...

  • Page 69: Connecting An Azzurro 5000 Battery

    Figure 43 – Parallel connection of WeCo 5K3XP and WeCo 5K3 batteries 4.9. Connecting an AZZURRO 5000 battery 4.9.1. Connecting a single battery AZZURRO 5000 The same cable must be connected to the battery by inserting the RJ45 (8 pin) plug into the appropriate inlet: a.
  • Page 70 b. Connect the ground cable to the battery through the appropriate contact. : The communication cable is located inside the kit in the inverter box. NOTE Inv-Batt communication cable Positive power cable Negative power cable Ground cable (PE) Figure 45 - Connecting the AZZURRO 5000 battery In case of a SINGLE BATTERY: 1.

  • Page 71: Connecting Multiple Batteries In Parallel Azzurro 5000

    4. Press the button on the front of the battery to switch it on. Figure 47 – POWER button of the AZZURRO 5000 battery 4.9.2. Connecting multiple batteries in parallel AZZURRO 5000 If multiple batteries are present: a. In case of multiple batteries connected in parallel or when adding new batteries to a system with batteries already installed and working, make sure that the difference between the voltages of all the batteries is less than 1.5 Volt.
  • Page 72 As for the power connections, all the batteries must be connected in parallel using the power cables supplied, making sure that the cable does not exceed a length of 2.0 metres. The “NEGATIVE” power cable coming out from the inverter must be connected to the MASTER battery on the NEGATIVE terminal, while the “POSITIVE”...

  • Page 73: Azzurro 5000 Configuration

    Figure 51 – Parallel connection of four AZZURRO 5000 batteries 4.9.3. AZZURRO 5000 configuration To correctly configure the battery parameters: 1. Press the first button on the left of the display: 2. Press the last arrow on the right (enter) to access the advanced settings (enter password 0715): 72/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev.
  • Page 74 1. Basic settings 2. Advanced settings 3. Production statistics 4. System Info 5. Event list 6. SW Update 3. Now press the last arrow on the right to access the battery parameters 1. Battery parameters 2. Logic interface 3. Factory reset 4.

  • Page 75: Connecting An Azzurro 5000 Pro Battery

    4.10. Connecting an AZZURRO 5000 PRO battery 4.10.1. Connecting a single battery AZZURRO 5000 PRO The same cable must be connected to the battery by inserting the RJ45 (8 pin) plug into the appropriate inlet: c. Insert the plug into the CAN port of the single battery. Figure 44 - Communication cable between the inverter and AZZURRO 5000 PRO battery Pinout communication cable between AZZURRO battery and Inverter from left to right...
  • Page 76 Inv-Batt communication cable Positive power cable Negative power cable Ground cable (PE) Figure 45 - Connecting the AZZURRO 5000 PRO battery In case of a SINGLE BATTERY: 5. Connect the CAN input for communication between the inverter and battery. 6. The power connections must be made by attaching the appropriate P+ and P- connectors to the corresponding input (as shown in the figure)..

  • Page 77: Connecting Multiple Batteries In Parallel Azzurro 5000 Pro

    Figure 47 – POWER button of the AZZURRO 5000 PRO battery 4.10.2. Connecting multiple batteries in parallel AZZURRO 5000 PRO If multiple batteries are present: e. In case of multiple batteries connected in parallel or when adding new batteries to a system with batteries already installed and working, make sure that the difference between the voltages of all the batteries is less than 1.5 Volt.
  • Page 78 The “NEGATIVE” power cable coming out from the inverter must be connected to the MASTER battery on the NEGATIVE terminal, while the “POSITIVE” cable must be connected to the last SLAVE N battery on the POSITIVE terminal. Figure 49 – Parallel connection of two AZZURRO 5000 PRO batteries Figure 50 –...

  • Page 79: Azzurro 5000 Pro Configuration

    Figure 51 – Parallel connection of four AZZURRO 5000 PRO batteries 4.10.3. AZZURRO 5000 PRO configuration To correctly configure the battery parameters: 1. Press the first button on the left of the display: 78/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev.
  • Page 80 2. Press the last arrow on the right (enter) to access the advanced settings (enter password 0715): 1. Basic settings 2. Advanced settings 3. Production statistics 4. System Info 5. Event list 6. SW Update 3. Now press the last arrow on the right to access the battery parameters 1.

  • Page 81: Connecting An Azzurro Zsx 5120 Battery

    4.11. Connecting an AZZURRO ZSX 5120 battery 4.11.1. Connecting a single battery AZZURRO ZSX 5120 The same cable must be connected to the battery by inserting the RJ45 (8 pin) plug into the appropriate inlet: e. Insert the plug into the CAN port of the single battery. Figure 47 - Communication cable between the inverter and AZZURRO ZSX 5120 battery Pinout communication cable between Pylontech battery and Inverter from left to right...
  • Page 82 Inv-Batt communication cable Positive power cable Negative power cable Ground cable (PE) Figure 48 - Connecting the AZZURRO ZSX 5120 battery In case of a single battery: 1. Connect the CAN input for communication between the inverter and battery. 2. Connect the ground cable to the battery through the threaded hole indicated by the ground symbol. 3.

  • Page 83: Connecting Multiple Batteries In Parallel Azzurro Zsx 5120

    Figure 7– Power button of the AZZURRO ZSX 5120 battery 4.11.2. Connecting multiple batteries in parallel AZZURRO ZSX 5120 Both AZZURRO 5000 and AZZURRO 5000PRO batteries can be connected to the same inverter. AZZURRO 5000 and/or AZZURRO 5000PRO batteries CANNOT be connected to AZZURRO ZSX 5120 batteries. If there are multiple batteries: In case of multiple batteries connected in parallel or when adding new batteries to a system with batteries already installed and working, make sure that the difference between the voltages of all the...
  • Page 84 As for the power connections, all the batteries must be connected in parallel using the power cables supplied, making sure that the cable does not exceed a length of 2.0 metres. The “NEGATIVE” power cable coming out from the inverter must be connected to the MASTER battery on the NEGATIVE terminal, while the “POSITIVE”...
  • Page 85 Figure 54 – Parallel connection of four AZZURRO ZSX 5120 batteries 84/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...

  • Page 86: Azzurro Zsx 5120 Configuration

    4.11.3. AZZURRO ZSX 5120 configuration To correctly configure the battery parameters: 1. Press the first button on the left of the display: 2. Press the last arrow on the right (enter) to access the advanced settings (enter password 0715): 7. Basic settings 8.
  • Page 87 1.Battery type AZZURRO 4.Depth of Discharge 6.Save 86/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...

  • Page 88: Inverter Logic Interface Connect

    4.12. Inverter logic interface connect PIN 1: White and orange Figure 54 – Inverter logic interface connection PIN 2: Orange PIN 3: White and green PIN4: Blue PIN 5: White and blue PIN6: Green PIN 7: White and brown PIN 8: Brown 1) Loosen 4 screws (A) using a screwdriver;...
  • Page 89 The inverter will detect and initiate a response to all supported demand response commands within 2 s. The inverter will continue to respond while the mode remains asserted. White and orange DRM1/5 Pin NO. Color Function Orange DRM2/6 White and green DRM3/7 Blue DRM4/8...
  • Page 90 Figure 54 – Inverter – RRCR Connection Relay contact 1 input K1 – Relay 1 output Pin NO. Pin name Description Function Not connected Not connected Not connected Not connected Not connected Not connected Not connected Not connected K1 – Relay 1 output Not connected Not connected Relay status: close is 1, open is 0...

  • Page 91: Photovoltaic Connection

    4.13. Photovoltaic connection Recommended specifications for DC input cables Range Recommended value Cross-sectional area (mm / AWG) Outer diameter of cable (mm 4.0-6.0 / 11-9 4.0 / 11 4.5~7.8 Step 1: Prepare the positive and negative photovoltaic cables. Procedure: Figure 52 – Preparing the positive and negative photovoltaic cables Step 2: Insert the crimped positive and negative cables into the corresponding photovoltaic connectors.
  • Page 92 Figure 54 – Connecting the photovoltaic connectors Before removing the positive and negative PV connectors, make sure that the DC CIRCUIT BREAKER is OPEN. Caution Use a MC4 wrench to disconnect the photovoltaic connectors, as shown in figure below. Removal procedure Connect the 1PH HYD3000-HYD6000-ZSS inverter to the photovoltaic strings using the DC input power cables.
  • Page 93 To configure the inverter channels correctly: 1. Press the first button on the left of the display: 2. Press the last arrow on the right (enter) to access the basic settings: 1. Basic settings 2. Advanced settings 3. Production statistics 4.
  • Page 94 If the strings are different (e.g. installed on two separate flaps or consisting of a different number of panels), the Independent mode (default): input model must be set to “independent mode.” If the strings are connected in parallel, the input mode must be set to “parallel mode.” Parallel mode: Depending on the type of inverter, select the appropriate inverter accessories (cables, fuse holders, fuses, Note:...

  • Page 95: Ct / Battery Communication / Rs485 Connections

    4.14. CT / Battery Communication / RS485 Connections The CTa (current transformer) can measure the value and direction of the AC current. Refer to Figure below for the correct connection of the CTa. Step 1: Refer to figure below for the correct position of the CTa. Wrap the CTa around the L wire of the mains Figure 57 –...
  • Page 96 Step 3: Loosen the 4 screws (part A) using a screwdriver Step 4: Remove the waterproof cover (B), loosen the cable gland (C), and then remove the cap (G). Step 5: Route the CT cable through the cable gland to the right of the cover, connect the cable to the CT terminal supplied, then insert the CT terminals into the corresponding ports (CTa for the exchange sensor and CTpv for the production sensor).
  • Page 97 Communication cable between the battery and the CAN communication 1PH HYD3000-HYD6000-ZSS inverter 1PH HYD3000-HYD6000-ZSS CAN port CANHpin1 CANLpin2 RS485 port 485Apin3 485Bpin4 PYLONTECH CAN port CANHpin4 CANLpin5 485Apin1 & pin8 RS485 port 485Apin2 & pin7 Figure 60 – End of Pylontech communication cable with inverter-side terminal in the CAN input Step 7: Replace the waterproof cover and secure it with the 4 screws;...
  • Page 98 The figure below shows an incorrect positioning of the CTa sensor (consumption reading) Figure 62 – Incorrect positioning of the current sensors (CTa reading of the utilities only) In case of multiple phase cables connected in parallel directly under the import/export meter, make sure all the phase cables pass through the CTa sensor, as shown in the figure.

  • Page 99: Grid Connection

    4.15. Grid connection Step 1: Loosen the 4 screws (part A) using a screwdriver (fig. 15). Step 2: Remove the waterproof cover (part B), loosen the cable gland (part C), and then remove the cap (part G). Step 3: Route a three-pole cable through the GRID cable gland, then connect the three wires to the corresponding terminal blocks.
  • Page 100 • Under normal conditions: change-over switch is in position 1. The 1PH HYD3000-HYD6000-ZSS inverter can supply power to critical loads in the event of a power failure. • If the 1PH HYD3000-HYD6000-ZSS inverter is faulty, manually move the switch to position 2. The grid will supply energy to the critical load.

  • Page 101: Measurement Of The Exchange Power Through Meter

    4.17. Measurement of the exchange power through meter Meter Connection: 1. Connect Meter and inverter trough the RS485 port.On the Meter this port is identified by PIN 24 and 2. Connect Meter and inverter trough the RS485 port.On the Meter this port is identified by PIN RS485+ and RS485-.
  • Page 102 3. Meter side connect 120 Ohm resistor from PIN 24 and 25 4. Inverter side connect 120 Ohm resistor from PIN RS485+ and RS485- 5. Connect the Meter as shown in the picture:  Connect Neutral cable (N) to Meter’s PIN 2; ...
  • Page 103 2. In order to configure the meter reading on the inverter is required to access the display ( see picture):  Press the first push button on the inverter;  Access the advanced setting on the menu;  Enter the PWD «0715»; ...

  • Page 104: Meter

    4.17.1. Meter To verify the correct meter reading on the exchange it is necessary to ensure that the hybrid inverter and any other source of photovoltaic production are turned off. Light carcases greater than 1kwMove in front of the meter and using the buttons to scroll between entries, it must be verified that: The Power P is:...

  • Page 105: Measurement Of Exchange Through Current Sensor

    4.17.2. Measurement of exchange through current sensor If it is necessary to extend the connection cables Use an 8-pole category 6 STP cable AS EXTENSION CABLE, use all colored poles (blue-orange-green-brown) to extend the CT positive cable and all white/colored poles (white/blue-white/orange-white/green-white/brown) to extend the negative CT cable.
  • Page 106 HYD3000-HYD6000 TC Wire Extension (network cable) orange / green / brown / blue white orange / white green / Black white brown/ white blue 105/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...
  • Page 107 106/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...

  • Page 108: Buttons And Indicator Lights

    Buttons and indicator lights Figure 66 – Buttons and indicator lights 5.1. Press “Back” to go back to the previous screen or to enter the main interface. Buttons: Press “Up” to enter the upper menu or to increase the value by 1. •...

  • Page 109: Operation

    Operation 6.1. Preliminary checks Before starting the system, please check that: The 1PH HYD3000-HYD6000-ZSS inverter is securely fixed to the mounting bracket; The PV+/PV- cables are securely connected, and the polarity and voltage are correct; The BAT+/BAT- cables are securely connected, and the polarity and voltage are correct; The GRID/LOAD cables are securely/correctly connected;...
  • Page 110 4. Supply DC power to the inverter by correctly switching on the batteries: Figure 68 – Checking that the power consumption is above 200W In the case of Pylontech batteries, set the POWER switch of the battery, or (in the case of multiple units) of all the batteries, to I (ON position), then press the red SW button of the master battery for about one second;...
  • Page 111 6. In the case of WeCo (4k4-LT and 5K3XP) and AZZURRO (AZZURRO and AZZURRO PRO) batteries, in order to carry out the correct switch-on procedure, ensure that the batteries are all switched off (side switch on 0); 7. Set all batteries via the side switch to 1 without switching them on (do not press the round metal button), switch on the master battery ONLY by pressing the button until the LED lights up.
  • Page 112 2) Set the country 9)* Set the maximum discharge voltage 3) Select the type of battery 10)* Set the minimum voltage protection 4)* Set the battery capacity 11)* Set the depth of discharge 5)* Set the maximum charge voltage 12)* Set the no-load discharge voltage 6)* Set the maximum charge current 13)* Set the full charge voltage 7)* Set the maximum protection voltage...

  • Page 113: Commissioning

    It is essential to make sure that you have selected the correct country code according to the requirements of the local authority. For this purpose, consult a professional electrician or qualified personnel from the electrical safety authorities. ZCS accepts no responsibility for consequences deriving from the selection of an incorrect country code.

  • Page 114: Main Menu

    6.4. In the main interface, press the “Down” button to enter the page with the grid/battery settings: Main menu Main interface Press “Down” 1. Grid(V) 2. Grid(A) 3. Frequency 4. Battery(V) 5. Charge current 6. Discharge current 7. Charge level 8.

  • Page 115: Basic Settings

    6.4.1. Basic settings 1. Settings Press “OK" 1. Language 2. Date and Time 3. Working Mode “Up”↑ 4. PV input mode “Down” ↓ 5. EPS mode 6. Communication address 7. Self-test Select “1. Language”, then press “OK”. Press “Up” or “Down” to select the language, then press “OK.” 1.
  • Page 116 Select “1. Select automatic mode,” then press “OK.” In automatic mode, the inverter will automatically charge and discharge the battery. 1) If PV production = LOAD consumption (ΔP < 2) If PV production > LOAD consumption, the 100W) HYD3000-HYD6000-ZSS surplus power will be stored in the battery. inverter will not charge or discharge the battery.
  • Page 117 5) If PV production + battery < LOAD 6) Press “DOWN” to display the current consumption, the missing energy to feed the grid/battery parameters, press “UP” to go back to loads will be imported from the grid. the main interface. Photovoltaic Input Mode selection: The 1PH HYD3000-HYD6000-ZSS inverter has two MPPT channels.
  • Page 118 Select “7. Self-test”, press “OK” to enter the self-test interface. 7. Self-test 7.Self-test 1. Fast self-test “Up” ↑ 2. STD Self-test 3. Set QF time “Down” ↓ 3. Set QV time 5. Control 81.S1 1) Fast self-test Select “1. Fast self-test,” then press “OK” to start the fast self-test. Start Self-Test ↓...
  • Page 119 Testing 81>S2… ↓ Wait Test 81>S2 OK! ↓ Wait Testing 81<S1... ↓ Wait Test 81<S1 OK! ↓ Wait Testing 81<S2... ↓ Wait Test 81<S2 OK! ↓ Press “OK” OK self-test! ↓ Press “Down” 59.S1 threshold 253V 900ms ↓ Press “Down” 59.S1: 228V 902ms ↓...

  • Page 120: Advanced Settings

    4) QV Time Setting Select “4. QV Time Setting”, then press “OK”. The following will appear on the screen: Set: ** s Press “Up” or “Down” to change the first digit, press “OK” to move to the next digit. After changing all the digits, press “OK”.
  • Page 121 1) Battery parameters 1.Battery Parameters 1)Battery type 7)Maximum discharge (A) 2)*Battery Capacity 8)*Low (V) Protection “Up” ↑ 3)*Depth of discharge 9)*Minimum discharge 4)Maximum charge (A) 10)No-load discharge (V) “Down” ↓ 5)*Over (V) Protection 11)*Full Charge (V) 6)*Maximum charge (V) 12) Save Note: the 2)*, 5)*, 6)*, 8)*, 9)*, 10)* and 11)* parameters do not have to be changed.

  • Page 122: Event List

    6) IV Curve Scan 6.IV Curve Scan 1.Scan Control Enable “Up” ↑ Disabled “Down” ↓ 2.Scan Period ***min 3.Force Scan The user can enable the “IV Curve Scan” (scan MPPT) to have the 1PH HYD3000-HYD6000-ZSS inverter periodically check the absolute maximum power points to provide maximum energy from a partially shaded PV array.

  • Page 123: System Interface Information

    6.4.4. System interface information 4. System information Inverter information Inverter Information (1) SN Product Software version Hardware version Energy Level Inverter Information (2) Country Photovoltaic Input Mode Energy Storage Mode Inverter Information (3) RS485 address EPS Mode IV Curve Scan Anti Reflux Inverter Information (4) DRMs0 Control...

  • Page 124: Energy Statistics

    3.Safety Parameters Safety parameters (0) OVP 1 OVP 2 UVP 1 UVP 2 Safety parameters (1) OFP 1 OFP 2 UFP 1 UFP 2 Safety parameters (2) OVP 10mins 6.4.5. Energy statistics 5.Energy Statistics 1.Daily/Weekly Photovoltaic ***KWH Charge ***KWH Export ***KWH Import ***KWH...

  • Page 125: Software Update

    6.4.6. Software Update On first installation, all Zucchetti hybrid inverters must be updated to the latest firmware version found in the www.zcsazzurro.com website, unless the inverter is already updated to the version on the website or to a later version (see image below).
  • Page 126 Step 1: Turn off the AC switch (grid and load), then turn off the batteries and the photovoltaic switch. Remove Detailed Procedure for Firmware Update: the waterproof communication cover. If the communication cables (CAN/RS485/NTC/CT) have been connected, loosen the cable glands before removing the cover. Step 2: Press the SD card and extract it.

  • Page 127: Verification Of Proper Functioning

    Verification of proper functioning To check the proper functioning of the inverter, follow these steps: Switch off any source of photovoltaic generation by turning the circuit breaker to the OFF position. Lower the protection switch of the 1PH HYD3000-HYD6000-ZSS inverter. The inverter will remain switched on but will go into error due to a lack of AC power (if the EPS function is enabled, it will feed the priority loads).
  • Page 128 5. Once the countdown is over, the batteries will start to deliver power according to the availability towards the utility, trying to reset the consumption from the grid. During this period, check that the a. value of the consumption remains constant* as the power supplied by the battery increases during discharge.
  • Page 129 7. Once the photovoltaic system has been activated, check that: a. The value of consumption shown on the screen remains constant as the photovoltaic power increases. b. Depending on the photovoltaic production, the system will operate according to its working mode. c.

  • Page 130: Checking The Settings

    7.1. Checking the settings 1. Below is a summary of all the settings on the device, which you can find in the system info menu. In particular, it is necessary to check that the parameters circled in red are correct. To access this menu, from the main screen: 1.1.
  • Page 131 CT Direction: check the blocking status of the CTs. Insulation resistance: check that the value of the insulation resistance is higher than the limits imposed by the standard. Battery type: check if the battery model on the display is consistent with the batteries installed. Battery capacity: the system will show the total capacity of the batteries: 1 Pylontech →...

  • Page 132: Technical Specifications

    Technical specifications 131/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...

  • Page 133: Troubleshooting

    Troubleshooting Code Name Description Solution If the alarms occurs occasionally, the The grid voltage is too probable cause is that the electric grid is in high. GridOVP an abnormal state. The 1PH HYD3000-HYD6000-ZSS inverter ID01 will automatically return to its normal operating state when the electrical grid is restored to its normal state.
  • Page 134 Check whether too many photovoltaic modules have been connected in series in a PV string and therefore the voltage (Voc) of the PV string is higher than the maximum input voltage of the inverter. In this case, photovoltaic reduce the voltage of the PV string by PVOVP voltage is too high adjusting...
  • Page 135 Check the settings of the photovoltaic Input The input current is mode (parallel/independent mode) of the IpvUnbalance not balanced. inverter. If this is not correct, change the input mode. ID16 Sampling error of the ID17-ID26 are internal faults of the 1PH HwADFaultIGrid grid current.
  • Page 136 Adjust the load power in the correct range. Overload Overload ID34 Check whether the CT is stable and has been CT Fault The CT is faulty directed correctly. ID35 The GFCI sampling value between the Fault-ConsistentFault master DSP and slave DSP is not suitable.
  • Page 137 Check the grounding of the AC output of the PE connectFault PE cable. ID60 The grid current is too high and has caused an Check if the inverter is updated to the latest UnrecoverHwAcOCP irreparable hardware version that find failure. ID65 www.zcsazzurro.com, otherwise upgrade to The bus voltage is too...
  • Page 138 The AC frequency is too Over-frequency high. ID82 The 1PH HYD3000-HYD6000-ZSS inverter Derating of remote Remote power derating receives a remote signal to decrease its power power. ID83 Remote shutdown of The 1PH HYD3000-HYD6000-ZSS inverter Remote off HYD inverters receives a remote signal to shutdown. ID84 For example, if the DOD is set at 30%, when the DOD is below 70%, ID85 will appear in...
  • Page 139 Wi-Fi fault The Wi-Fi is in error Contact Technical Support ID99 Battery discharge ID100-ID103 are battery errors. If the alarm BatOCD overcurrent protection occurs occasionally, wait a few moments to see if the problem has been resolved. ID100 Short-circuit discharge BatSCD protection ID101...

  • Page 140: Maintenance

    9.1. Maintenance Inverters generally do not require daily or routine maintenance. In any case, for proper long-term operation of the inverter, make sure that the heatsink for cooling the inverter has enough space to ensure adequate ventilation and that it is not obstructed by dust or other items. Use an air compressor, a soft dry cloth or a soft-bristled brush to clean the inverter.

  • Page 141: Uninstalling

    Store the inverter in a dry place where the ambient temperature is between -25 and +60°C. 10.4. Disposal Zucchetti Centro Sistemi S.p.a. is not liable for the disposal of the equipment, or parts thereof, that does not take place according to the regulations and standards in force in the country of installation.

  • Page 142: Monitoring Systems

    Monitoring systems ZCS monitoring Product code Product photo Portal Possibility to send commands and to monitoring monitoring update the inverter remotely in case of technical support ZSM-WIFI ZSM-ETH ZSM-4G Datalogger 4- 10 Inverters Datalogger up to 31 Inverters 141/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev.

  • Page 143: External Wi-Fi Adapter

    11.1. External Wi-Fi adapter Unlike the internal Wi-Fi card, the external adapter must be installed for all compatible inverters. However, 11.1.1. Installation the procedure is quicker and easier as there is no need to open the front cover of the inverter. In order to monitor the inverter, the RS485 communication address must be set to 01 directly from the display.

  • Page 144: Configuration

    Figure 74 – Inserting and securing the external Wi-Fi adapter 4) Switch on the inverter by following the procedure described in the manual. Configuration of the Wi-Fi adapter requires the presence of a Wi-Fi network near the inverter in order to 11.1.2.
  • Page 145 Figure 75 - Search for Wi-Fi networks on iOS smartphone (left) and Android smartphone (right) Note: Disconnect from any Wi-Fi networks to which you are connected by removing automatic access. Figure 76 – Disabling automatic reconnection to a network 2) Connect to a Wi-Fi network generated by the inverter's Wi-Fi adapter (i.e. AP_*******, where ******* indicates the serial number of the Wi-Fi adapter shown on the label of the device), which operates as an access point.
  • Page 146 Figure 77 - Connection to Access Point for Wi-Fi adapter on iOS smartphone (left) and Android smartphone (right) 3) If you are using a second-generation Wi-Fi adapter, you will be prompted for a password to connect to the inverter's Wi-Fi network. Use the password found on the box or on the Wi-Fi adapter. Figure 78 –...
  • Page 147 Figure 79 – Password entry prompt Note: the Access Point is not able to provide internet access; confirm to maintain the Wi-Fi connection, even if the internet is not available Figure 80 – Screen indicating that the Internet cannot be accessed 4) Open a browser (Google Chrome, Safari, Firefox) and enter the IP address 10.10.100.254 in the address bar at the top of the screen.
  • Page 148 Figure 81 – Screen for accessing the web server to configure the Wi-Fi adapter 5) The status screen will open, showing the logger information such as the serial number and firmware version. Check that the Inverter Information fields are filled in with the inverter information. The language of the page can be changed using the command in the top right-hand corner.
  • Page 149 Figure 82 – Status screen 6) Click on the Wizard setup button in the left-hand column. 7) In the new screen that opens, select the Wi-Fi network to which you want to connect the Wi-Fi adapter, making sure that the Received Signal Strength Indicator (RSSI) is greater than 30%. If the network is not visible, press the Refresh button.
  • Page 150 Figure 83 – Screen for selecting the available wireless network (1) 8) Enter the password of the Wi-Fi network (Wi-Fi modem), clicking on Show Password to make sure it is correct; the password should not contain special characters (&, #, %) and spaces. Note: During this step, the system is not able to ensure that the password entered is the one actually requested by the modem, therefore please make sure you enter the correct password.
  • Page 151 Figure 84 – Screen for entering the password of the wireless network (2) 9) Click “Next” again without ticking any of the options relating to the system security. Figure 85 - Screen for setting the security options (3) 150/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev.
  • Page 152 10) Click “OK”. Figure 86 – Final configuration screen (4) 11) At this point, if the configuration of the adapter is successful, the last configuration screen will appear, and the telephone or PC will unpair from the inverter’s Wi-Fi network. 12) Manually close the web page with the Close key on the PC por remove it from the background of the telephone.

  • Page 153: Verification

    To verify the correct configuration, connect to it again and access the status page. Check the following 11.1.3. Verification information: a. Wireless STA mode i. Router SSID > Router name ii. Signal Quality > other than 0% iii. IP address > other than 0.0.0.0 b.
  • Page 154 2) Final status: NET (left LED): steady on COM (central LED): steady on READY (right LED): flashing on If the NET LED does not light up or if the Remote Server A option in the Status page still shows “Not Figure 91 - Final status of LEDs Connected”, the configuration was not successful, i.e.

  • Page 155: Troubleshooting

    11.1.4. Troubleshooting Status of LEDs present on the adapter 1) Irregular communication with inverter NET (left LED): steady on COM (central LED ): off READY (right LED): flashing on Figure 93 - Irregular communication status between inverter and Wi-Fi Check the Modbus address set on the inverter: Enter the main menu with the ESC key (first key on the left), go to System Info and press ENTER to enter the submenu.
  • Page 156 Restart the adapter: Press the reset button for 5 seconds and release After a few seconds, the LEDs will turn off and will start to flash quickly • The adapter will now be reset without having lost the configuration with the router •...
  • Page 157 a) Check that the 3G/LTE connection is active on your smartphone. Go to the Settings menu of the • Using an Android mobile phone as a modem the phone), operating system (the gear icon on the screen with a list of all the apps installed on select “Other”...
  • Page 158 Figure 97 - Configuration of an iOS smartphone as a hotspot router At this point, it is necessary to re-configure the Wi-Fi adapter using a PC or smartphone other than the one used as a modem. During this procedure, when asked to select the Wi-Fi network, choose the one activated by the smartphone and then enter the password associated with it (which can be changed from the personal hotspot settings).

  • Page 159: Ethernet Adapter

    11.2. Ethernet adapter Installation must be carried out for all inverters compatible with the adapter. However, the procedure is 11.2.1. Installation quicker easier there need open front cover inverter. Proper operation of the device requires the presence of a modem correctly connected to the network and in operation in order to achieve stable data transmission from the inverter to the server.
  • Page 160 3) Remove the ring nut and the waterproof cable gland from the adapter to allow the network cable to pass through; then insert the network cable network into the appropriate port on the inside of the adapter and tighten the ring nut and cable gland to ensure a stable connection. Figure 99 –...

  • Page 161: Verification

    5) Connect the other end of the network cable to the ETH output (or equivalent) of the modem or a suitable data transmission device. Figure 101 – Connecting the network cable to the modem 6) Switch on the inverter by following the procedure described in the manual. 7) Unlike Wi-Fi cards, the Ethernet adapter does not need to be configured and starts transmitting data shortly after the inverter is switched on.

  • Page 162: Troubleshooting

    Figure 102 - Initial status of LEDs 2) Final status: NET (left LED): steady on COM (central LED): steady on SER (right LED): flashing on Figure 103 - Final status of LEDs 11.2.3. Troubleshooting Status of LEDs present on the adapter Irregular communication with inverter NET (left LED): steady on COM (central LED ): off...
  • Page 163 Figure 104 - Irregular communication status between the inverter and adapter Check the Modbus address set on the inverter: Enter the main menu with the ESC key (first key on the left), go to System Info and press ENTER to enter the submenu.

  • Page 164: Adapter

    Check that the router has access to the network and that the connection is stable; check that a PC can access the Internet Check that port 80 of the router is open and enabled to send data. It is advisable to check the brand and model of the home router you are trying to connect to the Ethernet adapter;...
  • Page 165 6) Insert the 4G adapter into the appropriate port, making sure to follow the direction of the connection and Figure 106 – Port of the 4G adapter ensure correct contact between the two parts. Secure the 4G adapter by tightening the two screws inside the package.

  • Page 166: Verification

    7) Switch on the inverter by following the procedure described in the manual. 8) Unlike Wi-Fi cards, the 4G adapter does not need to be configured and starts transmitting data shortly after the inverter is switched on. After installing the adapter, within the next 3 minutes check the status of the LEDs on the device to ensure 11.3.2.
  • Page 167 Figure 109 - Final status of LEDs 1) Irregular communication with inverter Status of LEDs present on the adapter NET (left LED): on COM (central LED ): off SER (right LED): on Check the Modbus address set on the inverter: Figure 110 - Irregular communication status between inverter and adapter Enter the main menu with the ESC key (first key on the left), go to System Info and press ENTER to enter the submenu.
  • Page 168 2) Irregular communication with remote server: NET (left LED): flashing on COM (central LED): on SER (right LED): flashing on Figure 111 - Irregular communication status between the adapter and remote server Check that the 4G signal is present in the installation location (the adapter uses the Vodafone network for 4G transmission;...

  • Page 169: Datalogger

    11.4. Datalogger ZCS monitoring Product code Product photo Portal Possibility to send commands and to monitoring monitoring update the inverter remotely in case of technical support ZSM-WIFI ZSM-ETH ZSM-4G Datalogger 4- 10 Inverters Datalogger up to 31 Inverters 168/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev.

  • Page 170: Preliminary Notes On How To Configure The Datalogger

    The AzzurroZCS inverters can be monitored via a datalogger connected to a Wi-Fi network present at the 11.4.1. Preliminary notes on how to configure the datalogger place of installation or via an ethernet cable connected to a modem. The inverters are connected in a daisy chain to the datalogger via a RS485 serial line. Datalogger up to 4 inverters (code ZSM-DATALOG-04): allows to monitor up to 4 inverters.

  • Page 171: Electrical Connections And Configuration

    All these devices carry out the same function, i.e. they transmit data from the inverters to a web server to allow remote monitoring of the system either through the “Azzurro System” app or through the “www.zcsazzurroportal.com” website. All the Azzurro ZCS inverters can be monitored using the datalogger; different models or families of inverters can also be monitored.
  • Page 172 Some inverters have both an RS485 terminal block and RJ45 plugs. This is shown in detail in the figure below. Figure 115 – Tightening the network cable to the RS485 terminal block For the 3PH HYD5000-HYD20000-ZSS three-phase hybrid inverter, use only one positive and one negative of Figure 116 –...
  • Page 173 For the 3PH HYD5000-HYD20000-ZSS three-phase hybrid inverter and the 3000-6000 TLM-V3 photovoltaic inverter, use only one positive and one negative of those shown in the figure below. Figure 117b – Connecting the serial line via the communication connector for 1PH 3000-6000 TLM-V3, 3PH HYD5000- HYD20000-ZSS For the 1PH HYD3000-HYD6000-ZSS-HP single-phase hybrid inverter, use only one positive and one negative of those shown in the figure below.
  • Page 174 c. Position the dip switches of the last inverter of the daisy chain as shown in the figure below for activating the 120 Ohm resistor and closing the communication chain. If there are no switches, physically connect a 120 Ohm resistor to terminate the bus. Figure 118 –...

  • Page 175: Zsm-Datalog-04 And Zsm-Datalog-10 Devices

    11.4.3. ZSM-DATALOG-04 AND ZSM-DATALOG-10 DEVICES The initial status of the LEDs on the datalogger will be: POWER steady on 485 steady on • LINK off • STATUS steady on • • To configure the datalogger via Wi-Fi, please refer to the chapter on monitoring systems, as the configuration 11.4.4.
  • Page 176 Figure 121 - Wi-Fi network search on iOS smartphone (left) and Android (right) Note: Disconnect from any Wi-Fi networks to which you are connected by removing automatic access. Figure 122 - Disabling automatic reconnection to a network Connect to a Wi-Fi network generated by the datalogger (i.e. AP_*******, where ******* indicates the serial number of the datalogger shown on the label of the device), which operates as an Access Point.
  • Page 177 Figure 123 - Password entry prompt Note: the Access Point is not able to provide internet access; confirm to maintain the Wi-Fi connection, even if internet is not available. Figure 124 - Screen showing that the Internet cannot be accessed 176/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev.
  • Page 178 Open a browser (Google Chrome, Safari, Firefox) and enter the IP address 10.10.100.254 in the address bar at the top of the screen. In the box that appears, enter “admin” as both Username and Password. Figure 125 - Screen for logging into the web server to configure the datalogger The status screen will open, showing the datalogger information such as serial number and firmware version.
  • Page 179 Figure 126 – Status Screen Click on the Wizard setup button in the left-hand column. Now click on the Start button to start the configuration wizard. 178/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...
  • Page 180 Figure 127 – Screen for starting (1) the Setup Wizard Check the “Cable Connection” option and then click “Next.” Figure 128 - Network cable connection selection screen Make sure that the “Enable” option is selected to automatically obtain the IP address from your router, then click Next.
  • Page 181 Figure 129 – Screen for automatically obtaining the IP address (5) Click on Next without making any changes. Complete the configuration procedure by clicking OK, as shown in the following screen. Figure 130 - Screen for setting the security options (6) 180/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev.
  • Page 182 Figure 131 – Final configuration screen (7) If the configuration procedure is successful, the following screen will appear. If this screen does not appear, try refreshing the browser page. The screen will prompt you to manually close the page; close the page from the background of your phone or from the close button on your PC.

  • Page 183: Checking That The Datalogger Has Been Configured Correctly

    11.4.6. Checking that the datalogger has been configured correctly Wait two minutes after completing the configuration of the device. First of all, check that the LINK LED on the device is on and steady. Enter the IP address 10.10.100.254 again, and the login credentials (“admin” for both username and Figure 133 –...
  • Page 184 Figure 134 – Main status screen and checking of correct configuration If the Remote Server A item in the Status page is still “Unpingable”, the configuration was not successful, i.e. Figure 135 - main status screen and checking of correct configuration the incorrect router password was entered or the device was disconnected during connection.
  • Page 185 Close the web page and enter the Status page again. At this point, the configuration procedure can be repeated again. Figure 136 – Reset Screen 184/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...

  • Page 186: Zsm-Rms001/M200 And Zsm-Rms001/M1000 Devices

    11.4.7. ZSM-RMS001/M200 and ZSM-RMS001/M1000 Devices Mechanical Dimensions: 127mm x 134 x 52 mm 11.4.7.1. Mechanical description and Datalogger interface Protection rating: IP20 The usable ports are indicated below. LAN cable connection port RS485 cable connection port Battery pack Power supply connection port connection port Figure 137: Datalogger rear panel...

  • Page 187: Connecting The Datalogger To The Inverters

    A serial communication via RS485 cable is provided for connecting to the inverters. 11.4.7.2. Connecting the Datalogger to the inverters The GND cable does not need to be connected to the inverters. Follow the connections as shown in the table below.

  • Page 188: Connecting The Lm2-485 Pro Cell Irradiance And Temperature Sensor To The Datalogger

    11.4.7.5. Connecting the LM2-485 PRO cell irradiance and For proper installation, make sure to connect the sensor signal cable and the power cable. temperature sensor to the datalogger In particular, the sensor of the signal cables must be connected in a daisy chain configuration to the remaining devices on the RS485 bus, as shown in the table below.

  • Page 189: Configuring The Datalogger

    A stable communication in terms of signal and power supply, up to 200m, is guaranteed by using the RS485 cable, type Te.Co. 15166 (2x2x0,22+1x0,22)st/pu. For longer distances, a connection to the signal side of the datalogger is recommended, and a connection to the +12V power supply via an external power supply unit.
  • Page 190 A window will open where you can search for each type of device connected to the Datalogger, after indicating the range of addresses associated with the relative devices. If a meter is one of the devices connected to the Datalogger, select the type of Meter/Datalogger communication interface and the relative communication protocol.

  • Page 191: Configuring The Datalogger On The Zcs Azzurro Portal

    From this moment, the datalogger is correctly configured (all devices must be in the “saved” status) and therefore a new installation can be created on the ZCS Azzurro portal for associating the datalogger and the devices connected to it. 11.4.8.1. Configuring the Datalogger on the ZCS Azzurro portal Access the ZCS Azzurro portal (https://www.zcsazzurroportal.com).

  • Page 192: Network Configuration

    Enter the serial number (S/N) of the datalogger and click “Check RMS”. If the datalogger has been configured correctly, a screen will open where you can enter the required information relating to the field to be installed. Once the “location” of the field has been entered, click “Calculate Location Information” to allow the system to obtain the latitude, longitude and time zone of the installation.

  • Page 193: Local Monitoring

    To complete the operation, click “Apply” (see arrow). The datalogger makes it possible to obtain an additional monitoring system (local monitoring), which can be 11.4.9. Local monitoring used locally on a web page (therefore, also without an internet connection) and accessed from any device present in the same local network as the datalogger.

  • Page 194: Features Of Local Monitoring

    After installation and configuration, local monitoring makes it possible to monitor the fundamental 11.4.9.2. Features of local monitoring parameters of the photovoltaic system, even without an internet connection, from any device connected to the same local network. In particular, it is possible to monitor the power and energy of the inverters and the storage systems over the last 7 days.

  • Page 195: Warranty Terms And Conditions

    Warranty terms and conditions To view the Warranty Terms and Conditions” offered by ZCS Azzurro, please refer to the documentation inside the product box and on the website www.zcsazzurro.com. 194/194 User’s Manual 1PH HYD3000-HYD6000-ZSS Rev. 1.3 12/01/2024 Identification: MD-AL-GI-00 Rev. 1.1 of 16/03/2021 - Application: GID...
