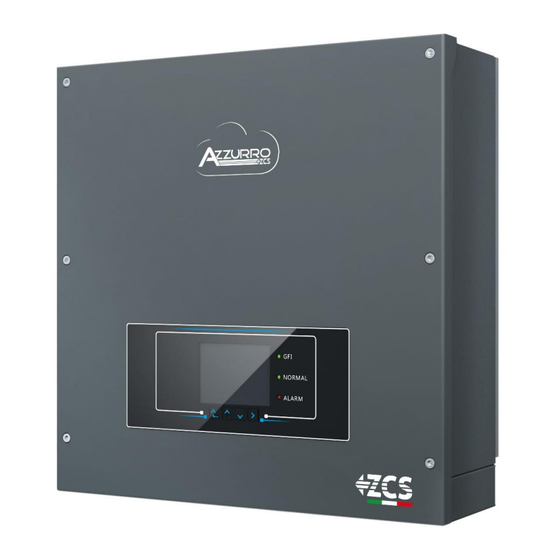

ZUCCHETTI 3PH 3.3K TL-V1 User Manual

Grid-connected inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Grid-connected inverter
Zucchetti Centro Sistemi S.p.A. - Green Innovation Division
Via Lungarno, 248 - 52028 Terranuova Bracciolini - Arezzo, Italy
tel. +39 055 91971 - fax. +39 055 9197515
innovation@zcscompany.com - zcs@pec.it – www.zcsazzurro.com
Reg. Pile IT12110P00002965 - Share Capital € 100,000.00 fully paid up
AR Company Reg. no. 03225010481 - REA AR no. 94189
ISO 9001 Certified Company - Certificate no. 9151 - CNS0 - IT-17778
3PH 3.3K – 12K TL-V1
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3PH 3.3K TL-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for ZUCCHETTI 3PH 3.3K TL-V1

Summary of Contents for ZUCCHETTI 3PH 3.3K TL-V1

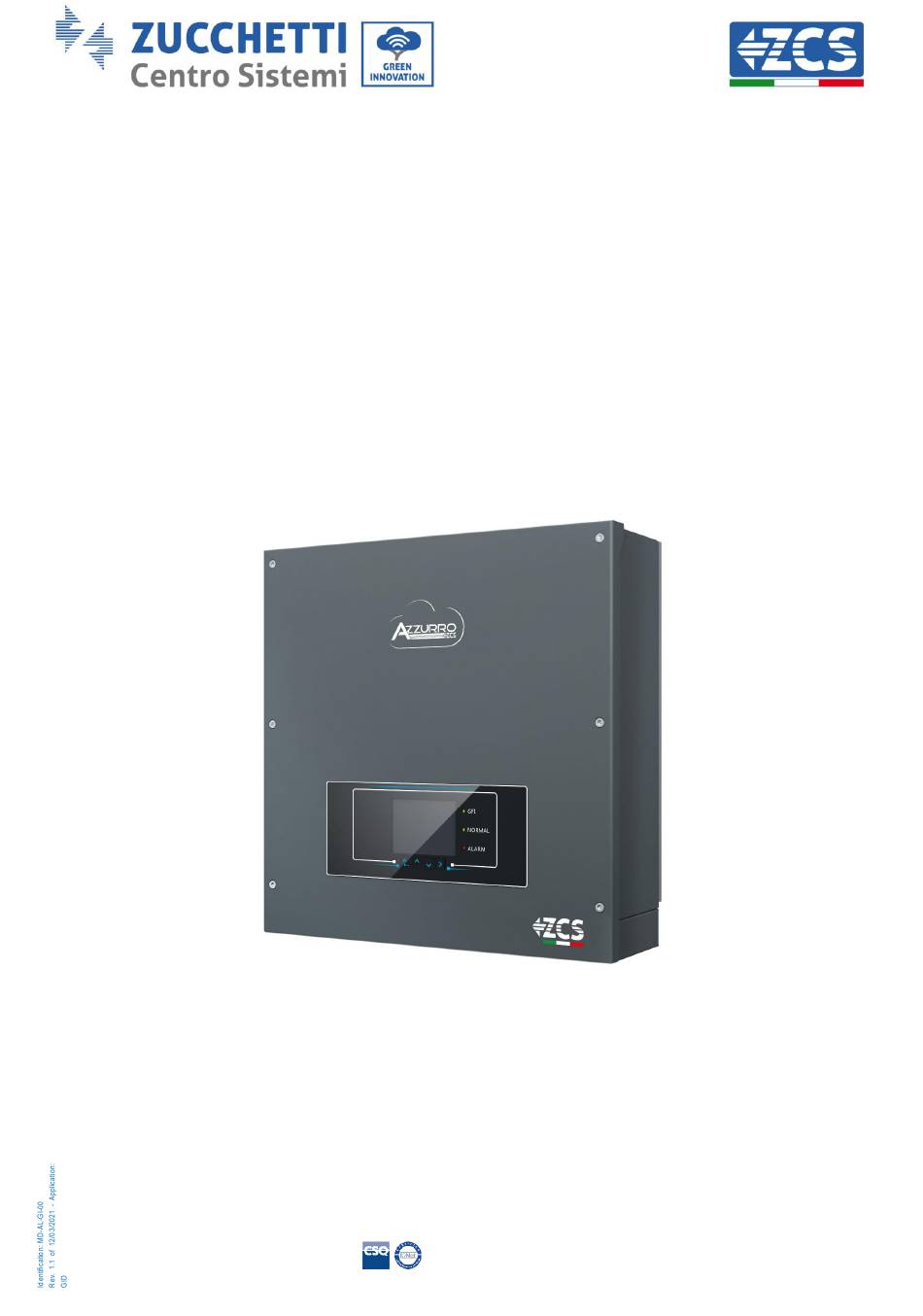

  • Page 1 Grid-connected inverter 3PH 3.3K – 12K TL-V1 User Manual Zucchetti Centro Sistemi S.p.A. - Green Innovation Division Via Lungarno, 248 - 52028 Terranuova Bracciolini - Arezzo, Italy tel. +39 055 91971 - fax. +39 055 9197515 innovation@zcscompany.com - zcs@pec.it – www.zcsazzurro.com Reg.

  • Page 2: Table Of Contents

    Table of Contents Preliminary safety instructions ................................8 1.1. Safety instructions ..................................8 1.2. Symbols and icons .................................. 11 Product features ......................................14 2.1. Product presentation ................................14 2.2. Description of functions ..............................17 2.3. Module protection .................................. 18 2.4. Efficiency curve ..................................19 Installation ........................................
  • Page 3 Troubleshooting and maintenance ..............................66 7.1. Troubleshooting ..................................66 7.2. Maintenance ..................................... 74 Uninstalling ........................................75 8.1. Uninstallation steps ................................75 8.2. Packaging ....................................75 8.3. Storage ......................................75 8.4. Disposal ...................................... 75 Technical specifications ..................................76 Monitoring systems ..................................77 10.1.
  • Page 4 10.4.7.2. Connecting the Datalogger to the inverters....................121 10.4.7.3. Internet connection via Ethernet cable ......................122 10.4.7.4. Connecting the power supply and battery pack to the Datalogger ............122 10.4.7.5. Connecting the LM2-485 PRO cell irradiance and temperature sensor to the datalogger ..123 10.4.8.
  • Page 5 Copyright statement Copyright of this manual belongs to Zucchetti Centro Sistemi S.p.A. No part of this manual (including the software, etc.) may be copied, reproduced or distributed in any form or by any means without the permission of Zucchetti Centro Sistemi S.p.A.
  • Page 6 This manual describes the assembly, installation, electrical connections, commissioning, maintenance and troubleshooting of the following inverters: 3PH 3.3K TL-V1/ 3PH 4.4K TL-V1/ 3PH 5.5K TL-V1 / 3PH 6.6K TL-V1/ 3PH 8.8K TL-V1 / 3PH 11K TL- V1 / 3PH 12K TL-V1 Keep this manual so that it is accessible at all times.
  • Page 7 Caution: indicates a hazardous situation which, if not resolved or avoided, could result in minor or moderate personal injury. Caution Attention: indicates a potentially hazardous situation which, if not resolved or avoided, could result in damage to the system or other property. Attention Note: provides important tips on the correct and optimal operation of the product.

  • Page 8: Preliminary Safety Instructions

    For safety reasons, this inverter can only be installed by a qualified electrician with the necessary training and/or skills and knowledge. Zucchetti Centro Sistemi S.p.A. declines all responsibility for damage to property or personal injury caused by incorrect use of the device.
  • Page 9 If necessary, request assistance from an installer of photovoltaic systems or from Zucchetti Centro Sistemi SpA. Transport of the equipment, especially by road, must be carried out with vehicles suitable to protect the components (in particular, electronic components) against violent knocks, humidity, vibrations, etc.
  • Page 10 Before connecting the mains power, be sure to disconnect the photovoltaic modules by disconnecting all the DC switches of the generator. When exposed to the sun, the photovoltaic panels produce a voltage that can be dangerous! Danger All installation operations must be carried out by a professional electrician, who must: ...

  • Page 11: Symbols And Icons

     Do not disassemble the internal components of the inverter without permission. This will void the warranty. Zucchetti Centro Sistemi S.p.A. shall not be responsible for any damage or loss caused by these actions. Attention 1.2.
  • Page 12 Ensure the correct DC input voltage; which must be below the maximum allowable DC voltage. Overvoltage can cause permanent damage to the inverter or other faults which are not covered by the warranty! Warning Symbols on the inverter Some safety symbols are located on the inverter. Read and understand the contents of the symbols before installing the inverter.
  • Page 13 Degree of protection of the equipment according to the IEC 70-1 standard (EN 60529 June 1997). Positive and negative polarities of the input voltage (DC). 13 / 130 User’s Manual 3PH 3.3KTL -12K TL-V1 Rev. 1.1 12/03/2021 Identification: MD-AL-GI-00 Rev. 1.1 of 12/03/2021 - Application: GID...

  • Page 14: Product Features

    2. Product features General information in this chapter Product overview The field of use and overall dimensions of the 3PH 3.3K-12K TL-V1 inverters are indicated in this section. Description of functions It describes how the 3PH 3.3K-12K TL-V1 inverters and their internal operating modules work. Efficiency curve It describes the efficiency curves of the inverter.
  • Page 15 Figure 3 – Wiring diagrams of grid types on which the 3.3K-12KTL-X inverters can be installed Inverter components 1. DC switch 2. DC positive pole connectors 3. DC negative pole connectors 4. Wi-Fi connector 5. RS485 cable entry 6. RS485 cable entry 15 / 130 User’s Manual 3PH 3.3KTL -12K TL-V1 Rev.
  • Page 16 7. Anti-condensation valve 8. AC output terminal  The inverter model must be chosen by a qualified technician who knows the installation conditions, the devices that will be installed outdoors and the possible integration with existing systems.  Optional components of the inverter should be chosen by a qualified technician who is familiar with the installation conditions.

  • Page 17: Description Of Functions

     Labels on the inverter Figure 5 – Do not remove the label on the side of the inverter 2.2. Description of functions The DC voltage generated by the PV modules is filtered through the input board before entering the power board.

  • Page 18: Module Protection

    Inverter functions A. Energy management unit A.1 Feeding reactive power into the grid The inverter is capable of generating reactive power and can then feed it into the grid by setting the Power Factor. The feed-in management can be controlled directly by the grid operator via a dedicated RS485 serial interface.

  • Page 19: Efficiency Curve

    operating limits. D. Internal protection of the inverter device The inverter has all kinds of internal protections to protect the device and internal components when abnormal situations occur on the grid or DC input line. E. Ground fault protection The inverter must be used with photovoltaic modules connected with “floating” connections, i.e. with positive and negative terminals that are not grounded.

  • Page 20: Installation

    3. Installation General information in this chapter This chapter describes how to install the 3.3K-12K TL-V1 inverter. Installation notes:  DO NOT install 3.3K-12K TL-V1 inverters near flammable materials.  DO NOT install 3.3K-12K TL-V1 inverters in an area where flammable or explosive materials are stored.

  • Page 21: Installation Process

    F. Installing the inverter This section describes the steps for installing the inverter on the wall 3.1. Installation process Figure 7 - Installation steps 3.2. Checks before installation Checking the outer packaging Packaging materials and components may be damaged during transport. Therefore, please check the materials of the outer packaging before installing the inverter.

  • Page 22: Installation Tools

    1 mounting bracket 1 Photovoltaic inverter 2 + input terminals 2 - input terminals 2 metal terminals for 2 metal terminals for 6 M8x80 expansion 3 M4 hexagonal screws plugs - DC power cables + DC power cables 1 AC output connector 2 warranty 1 user manual 1 Warranty Registration...
  • Page 23 Wire stripper To prepare the cables for wiring Adjustable spanner (opening To tighten the bolts greater than 32 mm) To screw the inverter to the wall- 2 mm Allen key mounting bracket and to open 5 mm Allen key the front cover of the inverter M5 socket wrench To tighten the bolts To crimp the RJ45 connectors for...
  • Page 24 Cable cutter To cut the power cables Crimping tool To crimp the power cables To check the voltage and current Multi-meter values To mark the wall for better fixing Marker pen precision Measuring tape To measure distances Level To make sure the bracket is level ESD gloves Protective clothing Safety goggles...

  • Page 25: Installation Position

    3.4. Installation position Choose an appropriate installation location for the inverter. Follow the requirements below to determine the installation position. Figure 8 - Requirements or installing a single inverter 25 / 130 User’s Manual 3PH 3.3KTL -12K TL-V1 Rev. 1.1 12/03/2021 Identification: MD-AL-GI-00 Rev.

  • Page 26: Moving The 3Ph 3.3K-12K Tl-V1 Inverter

    Figure 9 - Requirements for installing multiple inverters Note: For safety reasons, ZCS Spa and/or its partners may not carry out any technical repairs or maintenance work, or move the inverter from and to the ground if it is installed at a height of more than 180 cm from the ground.

  • Page 27: Installing The 3Ph 3.3K-12K Tl-V1 Inverter

     To prevent damage and personal injury, hold the inverter firmly when moving, as it is a heavy piece of equipment.  Do not position the inverter with the input/output terminals in contact with other surfaces, as these are not designed to support the weight of the inverter. Always position the inverter horizontally.
  • Page 28 Figure 10 - Steps for mounting the inverter on the wall 28 / 130 User’s Manual 3PH 3.3KTL -12K TL-V1 Rev. 1.1 12/03/2021 Identification: MD-AL-GI-00 Rev. 1.1 of 12/03/2021 - Application: GID...

  • Page 29: Electrical Connections

    4. Electrical connections General information in this chapter This chapter describes the electrical connections of the 3PH 3.3K-12K TL-V1 inverter. Carefully read this section before connecting the cables. NOTE: Before making any electrical connections, ensure that the DC and AC circuit breakers are open. Remember that the accumulated electrical charge remains in the inverter capacitor after the DC and AC circuit breakers have been switched off.

  • Page 30: Electrical Connections

    4.1. Electrical connections Figure 11 – Steps for connecting the cables 4.2. Connecting PNGD cables (grounding) Connect the 3PH 3.3K-12K TL-V1 inverter to the ground electrode using ground protection cables (PGND). The inverter does not have a transformer, therefore the positive and negative polarities of the photovoltaic string do NOT need to be grounded.
  • Page 31 Figure 12 - Connecting the ground terminal Prerequisites: Prepare the PGND cables to be connected (outdoor power cables with a cross-section of 8 mm recommended for grounding purposes); it is recommended to use yellow-green cables for better identification. Procedure: 1) Remove an adequate length of the external insulation layer using a wire stripper, as shown in Figure Note: L2 is approximately 2-3 mm longer than L1 Figure 13 –...

  • Page 32: Connecting The Dc Input Power Cables

    3) Install the crimped OT terminal and flat washer using the M6 screw in the hole located on the inverter heatsink, as shown in the figure; tighten the screw to a torque of 5 Nm using an Allen key. Note: To ensure the anti-corrosion performances of the ground terminals, apply silica gel on them after connecting the ground cable.
  • Page 33 Figure 15 – Y-branch connection cable for solar panels  Check the polarity of the PV string to ensure the correct connection of the cables to the string.  Do not connect the positive or negative polarities of the PV string to the ground. Note Make sure that the following information is observed.
  • Page 34 If the DC voltage has a non-zero value between the positive terminal of the PV  strings and the ground, the PV strings are subject to insulation faults. Fix the fault before connecting the cables. Note Context Cross section (mm / AWG) Outer diameter of cable (mm) Range...
  • Page 35 using a wire stripper, as shown in the figure. Figure 17 – Connecting the DC input power cables (1) Note : L2 is approximately 2 or 3 mm longer than L1. 3) Insert the positive and negative power cables in the corresponding cable glands. 4) Insert the stripped positive and negative power cables in the positive and negative metal terminals respectively, and crimp them using a suitable tool.
  • Page 36 Figure 19 - Connecting the DC input power cables (3) Note: Insert the caps into the unused DC connectors. Removal procedure To remove the positive and negative connectors from the inverter, insert a removal tool into the bayonet coupling and press the tool with adequate force, as shown in the figure below. Before removing the positive and negative connectors, make sure that the inverter’s circuit breaker is switched off.

  • Page 37: Connecting The Ac Output Power Cables

    4.4. Connecting the AC output power cables Connect the inverter to the AC power distribution network or power grid using AC power cables.  Do not use the same AC circuit breaker for multiple inverters.  Do not install loads between the inverter and the AC circuit breaker.
  • Page 38 Figure 21 - Do not connect loads between the inverter and circuit breaker Multi-core copper cables The cross-section of the power line must be sized in order to prevent unwanted disconnections of the inverter from the grid due to high impedance of the cable connecting the inverter to the point of supply.
  • Page 39 The 3.3K-12K TL-V1 inverters are three-phase output inverters that comply fully with the local grid connection requirements and safety standards. The inverters are equipped with AC output connectors with IP66 protection suitable for photovoltaic use; customers must provide their own AC output cable connections. Cable connection procedure 1) Identify the suitable cable section as shown in the table and remove an appropriate length of the protective sheath, as shown in the figure (A: 30~50 mm B: 3~5 mm).

  • Page 40: Connecting The Communication Cables

    Figure 24 - Connecting the AC output cables (3) 4) Secure the clamping cable gland by turning it clockwise; make sure that all the wires are securely connected 5) Connect the AC output connector to the output terminal of the inverter; turn the AC connector in a clockwise direction until the fixing device reaches its intended position, as shown below: Figure 25 - Connecting the AC output cables (4) 4.5.
  • Page 41 Connecting the RS485 communication cables When using the RS485 communication line, the inverter must be connected to the communication equipment (for example, to a data acquisition device or PC terminal). For communication via the RS485 line, it is recommended to use AWG 24 shielded outdoor network cables with an internal resistance of less than or equal to 1.5 ohm/10m and external diameter between 4.5 mm and 7.5 mm.
  • Page 42 White and blue RS485 B Green RS485 B White and brown Brown Figure 28 – Assembling the communication connector 1) Crimp the plug using the RJ45 crimping tool. 2) Insert the plug into the RS485 port on the inverter. 3) Insert the cable seal in the lodging and tighten the nut. Figure 29 –...

  • Page 43: Commissioning The Inverter

    5. Commissioning the inverter 5.1. Safety inspection before commissioning Make sure that the DC and AC voltages fall within the range permitted by the inverter. Attention  Photovoltaic strings Before turning on the inverter, the photovoltaic string must be examined. Check the open-circuit voltage of each photovoltaic panel and compare it with the data in the technical datasheet.

  • Page 44: Starting The Inverter

    If in doubt, consult the system engineer or a qualified electrician. Zucchetti Centro Sistemi S.p.A. shall not be held responsible for any consequences resulting from the incorrect selection of the country code. If the inverter indicates the presence of any faults, refer to related chapter of this manual or contact the Zucchetti Centro Sistemi S.p.A.

  • Page 45: Operating Interface

    6. Operating interface General information in this chapter This section describes the display and its operation, as well as the buttons and LED indicators of the 3PH 3.3K-12K TL-V1 inverters. 6.1. Operating panel and display Buttons and LED indicators Figure 30 - LCD display with buttons and LED indicators Main buttons: ...

  • Page 46: Main Interface

    o Steady: temporary or permanent error o Off: normal operation  GFCI automatic differential circuit breaker indicating light (RED) o Steady: GFCI fault indication (ID12: automatic differential circuit breaker fault or ID20: device fault). o Off: GFCI in operation (automatic differential circuit breaker) normal 6.2.
  • Page 47 A1 – Modbus communication address A2 – RS485 Communication A3 – Steady light for active RS485 communication A4 – Wi-Fi Communication A5 – Flashing light to indicate over-frequency and power derating status. Steady light to indicate remote control A6 – Indicates the energy produced today A7 –...
  • Page 48 Inverter statuses include: Wait: the inverter is waiting for the control status at the end of the reconnection time. In this status, the PV voltage must be higher than 180 V, the grid voltage value must be between the minimum and maximum permissible limits, as should the other grid parameters;...

  • Page 49: Main Menu

    6.3. Main menu Press the “Menu/Back” button in the main interface screen to enter the main menu, which will appear as follows: Press the “OK” key to enter the “Settings” menu. The “Settings” menu contains the following sub-menu:  Date and time Select “1.
  • Page 50  Clear Energy Select “2. Clear Energy” and press “OK” to enter the menu for deleting the energy data and in particular the energy production daily and in total, which is shown in the main interface. Press “OK” to start the procedure; the display will show “Enter PWD!”, press “OK”...
  • Page 51 China General Europe France CEI 0-21 External Table 5 – Country Codes  Enable country Select “6. Enable country” and press “OK” to enter the menu for enabling the selection of the country code. The display will show “Enter PWD!”, press “OK” to enter the password. Enter the password “0001” using the “Up”...
  • Page 52 In the current firmware version (V1.70), the languages available are: Chinese, English, Italian, German, French, Portuguese, Slovak, Ukrainian, and Finnish; future firmware updates may add new languages.  Initial parameters The user can change the start parameters directly from the LCD display. The user must first copy the TXT files to the SD card.
  • Page 53 If the setting is successful, “OK” will be displayed; otherwise, “Error” will be displayed. Attention: do not enter this menu if the microSD card is not inserted in the appropriate slot of the inverter or if the correct TXT files have not been copied to it. ...
  • Page 54  Grounding check Select “17. Check PE Line” and press “OK” to enter the menu for checking the ground line. The display will show “Enter PWD!”, press “OK” to enter the password. Enter the password “0001” using the “Up” and “Down” keys to select the number and “OK”...
  • Page 55 This function can be used if the shading on the panels is extensive, thus reducing their efficiency and productivity. Under optimal conditions, however, this function is not recommended, as it would limit the productivity of the inverter.  P(f) Setting Select “20.
  • Page 56 56 / 130 User’s Manual 3PH 3.3KTL -12K TL-V1 Rev. 1.1 12/03/2021 Identification: MD-AL-GI-00 Rev. 1.1 of 12/03/2021 - Application: GID...
  • Page 57  Standard Self-test 1) During normal operation of the inverter, press the “Back” key to enter the main menu. 2) Press the “OK” key to enter the “Settings” menu. 3) Press the “Down” key several times until “24. Standard Self-Test” is displayed on the screen. 4) Press “OK”...
  • Page 58 58 / 130 User’s Manual 3PH 3.3KTL -12K TL-V1 Rev. 1.1 12/03/2021 Identification: MD-AL-GI-00 Rev. 1.1 of 12/03/2021 - Application: GID...
  • Page 59  Disabled settings The following functions: Remote Control, relating to item “5. Remote Control”  they cannot be used on this model of inverter; access to these submenus is not permitted either by the installer or by the end user. ZCS S.p.A. accepts no responsibility deriving from the activation of one of the settings described above.
  • Page 60 Press the “OK” key to enter the “System Info” menu. The “System Info” menu contains the following submenus:  Inverter type Use the “Up” and “Down” keys in the “System Info” menu to move, and the “OK” key to enter menu “1. Inverter type.”...
  • Page 61 Use the “Up” and “Down” keys in the “System Info” menu to move, and the “OK” key to enter menu “5. Country.” Here you can see the country code that has been set.  Input Use the “Up” and “Down” keys in the “System Info” menu to move, and the “OK” key to enter menu “6. Input.” Here you can see the type of input of the photovoltaic strings.
  • Page 62 Press the “OK” key to enter the “Date and Time” menu. Press the “Back” key in the main interface and the “Up” or “Down” keys to enter the submenu “4. Date and Time”, then press “OK” to display the current date and time set on the inverter. Press the “OK”...
  • Page 63 The complete and detailed procedure for updating the firmware is described below. Update requirements 4 GB MicroSD card MicroSD to SD adapter or MicroSD to USB adapter for inserting the MicroSD card into the PC. Firmware update procedure 1. Switch off the ZCS inverter by first disconnecting the AC power supply via the switch installed on the system, and then disconnecting the DC power supply via the switch located on the side of the inverter (if equipped) or switch off the system’s disconnecting switch.
  • Page 64 5. Extract the MICRO SD CARD from the PC using the “safely remove hardware” procedure. 6. Insert the MICRO SD CARD in the appropriate slot of the inverter. Figure 34 – Positioning and removing the microSD card 7. Only supply DC power to the inverter through the appropriate switch and wait a few seconds for the display to come on.
  • Page 65 code according to the appropriate grid standard (e.g. for Italy: CEI-021 INT, CEI-021 EXT, CEI-016). 14. Switch off the system and restart it after waiting a few minutes, as indicated in step 13. 15. The update procedure has now been completed, and the inverter can now be connected to the AC line by connecting it to the grid;...

  • Page 66: Troubleshooting And Maintenance

    7. Troubleshooting and maintenance 7.1. Troubleshooting This section contains information and procedures on how to troubleshoot any faults and errors that may occur during operation of the 3.3K-12K TL-V1 inverter. If you have any problems with the inverter, please follow these steps. ...
  • Page 67 If the alarm occurs frequently, check whether the grid voltage/frequency is The grid frequency is too ID03 GridOFP within the correct range. If not, contact high. technical support. If so, check the AC circuit breaker and the AC wiring of the inverter.
  • Page 68 mounted in series, making sure that it falls within the input voltage range of the inverter. The inverter automatically returns to its normal operating state after the correct adjustments. Check the configuration of the input The input current is not ID10 IpvUnbalance mode (parallel mode / independent...
  • Page 69 ID22 HwAuxPowerFault Auxiliary voltage error ID23 BusVoltZeroFault Current sampling error. The output current is not ID24 IacRmsUnbalance balanced. If the configuration of the PV string is correct (no ID05 fault present), the possible cause is that the solar radiation The bus voltage is too ID25 BusUVP is too low.
  • Page 70 wiring; if both are correct, contact Technical Support. ID33 Reserved Reserved Reserved The grid voltage sampling value between ID49 ConsistentFault_VGrid the master DSP and slave DSP is not suitable. The grid frequency sampling value between ID50 ConsistentFault_FGrid the master DSP and slave DSP is not suitable.
  • Page 71 The temperature of the ID57 OverTempFault_Inv Check that the installation position and inverter is too high the installation method meet the requirements of relative sectionof this user manual. The temperature of the ID58 OverTempFault inverter is too high. Check if the ambient temperature in the installation location exceeds the allowed limit.
  • Page 72 Check the configuration of the input mode (parallel mode / independent mode) of the inverter, as indicated in ID71 UnrecoverPvConfigSetWrong Incorrect input mode relative section (C) “6. Input Mode” of this user manual. If it is not correct, change it according to relative section (A).
  • Page 73 The inverter registers ID 84 in case of remote shutdown operation. Check the The inverter has shut off wiring of the remote input and the port ID84 RemoteOff the motor via remote of the output control signal on the control. communication board, according to relative section of this user manual.

  • Page 74: Maintenance

    ID100 Reserved Reserved 7.2. Maintenance Inverters generally do not require daily or routine maintenance. In any case, for proper long-term operation of the inverter, make sure that the heatsink for cooling the inverter has enough space to ensure adequate ventilation and that it is not obstructed by dust or other items. Cleaning the inverter Use an air compressor, a soft dry cloth or soft-bristled brush to clean the inverter.

  • Page 75: Uninstalling

    8.4. Disposal Zucchetti Centro Sistemi S.p.a. is not liable for the disposal of the equipment, or parts thereof, that does not take place according to the regulations and standards in force in the country of installation. The symbol of the crossed-out wheeled bin indicates that the equipment, at the end of its useful life, must be disposed of separately from household waste.

  • Page 76: Technical Specifications

    9. Technical specifications 76 / 130 User’s Manual 3PH 3.3KTL -12K TL-V1 Rev. 1.1 12/03/2021 Identification: MD-AL-GI-00 Rev. 1.1 of 12/03/2021 - Application: GID...

  • Page 77: Monitoring Systems

    10. Monitoring systems 10.1. External Wi-Fi adapter 10.1.1. Installation Unlike the internal Wi-Fi card, the external adapter must be installed for all compatible inverters. However, the procedure is quicker and easier as there is no need to open the front cover of the inverter. In order to monitor the inverter, the RS485 communication address must be set to 01 directly from the display.
  • Page 78 Figure 35 – Port for external Wi-Fi adapter 3) Connect the Wi-Fi adapter to the appropriate port, making sure to follow the direction of the connection and ensure correct contact between the two parts. Figure 36 – Inserting and securing the external Wi-Fi adapter 78 / 130 User’s Manual 3PH 3.3KTL -12K TL-V1 Rev.

  • Page 79: Configuration

    4) Switch on the inverter by following the procedure described in the manual. 10.1.2. Configuration Configuration of the Wi-Fi adapter requires the presence of a Wi-Fi network near the inverter in order to achieve stable transmission of data from the inverter adapter to the Wi-Fi modem. Tools required for configuration: ...
  • Page 80 Note: Disconnect from any Wi-Fi networks to which you are connected by removing automatic access. Figure 38 – Disabling automatic reconnection to a network 2) Connect to a Wi-Fi network generated by the inverter's Wi-Fi adapter (i.e. AP_*******, where ******* indicates the serial number of the Wi-Fi adapter shown on the label of the device), which operates as an access point.
  • Page 81 Figure 40 – Password of external Wi-Fi adapter Note: To ensure that the adapter is connected to the PC or smartphone during the configuration procedure, enable automatic reconnection of the AP_******* network. Figure 41 – Password entry prompt 81 / 130 User’s Manual 3PH 3.3KTL -12K TL-V1 Rev.
  • Page 82 Note: the Access Point is not able to provide internet access; confirm to maintain the Wi-Fi connection, even if the internet is not available Figure 42 – Screen indicating that the Internet cannot be accessed 4) Open a browser (Google Chrome, Safari, Firefox) and enter the IP address 10.10.100.254 in the address bar at the top of the screen.
  • Page 83 Figure 43 – Screen for accessing the web server to configure the Wi-Fi adapter 5) The status screen will open, showing the logger information such as the serial number and firmware version. Check that the Inverter Information fields are filled in with the inverter information. The language of the page can be changed using the command in the top right-hand corner.
  • Page 84 Figure 44 – Status screen 6) Click on the Wizard setup button in the left-hand column. 7) In the new screen that opens, select the Wi-Fi network to which you want to connect the Wi-Fi adapter, making sure that the Received Signal Strength Indicator (RSSI) is greater than 30%. If the network is not visible, press the Refresh button.
  • Page 85 Figure 45 – Screen for selecting the available wireless network (1) 8) Enter the password of the Wi-Fi network (Wi-Fi modem), clicking on Show Password to make sure it is correct; the password should not contain special characters (&, #, %) and spaces. Note: During this step, the system is not able to ensure that the password entered is the one actually requested by the modem, therefore please make sure you enter the correct password.
  • Page 86 Figure 46 – Screen for entering the password of the wireless network (2) 9) Click “Next” again without ticking any of the options relating to the system security. Figure 47 - Screen for setting the security options (3) 86 / 130 User’s Manual 3PH 3.3KTL -12K TL-V1 Rev.
  • Page 87 10) Click “OK”. Figure 48 – Final configuration screen (4) 11) At this point, if the configuration of the adapter is successful, the last configuration screen will appear, and the telephone or PC will unpair from the inverter’s Wi-Fi network. 12) Manually close the web page with the Close key on the PC por remove it from the background of the telephone.

  • Page 88: Verification

    Figure 49 - Successful configuration screen 10.1.3. Verification Wait two minutes after configuring the adapter and then go back to the Wi-Fi network selection screen to verify that the AP_******* network is no longer present. The absence of the Wi-Fi network in the list will confirm the successful configuration of the Wi-Fi adapter.
  • Page 89 If the Wi-Fi network is still present in the list, connect to it again and enter the status page. Check the following information: a. Wireless STA mode i. Router SSID > Router name ii. Signal Quality > other than 0% iii.
  • Page 90 Figure 52 - Initial status of LEDs 2) Final status: NET (left LED): steady on COM (central LED): steady on READY (right LED): flashing on Figure 53 - Final status of LEDs If the NET LED does not light up or if the Remote Server A option in the Status page still shows “Not Connected”, the configuration was not successful, i.e.

  • Page 91: Troubleshooting

    It is necessary to reset the adapter: Press the Reset button for 10 seconds and release After a few seconds, the LEDs will turn off and READY will start to flash quickly The adapter has now returned to its initial state. At this point, the configuration procedure can be repeated again.
  • Page 92 Figure 55 - Irregular communication status between inverter and Wi-Fi Check the Modbus address set on the inverter: Enter the main menu with the ESC key (first key on the left), go to System Info and press ENTER to enter the submenu. Scroll down to the Modbus address parameter and make sure it is set to 01 (and in any case, other than 00).
  • Page 93 2) Irregular communication with remote server NET (left LED ): off COM (central LED): on READY (right LED): flashing on Figure 57 - Irregular communication status between Wi-Fi and remote server Check that the configuration procedure has been carried out correctly and that the correct network password has been entered.
  • Page 94  Using an Android mobile phone as a modem a) Check that the 3G/LTE connection is active on your smartphone. Go to the Settings menu of the the phone), operating system (the gear icon on the screen with a list of all the apps installed on select “Other”...
  • Page 95 Figure 59 - Configuration of an iOS smartphone as a hotspot router At this point, it is necessary to re-configure the Wi-Fi adapter using a PC or smartphone other than the one used as a modem. During this procedure, when asked to select the Wi-Fi network, choose the one activated by the smartphone and then enter the password associated with it (which can be changed from the personal hotspot settings).

  • Page 96: Ethernet Adapter

    10.2. Ethernet adapter 10.2.1. Installation Installation must be carried out for all inverters compatible with the adapter. However, the procedure is quicker easier there need open front cover inverter. Proper operation of the device requires the presence of a modem correctly connected to the network and in operation in order to achieve stable data transmission from the inverter to the server.
  • Page 97 3) Remove the ring nut and the waterproof cable gland from the adapter to allow the network cable to pass through; then insert the network cable network into the appropriate port on the inside of the adapter and tighten the ring nut and cable gland to ensure a stable connection. Figure 61 –...

  • Page 98: Verification

    5) Connect the other end of the network cable to the ETH output (or equivalent) of the modem or a suitable data transmission device. Figure 63 – Connecting the network cable to the modem 6) Switch on the inverter by following the procedure described in the manual. 7) Unlike Wi-Fi cards, the Ethernet adapter does not need to be configured and starts transmitting data shortly after the inverter is switched on.
  • Page 99 Figure 64 - Initial status of LEDs 2) Final status: NET (left LED): steady on COM (central LED): steady on SER (right LED): flashing on Figure 65 - Final status of LEDs 99 / 130 User’s Manual 3PH 3.3KTL -12K TL-V1 Rev.

  • Page 100: Troubleshooting

    10.2.3. Troubleshooting Status of LEDs present on the adapter Irregular communication with inverter NET (left LED): steady on COM (central LED ): off SER (right LED): flashing on Figure 66 - Irregular communication status between the inverter and adapter Check the Modbus address set on the inverter: Enter the main menu with the ESC key (first key on the left), go to System Info and press ENTER to enter the submenu.

  • Page 101: Adapter

    Figure 67 - Irregular communication status between the adapter and remote server Check that the router has access to the network and that the connection is stable; check that a PC can access the Internet Check that port 80 of the router is open and enabled to send data. It is advisable to check the brand and model of the home router you are trying to connect to the Ethernet adapter;...
  • Page 102 Installation tools:  Cross screwdriver  4G adapter 1) Switch off the inverter following the procedure described in this manual. 2) Remove the cover for accessing the Wi-Fi/ GPRS connector on the bottom of the inverter by unscrewing the two cross-head screws (a), or by unscrewing the cover (b), depending on the inverter model, as shown in the figure.
  • Page 103 Figure 69 – Inserting and securing the 4G adapter 4) Switch on the inverter by following the procedure described in the manual. 5) Unlike Wi-Fi cards, the 4G adapter does not need to be configured and starts transmitting data shortly after the inverter is switched on.

  • Page 104: Verification

    10.3.2. Verification After installing the adapter, within the next 3 minutes check the status of the LEDs on the device to ensure that the device is configured correctly. Status of LEDs present on the adapter 1) Initial status: NET (left LED ): off COM (central LED): flashing on SER (right LED): flashing on Figure 70 - Initial status of LEDs...
  • Page 105 Figure 71 - Final status of LEDs Status of LEDs present on the adapter 1) Irregular communication with inverter NET (left LED): on COM (central LED ): off SER (right LED): on Figure 72 - Irregular communication status between inverter and adapter Check the Modbus address set on the inverter: Enter the main menu with the ESC key (first key on the left), go to System Info and press ENTER to enter the submenu.
  • Page 106 Check that the 4G adapter is correctly and securely connected to the inverter, making sure to tighten the two cross-head screws provided. 2) Irregular communication with remote server: NET (left LED): flashing on COM (central LED): on SER (right LED): flashing on Figure 73 - Irregular communication status between the adapter and remote server Check that the 4G signal is present in the installation location (the adapter uses the Vodafone network for 4G transmission;...

  • Page 107: Datalogger

    10.4. Datalogger 10.4.1. Preliminary notes on how to configure the datalogger The AzzurroZCS inverters can be monitored via a datalogger connected to a Wi-Fi network present at the place of installation or via an ethernet cable connected to a modem. The inverters are connected in a daisy chain to the datalogger via a RS485 serial line.

  • Page 108: Electrical Connections And Configuration

    All these devices carry out the same function, i.e. they transmit data from the inverters to a web server to allow remote monitoring of the system either through the “Azzurro Monitoring” app or through the “www.zcsazzurroportal.com” website. All the Azzurro ZCS inverters can be monitored using the datalogger; different models or families of inverters can also be monitored.
  • Page 109 Figure 77 – Tightening the network cable to the RS485 terminal block Figure 78 – Connecting the serial line via the RS485 terminal block and via the RJ45 plug For the 3PH HYD5000-HYD20000-ZSS three-phase hybrid inverter, use only one positive and one negative of those shown in the figure below.
  • Page 110 c. Position the dip switches of the last inverter of the daisy chain as shown in the figure below for activating the 120 Ohm resistor and closing the communication chain. If there are no switches, physically connect a 120 Ohm resistor to terminate the bus. Figure 80 –...

  • Page 111: Zsm-Datalog-04 And Zsm-Datalog-10 Devices

    10.4.3. ZSM-DATALOG-04 AND ZSM-DATALOG-10 DEVICES The initial status of the LEDs on the datalogger will be:  POWER steady on  485 steady on  LINK off  STATUS steady on 10.4.4. WI-FI CONFIGURATION To configure the datalogger via Wi-Fi, please refer to the chapter on monitoring systems, as the configuration is similar to that of any type of Wi-Fi adapter.
  • Page 112 Figure 83 - Wi-Fi network search on iOS smartphone (left) and Android (right) Note: Disconnect from any Wi-Fi networks to which you are connected by removing automatic access. Figure 84 - Disabling automatic reconnection to a network Connect to a Wi-Fi network generated by the datalogger (i.e. AP_*******, where ******* indicates the serial number of the datalogger shown on the label of the device), which operates as an Access Point.
  • Page 113 Figure 85 - Password entry prompt Note: the Access Point is not able to provide internet access; confirm to maintain the Wi-Fi connection, even if internet is not available. Figure 86 - Screen showing that the Internet cannot be accessed Open a browser (Google Chrome, Safari, Firefox) and enter the IP address 10.10.100.254 in the address bar at the top of the screen.
  • Page 114 Figure 87 - Screen for logging into the web server to configure the datalogger The status screen will open, showing the datalogger information such as serial number and firmware version. Check that the fields relating to the Inverter Information are filled in with the information of all the inverters connected.
  • Page 115 Click on the Wizard setup button in the left-hand column. Now click on the Start button to start the configuration wizard. Figure 89 – Screen for starting (1) the Setup Wizard Check the “Cable Connection” option and then click “Next.” Figure 90 - Network cable connection selection screen 115 / 130 User’s Manual 3PH 3.3KTL -12K TL-V1...
  • Page 116 Make sure that the “Enable” option is selected to automatically obtain the IP address from your router, then click Next. Figure 91 – Screen for automatically obtaining the IP address (5) Click on Next without making any changes. Figure 92 - Screen for setting the security options (6) 116 / 130 User’s Manual 3PH 3.3KTL -12K TL-V1 Rev.
  • Page 117 Complete the configuration procedure by clicking OK, as shown in the following screen. Figure 93 – Final configuration screen (7) If the configuration procedure is successful, the following screen will appear. If this screen does not appear, try refreshing the browser page. The screen will prompt you to manually close the page;...

  • Page 118: Checking That The Datalogger Has Been Configured Correctly

    10.4.6. Checking that the datalogger has been configured correctly Wait two minutes after completing the configuration of the device. First of all, check that the LINK LED on the device is on and steady. Figure 95 – LED indicating the correct configuration of the datalogger Enter the IP address 10.10.100.254 again, and the login credentials (“admin”...
  • Page 119 Figure 96 – Main status screen and checking of correct configuration Figure 97 - main status screen and checking of correct configuration If the Remote Server A item in the Status page is still “Unpingable”, the configuration was not successful, i.e. the incorrect router password was entered or the device was disconnected during connection.
  • Page 120 Figure 98 – Reset Screen 120 / 130 User’s Manual 3PH 3.3KTL -12K TL-V1 Rev. 1.1 12/03/2021 Identification: MD-AL-GI-00 Rev. 1.1 of 12/03/2021 - Application: GID...

  • Page 121: Zsm-Rms001/M200 And Zsm-Rms001/M1000 Devices

    10.4.7. ZSM-RMS001/M200 and ZSM-RMS001/M1000 Devices 10.4.7.1. Mechanical description and Datalogger interface Mechanical Dimensions: 127mm x 134 x 52 mm Protection rating: IP20 The usable ports are indicated below. LAN cable connection port RS485 cable connection port Battery pack Power supply connection port connection port Figure 99: Datalogger rear panel...

  • Page 122: Internet Connection Via Ethernet Cable

    The GND cable does not need to be connected to the inverters. Follow the connections as shown in the table below. SENSOR SIDE Datalogger SIDE BUS Signal Inverter SIDE (ZSM-IRR-TEMP-LM2) RS485+IB terminal +Tx terminal D+ terminal RS485-IA terminal -Tx terminal D–...

  • Page 123: Connecting The Lm2-485 Pro Cell Irradiance And Temperature Sensor To The Datalogger

    10.4.7.5. Connecting the LM2-485 PRO cell irradiance and temperature sensor to the datalogger For proper installation, make sure to connect the sensor signal cable and the power cable. In particular, the sensor of the signal cables must be connected in a daisy chain configuration to the remaining devices on the RS485 bus, as shown in the table below.

  • Page 124: Configuring The Datalogger

    (12Vdc output voltage) Terminal GND terminal BLACK 0V Terminal (GND/RTN) V2 terminal (12Vdc driveable voltage) Table 4: Electrical connection of the sensor to the datalogger (power supply) A stable communication in terms of signal and power supply, up to 200m, is guaranteed by using the RS485 cable, type Te.Co.
  • Page 125 In the configuration page, you can search for any devices connected to the datalogger (inverter, meter or sensors) by clicking the + button, as shown in the figure. A window will open where you can search for each type of device connected to the Datalogger, after indicating the range of addresses associated with the relative devices.

  • Page 126: Configuring The Datalogger On The Zcs Azzurro Portal

    Once this operation has been completed, update the new configuration by clicking “Confirm,” which will allow you to register the devices associated with the datalogger. From this moment, the datalogger is correctly configured (all devices must be in the “saved” status) and therefore a new installation can be created on the ZCS Azzurro portal for associating the datalogger and the devices connected to it.

  • Page 127: Network Configuration

    Access the ZCS Azzurro portal (https://www.zcsazzurroportal.com). For new users, click “Sign up now” to register on the portal by entering your email, username and password. After logging into the portal, click “Configuration Panel”, and then select the option “Create field with Datalogger.” The “Create New Field” operation will be possible only if the user’s privileges allow acquiring new fields (at the time of registration the limit will be equal to 1, an upgrade is required to increase the limit).

  • Page 128: Local Monitoring

    By entering the credentials: username = admin and password = admin, you can change the configuration from dynamic to static by selecting the network window (see blue arrow) and then the “STATIC” option (see green arrow). To complete the operation, click “Apply” (see arrow).

  • Page 129: Requirements For Installation Of Local Monitoring

    10.4.9.1. Requirements for installation of local monitoring In order to install the local monitoring system on the datalogger, the customer must ensure that:  The datalogger is connected to the local network and to the internet (the internet connection is only required during installation and configuration of the local monitoring system).

  • Page 130: Warranty Terms And Conditions

    11. Warranty terms and conditions To view the “Warranty Terms and Conditions” offered by ZCS Azzurro, please refer to the documentation inside the product box and on the website www.zcsazzurro.com. 130 / 130 User’s Manual 3PH 3.3KTL -12K TL-V1 Rev. 1.1 12/03/2021 Identification: MD-AL-GI-00 Rev.

This manual is also suitable for:

3ph 4.4k tl-v13ph 5.5k tl-v13ph 6.6k tl-v13ph 8.8k tl-v13ph 11k tl-v13ph 12k tl-v1

Table of Contents
