8 Saddle Configuration (Step Thru Only)

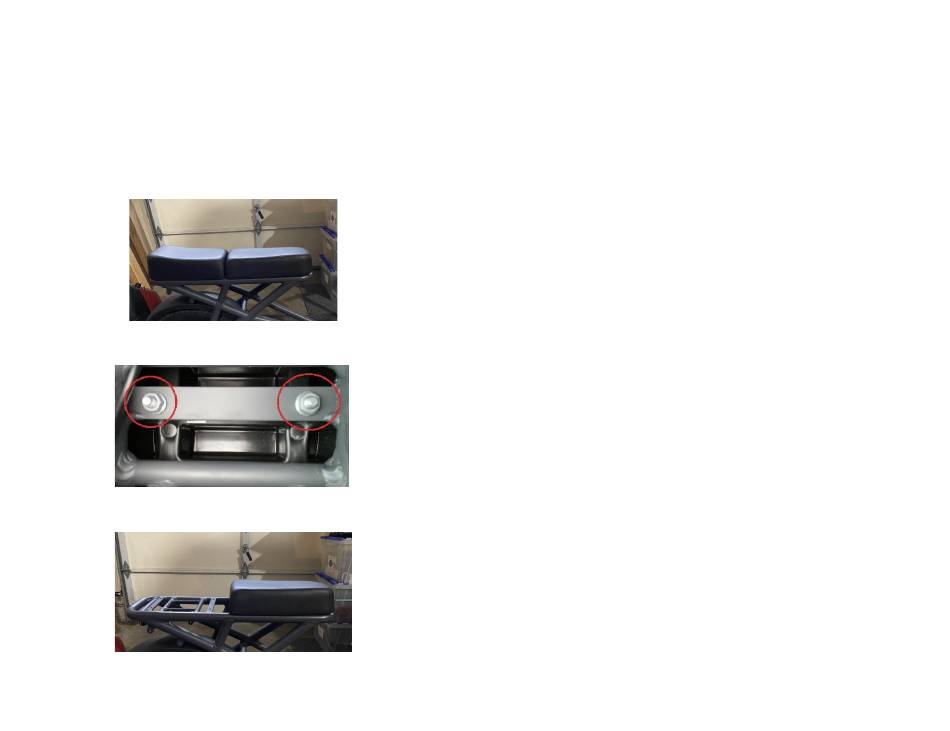

The Valen Rev + Step Thru comes equipped with a 2-piece saddle (Fig. 9). The
back piece can be removed. This allows use of the saddle deck as a rear rack and
has a Thule window that allows use of a Yepp seat if desired.
To remove the back half, undo the 4 10mm nuts on the bottom side of the
saddle (Fig. 10). Once all 4 nuts are removed, the saddle can be lifted off the
frame (Fig. 11).
For installation, simply reverse the process. Torque nuts to 8Nm.
11
Fig. 9
Fig. 10
Fig. 11
Procedure for Charging
Charge the bike battery according to the following procedure:
• When charging the battery by AC (house/wall plug), make sure the bike is
turned off. The power button on the battery is only used if you plan to not
use the battery for 4 weeks or more. It can becharged either in normal mode
or in deep sleep. The button when quick pressed will also indicate the charge
status of the battery via the LED lights.
• Securely insert the charger output plug into the battery, then plug the main
cable of the charger into a reachable AC (wall plug) outlet.
• During charging, the LED on the charger pack will be RED showing charging
is in process. When the light on the charging pack turns GREEN, charging is
complete.
•
Upon full charge (GREEN light), FIRST disconnect the charger pack from the
AC (wall plug); SECOND disconnect the charger output plug from the battery
pack. FINALLY, close the charging socket cover on the battery - make sure it
is securely closed.
Operating temperature for the battery charger is: 14F-104F (-10°C to +40°C). Do
NOT disassemble the battery charger.
Use only the charger provided with your electric bike. Otherwise, damage could
occur to your battery, battery charger, and void the warranty.
When charging, both battery and charger should be minimum 4 in (10cm) away
from the wall, and in a cool, well-ventilated environment. Place nothing around or
on the charger, while in use!
Warranty: Should any original component prove defective in terms of
workmanship within its warranty period, we will replace it. Warranty period for
Retrospec electric bikes is as follows:
Electrical Components excluding Battery: 2 years with proper maintenance
Battery: 1 year
Frame and Fork: 1 year
All other components: 6 months
This warranty does not include labor and transportation charges. The company
cannot accept any responsibility for consequential or special damage. This
warranty applies only to the original retail purchaser who must have a proof of
purchase in order to validate any claim. This warranty applies only in the case of
defective components and does not cover the effects of normal wear, nor damage
caused by accident, abuse,excessive loads, neglect, improper assembly, improper
maintenance, or the addition of any item inconsistentwith the original intended
use of the bicycle. No bicycle is indestructible and no claims can be accepted for
damage caused by improper use, competition use, stunt riding, ramp jumping and
leaping or similar activities. Claims must be submitted through your
retailer. Your statutory rights are not affected. The company reserves the right to
change any specification without notice. All information and specifications within
this manual are correct at time of printing.
