Summary of Contents for Philco PT 213 EMW

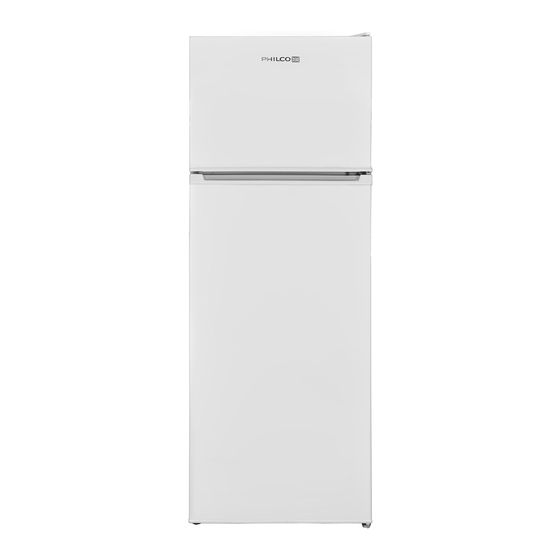

- Page 1 REFRIGERATOR-FREEZER USER’S MANUAL PT 213 EMW PT 213 EMX...
- Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user‘s manual. Icon Type Meaning WARNING Serious injury or death risk RISK OF ELECTRIC SHOCK Dangerous voltage risk FIRE Warning;...
-
Page 3: Table Of Contents
CONTENTS PART 1: SAFETY INFORMATION........................2 1.1 General Safety Warnings................................2 1.2 Installation warnings ................................12 1.3 During Usage ....................................12 PART 2: PROPER USE OF THE REFRIGERATOR.....................14 2.1 Dimensions ....................................15 PART 3: USING THE APPLIANCE ........................16 3.1 Information on Less Frost Technology..........................16 3.2 Thermostat Setting ...................................16 3.3 Temperature Settings Warnings ............................17 3.4 Accessories ....................................17... -
Page 4: Part 1: Safety Information
PART 1: SAFETY INFORMATION 1.1 General Safety Warnings FOR YOUR SAFETY AND CORRECT USAGE, BEFORE INSTALLING AND FIRST USING THE APPLIANCE,READ THIS USER MANUAL CAREFULLY, INCLUDING ITS HINTS AND WARNINGS. TO AVOID UNNECESSARY MISTAKES AND ACCIDENTS,IT IS IMPORTANT TO MAKE SURE THAT ALL PEOPLE USING THE APPLIANCE ARE THOROUGHLY FAMILIAR WITH ITS OPERATION AND SAFETY FEATURES. - Page 5 ● IF THE SUPPLY CABLE GETS DAMAGED, HAVE IT REPLACED BY A SPECIALIZED SERVICE CENTER IN ORDER TO AVOID DANGEROUS SITUATIONS. IT IS PROHIBITED TO USE THE APPLIANCE WHEN THE SUPPLY CABLE IS DAMAGED. ● WARNING: THE VENTILATION OPENINGS IN THE APPLIANCE HOUSING OR IN ITS CONSTRUCTION MUST BE KEPT FREE.
- Page 6 THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLDS AND SIMILAR PREMISES, SUCH AS: – KITCHENETTES IN SHOPS, OFFICES AND OTHER WORKPLACES; – APPLIANCES USED BY GUESTS IN HOTELS, MOTELS, AND OTHER ACCOMMODATION FACILITIES; – APPLIANCES USED IN BED-AND-BREAKFAST FACILITIES; –...
- Page 7 WARNING : RISK OF FIRE / FLAMMABLE MATERIALS CONTAINS COOLING GAS ISOBUTANE R600a REFRIGERANT THE REFRIGERANT ISOBUTENE (R600a) IS CONTAINED WITHIN THE REFRIGERANT CIRCUIT OF THE APPLIANCE,A NATURAL GAS WITH A HIGH LEVEL OF ENVIRONMENTAL COMPATIBILITY,WHICH IS NEVERTHELESS FLAMMABLE. DURING TRANSPORTATION AND INSTALLATION OF THE APPLIANCE,ENSURE THAT NONE OF THE COMPONENTS OF THE REFRIGERANT CIRCUIT BECOMES DAMAGED.
- Page 8 WARNING : RISK OF FIRE / FLAMMABLE MATERIALS IF THE REFRIGERANT CIRCUIT SHOULD BE DAMAGED: - AVOID OPENING FLAMES AND SOURCES OF IGNITION. - THOROUGHLY VENTILATE THE ROOM IN WHICH THE APPLIANCE IS SITUATED. IT IS DANGEROUS TO ALTER THE SPECIFICATIONS OR MODIFY THIS PRODUCT IN ANY WAY.
- Page 9 IF THE COOLING APPLIANCE IS LEFT EMPTY FOR A LONGER PERIOD OF TIME, IT SHOULD BE SWITCHED OFF, DEFROSTED, CLEANED AND DRIED AND THE DOOR SHOULD BE LEFT OPEN TO PREVENT MOULD FROM FORMING INSIDE THE APPLIANCE. ELECTRICAL SAFETY 1. THE POWER CORD MUST NOT BE LENGTHENED. 2.
- Page 10 THE FRIDGE MUST EMPLOY A SPECIAL POWER SOCKET INSTEAD OF COMMON ONE WITH OTHER ELECTRIC APPLIANCES. ITS PLUG MUST MATCH THE SOCKET WITH GROUND WIRE. DAILY USE ● DO NOT STORE FLAMMABLE GAS OR LIQUIDS IN THE APPLIANCE, THERE IS A RISK OF AN EXPLOSION. ●...
- Page 11 ● THE APPLIANCE IS INTENDED FOR KEEPING FOOD STUFF AND/ OR BEVERAGES IN NORMAL HOUSEHOLD AS EXPLAINED IN THIS INSTRUCTION BOOKLET. YOU SHOULD TAKE CARE WHEN MOVE IT AS THE APPLIANCE IS HEAVY. ● DO NOT REMOVE OR TOUCH ITEMS FROM THE FREEZER COMPARTMENT IF YOUR HANDS ARE DAMP/WET, AS THIS COULD CAUSE SKIN ABRASIONS OR FROST/FREEZER BURNS.
- Page 12 INSTALLATION IMPORTANT! ● FOR ELECTRICAL CONNECTION CAREFULLY, FOLLOW THE INSTRUCTIONS GIVEN IN THIS MANUAL. UNPACK THE APPLIANCE AND CHECK IF THERE ARE DAMAGES ON IT. ● DO NOT CONNECT THE APPLIANCE IF IT IS DAMAGED. REPORT POSSIBLE DAMAGES IMMEDIATELY TO THE PLACE YOU BOUGHT IT.
- Page 13 ● BEFORE CONNECTING THE REFRIGERATOR I FREEZER, MAKE SURE THAT THE MAINS VOLTAGE CORRESPONDS TO THE REQUIREMENTS FOR CONNECTING THE REFRIGERATOR / FREEZER. IF IN DOUBT, CONSULT A QUALIFIED ELECTRICIAN. ● THE APPLIANCE MUST BE CONNECTED TO A SOCKET WITH THE APPROPRIATE VOLTAGE AND A CORRECTLY INSTALLED FUSE SOCKET.
-
Page 14: Installation Warnings
1.2 Installation warnings Before using your fridge freezer for the first time, please pay attention to the following points: • The operating voltage for your fridge freezer is 220-240 V at 50Hz. • The plug must be accessible after installation. • Your fridge freezer may have an odour when it is operated for the first time. This is normal and the odour will fade when your fridge freezer starts to cool. • Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician. • Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance. - Page 15 • Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed. • When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts. • Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment. • Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning. Old and Out-of-order Fridges • If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident. • Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges. CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.
-
Page 16: Part 2: Proper Use Of The Refrigerator
PART 2: PROPER USE OF THE REFRIGERATOR This appliance is not intended to be used as a built-in appliance. A) Freezer compartment B) Refrigerator compartment 1) Freezer shelf 2) Thermostat box 3) Refrigerator shelves 4) Crisper cover 5) Crisper 6) Levelling feet 7) Bottle shelf 8) Door shelves 9) Egg holder... -
Page 17: Dimensions
2.1 Dimensions Overall dimensions 1450 the height, width and depth of the appliance without the handle. Space required in use 1600 667,8 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air. Overall space required in use 658,5 1106,5... -
Page 18: Part 3: Using The Appliance
PART 3: USING THE APPLIANCE 3.1 Information on Less Frost Technology Thanks to the wrap around evaporator, Less Frost technology offers more efficient cooling, less manual defrost requirement, and more flexible storage room. 3.2 Thermostat Setting The thermostat automatically regulates the temperature inside the cooler and freezer compartments. Refrigerator temperatures can be obtained by rotating the knob to higher numbers; 1 to 3, 1 to 5 or SF (Maximum numbers on the thermostat depends on your product.) Important note: Do not try to rotate the knob beyond position 1, it will stop your appliance from working. Super switch Thermostat knob (In some models) Lamp cover (The images are representative) Thermostat settings: 1 –... -
Page 19: Temperature Settings Warnings
Winter Switch: If ambient temperature is below 16 °C, this switch shall be used as winter switch and it keeps your fridge above 0 °C while freezer is below -18 °C in low ambients. 3.3 Temperature Settings Warnings • Your appliance is designed to operate in the ambient temperature ranges stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are outside of the stated temperature ranges. This will reduce the cooling efficiency of the appliance. - Page 20 3.4.2 The Plastic Scraper (In some models) After some time, frost will build up in certain areas of the freezer. The frost accumulated in the freezer should be removed regularly. Use the plastic scraper provided, if necessary. Do not use sharp metal objects for this operation. They could puncture the refrigerator circuit and cause irreparable damage to the unit.
-
Page 21: Part 4: Food Storage
PART 4: FOOD STORAGE 4.1 Refrigerator Compartment • To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting. • Cooked dishes must remain covered when they are kept in the fridge. Do not place warm foods in fridge. Place them when they are cool, otherwise the temperature/humidity inside the fridge will increases, reducing the fridge’s efficiency. -
Page 22: Freezer Compartment
The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment. Food Maximum storage time How and where to store Vegetables and fruits 1 week Vegetable bin Wrap in plastic foil, bags, or in a Meat and fish 2 - 3 days meat container and store on the glass shelf Fresh cheese 3 - 4 days On the designated door shelf... - Page 23 • The freezer volume stated on the label is the volume without baskets, covers, and so on. • Do not refreeze thawed food. It may pose a danger to your health and cause problems such as food poisoning. NOTE: If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily. The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment.
- Page 24 NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen. Maximum storage time Vegetables and Fruits Preparation (months) Wash, cut into small pieces and String beans and beans 10 - 13 boil in water Beans Hull, wash and boil in water Cabbage Clean and boil in water 6 - 8 Clean, cut into slices and boil in Carrot...
- Page 25 Maximum storage time Dairy products Preparation Storage conditions (months) Packet (Homogenized) Pure Milk – in its own In its own packet 2 - 3 Milk packet Original packaging may Cheese - excluding be used for short-term In slices 6 - 8 white cheese storage. Keep wrapped in foil for longer periods. Butter, margarine In its packaging EN - 23 Copyright ©...
-
Page 26: Part 5: Cleaning And Maintenance
PART 5: CLEANING AND MAINTENANCE Disconnect the unit from the power supply before cleaning. Do not wash your appliance by pouring water on it. Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands. - Page 27 • Defrosting occurs automatically in the refrigerator compartment during operation. The water is collected by the evaporation tray and evaporates automatically. • The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the refrigerator instead of flowing out. • You can also clean the drain hole by pouring half a glass of water down it. Freezer defrosting process • Small amounts of frost will accumulate inside the freezer, depending on the length of time the door may be left open or the amount of moisture introduced. It is essential to ensure that no frost or ice is allowed to form in places where it will affect the close fitting of the door seal. This might allow air to penetrate the cabinet, encouraging continuous running of the compressor.
-
Page 28: Part 6: Shipment And Repositioning
Replacing LED Lighting To replace any of the LEDs, please contact the nearest Authorised Service Centre. Note: The numbers and location of the LED strips may change according to the model. If product equipped with LED lamp This product contains a light source of energy efficiency class <E>. If product equipped with LED Strip(s) or LED card(s) This product contains a light source of energy efficiency class <F>. -
Page 29: Part 7: Before Calling After-Sales Service
PART 7: BEFORE CALLING AFTER-SALES SERVICE If you are experiencing a problem with your appliance, please check the following before contacting the after-sales service. Your appliance is not operating Check if: • There is power • The plug is correctly placed in the socket • The plug fuse or the mains fuse has blown • The socket is defective. To check this, plug another working appliance into the same socket. The appliance performs poorly Check if: • The appliance is overloaded • The appliance door is closed properly • There is any dust on the condenser • There is enough space near the rear and side walls. Your appliance is operating noisily Normal noises Cracking noise occurs: • During automatic defrosting... -
Page 30: Part 8: Tips For Saving Energy
The door does not open or close properly Check if: • There is food or packaging preventing the door from closing • The door joints are broken or torn • Your appliance is on a level surface. • The compressor can run loudly or the noise of the compressor/refrigerator may increase in some models during operating in some conditions such that the product is plugged in for the first time, depending on change in the ambient temperature or change of usage. That is normal; when the refrigerator reaches the required temperature, the noise decreases automatically. -
Page 31: Part 9: Product Information Sheet
PART 9: PRODUCT INFORMATION SHEET Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances Supplier's name or trademark: PHILCO Supplier's address: PHILCO, U Sanitasu 1621, 25101 Říčany, CZ Model identifier: PT 213 EMW, PT 213 EMX Type of refrigerating appliance: Low-noise appliance: Design type:... - Page 32 Minimum duration of the guarantee offered by the manufacturer: 24 months Additional information: Weblink to the manufacturer's website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.philco.cz EN - 30 Copyright © 2023, Fast ČR, a. s.
- Page 33 When contacting our authorized service, have the model designation, serial number and defect description available. To download documents, visit www.philco.cz. To report a defect and obtain additional service information, visit https://philco.cz/podpora-a-servis. Subject to change without notice. EN - 31 Copyright © 2023, Fast ČR, a. s.
- Page 34 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product.
- Page 35 NOTES/POZNÁMKY/NOTATKI/MEGJEGYZÉS...
- Page 36 NOTES/POZNÁMKY/NOTATKI/MEGJEGYZÉS...
- Page 37 Výrobce/Manufacturer: Fast ČR, a.s. U Sanitasu 1621 Říčany 251 01, CZECH REPUBLIC Distributor: FAST PLUS, a.s. Vlčie hrdlo 324/90 821 07 Bratislava, SLOVAKIA Distributor: FAST POLAND Sp. z o. o. Kwietniowa 36 05-090 Wypędy, POLAND Distributor: FAST HUNGARY Kft. H-2310 Szigetszentmiklós Kántor utca 10, HUNGARY is pending or registered trademark of Electrolux Home Products, Inc.
