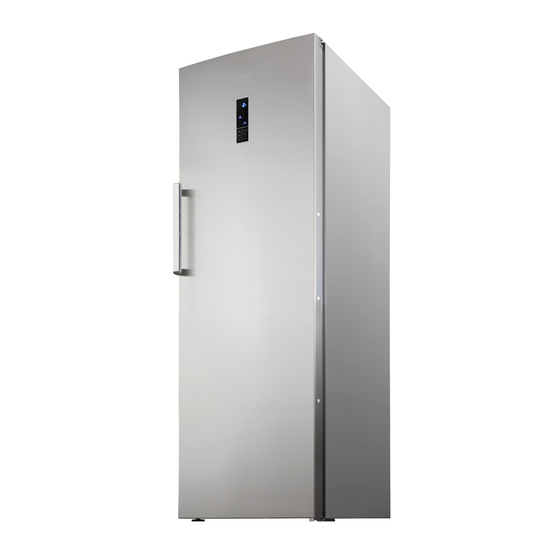

Philco PTL 3602 NX User Manual
  1. Manuals
  2. Brands
  3. Philco Manuals
  4. Refrigerator
  5. PTL 3602 NX
  6. User manual

Philco PTL 3602 NX User Manual

Hide thumbs Also See for PTL 3602 NX:
Table of Contents

Advertisement

Quick Links

Download this manual
REFRIGERATOR
USER'S MANUAL
PTL 3602 NX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTL 3602 NX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Philco PTL 3602 NX

Summary of Contents for Philco PTL 3602 NX

  • Page 1 REFRIGERATOR USER'S MANUAL PTL 3602 NX...
  • Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual. Copyright © 2015, Fast ČR, a. s. 11/2015...

  • Page 3: Table Of Contents

    CONTENTS PART 1: BEFORE PUTTING INTO OPERATION ....................2 • Safety notices ....................................2 • Safety instructions for gas R600a ..............................4 PART 2: DESCRIPTION OF THE DEVICE ......................5 PART 3: INSTALLATION ............................ 6 • Transport and unpacking ................................6 • Installation location ..................................7 •...

  • Page 4: Part 1: Before Putting Into Operation

    PART 1: BEFORE PUTTING INTO OPERATION Safety notice Symbols: General advice for the optimal operation of the appliance General dangers Hot surfaces Before you put the appliance into operation • Carefully study the user's manual and installation instructions before installing and using the appliance! This user's manual includes important information regarding the installation, operation and maintenance of the appliance.
  • Page 5 Do not place food inside the refrigerator containing fl ammable propulsion gases (e.g. sprays) and no explosives, contaminants or volatile substances. There is a danger of explosion! • Store liquor only with a fi rmly tightened cap and in a vertical position. •...

  • Page 6: Safety Instructions For Gas R600A

    Technical safety The appliance contains a cooling gas, ISOBUTHAN (R600a). Only transport or move the appliance with the utmost care, prevent excessive impacts and shaking to prevent damaging the appliance. If the cooling circuit becomes damaged and the cooling gas may be escaping, there is a risk of an explosion, which may be ignited by a spark or fl ame.

  • Page 7: Part 2: Description Of The Device

    PART 2: DESCRIPTION OF DEVICE Outer case 11. Adjustable levelling feet LED light 12. Shelf for dairy products with a cover Flexible wine rack 13. Egg tray (inside) Glass shelf 14. Middle shelf Glass shelf 15. Suspended bottle shelf Small glass shelf 16.

  • Page 8: Part 3: Installation

    PART 3: INSTALLATION Transport and unpacking If the appliance is transported in a horizontal position the oil from the compressor may leak into the cooling circuit. For this reason, allow the appliance to rest in a vertical position for 12 hours before turning it on, so that the oil fl ows back into the compressor.

  • Page 9: Installation Location

    Installation location The installation location of the appliance must meet the requirements in the paragraph "Operating conditions" and must have a stable fl oor with a load bearing capacity corresponding to the weight of the appliance. Furthermore, you must maintain distances and dimensions of the appliance, so that correct operation is ensured: Top part at least 20 cm;...

  • Page 10: Cleaning Before Use

    Before turning on the appliance, allow it to stand in its fi nal location for 12 hours, the coolant circuit will stabilise in this way and no operating problems will occur. Before connecting the appliance to the power grid check that it is perfectly dry inside – especially in the corners. Danger warning The coolant may be highly fl ammable, depending on its composition.
  • Page 11 Do not connect the appliance to a voltage rectifi er (e.g. solar power plant) or use an extension cord. The appliance must be connected to a working grounding lead. If the power socket of the home system is not grounded in accordance with the current legal regulations, connect the appliance after consulting a specialised technician to the grounding lead itself.

  • Page 12: Procedure For Switching The Door Opening Direction

    Procedure for switching the door opening direction You can change the door opening direction - from the right (as supplied by the manufacturer) to the left if the location of the refrigerator requires it. WARNING! When changing the door opening direction, the appliance must not be connected to the power supply.
  • Page 13 Open part 1 in the top part of the refrigerator from the right side and then remove part 3 and part 4 on the door in the same manner. Remove part 2 and put it back into the plastic bag. Top cover Top hinge cover (right) Top cover of the top door...
  • Page 14 Remove screws 1, release cables 2 and remove part 3. Special self-tapping screws Grounding wire Top hinge part NOTE: During step 4, hold the door with your hand so that it does not fall off . Remove the door and place it on a soft surface with the front part facing upwards. Lift up part 1 and part 4, then loosen screws 2 as shown in the picture.
  • Page 15 clip Install the handle covers as shown in the picture: fi rst secure the clip, then close the cover from the inner side until you hear an audible click. clip Lay the refrigerator down fl at, remove part 3 and release screw 4. Remove part 2 and part 1. Washer Bottom hinge (right) Fixed plate of the front foot...
  • Page 16 Bottom hinge (left) Screw out the top hinge, turn it over and secure it on the other side. Then put it aside for further use. 10. Exchange the wires on both sides of the refrigerator. 11. Place the top door in the correct position, set part 1 and the top door, move the connecting wire 2 into the holes in the top part of the door from left to right and then secure part 1 and wire 2 with screws 3.
  • Page 17 12. Connect the power supply connector 1 according to the connection in step 3 and then install part 2 (it is found in the plastic bag). Top hinge cover (left) 13. Turn part 1 by 180° and install it on the right corner of the top door, then install part 2, (you removed both in step 2).

  • Page 18: Installation Of Appliances As A Pair

    14. Disconnect the connecting cable from the connector (part 3 in step 3) and install it on to the second connector, which you will use (it is marked with the letter "R" and is located in the plastic bag). Place the removed connector into the plastic bag.

  • Page 19: Part 4: Operating The Appliance

    PART 4: OPERATING THE APPLIANCE Display and indicator lights on the display The appliance is controlled by means of the display and the indicator lights on the display; the appliance is equipped with corresponding functions and modes as shown on the displays on the pictures below. As soon as the appliance is turned on for the fi rst time, a backlit icon on the display will remain in operation.
  • Page 20 1. Refrigerator Press the "Fridge" button to set the temperature in the refrigerator in the range from 2°C to 8°C as required; the respective setting will be shown on the control panel. 2. Super Cool The "Super Cool" function makes it possible to cool food down faster compared to the standard cooling process and keeps the stored food fresher for longer.
  • Page 21 7. Refrigerator accessories Door shelves They are suitable for storing eggs, beverages in can, beverages in bottles, packed foods, etc. Do not, however, store food that is too heavy. The middle door shelf can be variably located depending on your requirements. Remove food from the shelves. NOTE: In the top shelf there is a special egg tray and in the bottom shelf there is a special bottle holder.
  • Page 22 Wine rack Serves for storing bottles of wine or other beverages. It can also be slid to the side if necessary. If necessary, remove it also with its attachment part as required in order to gain more space inside the refrigerator. NOTE: Carefully press down on the right or left side of the bottle holder to slide it.
  • Page 23 Bottle holder The bottle holder serves to hold bottles. It can be located in the middle or lower part of the refrigerator and moved to the left or right as required. EN - 21 Copyright © 2015, Fast ČR, a. s. 11/2015...

  • Page 24: Part 5: Arrangement Of Food

    PART 5: ARRANGEMENT OF FOOD • Food products, which are susceptible to the absorption of odours or that release odours must always be stored in closed boxes or in appropriate packaging. • Fruit, vegetables and salad products can be stored unpacked in the vegetable drawers. •...

  • Page 25: Part 6: Regular Maintenance

    PART 6: REGULAR MAINTENANCE For hygiene reasons, it is necessary to regularly clean the appliance (including the outside and inside accessories) at least once every two months. WARNING The appliance must not be connected to the power socket during cleaning. Danger of injury by electric shock! Before cleaning the appliance, disconnect the power plug from the power socket.
  • Page 26 Replacing the LED light WARNING! The LED light must be replaced by a service technician or qualifi ed person! If the LED light is damaged, please contact an authorised service centre. To replace the LED light, proceed as follows: 1. Disconnect the appliance from the power socket. 2.

  • Page 27: Part 7: What Should I Do When

    PART 7: WHAT SHOULD I DO WHEN... If you notice problems with your appliance or if you fi nd that the appliance is not working properly, you can remedy some of the most common faults yourself prior to contacting an authorised service centre. Check the appliance and proceed according to the instructions below before contacting an authorised service centre.
  • Page 28 Problem Possible cause and solution. The door does not Check that the top part is bent by 10 - 15 mm so that the door closes on its own close properly. or whether there is something preventing the door from closing. Water is dripping on to The water tank (located in the bottom part of the appliance) is not correctly the fl oor.

  • Page 29: Part 8: Information Sheet

    INFORMATION SHEET: Philco Philco brand: Brand Philco Product number PTL 3602 NX Type of appliance 3) Energy effi ciency class (A... low electricity consumption to G high electricity consumption) Electricity consumption per 365 days 1) kWh Total available volume: l...
  • Page 30 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.
