Cervélo ZFS-5 RETAILER Assembly Manual page 3

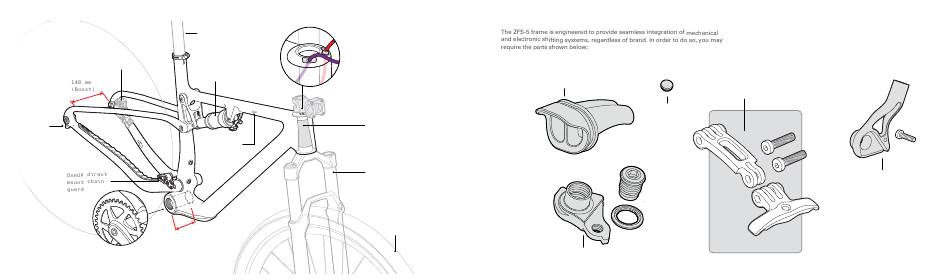

ZFS-5 FRAME FEATURES
Post mount
caliper, 180 mm
rotor maximum
SRAM UDH
rear
derailleur
hanger
1x crankset only
36t maximum
3
30.9 mm seatpost
Rear brake hose and
up to 3 mechanical
cable housings route
100-115 mm
through ports in the
rear travel
bearing top cap
shock
Remote
lockout
exit port
73 mm BSA
threaded
ZFS-5 SMALL PARTS
Fork Steerer Sleeve.
Installed over fork
steerer tube, protects
internally routed
hoses/housing from
wear
100-120 mm
suspension fork
compatible(1.5" tapered
steerer. Use Cervélo
supplied crown race)
Acceptable fork rake
44 mm to maintain
good handling
characteristics
29er wheels
Seat Tube
Cable Guide
Accessory Mount
GR-666
Kit-Rear
MT-LM-R-003
Chainstay
Blanking
Plug(6 mm)
GR-576
SRAM UDH Rear Derailleur
Hanger w/Fixing Nut
SRAM p/n 00.7918.089.000
Brake Plate
QRI-FSA-694
