Cervélo ZFS-5 RETAILER Assembly Manual page 5

FRAME PREPARATION
Remove the backing
film from the Seatstay
Protector (PRO-CS-664)
and install on the drive
side seat stay so that it
covers the bottom and
inside surfaces.
Position the bottom edge
approximately 60 mm
from the center of the
dropout.
60 mm
7
Place the Brake Plate
(QRI-FSA-694) onto
the inside of the rear
dropout, apply Loctite
243 to the M4 x 16
fixing screw and install.
Tighten to 3 N·m.
Apply Loctite
243 to the fixing
screw threads.
Loctite

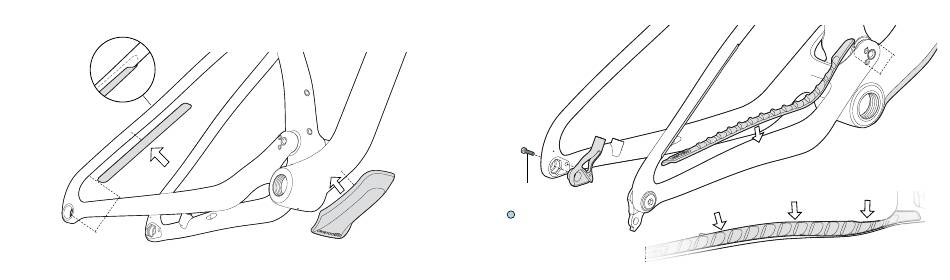

Remove the backing film
for the Down Tube Frame
Protector (PRO-DT-663)
and install.
40mm
Remove the backing film for
the Chainstay Protector (PRO-
CS-664), position approximately
40 mm from the leading edge of
the Swingarm and install.
Chainstay Protector
follows contour of
chainstay.
8
