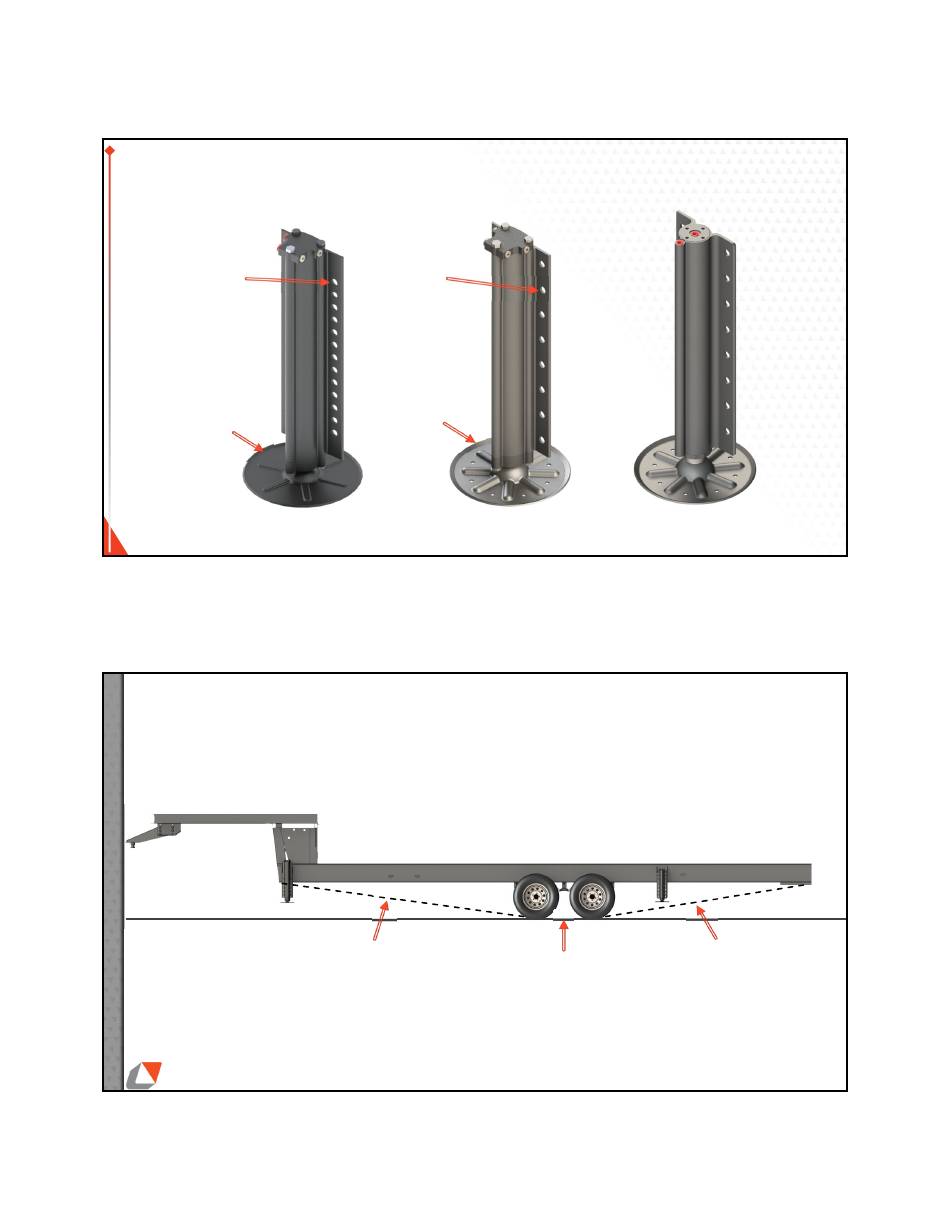

Lippert Level-Up Instruction Manual page 2

12/15/2022
8,000 JACKS
Original Current
Mounting Mounting
Holes Holes
Current
Original
Footpad
Footpad
3
To measure departure and approach angles, run a string line from
the meeting point of the tire and the ground up at an angle to the
lowest point on the front and rear of the trailer.
Departure Angle
Approach Angle
String Line String Line
Ground
PROPER JACK INSTALL WITHIN APPROACH AND DEPARTURE ANGLES
4
2
