1.2 Product Usage Examples

The router is primarily intended for these basic situations:
I. Access to the Internet from LAN

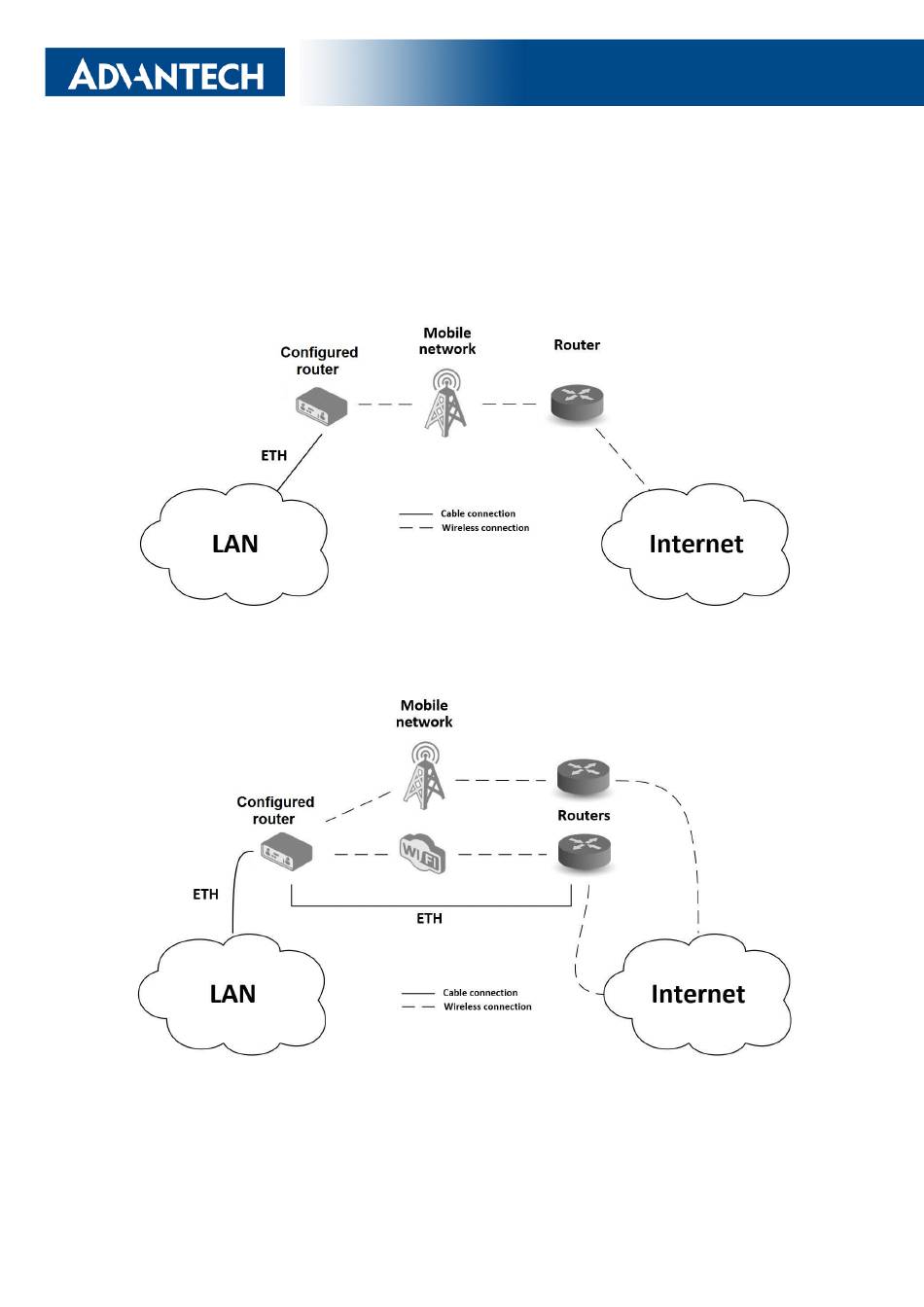

Figure 1: Access to the Internet from LAN
II. Backed up access to the Internet (from LAN)
Figure 2: Backed up Access to the Internet
