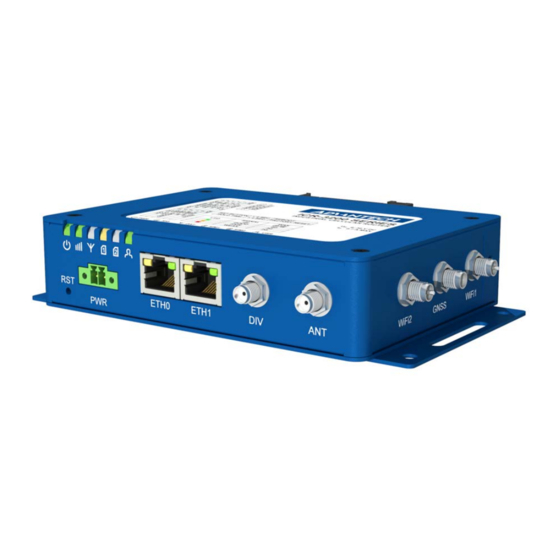

Advantech ICR-3241 Hardware Manual
Industrial cellular router
Hide thumbs
Also See for ICR-3241:
- User manual (43 pages) ,
- Start manual (9 pages) ,
- Start manual (9 pages)
Subscribe to Our Youtube Channel
Related Manuals for Advantech ICR-3241
Summary of Contents for Advantech ICR-3241

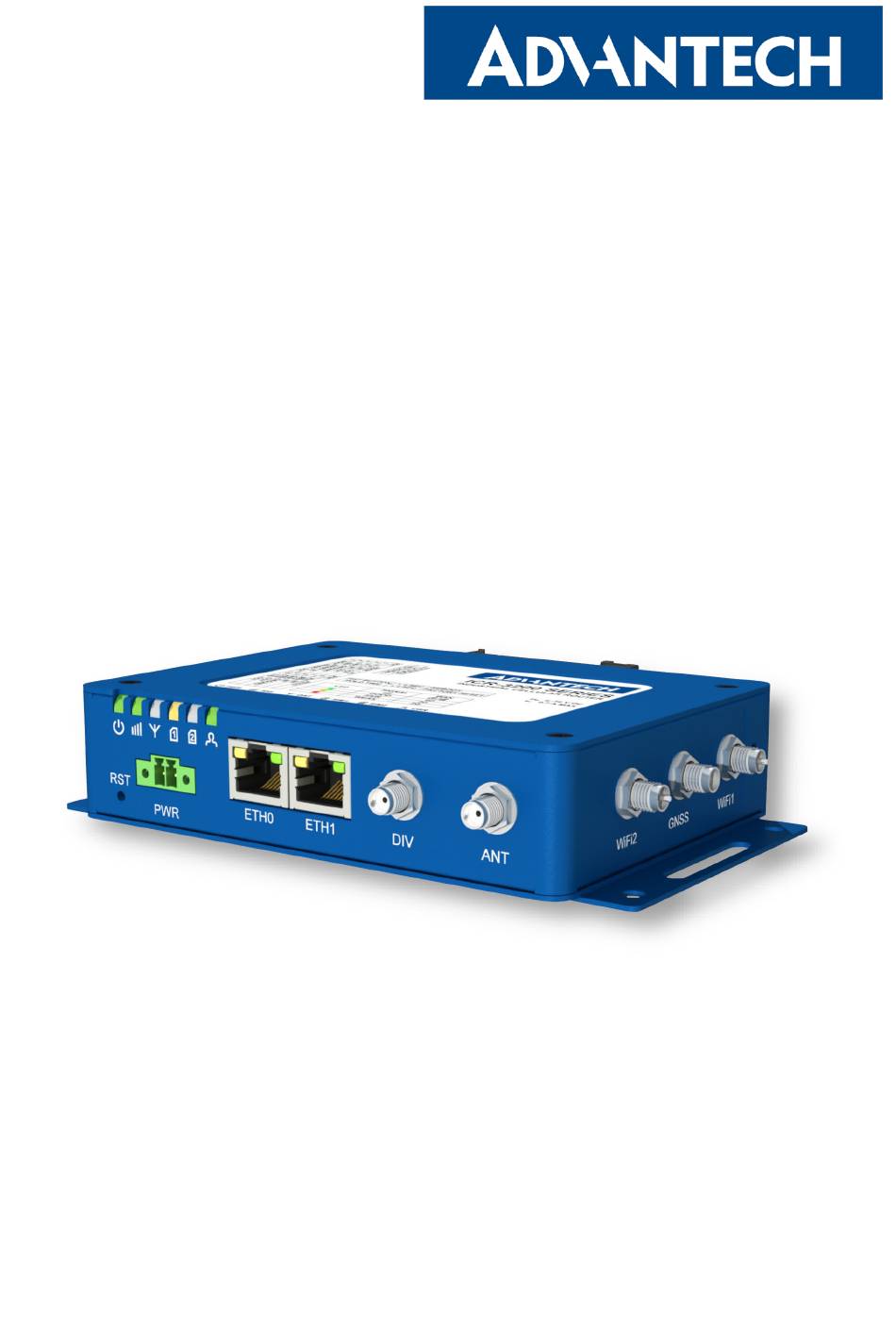

- Page 1 Hardware Manual Industrial Cellular Router ICR-3241 Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Document No. MAN-0044-EN, revision from 27th August, 2024.
- Page 2 © 2024 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and it does not represent a commitment on the part of Advantech.
- Page 3 Used symbols Danger – Information regarding user safety or potential damage to the router. Attention – Problems that can arise in specific situations. Information – Useful tips or information of special interest.
-
Page 4: Table Of Contents
Contents 1. Product Overview 1.1 Product Introduction ......... 1.2 Usage Examples . - Page 5 Appendix D: Related Documents...
- Page 6 List of Figures Cellular Internet Access ........Backup for Internet Access .
- Page 7 List of Tables Hardware Overview of the Router ........Router versions .
-
Page 8: Product Overview
1. Product Overview 1.1 Product Introduction ICR-3241 is an industrial cellular router intended for the North American market (NAM). This router is an ideal device for wireless communication in mobile networks that make use of LTE and WCDMA technology. Due to the high speed of data transfer up to 150 Mbps (download) and up to 50 Mbps (upload) -
Page 9: Usage Examples
• This example demonstrates a common scenario where the cellular router facilitates access from a local LAN to the Internet via the cellular network. • This functionality is not available on LAN routers lacking a cellular interface. Figure 1: Cellular Internet Access ICR-3241 Hardware Manual... -
Page 10: Backup For Internet Access
1.2 Usage Examples Backup for Internet Access • This example showcases how a cellular router’s Internet access can be backed up. • Backup options include PPPoE connections, Ethernet wired connections or WiFi. Figure 2: Backup for Internet Access ICR-3241 Hardware Manual... -
Page 11: Vpn Networks Interconnection
• This example highlights the establishment of a secure VPN tunnel for interconnecting the configured Advantech router with a router in a remote network, facilitated via the Internet. • The configured router connects to the Internet using the cellular network. -
Page 12: Serial Gateway
1.2 Usage Examples Serial Gateway • This example depicts a scenario where the configured Advantech router grants access to a PLC device interfaced serially with the router. • The PLC device, accessible over the entire Internet network, can be controlled from a remote local network, such as one running a SCADA system. -
Page 13: Hardware Overview
SERIAL | 10-pin RS232, RS485, binary inputs, and binary outputs interfaces. See Chap- terminal for more information. Wall clips Wall mounting clips, included as standard accessories; see Chap- ter 1.10. Table 1: Hardware Overview of the Router ICR-3241 Hardware Manual... -
Page 14: Product Versions
1. Product Overview 1.4 Product Versions 1.4 Product Versions ICR-3241 router is supplied in the following versions (see table below). All versions are available in metal box. Router versions Version without WiFi and GNSS Version with WiFi and GNSS Table 2: Router versions... -
Page 15: Order Codes
Product Revision. Please note that the default revision (Rev.1.0) is unavailable here. Rev.# Description Initial version (revision number not printed on the labels). PCBU and other changes; see PCN-2022-01 for details. PCBU changes; see PCN-2023-06 for details. Table 4: HW Revisions History ICR-3241 Hardware Manual... -
Page 16: Package Contents
1.7 Package Contents The standard package of router includes items listed in the following table: Item# Description Figure Q’ty ICR-3241 or ICR-3241W router 1 pcs DIN holder 1 pcs (screwed on the router) Wall clips for wall mounting 2 pcs... -
Page 17: Product Dimensions
For the dimensions of the product in metal and plastic boxes see the figures below. Note that all sizes are measured in millimeters. Figure 8: Basic dimensions of the router box Figure 9: Basic dimensions of the router box ICR-3241 Hardware Manual... -
Page 18: Mounting Recommendations
• Sufficient space must be left between each connector for the handling of cables, • To ensure the correct functioning of the router we recommend the use of an earth-bonding distribu- tion frame for the grounding of the power supply of the router, data cables and antenna within the switchboard. ICR-3241 Hardware Manual... -
Page 19: Wall Mounting
There are two wholes on the clip with a diameter of 5 millimeters. For detailed information about the mounting dimensions see Chapter 1.8. When mounting the wall mounting clip, tighten the screws with max. torque of 0.4 Nm. Figure 10: Rotated Wall Mounting Clips ICR-3241 Hardware Manual... -
Page 20: Din Rail Mounting
DIN rail clip hitched to the DIN rail get out of this rail and then fold out the bottom part of the router away from the DIN rail. Figure 11: Removing from the DIN rail ICR-3241 Hardware Manual... -
Page 21: Product Label
1. Product Overview 1.12 Product Label 1.12 Product Label The figure below shows an example of the product labels with all the information printed on them. Figure 12: Product Label ICR-3241 Hardware Manual... -
Page 22: Hardware Functionality
• To insert a SIM card, push the card into the slot until it clicks into place. • Put the cover back and secure it with the two screws. Figure 13: SIM Cards Insertion ICR-3241 Hardware Manual... -
Page 23: Antennas
3. Node-RED Applications: For advanced Bluetooth functionality, Node-RED and its Bluetooth node can be utilized. Like the Bluetooth Router App, Node-RED and the Node-RED Bluetooth Node not pre-installed and require manual installation on the router. https://icr.advantech.com/products/software/user-modules#bluetooth https://icr.advantech.com/products/software/user-modules#node-red https://icr.advantech.com/products/software/user-modules#node-red-bluetooth-node ICR-3241 Hardware Manual... -
Page 24: Ethernet Interfaces
Transmit Data- (negative pole) Receive Data+ (positive pole) — — — — Receive Data- (negative pole) — — — — Table 6: Ethernet Connector Pinout Description The isolation barrier of the Ethernet ports against the ground is 1500 V. ICR-3241 Hardware Manual... -
Page 25: Power Supply
Figure 16: Connection of power supply All metal parts, including the box, are connected together with the negative pole of power supply (common pole). To ground the router can be used the grounding screw located on the left panel. ICR-3241 Hardware Manual... -
Page 26: Low Power Mode
BIN0 input or after a predetermined period of time. Putting the router into LPM mode can be done using the lpm command, see Commands and Scripts application note for more details. ICR-3241 Hardware Manual... -
Page 27: Serial Interfaces And I/O Port
The I/O user interface is designed for binary input processing and binary output control. By default, the binary output is open, so it is not grounded. The maximum binary output load is 36 V at 500 mA. The constant current supplied by the binary input is 3 mA. ICR-3241 Hardware Manual... - Page 28 2. Hardware Functionality 2.7 Serial Interfaces and I/O Port The functional scheme of connection for the binary input and binary output is drawn on the picture below. Figure 18: Functional scheme of the binary interface ICR-3241 Hardware Manual...
-
Page 29: Led Status Indication
Fast blinking ETH0 Green Selected 100 Mbps ETH1 Green Selected 10 Mbps ETH0 Yellow The network cable is connected ETH1 Yellow Brief off blinks Data transmission Yellow The network cable is not connected Table 11: Status indication ICR-3241 Hardware Manual... -
Page 30: Reset Functions
The RST button has multiple functions depending on the firmware platform. For more information, see the configuration manual [1], chapter Manual Introduction Device Reset. Use a narrow screwdriver or any small tool to press the RST button. Figure 19: Resetting the Router ICR-3241 Hardware Manual... -
Page 31: First Use
WebAccess/DMP server. See the configuration manual [1], chapter Basic Information WebAccess/DMP Configuration, for more information. If the router’s label does not specify a unique password, use "root" as the default password. ICR-3241 Hardware Manual... -
Page 32: Technical Parameters
DIN rail clip dimensions DIN 35 mm, EN 60715 Weight Metal box 480 g (1.05 lbs) for non-WiFi version 500 g (1.1 lbs) for WiFi version Table 12: Basic parameters 100 mW for product revision lower than 2.0 ICR-3241 Hardware Manual... -
Page 33: Standards And Regulations
E-Mark E8 homologation number: 10R – 05 10350, EN 45545-2 Railway EN 50155 (A1, OT4, ST1, H1, Cat 1 Class B, S1, C1, L4, PD2, K2, PC2) National FCC, IC Environmental REACH, RoHS3 and WEEE compliant Table 13: Standards and Regulations Deddicated models only. ICR-3241 Hardware Manual... -
Page 34: Type Tests And Environmental Conditions
Vibration spectrum Category 1 (3 axis, 8 hours MIL-STD-810G A.3 (rolling stock) per axis) SAE J1455 Shock EN 60068-2-27 ed. 2 half-sine, 50 g peak, 11 ms MIL-STD-810G SAE J1455 Table 14: Type tests and environmental conditions ICR-3241 Hardware Manual... -
Page 35: Parameters Of Cellular Module
Sensitivity (autonomous) Tracking: -157 dBm Reacquisition: -157 dBm Cold start: -146 dBm Acquisition time Hot start: 2.5 s (autonomous) Warm start: 26 s Cold start: 35 s Accuracy < 1.5 m Table 16: Technical parameters of GNSS ICR-3241 Hardware Manual... -
Page 36: Technical Parameters Of Wifi
Frequency Range 2.4 to 2.4835 GHz Data Rates Supported 1 Mbps (GFSK), 2 Mbps ( /4-DQPSK), 3 Mbps (8-DPSK) Bluetooth Modulation GFSK@ 1 Mbps Pi/4-DQPSK@ 2 Mbps 8-DPSK@ 3 Mbps Encryption support Table 18: Technical parameters of Bluetooth ICR-3241 Hardware Manual... -
Page 37: System Configuration
2 DMIPS per MHz Flash memory Available memory space 1 862 MB • 2x 256 MB – FW • 512 MB – User data storage • 838 MB – Space for Router Apps 512 MB Table 19: Other technical parameters ICR-3241 Hardware Manual... -
Page 38: Appendix A: Troubleshooting
Also enable "Send all remaining incoming packets to default server" feature and fill in the IP address of your Web server. On the Web server, the default gateway has to be the IP address of the router. DynDNS doesn’t work. • With private APN this will not work. ICR-3241 Hardware Manual... - Page 39 I switched the router to offline mode by SMS message, but the router is in online mode after reboot. • SMS messages do not change the router configuration. They remain in effect only until the router is rebooted. ICR-3241 Hardware Manual...
- Page 40 Web interface in "Configuration" section, "Services", "SSH". Then connect with any SSH client on port 22 of the router. User and password is the same as for the Web interface. Telnet on v2 routers can be enabled here: "Configuration" section, "Services", "Telnet". ICR-3241 Hardware Manual...
- Page 41 +1-800-346-3119 (Monday – Friday, 7 a.m. to 5:30 p.m. CST) Fax: +1-815-433-5109 E-mail: support.iiot.ana@advantech.com Web: www.advantech.com Customer Support for Asia Phone: +886-2-2792-7818 #1299 (Monday – Friday, 9 a.m. to 5:30 p.m. UTC+8) Fax: +886-2-2794-7327 E-mail: icg.support@advantech.com.tw Web: www.advantech.com ICR-3241 Hardware Manual...
- Page 42 At the end of it’s life this pro- duct MUST NOT be mixed with other commercial waste for disposal. The device contains a battery. Remove the battery from the device before disposal. The battery in the device needs to be disposed of apart accordingly. Check the terms and conditions of your supplier for disposal information. ICR-3241 Hardware Manual...
- Page 43 Appendix D: Related Documents Configuration Manual for ICR-3200 Platform [EP] Product-related documents and applications can be obtained on Engineering Portal at address. https://icr.advantech.com/download ICR-3241 Hardware Manual...
