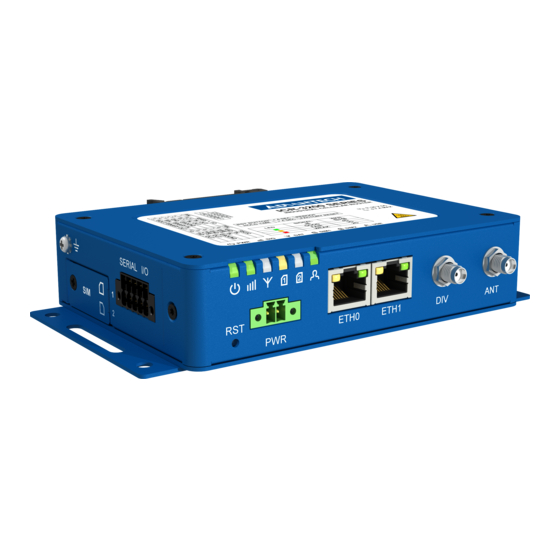

Advantech ICR-3232 Hardware Manual
Industrial cellular router
Hide thumbs
Also See for ICR-3232:
- User manual (44 pages) ,
- Start manual (9 pages) ,
- Start manual (9 pages)
Related Manuals for Advantech ICR-3232
Summary of Contents for Advantech ICR-3232
- Page 1 Hardware Manual Industrial Cellular Router ICR-3232 Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Document No. MAN-0043-EN, revision from 2nd October, 2023.
- Page 2 © 2023 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and it does not represent a commitment on the part of Advantech.
- Page 3 Used symbols Danger – Information regarding user safety or potential damage to the router. Attention – Problems that can arise in specific situations. Information, notice – Useful tips or information of special interest.
-
Page 4: Table Of Contents
........29 Appendix A: Troubleshooting Appendix B: Customer Support Appendix C: Regulatory & Safety Information Appendix D: Related Documents ICR-3232 Hardware Manual... - Page 5 ......... 22 ICR-3232 Hardware Manual...
- Page 6 ........29 ICR-3232 Hardware Manual...
-
Page 7: Product Overview
1 Product Overview 1.1 Product Introduction ICR-3232 is an industrial cellular router intended for the Australian market. This router is an ideal device for wireless communication in mobile networks that make use of LTE, HSPA+, UMTS, TD-SCDMA, EDGE or GPRS technology. Due to the high speed of data transfer up to 150 Mbps (download) and up to 50... -
Page 8: Product Usage Examples
• This example illustrates a typical case when the cellular router is used to access the Internet through the cellular network. • Not supported by LAN routers without a cellular interface. Figure 1: Access to the Internet from LAN ICR-3232 Hardware Manual... -
Page 9: Backed Up Access To The Internet
• This example illustrates the function of backing up the access to the Internet for a cellular router. • The access can be backed up by a PPPoE connection, Ethernet wired connection, or by WiFi (for models supporting WiFi). Figure 2: Backed up Access to the Internet ICR-3232 Hardware Manual... -
Page 10: Using Vpn Tunnel
1.2 Product Usage Examples Secure networks interconnection or using VPN • This example illustrates the secure VPN tunnel interconnection between the configured Advantech router and a router of a remote network behind the Internet. The cellular network is used to connect the configured router to the Internet. -
Page 11: Serial Gateway
1.2 Product Usage Examples Serial Gateway • This example illustrates the situation when the configured Advantech router provides access to a PLC device connected by a serial interface to this router. • The PLC device can be controlled from a remote local network running the SCADA system, for in- stance. -
Page 12: Hardware Overview
SERIAL | 10-pin RS232, RS485, binary inputs, and binary outputs interfaces. See Chap- terminal for more information. Wall clips Wall mounting clips, included as standard accessories; see Chap- ter 1.10. Table 1: Hardware Overview of the Router ICR-3232 Hardware Manual... -
Page 13: Product Versions
1 Product Overview 1.4 Product Versions 1.4 Product Versions ICR-3232 router is supplied in the following versions (see table below). All versions are available in metal box. Router versions Version without WiFi and GNSS Version with WiFi and GNSS Table 2: Router versions... -
Page 14: Order Codes
The router GUI can also display the product revision under Status -> General -> System Information -> Product Revision. Please note that the default revision (Rev.1.0) is unavailable here. Rev.# Description Initial version (revision not printed on the labels). New design of the mainboard; see PCN-2022-01 for details. Table 4: HW Revisions History ICR-3232 Hardware Manual... -
Page 15: Package Contents
1.7 Package Contents 1.7 Package Contents The standard set of router includes items listed in the following table: Item# Description Figure Q’ty ICR-3232 or ICR-3232W router 1 pcs DIN holder 1 pcs (screwed on the router) Wing for wall mounting 2 pcs... -
Page 16: Product Dimensions
For the dimensions of the product in metal and plastic boxes see the figures below. Note that all sizes are measured in millimeters. Figure 8: Basic dimensions of the router box Figure 9: Basic dimensions of the router box ICR-3232 Hardware Manual... -
Page 17: Mounting Recommendations
• Sufficient space must be left between each connector for the handling of cables, • To ensure the correct functioning of the router we recommend the use of an earth-bonding distribu- tion frame for the grounding of the power supply of the router, data cables and antenna within the switchboard. ICR-3232 Hardware Manual... -
Page 18: Wall Mounting
There are two wholes on the clip with a diameter of 5 millimeters. For detailed information about the mounting dimensions see Chapter 1.8. When mounting the wall mounting clip, tighten the screws with max. torque of 0.4 Nm. Figure 10: Rotated Wall Mounting Clips ICR-3232 Hardware Manual... -
Page 19: Din Rail Mounting
DIN rail clip hitched to the DIN rail get out of this rail and then fold out the bottom part of the router away from the DIN rail. Figure 11: Removing from the DIN rail ICR-3232 Hardware Manual... -
Page 20: Product Label
1 Product Overview 1.12 Product Label 1.12 Product Label The figure below shows an example of the product labels with all the information printed on them. Figure 12: Product Label ICR-3232 Hardware Manual... -
Page 21: Hardware Functionality
• To insert a SIM card, push the card into the slot until it clicks into place. • Replace the cover and secure it with the two screws. Figure 13: SIM Cards Insertion ICR-3232 Hardware Manual... -
Page 22: Antennas
Transmit Data- (negative pole) Receive Data+ (positive pole) — — — — Receive Data- (negative pole) — — — — Table 6: Ethernet Connector Pinout Description The isolation barrier of the Ethernet ports against the ground is 1500 V. ICR-3232 Hardware Manual... -
Page 23: Power Supply
Figure 16: Connection of power supply All metal parts, including the box, are connected together with the negative pole of power supply (common pole). To ground the router can be used the grounding screw located on the left panel. ICR-3232 Hardware Manual... -
Page 24: Low Power Mode
LPM consumption. The router can be woken up from this mode by a signal applied to the BIN0 input or after a predetermined period of time. Putting the router into LPM mode can be done using the lpm command, see Commands and Scripts application note for more details. ICR-3232 Hardware Manual... -
Page 25: Serial Interfaces And I/O Port
The I/O user interface is designed for binary input processing and binary output control. By default, the binary output is open, so it is not grounded. The maximum binary output load is 36 V at 500 mA. The constant current supplied by the binary input is 3 mA. ICR-3232 Hardware Manual... -
Page 26: Functional Scheme Of The Binary Interface
2 Hardware Functionality 2.6 Serial Interfaces and I/O Port The functional scheme of connection for the binary input and binary output is drawn on the picture below. Figure 18: Functional scheme of the binary interface ICR-3232 Hardware Manual... -
Page 27: Led Status Indication
ETH0 Green Selected 100 Mbps bit rate. ETH1 Green Selected 10 Mbps bit rate. ETH0 Yellow The network cable is connected. ETH1 Yellow Blinking Data transmission. Yellow The network cable is not connected. Table 11: Status indication ICR-3232 Hardware Manual... -
Page 28: Reset Functions
RST button for at least 10 seconds. This action will reset the router’s configuration to the default settings. Use a narrow screwdriver or any small tool to press the RST button. Figure 19: Resetting the Router ICR-3232 Hardware Manual... -
Page 29: First Use
All routers have the WebAccess/DMP client pre-installed by default. The activated client periodically uploads router identifiers and configuration to the WebAccess/DMP server. See the configuration manual [1], chapter Basic Information -> WebAccess/DMP Configuration, for more information. If the router’s label lacks a unique password, use the password root . ICR-3232 Hardware Manual... -
Page 30: Technical Parameters
SMA for GNSS – 50 R-SMA for WiFi – 50 User interface Ethernet RJ-45 (10/100 Mbit/s) SERIAL | I/O 10-pin panel socket terminal block (for RS232, RS485 and I/O) Table 12: Basic parameters 100 mW for product revision lower than 2.0 ICR-3232 Hardware Manual... -
Page 31: Standards And Regulations
AS/NZC CISPR 32, IEC 61000-6-2, IEC 61000-6-3 Safety UL/EN/AS/NZS 62368-1 Transportation EN 45545-2 Railway EN 50155 (A1, OT4, ST1, H1, Cat 1 Class B, S1, C1, L4, PD2, K2, PC2) National RCM, Brazil - Anatel (15831-20-05739) Table 13: Standards and Regulations ICR-3232 Hardware Manual... -
Page 32: Type Tests And Environmental Conditions
95 % rel. humidity (+40 C) Vibration EN 60068-2-64 ed. 2 Vibration spectrum Category 1 (3 axis, 8 hours A.3 (rolling stock) per axis) Shock EN 60068-2-27 ed. 2 half-sine, 50 g peak, 11 ms Table 14: Type tests and environmental conditions ICR-3232 Hardware Manual... -
Page 33: Parameters Of Cellular Module
• VSWR: <2:1 (Antenna input impedance response as function of frequency. This shows the antenna resonances and its bandwidth). • SMA: 50 • For good diversity performance, the primary and secondary antennas should have different polariza- tions. For product revision 2.0 and higher only. ICR-3232 Hardware Manual... -
Page 34: Parameters Of Gnss
Security – Encryption WEP, TKIP, AES Security – EAP Types EAP–FAST, EAP–TLS, EAP–TTLS, PEAP–GTC, PEAP– MSCHAPv2, PEAP–TLS, LEAP AP maximum users Unlimited (WiFi module supports multi-role operation in STA and AP). Table 17: Technical parameters of WiFi ICR-3232 Hardware Manual... -
Page 35: Parameters Of Bluetooth
2 DMIPS per MHz Flash memory Available memory space 1 862 MB • 2x 256 MB – FW • 512 MB – User data storage • 838 MB – Space for Router Apps 512 MB Table 19: Other technical parameters ICR-3232 Hardware Manual... -
Page 36: Appendix A: Troubleshooting
Also enable "Send all remaining incoming packets to default server" feature and fill in the IP address of your Web server. On the Web server, the default gateway has to be the IP address of the router. DynDNS doesn’t work. • With private APN this will not work. ICR-3232 Hardware Manual... - Page 37 I switched the router to offline mode by SMS message, but the router is in online mode after reboot. • SMS messages do not change the router configuration. They remain in effect only until the router is rebooted. ICR-3232 Hardware Manual...
- Page 38 Web interface in "Configuration" section, "Services", "SSH". Then connect with any SSH client on port 22 of the router. User and password is the same as for the Web interface. Telnet on v2 routers can be enabled here: "Configuration" section, "Services", "Telnet". ICR-3232 Hardware Manual...
- Page 39 +1-800-346-3119 (Monday – Friday, 7 a.m. to 5:30 p.m. CST) Fax: +1-815-433-5109 E-mail: support@advantech-bb.com Web: www.advantech-bb.com Customer Support for Asia Phone: +886-2-2792-7818 #1299 (Monday – Friday, 9 a.m. to 5:30 p.m. UTC+8) Fax: +886-2-2794-7327 E-mail: icg.support@advantech.com.tw Web: www.advantech.com ICR-3232 Hardware Manual...
- Page 40 At the end of it’s life this pro- duct MUST NOT be mixed with other commercial waste for disposal. The device contains a battery. Remove the battery from the device before disposal. The battery in the device needs to be disposed of apart accordingly. Check the terms and conditions of your supplier for disposal information. ICR-3232 Hardware Manual...
- Page 41 4 Technical Parameters Appendix D: Related Documents Appendix D: Related Documents Configuration Manual for ICR-3200 Platform [EP] Product-related documents and applications can be obtained on Engineering Portal at https://icr.advantech.cz/download address. ICR-3232 Hardware Manual...
