Used symbols Danger – Information regarding user safety or potential damage to the router. Attention – Problems that can arise in specific situations. Information – Useful tips or information of special interest.

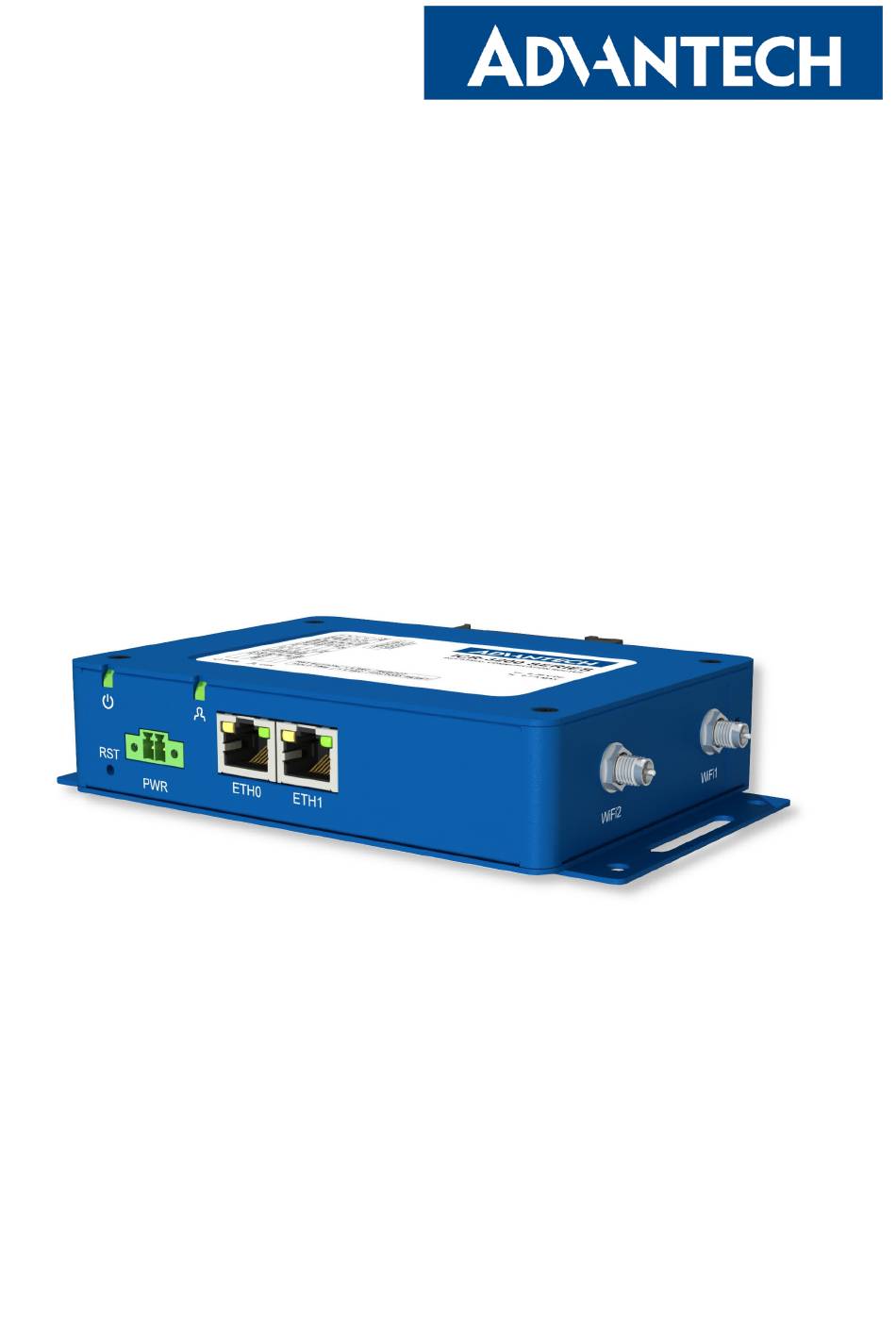

1. Product Overview 1.1 Product Introduction ICR-3201 is a LAN industrial router intended for the global market. This router is an ideal device for the realization of a secure connection of two local area networks (LANs). Interconnection is carried out using two ETHERNET 10/100 interfaces and secure tunnel (IPSec, OpenVPN, L2TP).
SERIAL | 10-pin RS232, RS485, binary inputs, and binary outputs interfaces. See Chap- terminal for more information. Wall clips Wall mounting clips, included as standard accessories; see Chapter 1.9. Table 1: Hardware Overview of the Router ICR-3201 Hardware Manual...
1. Product Overview 1.3 Product Versions 1.3 Product Versions ICR-3201 router is supplied in the following versions: Router versions Version without WiFi Version with WiFi Table 2: Router versions Figure 2: Version without WiFi Figure 3: Version with WiFi ICR-3201 Hardware Manual...
Product Revision. Please note that the default revision (Rev.1.0) is unavailable here. Rev.# Description Initial version (revision number not printed on the labels). PCBU and other changes; see PCN-2022-01 for details. PCBU changes; see PCN-2023-06 for details. Table 4: HW Revisions History ICR-3201 Hardware Manual...
1.6 Package Contents The standard set of router includes items listed in the following table: Item# Description Figure Q’ty ICR-3201 or ICR-3201W router 1 pcs DIN holder 1 set (screwed on the router) Wall clips for wall mounting 2 pcs...
For the dimensions of the product in metal and plastic boxes see the figures below. Note that all sizes are measured in millimeters. Figure 4: Basic dimensions of the router box Figure 5: Basic dimensions of the router box ICR-3201 Hardware Manual...
• Sufficient space must be left between each connector for the handling of cables, • To ensure the correct functioning of the router we recommend the use of an earth-bonding distribu- tion frame for the grounding of the power supply of the router, data cables and antenna within the switchboard. ICR-3201 Hardware Manual...
There are two wholes on the clip with a diameter of 5 millimeters. For detailed information about the mounting dimensions see Chapter 1.7. When mounting the wall mounting clip, tighten the screws with max. torque of 0.4 Nm. Figure 6: Rotated Wall Mounting Clips ICR-3201 Hardware Manual...
DIN rail clip hitched to the DIN rail get out of this rail and then fold out the bottom part of the router away from the DIN rail. Figure 7: Removing from the DIN rail ICR-3201 Hardware Manual...
1. Product Overview 1.11 Product Label 1.11 Product Label The figure below shows an example of the product labels with all the information printed on them. Figure 8: Product Label ICR-3201 Hardware Manual...
3. Node-RED Applications: For advanced Bluetooth functionality, Node-RED and its Bluetooth node can be utilized. Like the Bluetooth Router App, Node-RED and the Node-RED Bluetooth Node not pre-installed and require manual installation on the router. https://icr.advantech.com/products/software/user-modules#bluetooth https://icr.advantech.com/products/software/user-modules#node-red https://icr.advantech.com/products/software/user-modules#node-red-bluetooth-node ICR-3201 Hardware Manual...
Figure 11: Connection of power supply All metal parts, including the box, are connected together with the negative pole of power supply (common pole). To ground the router can be used the grounding screw located on the left panel. ICR-3201 Hardware Manual...
BIN0 input or after a predetermined period of time. Putting the router into LPM mode can be done using the lpm command, see Commands and Scripts application note for more details. ICR-3201 Hardware Manual...
The I/O user interface is designed for binary input processing and binary output control. By default, the binary output is open, so it is not grounded. The maximum binary output load is 36 V at 500 mA. The constant current supplied by the binary input is 3 mA. ICR-3201 Hardware Manual...
Page 22
2. Hardware Functionality 2.6 Serial Interfaces and I/O Port The functional scheme of connection for the binary input and binary output is drawn on the picture below. Figure 13: Functional scheme of the binary interface ICR-3201 Hardware Manual...
Fast blinking ETH0 Green Selected 100 Mbps ETH1 Green Selected 10 Mbps ETH0 Yellow The network cable is connected ETH1 Yellow Brief off blinks Data transmission Yellow The network cable is not connected Table 11: Status indication ICR-3201 Hardware Manual...
The RST button has multiple functions depending on the firmware platform. For more information, see the configuration manual [1], chapter Manual Introduction Device Reset. Use a narrow screwdriver or any small tool to press the RST button. Figure 14: Resetting the Router ICR-3201 Hardware Manual...
WebAccess/DMP server. See the configuration manual [1], chapter Basic Information WebAccess/DMP Configuration, for more information. If the router’s label does not specify a unique password, use "root" as the default password. ICR-3201 Hardware Manual...
31,2 129 mm DIN rail clip dimensions DIN 35 mm, EN 60715 Weight Metal box 460 g for non-WiFi version 480 g for WiFi version Table 12: Basic parameters 100 mW for product revision lower than 2.0 ICR-3201 Hardware Manual...
• Check the "System Log" page for error messages. IPSec tunnel establishes but the communication does not run. • Probably there are bad routing rules defined in the connected devices, or the default gateway. Serial communication is not working. ICR-3201 Hardware Manual...
Page 32
Web interface in "Configuration" section, "Services", "SSH". Then connect with any SSH client on port 22 of the router. User and password is the same as for the Web interface. Telnet on v2 routers can be enabled here: "Configuration" section, "Services", "Telnet". ICR-3201 Hardware Manual...
Page 33
+1-800-346-3119 (Monday – Friday, 7 a.m. to 5:30 p.m. CST) Fax: +1-815-433-5109 E-mail: support.iiot.ana@advantech.com Web: www.advantech.com Customer Support for Asia Phone: +886-2-2792-7818 #1299 (Monday – Friday, 9 a.m. to 5:30 p.m. UTC+8) Fax: +886-2-2794-7327 E-mail: icg.support@advantech.com.tw Web: www.advantech.com ICR-3201 Hardware Manual...
Page 34
At the end of it’s life this pro- duct MUST NOT be mixed with other commercial waste for disposal. The device contains a battery. Remove the battery from the device before disposal. The battery in the device needs to be disposed of apart accordingly. Check the terms and conditions of your supplier for disposal information. ICR-3201 Hardware Manual...
Page 35
Appendix D: Related Documents Configuration Manual for ICR-3200 Platform [EP] Product-related documents and applications can be obtained on Engineering Portal at address. https://icr.advantech.com/download ICR-3201 Hardware Manual...
Page 36
We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s man- ual complies with Directive 2014/53/EU (WiFi version) and with the essential requirements and other relevant provisions of Directives 2014/30/EU and 2014/35/EU (non-WiFi ver- sion). We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s man- ual complies with Radio Equipment Regulations 2017 (S.I.
