RuiDa Technology Co., Ltd
Addr:
3th
floor,Technology
Avenue,Nanshan
Province,P.R.China
Tel:
0755--26066687
Fax:
0755--26982287
E-mail:
sales@rd-acs.com
Web:
www.rd-acs.com
SHENZHEN RUIDA TECHNOLOGY
Read this manual before operation
The content include of electric connections and operating steps
Read the manual to operate the systems
RDV6442G
Building,NO.,1067
District,Shenzhen
city,Guangdong
RDV6442G Control System manual V1.3
Control System manual
Nanhai
https://www.ruidacontroller.com
Advertisement
Table of Contents
Related Manuals for Ruida Technology RDC6442S/G
Summary of Contents for Ruida Technology RDC6442S/G
- Page 1 RDV6442G Control System manual V1.3 Read this manual before operation The content include of electric connections and operating steps Read the manual to operate the systems RDV6442G Control System manual RuiDa Technology Co., Ltd Addr: floor,Technology Building,NO.,1067 Nanhai Avenue,Nanshan District,Shenzhen city,Guangdong Province,P.R.China...
- Page 2 RuiDa, except as allowed under applicable copyright laws. We have identifiedwords that we consider as trademarks. Neither the presence or absence oftrademark identifications affects the legal status of any trademarks. SHENZHEN RUIDA TECHNOLOGY...
- Page 3 This product has been certified by EU legislation (Restriction of Hazardous Substances) Safety certification; comply with relevant EU environmental regulations. This product has been certified by the Federal Communications Commission for safety, Comply with us electronic safety regulations. SHENZHEN RUIDA TECHNOLOGY...
- Page 4 This sign indicates laser radiation, which is usually posted on products with laser output. Please be careful with laser and pay attention to safety when using this kind of equipment. SHENZHEN RUIDA TECHNOLOGY...
- Page 5 If any missing parts or damaged parts are found, please contact ruida technology immediately.Do not install or debug the equipment if any obvious damage is found.
-
Page 6: Table Of Contents
Chapter 8 Examples of IO-port Wiring.......................20 8.1 Introduction to the Panel and Keys....................26 8.1.1 The whole panel........................27 8.1.2 Introduction to the Keys......................27 8.2 Introduction to the Main Interface....................28 8.2.1 The main interface........................28 8.2.2 Speed key..........................29 SHENZHEN RUIDA TECHNOLOGY... - Page 7 8.3.11 IP Setup........................... 37 8.3.12 Diagnoses..........................37 8.3.13 Screen Origin...........................38 8.4 File Key............................. 39 8.4.1 Memory File..........................39 8.4.2 U Disk File..........................40 8.5 Introduction to some alarm info......................41 Chapter 9 Manufacturer/User Parameters Explanation................42 9.1 Manufacturer parameters........................43 9.2 User parameters..........................45 SHENZHEN RUIDA TECHNOLOGY...
-
Page 8: Chapter 1 Overview
RDV6442G Control System manual V1.3 Section 1 Overview CONTENTS: Briefing Description of Controller Model Comparison of Controller Performance SHENZHEN RUIDA TECHNOLOGY... -
Page 9: Briefing
Port One-way Two-way digits and Two-way digits and Two-way digits port, Feature digit two-way analog two-way analog settable one-way port, settable port, settable independently analog independently independently and non-interacted non-interacted non-interacted Copying Common Quick Quick Very Quick SHENZHEN RUIDA TECHNOLOGY... - Page 10 Logics Work time YES (the work time (the work YES (the work time Preview accurate to 1ms) time accurate to accurate to 1ms) 1ms) Online Update Mainboard Program Online Display Modification Feature Laser Power/Spee Offline Modification Layer SHENZHEN RUIDA TECHNOLOGY...
- Page 11 Realtime clock and No realtime clock, but Feature based battery integrated battery integrated encryption included the PC time hardware hardware encryption encryption Communica USB2.0 10/100MHZ 10/100MHZ 10/100MHZ Ethernet Ethernet or USB2.0 Ethernet USB2.0, Mode USB2.0 communication mode automatically checked SHENZHEN RUIDA TECHNOLOGY...
-
Page 12: Chapter 2 Installation Size
RDV6442G Control System manual V1.3 Section 2 Installation Size CONTENTS: Installation Size of MainBoard Size of Panel SHENZHEN RUIDA TECHNOLOGY... -
Page 13: Installation Size Of Mainboard
The unit of all sizes is millimeter (mm) and the size accurate to 0.1mm (the four holes are symmetrical) Figure 2.1-1 2.2 Size of Panel The unit of all sizes is millimeter (mm) and the size accurate to 0.1mm. Figure 2.2-1 SHENZHEN RUIDA TECHNOLOGY... -
Page 14: Chapter 3 Object Pictures And Interfaces
RDV6442G Control System manual V1.3 Section 3 Object Pictures and Interfaces CONTENTS: Object Pictures of MainBoard Object Pictures of Panel Electric connection Lamp instruction SHENZHEN RUIDA TECHNOLOGY... -
Page 15: Object Pictures Of Mainboard

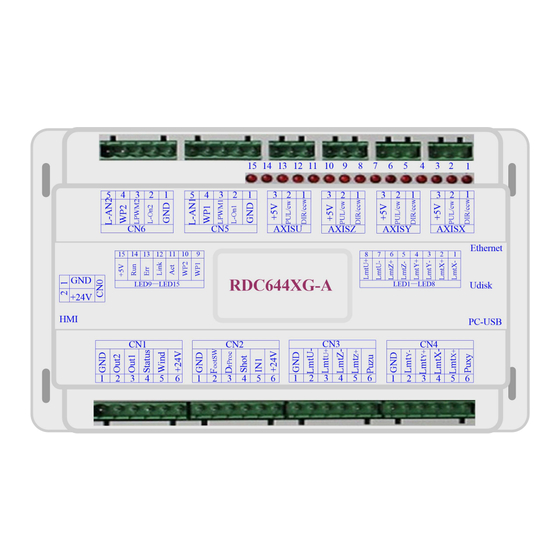

3.1 Object Pictures of MainBoard For more detailed pin description, see the Chapter 4: Description of Interface Signal for MainBoard. Figure: 3.1-1 Object Picture of MainBoard 3.2 Object Pictures of Panel Figure: 3.2-1 Object Picture of Panel SHENZHEN RUIDA TECHNOLOGY... -
Page 16: Electric Connection
LED8 LmtU+ positive limit LED9 Indication for water protect 1 LED10 Indication for water protect 2 LED11 Ethernet communication LED12 Link Ethernet connection LED13 error in controller hardware LED14 the normal running status LED15 +5V power supply SHENZHEN RUIDA TECHNOLOGY... -
Page 17: Chapter 4 Description Of Interface Signal For Mainboard
RDV6442G Control System manual V1.3 Section 4 Description of Interface Signal for MainBoard CONTENTS: Interface of Main Power Source CN0 Panel Signal-Cable Interface HMI Udisk Interface PC-USB Interface Ethernet Interface General Output Port CN1 General Input Port CN2 SHENZHEN RUIDA TECHNOLOGY... - Page 18 RDV6442G Control System manual V1.3 4-axle Spacing Input Interface CN3/CN4 X/Y/Z/U axle Motor Driver Interface AXIS_X~AXIS_U Laser Power Control Interface CN5/CN6 SHENZHEN RUIDA TECHNOLOGY...
-
Page 19: Interface Of Main Power Source Cn0
PC-USB is a USB-BM interface. The controller may communicate with PC by this port. 4.5 Ethernet Interface Using this interface, the mainboard can communicate with PC by 10/100MHZ Ethernet. Pin to Pin Ethernet parallel line is recommended. Caution 4.6 General Output Port CN1 Definition of general output port Symbols Definitions SHENZHEN RUIDA TECHNOLOGY... -
Page 20: General Input Port Cn2
100 ms, if the machine lies idle, it can be started for work; if the machine is in the working state, the work will be suspended; of the machine is in the suspension, the work SHENZHEN RUIDA TECHNOLOGY... -
Page 21: 4-Axle Spacing Input Interface Cn3/Cn4
5V Power positive (output) The spacing polarity is optional, that is to say, when the motion axle reaches the spacing position, it will trigger a low-level signal so as to make the corresponding LED (under the cover) light; when the SHENZHEN RUIDA TECHNOLOGY... -
Page 22: X/Y/Z/U Axle Motor Driver Interface Axis_X~Axis_U
Power ground (output) L-ON1 Laser-enabled control interface 1. When the laser is the RF laser, this pin will not be used; 2. When the laser is a glass tube, if the used laser is outputted in the SHENZHEN RUIDA TECHNOLOGY... - Page 23 Water protection input must be 24V logic level. L-AN1 The analog signals for Laser Power. If Glass Tube is used, this pin is recommended to control the power of the Laser. Please correctly select the laser type in the factory parameters. Prompt SHENZHEN RUIDA TECHNOLOGY...
-
Page 24: Chapter 5 Examples Of Laser Power Interface
RDV6442G Control System manual V1.3 Section 5 Examples of Laser Power Interface CONTENTS: Brief Examples of Glass tube Laser Power Examples of RF-Laser SHENZHEN RUIDA TECHNOLOGY... -
Page 25: Brief
This control system has two independent and adjustable digital laser power control interfaces, which can be used to control glass tube laser power and RF-laser. Please correctly select the laser type in the factory parameters, or, the laser control is incorrect. 5.2 Examples of Glass tube Laser Power SHENZHEN RUIDA TECHNOLOGY... -
Page 26: Examples Of Rf-Laser
RDV6442G Control System manual V1.3 5.3 Examples of RF-Laser SHENZHEN RUIDA TECHNOLOGY... -
Page 27: Chapter 6 Examples Of Driver Interface For Step-Servo Motor
RDV6442G Control System manual V1.3 Section 6 Examples of Driver Interface for Step-servo Motor CONTENTS: Brief Examples of Motor Driver Connection SHENZHEN RUIDA TECHNOLOGY... -
Page 28: Brief
Figure: 6.1-1 Four Inputs, Independent Input Signal of Driver Figure: 6.1-2 Three Inputs, Common-anode Input Signal of Driver SHENZHEN RUIDA TECHNOLOGY... -
Page 29: Examples Of Motor Driver Connection
RDV6442G Control System manual V1.3 6.2 Examples of Motor Driver Connection SHENZHEN RUIDA TECHNOLOGY... -
Page 30: Chapter7 Examples Of Io-Port Wiring
RDV6442G Control System manual V1.3 Section 7 Examples of IO-port Wiring CONTENTS: Input Output SHENZHEN RUIDA TECHNOLOGY... -
Page 31: Input
Figure 7.1-1 example of input 7.2 Output All outputs are isolated through the optocoupler, and 500mA current for each, OC gate output, each can directly drive the 6V/24V relay, led lamp, buzzer etc. Output connection shown as below SHENZHEN RUIDA TECHNOLOGY... - Page 32 RDV6442G Control System manual V1.3 Figure 7.2-1 example of output SHENZHEN RUIDA TECHNOLOGY...
-
Page 33: Introduction To The Panel And Keys
RDV6442G Control System manual V1.3 Section 8 Examples of IO-port Wiring CONTENTS: Introduction to the Panel and Keys Introduction to the Main Interface Z/U Key File Key Introduction to some alarm info SHENZHEN RUIDA TECHNOLOGY... -
Page 34: The Whole Panel
8.1.1 The whole panel 8.1.2 Introduction to the Keys :Reset the whole system; :Set the relative origin; :Let the Laser to splash; :To track by the current file’s frame; :The management of the memory and U disc files; SHENZHEN RUIDA TECHNOLOGY... -
Page 35: Introduction To The Main Interface
:To stop work, or to exit to some menu; :Validate the change; 8.2 Introduction to the Main Interface 8.2.1 The main interface When the system is powered on, the screen will show as below: SHENZHEN RUIDA TECHNOLOGY... -
Page 36: Speed Key
But, when work is running or paused, some keys don’t respond when they are pushed. 8.2.2 Speed key Push the “Speed” key when the screen is on the main interface, it will show as below: SHENZHEN RUIDA TECHNOLOGY... -
Page 37: Max/Min Power Keys
Figure 8.2-3 Figure 8.2-4 When “Z/U” key is pushed, the green block can move up and down to denote the changing item, then “Y+/-” keys and “X+/-” keys can be used to change the value. SHENZHEN RUIDA TECHNOLOGY... -
Page 38: Set The Layer Parameters
“OK” to validate the change, and “Esc” to invalidate the change. 8.3 Z/U Key The Z/U key can be pressed when the system is idle or the work is finished. On pressing this key, it will show some entries in the following interface: SHENZHEN RUIDA TECHNOLOGY... -
Page 39: Z Move
When the green block is on “U Move” item, “X+/-” keys can be used to move the u axes. 8.3.3 Axis reset+ When the green block is on this item, push the “Enter” key to show as below: SHENZHEN RUIDA TECHNOLOGY... -
Page 40: Manual Set
When the Mode item is “manual”, then pushing the direction key one time, the corresponding axes will move a fixed length, unless the scope is overstepped. SHENZHEN RUIDA TECHNOLOGY... -
Page 41: Laser Set
“manual”, then pushing the Laser key one time, the enabled lasers will splash a fixed time. 8.3.6 Origin set+ When the green block is on this item, push the “Enter” key to show as below: Figure 8.3-5 SHENZHEN RUIDA TECHNOLOGY... -
Page 42: Set Fact Para
The rotation order of origin is 1->2->3->4->1->2……. 8.3.7 Set Fact Para After the “Set Fact Para” is selected and the Enter key pressed, the interface will show the specific password to be entered when set as default parameter. SHENZHEN RUIDA TECHNOLOGY... -
Page 43: Def Fact Para
Esc key to return the prior menu. 8.3.10 Language The item “Language” helps you to select a appropriate langue which is displayed on the pane: SHENZHEN RUIDA TECHNOLOGY... -
Page 44: Ip Setup
IP value and the Gateway value are changed, push “Enter” key to validate the change, or “Esc” key to invalidate the change. 8.3.12 Diagnoses If the “Diagnoses” item is pressed, the system will show as below: SHENZHEN RUIDA TECHNOLOGY... -
Page 45: Screen Origin
Figure 8.3-10 There are four entries to be selected: Top Left, Top Right, Bottom Left and Bottom Right. When one is selected, the previewed graph on the screen would be enantiomorphous based on X or Y direction. SHENZHEN RUIDA TECHNOLOGY... -
Page 46: File Key
●Other: the other operation of the memory files; ●Run: To run the selected file; ●Track: To track the selected file, and the track mode is optional; ●Work time: To forecast the running time of the selected file, and the time is accurate to 1ms; SHENZHEN RUIDA TECHNOLOGY... -
Page 47: U Disk File
●Total: the total running times of all the files. 8.4.2 U Disk File If the “Udisk” entry in figure 8.4-1 is pressed, the system will show as figure 8.4-3, and the operation method is all the same as figure 8.4-1. SHENZHEN RUIDA TECHNOLOGY... -
Page 48: Introduction To Some Alarm Info
When users are operating the system, or when the machine is running, some alarm information such as water protecting error maybe shows as below: Figure 8.5-1 Push “Enter” key or “Esc” key, the system will execute some relative steps. SHENZHEN RUIDA TECHNOLOGY... -
Page 49: Chapter 9 Manufacturer/User Parameters Explanation
RDV6442G Control System manual V1.3 Section 9 Manufacturer/User Parameters Explanation CONTENTS: Manufacturer parameters User parameters SHENZHEN RUIDA TECHNOLOGY... -
Page 50: Manufacturer Parameters
Maximum Acceleration: it means the maximum acceleration of the motion axle in accelerated or decelerated motion. If the acceleration is set too large, it will make the motor lose steps, jar and even squeak; if too small, it will cause the reduction of acceleration so as to SHENZHEN RUIDA TECHNOLOGY... - Page 51 When a laser’s power is attenuated, then the laser attenuation quotiety may be set SHENZHEN RUIDA TECHNOLOGY...
-
Page 52: User Parameters
（1）Cutting parameters(Only affect cutting arts) Idle Move Speed: this parameter decides the highest speed of all non-lighting lines for the machine in the movement process. Idle Move Acceleration: it means the highest acceleration of all non-lighting lines. Idle SHENZHEN RUIDA TECHNOLOGY... - Page 53 Speckle Size: When the general mode is selected as the scanning mode, this parameter will become ineffective; when the special mode is selected, this parameter will become effective. The controller will control this parameter among 50%~99%. SHENZHEN RUIDA TECHNOLOGY...
- Page 54 Enter key is pressed at this time, the system will cut the border at the Prompt maximum/minimum coordinates first, and then border the figure. This bordering can be given up. （5）Other user parameters Array Mode: Two-way array or one-way array can be selected. Two-way array means SHENZHEN RUIDA TECHNOLOGY...
- Page 55 Focus Setting: it means the distance from the focal point of laser head lens to Z-axle origin. When there is no automatic focusing function, this parameter becomes invalid. Backlash X: The X axes’ backlash, accurate to 1um. Backlash Y: The Y axes’ backlash, accurate to 1um. SHENZHEN RUIDA TECHNOLOGY...
- Page 56 RDV6442G Control System manual V1.3 Thank you for your selection of our production! All the copyright of this manual is owned by Ruida technology. Any person or company can not copy upload and send the manual without Ruida’s permission. Content will be revised or modified. We will not send message to every users.
