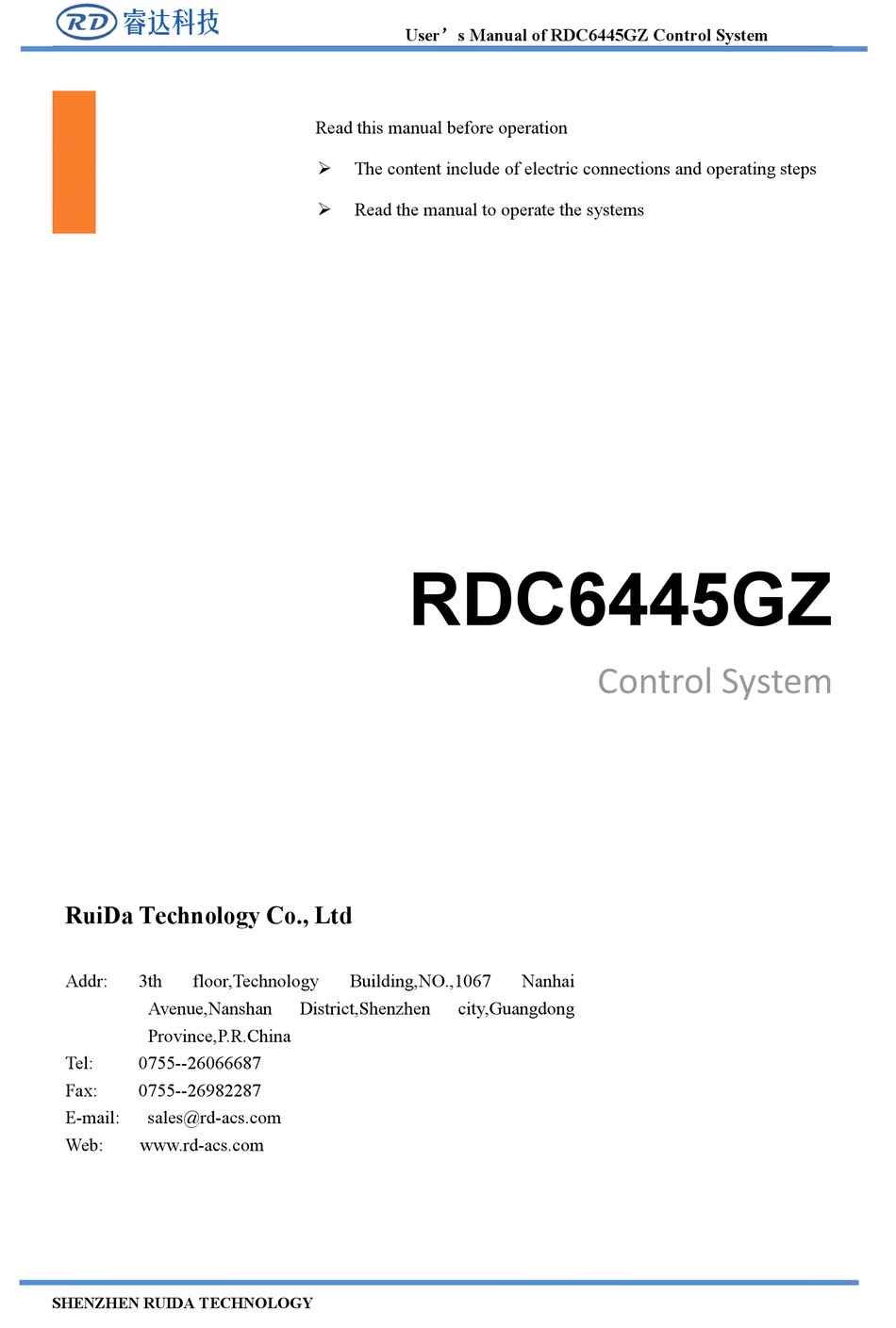

User's Manual of RDC6445GZ Control System
Read this manual before operation
The content include of electric connections and operating steps
Read the manual to operate the systems
RDC6445GZ
Building,NO.,1067
District,Shenzhen
city,Guangdong
Control System
Nanhai
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ruida Technology RDC6445GZ
Summary of Contents for Ruida Technology RDC6445GZ
- Page 1 User’s Manual of RDC6445GZ Control System Read this manual before operation The content include of electric connections and operating steps Read the manual to operate the systems RDC6445GZ Control System RuiDa Technology Co., Ltd Addr: floor,Technology Building,NO.,1067 Nanhai...
- Page 2 User’s Manual of RDC6445GZ Control System COPYRIGHT All rights reserved.You may not reproduce, transmit, store in a retrieval system or adapt thispublication, in any form or by any means, without the prior written permissionof RuiDa, except as allowed under applicable copyright laws. We have identifiedwords that we consider as trademarks.
- Page 3 User’s Manual of RDC6445GZ Control System CERTIFICATION DECLARATION The product has been certified by the CE (Commutate European) safety certification. It has passed the corresponding conformity assessment procedure and the manufacturer's declaration of conformity, in accordance with the relevant EU directive.
- Page 4 User’s Manual of RDC6445GZ Control System SAFETY INFORMATION When using this system, please make sure the operation is correct and the usage is safe. Some signs or text will be used to remind you to pay attention to the dangerous matters and some important information.
- Page 5 If any missing parts or damaged parts are found, please contact ruida technology immediately.Do not install or debug the equipment if any obvious damage is found.
-
Page 6: Table Of Contents
User’s Manual of RDC6445GZ Control System Contents 1.1 B ............................4 RIEFING 1.2 D ..................4 ESCRIPTION OF ONTROLLER ODEL 1.3 C ................ 4 OMPARISON OF ONTROLLER ERFORMANCE Section 2 Installation Size......................7 2.1 I ..................8 NSTALLATION IZE OF OARD 2.2 S ...........................9... - Page 7 User’s Manual of RDC6445GZ Control System 8.5 M ........................37 UNCTION 8.5.1 User parameters........................38 8.5.2 Vender parameters......................40 8.5.3 Origin Setting........................42 8.5.4 Backup parameters......................43 8.5.5 Restore parameters......................44 8.6 C ......................44 ONTROLLER SETTING 8.6.1 Language.......................... 44 8.6.2 Screen origin........................45 8.6.3 Wireless panel........................
- Page 8 User’s Manual of RDC6445GZ Control System Section 1 Overview CONTENTS: Briefing Description of Controller Model Comparison of Controller Performance SHENZHEN RUIDA TECHNOLOGY...
-
Page 9: Briefing
User’s Manual of RDC6445GZ Control System 1.1 Briefing RDC6445GZ system is a new generation system for control of laser engraving and cutting, which is developed by RD Co., Ltd. In addition to high hardware stability, high voltage or static electricity rejection, and friendly 5’’ TFT man-machine display. This system is provided with... - Page 10 User’s Manual of RDC6445GZ Control System small capacity capacities capacities with different capacities Capacity Memory 256M 256M 128M Feature Fault Common Capable of checking Capable of checking Capable checking Tolerance defective track and defective track and defective track formatting and good...
- Page 11 User’s Manual of RDC6445GZ Control System Z-axle Feature Linkage Feeding Single Single/double Single/double Single/double direction Feature direction direction for option direction for option for option Power-on Fixed Configurable Configurable for each Configurable for each Resetting each axes axes axes Key Speed...
-
Page 12: Section 2 Installation Size
User’s Manual of RDC6445GZ Control System Section 2 Installation Size CONTENTS: Installation Size of MainBoard Size of Panel SHENZHEN RUIDA TECHNOLOGY... -
Page 13: Installation Size Of Mainboard
User’s Manual of RDC6445GZ Control System 2.1 Installation Size of MainBoard The unit of all sizes is millimeter (mm) and the size accurate to 0.1mm (the four holes are symmetrical) Figure 2.1-1 SHENZHEN RUIDA TECHNOLOGY... -
Page 14: Size Of Panel
User’s Manual of RDC6445GZ Control System 2.2 Size of Panel The unit of all sizes is millimeter (mm) and the size accurate to 0.1mm. Figure 2.2-1 SHENZHEN RUIDA TECHNOLOGY... -
Page 15: Section3 Object Pictures And Interfaces
User’s Manual of RDC6445GZ Control System Section3 Object Pictures and Interfaces CONTENTS: Object Pictures of MainBoard Object Pictures of Panel Electric connection Lamp instruction SHENZHEN RUIDA TECHNOLOGY... -
Page 16: Object Pictures Of Mainboard
User’s Manual of RDC6445GZ Control System 3.1 Object Pictures of MainBoard For more detailed pin description, see the Chapter 4: Description of Interface Signal for MainBoard. Figure: 3.1-1 Object Picture of MainBoard SHENZHEN RUIDA TECHNOLOGY... -
Page 17: Object Pictures Of Panel
User’s Manual of RDC6445GZ Control System 3.2 Object Pictures of Panel Figure: 3.2-1 Object Picture of Panel SHENZHEN RUIDA TECHNOLOGY... -
Page 18: Electric Connection
User’s Manual of RDC6445GZ Control System 3.3 Electric connection Figure 3.3-1 electric connection SHENZHEN RUIDA TECHNOLOGY... -
Page 19: Lamp Instruction
User’s Manual of RDC6445GZ Control System 3.4 Lamp instruction RDC6445GZ have fifteen red lamps: LED NUMBER NAME SENSE LED1 LmtX- negative limit indicator LED2 LmtX+ positive limit LED3 LmtY- negative limit LED4 LmtY+ positive limit LED5 LmtZ- negative limit LED6... -
Page 20: Section 4 Description Of Interface Signal For Mainboard
User’s Manual of RDC6445GZ Control System Section 4 Description of Interface Signal for MainBoard CONTENTS: Interface of Main Power Source CN0 Panel Signal-Cable Interface HMI Udisk Interface PC-USB Interface Ethernet Interface General Output Port CN1 General Input Port CN2 4-axle Spacing Input Interface CN3/CN4... -
Page 21: Interface Of Main Power Source Cn0
User’s Manual of RDC6445GZ Control System 4.1 Interface of Main Power Source CN0 Symbols Definitions 24V power ground (input) +24V 24V power positive (input) This control system employs single 24 power supply. For a certain margin, it is suggested to select 24V/2A power. Besides, this system is... -
Page 22: General Output Port Cn1
User’s Manual of RDC6445GZ Control System 4.6 General Output Port CN1 Definition of general output port Symbols Definitions Power ground (output) Out2 General output, with the function reserved. Out1 General output, with the function reserved. Status General output for the signal port of running status. If this port is externally connected with the relay, the relay coil is broken over when it works;... -
Page 23: 4-Axle Spacing Input Interface Cn3/Cn4
User’s Manual of RDC6445GZ Control System second stepping-down of the pedal will be considered invalid by the mainboard. DrProc Input from protective port. If the machine needs to be protected in the special state (such as door open protection), the protective signal can be inputted from this pin. This pin can be enabled and prohibited. -
Page 24: X/Y/Z/Uaxle Motor Driver Interface Axis_X~Axis_U
User’s Manual of RDC6445GZ Control System 4.9 X/Y/Z/U axle Motor Driver Interface AXIS_X~AXIS_U The interfaces of the above four motion axles are the same. The AXIS-X interface is exampled. Symbols Definitions (OC output) Directional signal Pulse signal (OC output) 5V Power positive (output) The polarity of directional signal for driver pulse signal can be set. - Page 25 User’s Manual of RDC6445GZ Control System 2. When the laser is a glass tube, this pin will be connected with the laser power PWM end and used to control the power of the laser. The input port of water protector for the first laser power source.
-
Page 26: Section5 Examples Of Laser Power Interface
User’s Manual of RDC6445GZ Control System Section5 Examples of Laser Power Interface CONTENTS: Brief Examples of Glass tube Laser Power Examples of RF-Laser SHENZHEN RUIDA TECHNOLOGY... -
Page 27: Brief
User’s Manual of RDC6445GZ Control System 5.1 Brief This control system has two independent and adjustable digital laser power control interfaces, which can be used to control glass tube laser power and RF-laser. Please correctly select the laser type in the factory parameters, or, the laser control is incorrect. -
Page 28: Examples Of Glass Tube Laser Power
User’s Manual of RDC6445GZ Control System 5.2 Examples of Glass tube Laser Power SHENZHEN RUIDA TECHNOLOGY... -
Page 29: Examples Of Rf-Laser
User’s Manual of RDC6445GZ Control System 5.3 Examples of RF-Laser SHENZHEN RUIDA TECHNOLOGY... -
Page 30: Section6 Examples Of Driver Interface For Step-Servo Motor
User’s Manual of RDC6445GZ Control System Section6 Examples of Driver Interface Step-servo Motor CONTENTS: Brief Examples of Motor Driver Connection SHENZHEN RUIDA TECHNOLOGY... -
Page 31: Brief
User’s Manual of RDC6445GZ Control System 6.1 Brief The input signal end of step-servo motor driver employs the light-coupled isolation technology. For the step-by-step impulse signal, some isolate the side OC diode from cutoff to conduction (e.g. the valid falling edge of pulse signal inputted from the diode minus end) and some do so from conduction to cutoff (e.g. -
Page 32: Examples Of Motor Driver Connection
User’s Manual of RDC6445GZ Control System 6.2 Examples of Motor Driver Connection SHENZHEN RUIDA TECHNOLOGY... -
Page 33: Section7 Examples Of Io-Port Wiring
User’s Manual of RDC6445GZ Control System Section7 Examples of IO-port Wiring CONTENTS: Input Output SHENZHEN RUIDA TECHNOLOGY... -
Page 34: Input
User’s Manual of RDC6445GZ Control System 7.1 Input The two water protection inputs are 24V logic level; all other inputs are compatible with 5V/12V/24V logic level. Input connection shown as below Figure 7.1-1 example of input SHENZHEN RUIDA TECHNOLOGY... -
Page 35: Output
User’s Manual of RDC6445GZ Control System 7.2 Output All outputs are isolated through the optocoupler, and 500mA current for each, OC gate output, each can directly drive the 6V/24V relay, led lamp, buzzer etc. Output connection shown as below Figure 7.2-1 example of output... -
Page 36: Section8 Operating Instruction Of Panel
User’s Manual of RDC6445GZ Control System Section8 Operating Instruction of Panel CONTENTS: Brief Speed Setting Max/Min Power Setting Set the layer parameters Menu Function Controller setting Funtions File Management Password input and settings Prompt and alarm information SHENZHEN RUIDA TECHNOLOGY... -
Page 37: Brief
8.1 Brief 8.1.1 Overview RDC6445GZ-HMI control panel (hereinafter referred to as "panel") is a 5.0 inch TFT LCD screen based human-machine interface, with beautiful interface, man-machine friendly, smooth control, cost-effective features. The panel can depict the motion track of the controller in real time, which... - Page 38 User’s Manual of RDC6445GZ Control System To track by the current file’s frame. The management of the memory and U disc files. Set the relative origin. Set the laser power of the current running layer, or set the ...
-
Page 39: The Main Interface
User’s Manual of RDC6445GZ Control System Backspace. Digital key 0~9：Used to set parameters. 8.1.3 The main interface When the system is powered on, the screen will show as below: Figure 8.1.3 Graph Display Area: To display the whole file’s track, and display the running track. -
Page 40: Speed Setting
User’s Manual of RDC6445GZ Control System Net status: To display the connecting status of the Ethernet. When the network connection is successful, the icon is displayed,otherwise the icon is displayed. Key lock status：When the keyboard lock function is enabled, the icon is displayed,any key press does not respond and prompt for the unlock password, enter the correct unlock password before unlocking. -
Page 41: Set The Layer Parameters
User’s Manual of RDC6445GZ Control System Figure 8.3 At this point, the "blue selection block" stays on the first parameter to indicate that the parameter is selected, press the number key and the backspace key to set and modify the parameter. Press the arrow button to move the "select block" to select other parameters for modification. -
Page 42: Menu Function
User’s Manual of RDC6445GZ Control System Figure 8.4-3 At this point, the "blue selection block" stays on the layer number entry, and then press the <Enter> key to enter the selection layer mode, while the "blue selection block" becomes , press the "up/down" key to select other layers, and then press the <Enter>... -
Page 43: User Parameters
User’s Manual of RDC6445GZ Control System 8.5.1 User parameters In the menu interface, select "User parameters" entry and press the <Enter> key ,it will show as below: Figure 8.5.1-1 At this point, the panel automatically reads the motherboard parameters and displays them, while displaying the progress of the read parameters in the "Read... - Page 44 User’s Manual of RDC6445GZ Control System the number key to modify the numerical parameters (such as "Idle speed"), for non-numerical parameters (such as "Scan mode"), when the "blue selection block" stops on the parameter, press the <Enter> key to enter the modification mode (the "blue selection block"...
-
Page 45: Vender Parameters
User’s Manual of RDC6445GZ Control System Figure 8.5.1-7 Figure 8.5.1-8 Figure 8.5.1-9 Figure 8.5.1-10 Figure 8.5.1-11 8.5.2 Vender parameters In the menu interface, select "Vender parameters" entry and press the <Enter> key ,it will show as below: SHENZHEN RUIDA TECHNOLOGY... - Page 46 User’s Manual of RDC6445GZ Control System Figure 8.5.2-1 The interface parameters of Y, Z and U axes are the same as those of X axis parameters. Figure 8.5.2-2 Figure 8.5.2-3 Figure 8.5.2-4 The operation and settings of the factory parameters are the same as the user parameters.
-
Page 47: Origin Setting
User’s Manual of RDC6445GZ Control System 8.5.3 Origin Setting In the menu interface, select "Origin setting" entry and press the <Enter> key ,it will show as below: Figure 8.5.3-1 At this point, the "blue selection block" defaults to select the "Mult origin enable"... -
Page 48: Backup Parameters
User’s Manual of RDC6445GZ Control System press the <Enter> key, the parameters automatically take effect, and press the <Esc> key to return to the menu interface. Each item introduced as below: Multiple Origins Enable: “Yes” or “No” can be selected. If you select ... -
Page 49: Restore Parameters
User’s Manual of RDC6445GZ Control System 8.5.5 Restore parameters In the menu interface, select the "Restore Factory Parameters" entry, press the <Enter> button and then pop up the password input interface. The password input operation refers to Section 8.9. If the password is input correctly, the system will restore all the current user parameters and factory parameters with the factory parameters set before. -
Page 50: Screen Origin
User’s Manual of RDC6445GZ Control System Press the direction key to select a language and press the <Enter> key to set up the function and automatically return to the menu interface. 8.6.2 Screen origin Select the "Screen origin" entry under the controller setting interface, press the <Enter>... -
Page 51: Ip Setting
User’s Manual of RDC6445GZ Control System Figure 8.6.3 When modifying the first parameter, press the <Enter> key to enter the modification mode ("blue selection block" right side becomes ), press the "Up/Down" key to modify, and then press the <Enter> key to exit the modification mode. -
Page 52: System Info
User’s Manual of RDC6445GZ Control System 8.6.5 System Info Select the "System Info" entry under the controller setting interface, press the <Enter> button, and then pop up the interface as follows: Figure 8.6.5 Press the <Enter> key to read motherboard information.Press the <Esc> key to return to the previous menu. -
Page 53: Axis Reset
User’s Manual of RDC6445GZ Control System 8.7.1 Axis reset Select the "Axis reset" entry under the controller setting interface, press the <Enter> button, and then pop up the interface as follows: Figure 8.7.1 Press the direction key to select an entry and press the <Enter> key, the system performs the axis reset, and prompts "Resetting...". -
Page 54: Manual Setting
User’s Manual of RDC6445GZ Control System This item can lock the keys. After entering the correct password, the keys automatically lock and return to the main interface. When any key is pressed, the interface prompts the input password to unlock the keys. -
Page 55: Diagnose
User’s Manual of RDC6445GZ Control System Figure 8.7.4 The operation method is the same as manual setting. When “Continue” item is selected, then the “Laser time” item is not valid, on that time, push the Laser key to splash the enabled lasers, and when Laser key is loosed, then the lasers will finish splashing. -
Page 56: Laser Power Infomation
User’s Manual of RDC6445GZ Control System 8.7.6 Laser power infomation Note: laser power information function is effectively configured on PC software. Select the "Laser power info" entry under the funtions interface, press the <Enter> button, and then pop up the interface as follows: Figure 8.7.6-1... -
Page 57: File Management
User’s Manual of RDC6445GZ Control System 8.8 File Management 8.8.1 Memory File Push the <Menu> key when the screen is on the main interface, it will show as below: Figure 8.8.1 When showing this menu, the system would read the memory file firstly, the file name and the work times would be listed in the area, and the selected file is previewed in the bottom right area. -
Page 58: Memory Operation
User’s Manual of RDC6445GZ Control System Read mem file: read the memory file list; 8.8.2 Memory operation Select the "Memory Operation" entry in the above interface and press the <Enter> button, then the pop-up menu appears as follows: Figure 8.8.2 ... -
Page 59: U Disk File
User’s Manual of RDC6445GZ Control System Figure 8.8.3 Format speedily: To format memory speedily, and then all the files in memory will be deleted. Format drastically: To format memory drastically, and then all the files in memory will be deleted. -
Page 60: Password Input And Settings
User’s Manual of RDC6445GZ Control System This system supports such file formats of Udisk as FAT32 and FAT16, but it can identify them when the files are put under the root directory of Udisk. The file name of more than 8 characters will Prompt automatically be cut out by the system. -
Page 61: Prompt And Alarm Information
User’s Manual of RDC6445GZ Control System Figure 8.9.2 At this point, you can enter the password directly by pressing the number key, or you can press the <Shift> key to use the keypad, press the direction key to select a number or letter, press the <Enter>... - Page 62 User’s Manual of RDC6445GZ Control System Figure 8.10-2 At this point, the system performs related operations according to the <Enter> or <Esc> keys. SHENZHEN RUIDA TECHNOLOGY...
-
Page 63: Section9 Manufacturer/User Parameters Explanation
User’s Manual of RDC6445GZ Control System Section9 Manufacturer/User Parameters Explanation CONTENTS: Manufacturer parameters User parameters SHENZHEN RUIDA TECHNOLOGY... -
Page 64: Manufacturer Parameters
User’s Manual of RDC6445GZ Control System 9.1 Manufacturer parameters （1）Motor parameters X/Y/Z/U axle parameters Direction Polarity: Modification of direction polarity can move the motor to the opposite direction. The modification purpose can move this axle to the origin on resetting. If this axle moves far from the origin on resetting, it means the direction polarity of this axle is wrong in setting and should be modified. - Page 65 User’s Manual of RDC6445GZ Control System axle can bear. This parameter has something to do with the driving force of motor, the inertia of motion axle and its drive ratio. For example, the typical value is 200~500mm/s. Maximum Acceleration: it means the maximum acceleration of the motion axle in accelerated or decelerated motion.
- Page 66 User’s Manual of RDC6445GZ Control System to pre-generate PWM, then set the Pre-generation Frequency and the Pre-generation pulse scale. Water Protector Enabled: When the water protector is enabled, the mainboard will detect the input port of water protector. If this port is of low level, it will be deemed normal;...
-
Page 67: User Parameters
User’s Manual of RDC6445GZ Control System After the configuration parameters in the manufacturer parameters, such as directional polarity, control mode, laser type and laser PWM Prompt frequency, are modified, the system should be reset. Such a modification can function upon the resetting of the system. - Page 68 User’s Manual of RDC6445GZ Control System （2）Scanning parameters(Only affect scanning arts) X-axle Starting Speed Y-axle Starting Speed X-axle Acceleration Y-axle Acceleration The above four parameters are used to set the starting speed and acceleration of two axles on the scanning. The higher the two speeds are, the quicker the scanning is.
- Page 69 User’s Manual of RDC6445GZ Control System moving, there can set a value to repay the interval of the two lines graph on Y direction. （4）Reset parameters Reset Speed: it means the speed of X/Y-axle linkage reset to the origin.
- Page 70 User’s Manual of RDC6445GZ Control System Thank you for your selection of our production! All the copyright of this manual is owned by Ruida technology. Any person or company can not copy upload and send the manual without Ruida’s permission.
