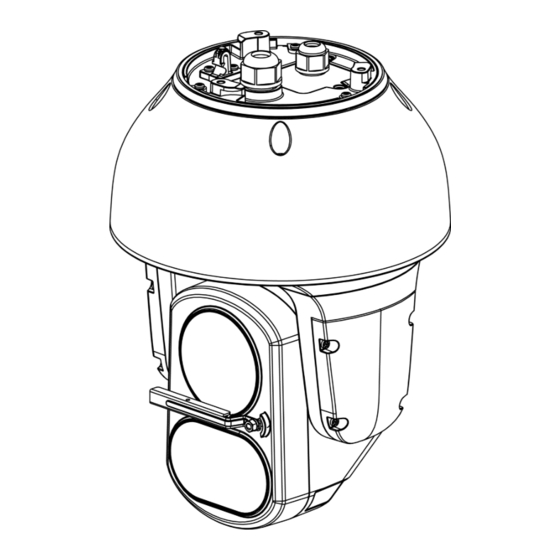

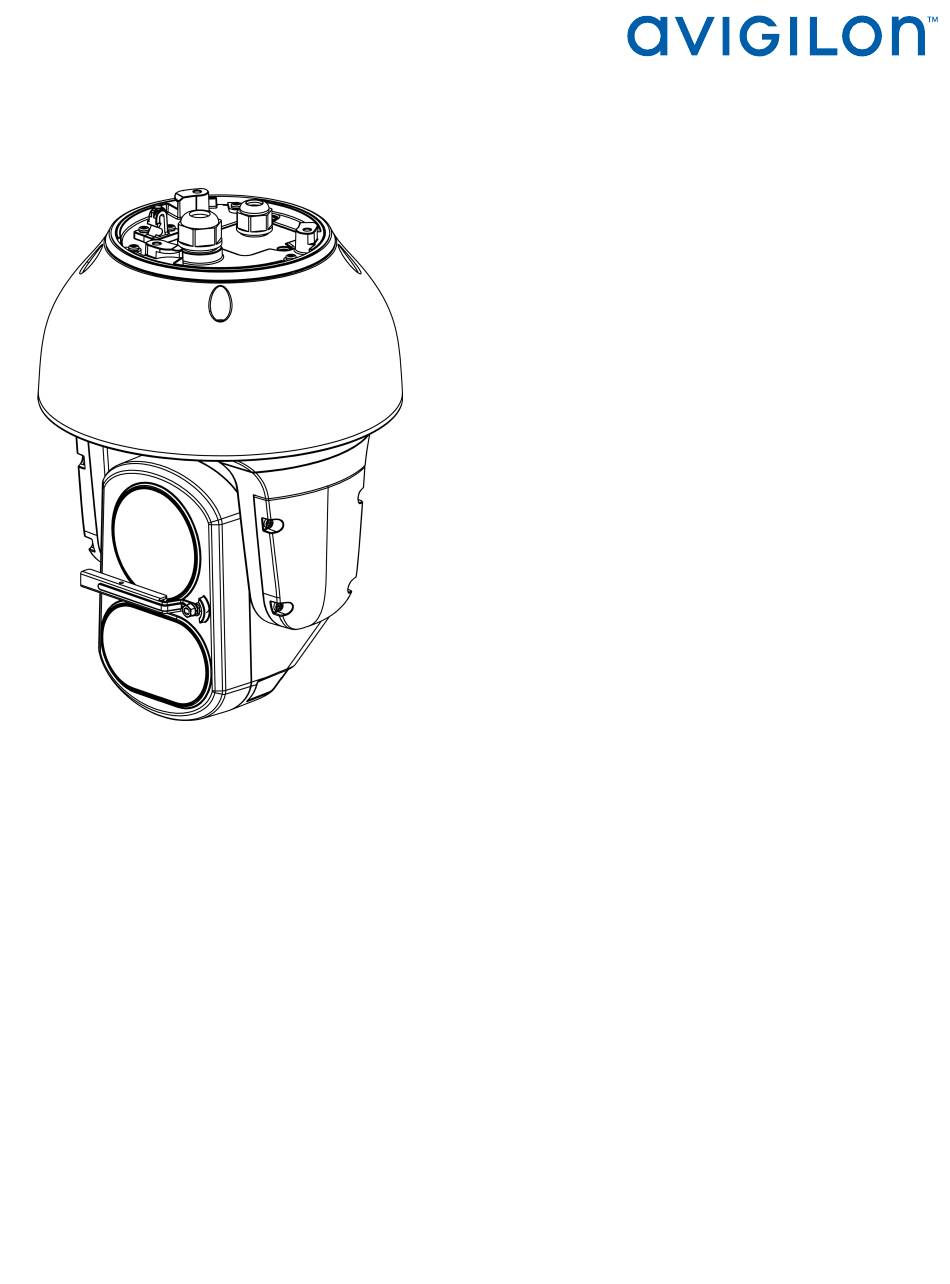

- Page 1 Installation Guide Avigilon H4 PTZ Camera with IR Models: 1.0C-H4IRPTZ-DP45, 1.0C-H4IRPTZ-DP45-WP, 2.0C-H4IRPTZ- DP30 and 2.0C-H4IRPTZ-DP30-WP...
- Page 2 Power Source”with output rated 24VAC±10%, 105 VA min.; 24VDC±10%, 75 W min.or a Microsemi PD- 9601G/AC Power over Ethernet (PoE) mid-span injector. Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated.
- Page 3 Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment. To meet the requirements of the EN 50121-4 Railway Applications Standard, use an external power supply or POE injector that is also compliant with EN 50121-4.
- Page 4 © 2021, Avigilon Corporation. All rights reserved. AVIGILON, the AVIGILON logo, AVIGILON CONTROL CENTER, and ACC are trademarks of Avigilon Corporation. ONVIF is a trademark of Onvif, Inc. Other names or logos mentioned herein may be the trademarks of their respective owners. The absence of the symbols ™...
-
Page 5: Table Of Contents
Table of Contents Overview Rear View Front View Top View Pendant Wall Mount View NPT Mount View Installation Package Contents Installation Steps Installing the Mounting Adapter Installing the Pendant Wall Mount Installing the NPT Mount Connecting Cables Securing the PTZ Camera (Optional) Configuring microSD Card Storage Initializing a Camera Username and Password Assigning an IP Address... -
Page 6: Overview
IR window . Connect digital output 1 from the camera to the washer pump. This will allow the camera WebUI or Avigilon Control Center to activate the washer whenever a washing sequence is initiated. For more information, please refer to the Camera WebUI guide. The washer and cleaning... -
Page 7: Front View
liquid are sold separately. Install the sprayer mounting bracket by tightening the provided screws into this location. Front View 1. Lens The camera lens is housed behind a protective window. 2. Wiper (Available on -WP models only) Wiper rotates 90° in both directions to clean both lens and IR window. 3. -
Page 8: Top View
Top View 1. Lanyard anchor The safety lanyard attaches to the anchor to prevent the camera from falling during installation. 2. Ethernet port Accepts an Ethernet connection to a network. Server communication and image data transmission occurs over this connection. Also receives power when it is connected to a network that provides Power over Ethernet. -
Page 9: Pendant Wall Mount View
Pendant Wall Mount View 1. Pendant wall mount Camera mount for walls and other mounting surfaces. 2. Lanyard Connects to the lanyard anchor on the camera base. 3. Tamper resistant screws Star captive screws to fix the dome camera to the mounting adapter. 4. -
Page 10: Npt Mount View
NPT Mount View 1. 1-1/2” NPT-female to NPT-female adapter An adapter for attaching the pendant NPT mount to an NPT pipe. Note: The adapter is not an included accessory supplied by Avigilon and should be sourced separately. 2. Lock nut Locking nut for securing the pendant NPT mount on the NPT-female to NPT-female adapter. -
Page 11: Installation
Installation Package Contents Note: The pendant wall mount and pendant NPT mount are sold separately. Ensure the camera package contains the following: Avigilon H4 IR PTZ Camera T20 star key T10 star key 3 x RJ-45 crimp-on plug External power and I/O wiring harness... -
Page 12: Installing The Pendant Wall Mount
Installing the Pendant Wall Mount 1. Determine where the cables will enter the pendant wall mount. If the cables will be pulled from inside the mounting surface, use the cable entry hole at the rear of the pendant wall mount. If the cables will be coming out of an external conduit pipe, use the 3/4”... -
Page 13: Installing The Npt Mount
4. Fasten the pendant wall mount to the mounting surface. 5. Tighten the wall mount screws to secure the wall mount to the wall. 6. Connect the safety lanyard from inside the wall mount to the anchor on the PTZ camera. Installing the NPT Mount Note: This procedure requires a 1-1/2”... - Page 14 1. Pull the required cable through the NPT conduit pipe. 2. Apply thread seal tape to the pipe and screw on the 1-1/2” NPT female to NPT female pipe adapter. 3. Screw the lock nut onto the NPT adapter. 4. Apply thread seal tape to the NPT adapter and screw it into the pipe adapter. Make sure the parts are assembled in this order from NPT conduit pipe to camera adapter: a.
-
Page 15: Connecting Cables
5. Connect the safety lanyard from inside the NPT mount to the anchor on the PTZ camera. Connecting Cables Refer to the diagrams in the Overview section for the location of the different connectors. To connect the cables required for proper operation, complete the following: Note: The PTZ camera does not support cables with boots and strain reliefs. - Page 16 1. Make sure the safety lanyard is connected to the camera. 2. Remove the sealing gland caps from the top of the camera. 3. If there are external input or output devices that need to be connected to the camera (for example: door contacts, relays, analog video, speakers, etc.), connect the devices to the camera I/O connector cable.
- Page 17 b. Push the cable through the gland cap, and then the hole in the cable gland. Ensure the orientation of the cable and cable gland matches the following image. Connecting Cables...
- Page 18 c. Crimp the connector onto the Ethernet cable. 6. Remove the I/O cover and feed the I/O connector cable through the gland cap, cable gland, and I/O cover. 7. Tighten the cable glands around the cables. Connecting Cables...
- Page 19 8. Connect power and I/O to the camera, then tighten the I/O cover. 9. Connect a network cable to the Ethernet port (RJ-45 connector). The Link LED indicator will turn on once a network link has been established. Note: If you need to remove the RJ45 connector from the camera to check a network issue, gently pull the cable towards the locking tab to release the RJ45 plug before pulling upwards.
-
Page 20: Securing The Ptz Camera
Securing the PTZ Camera 1. Push the PTZ camera into the mount adapter. Note: Be careful not to trap any cables between the camera housing and the mount adapter. Figure 3: Pushing the camera into the wall mount adapter. Figure 4: Pushing the camera into the NPT adapter. Note: Once the camera housing is aligned to the adapter, turn the camera until it locks into place. -
Page 21: (Optional) Configuring Microsd Card Storage
3. Access the camera’s web interface to enable the onboard storage feature. For more information, see the Avigilon High Definition H.264 Camera Web Interface User Guide. Initializing a Camera Username and Password Cameras manufactured after January 1, 2020, do not have a default username or password and will be in a factory default state. -
Page 22: Assigning An Ip Address
For more information, see the Avigilon Cloud Services User Guide. Tip: If you are connecting your Avigilon camera to a 3rd party VMS, you will need to set up the first user through the camera's Web Interface, USB Wifi Adapter, or Camera Configuration Tool before you connect to the 3rd party VMS. -
Page 23: Accessing The Live Video Stream
Device's web browser interface: http://<camera IP address>/. Network Video Management software application (for example, the Avigilon Control Center™ software). ARP/Ping method. For more information, see Setting the IP Address Using the ARP/Ping Method on page 27. Note: Depending on the manufacture date of your camera, you will have one of the two options below to... - Page 24 Avigilon Control Center Client User Guide Web Interface User Guide — Avigilon High Definition H4 and H5 IP Cameras Avigilon Camera Configuration Tool User Guide Designing a Site with Avigilon Video Analytics These guides are available on help.avigilon.com and on the Avigilon website: avigilon.com/support.
-
Page 25: Connecting To Power And External Devices
Connecting to Power and External Devices CAUTION — Be careful to only connect power to the Auxiliary Power Wires or the camera will be damaged. If PoE is not available, the camera may be powered through the auxiliary power cable using either 24 V DC or 24 V AC. - Page 26 4. Yellow (RI_1)— Digital Input, Relay 1. The input voltage must be below 0.7 V to register as a low input. The input voltage should not exceed 5 V when high. 5. Orange (RI_2)— Digital Input, Relay 2 6. Light Green (RI_3)— Digital Input, Relay 3 7.
-
Page 27: Setting The Home Preset Position
(Minutes) field to define the expected amount of idle time before the camera returns to the home position. To use the rule method, you must have an Enterprise Edition or Standard Edition version of the Avigilon Control Center system. To configure the PTZ camera to automatically return to the home position, create a... - Page 28 On the Select Rule Event(s) page, select PTZ idle. On the Select Rule Action(s) page, select Go to Home Preset. Automatically Returning to the Home Position...
-
Page 29: Connection Status Led Indicator
ACC™ Server. The default connected setting can be changed to Off using the camera's web user interface. For more information see the Avigilon High Definition H4 and H5 IP Camera Web Interface User Guide. Troubleshooting Network Connections and LED Behavior Note: For any of the below LED behaviors, ensure that the camera is getting power and is using a good network cable before trying another solution. - Page 30 LED Behavior Suggested Solution Both LEDs are blinking several Perform a factory reset of the camera using the physical times at the same time, then firmware revert button. Resetting through the camera's web pause and repeat the blinking interface will not produce the desired result. A different LED blinking pattern Perform a factory reset of the camera using the physical than those described above...
-
Page 31: Resetting To Factory Default Settings
Resetting to Factory Default Settings If the device no longer functions as expected, you can choose to reset the device to its factory default settings. Use the firmware revert button to reset the device. The firmware revert button is shown in the following diagram: Figure 8: The firmware revert button below the SD card slot. -
Page 32: Setting The Ip Address Using The Arp/Ping Method
For more information, see the Avigilon High Definition H4 and H5 IP Camera Web Interface User Guide. 1. Locate and make note of the MAC Address (MAC) listed on the Serial Number Tag for reference. -
Page 33: Cleaning
From the camera web interface, the washer and wiper can be activated from the Live View page. For more information, see the Avigilon High Definition H.264 Web Interface User Guide. From the Avigilon Control Center software, the washer and wiper is activated through the PTZ auxiliary command. For more information, see the software help files. -
Page 34: Specifications
Specifications Camera Lens 4.3 to 129mm, F/1.6 – F/4.7, autofocus Audio Input/Output Line level input and output microSD Storage microSD/microSDHC/microSDXC slot – minimum class 6; class 10/UHS-1 or better recommended Network Network 100Base-TX Cabling Type CAT5 Connector RJ-45 ONVIF® compliant version 1.02, 2.00, Profile S (www.onvif.org) Compliant with version 2.2.0 of the Analytics Service Specification (bounding boxes and scene descriptions not available with third-party VMS) Device... - Page 35 Housing Pendant mount Finish Powder coat, RAL 9003 Tilt -20° to 90°, 300° / second max. 360°, endless, 300° / second max. Electrical Power 75 W max Consumption 105 VA with 24 V AC power Power Source V DC: 24 V +/- 10% V AC: 24 Vrms +/- 10%, 50 or 60Hz PoE: 95 W PoE (POE-INJ2-95W) Power Connector...
-
Page 36: Limited Warranty And Technical Support
Limited Warranty and Technical Support Avigilon warranty terms for this product are provided at avigilon.com/warranty. Warranty service and technical support can be obtained by contacting Avigilon Technical Support: avigilon.com/contact. Limited Warranty and Technical Support...
