Summary of Contents for Avigilon 1.0C-H4IRPTZ-DP45
-

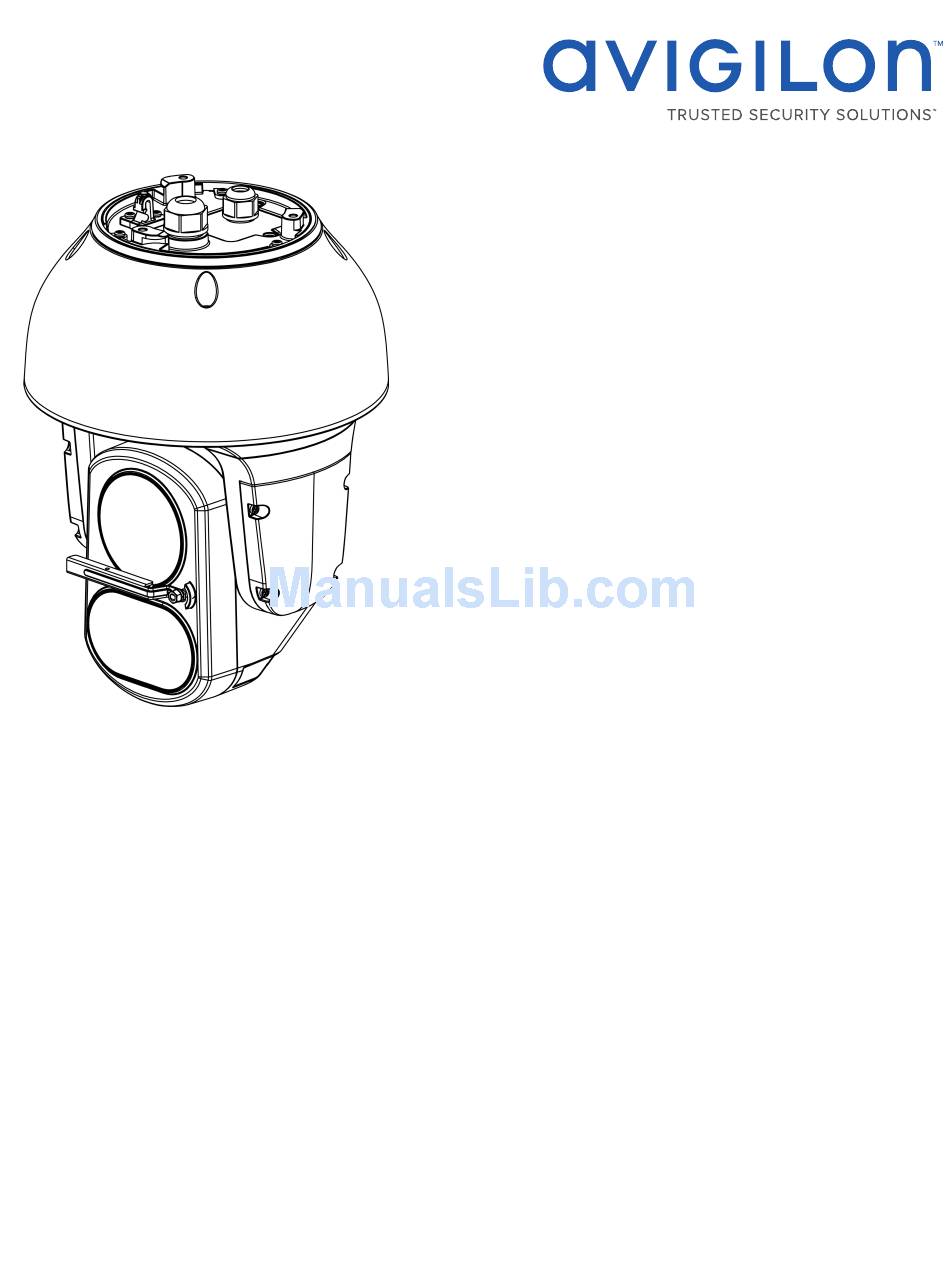

Page 1: Installation Guide
Installation Guide Avigilon H4 PTZ Camera with IR Models: 1.0C-H4IRPTZ-DP45, 1.0C-H4IRPTZ-DP45-WP, 2.0C-H4IRPTZ- DP30 and 2.0C-H4IRPTZ-DP30-WP... - Page 2 Power Source”with output rated 24VAC±10%, 105 VA min.; 24VDC±10%, 75 W min.or a Microsemi PD- 9601G/AC Power over Ethernet (PoE) mid-span injector. Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated.
- Page 3 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment.
-
Page 4: Legal Notices
The contents of this document and the specifications of the products discussed herein are subject to change without notice. Avigilon Corporation reserves the right to make any such changes without notice. Neither Avigilon Corporation nor any of its affiliated companies: (1) guarantees the completeness or accuracy of the information contained in this document;... -
Page 5: Table Of Contents
Table of Contents Overview Rear View Front View Top View Pendant Wall Mount View NPT Mount View Installation Package Contents Installation Steps Installing the Mounting Adapter Installing the Pendant Wall Mount Installing the NPT Mount Connecting Cables Securing the PTZ Camera (Optional) Configuring microSD Card Storage Assigning an IP Address Accessing the Live Video Stream... -
Page 6: Overview
Overview Rear View 1. Link LED indicator Indicates if there is an active connection in the Ethernet port. 2. Connection status LED indicator Provides information about device operation. For more information, see Connection Status LED Indicator on page 18. 3. microSD card slot Accepts a microSD card for onboard storage. -
Page 7: Front View
Front View 1. Lens The camera lens is housed behind a protective window. 2. Wiper (Available on -WP models only) Wiper rotates 90° in both directions to clean both lens and IR window. 3. Variable IR Illuminators High powered infrared LEDs with variable field of view to accommodate different low light situations. The IR illuminators are housed behind a protective window. -
Page 8: Top View
Top View 1. Lanyard anchor The safety lanyard attaches to the anchor to prevent the camera from falling during installation. 2. Ethernet port Accepts an Ethernet connection to a network. Server communication and image data transmission occurs over this connection. Also receives power when it is connected to a network that provides Power over Ethernet. -
Page 9: Pendant Wall Mount View
Pendant Wall Mount View 1. Pendant wall mount Camera mount for walls and other mounting surfaces. 2. Lanyard Connects to the lanyard anchor on the camera base. 3. Tamper resistant screws Star captive screws to fix the dome camera to the mounting adapter. 4. -
Page 10: Npt Mount View
1. 1-1/2” NPT-female to NPT-female adapter An adapter for attaching the pendant NPT mount to an NPT pipe. NOTE: The adapter is not an included accessory supplied by Avigilon and should be sourced separately. 2. Lock nut Locking nut for securing the pendant NPT mount on the NPT-female to NPT-female adapter. -
Page 11: Installation
Installation Package Contents NOTE: The pendant wall mount and pendant NPT mount are sold separately. Ensure the camera package contains the following: Avigilon H4 IR PTZ Camera T20 star key T10 star key 3 x RJ-45 crimp-on plug External power and I/O wiring harness... -
Page 12: Installing The Pendant Wall Mount
Installing the Pendant Wall Mount 1. Determine where the cable will enter the pendant wall mount. If the cable will be pulled from inside the mounting surface, use the cable entry hole at the rear of the pendant wall mount. If the cable will be coming out of an external conduit pipe, use the 3/4”... -
Page 13: Installing The Npt Mount
5. Tighten the wall mount screws to secure the wall mount to the wall. 6. Connect the safety lanyard from inside the wall mount to the anchor on the PTZ camera. Installing the NPT Mount NOTE: This procedure requires a 1-1/2” NPT-female to NPT-female pipe adapter. It is recommended that the NPT adapter be mounted to a 1-1/2”... -
Page 14: Connecting Cables
5. Connect the safety lanyard from inside the NPT mount to the anchor on the PTZ camera. Connecting Cables Refer to the diagrams in the Overview section for the location of the different connectors. To connect the cables required for proper operation, complete the following: NOTE: The PTZ camera does not support cables with boots and strain reliefs. - Page 15 1. Make sure the safety lanyard is connected to the camera. 2. Remove the sealing gland caps from the top of the camera. 3. If there are external input or output devices that need to be connected to the camera (for example: door contacts, relays, analog video, speakers, etc.), connect the devices to the camera I/O connector cable.
- Page 16 6. Remove the I/O cover and feed the I/O connector cable through the gland cap, cable gland, and I/O cover. 7. Tighten the cable glands around the cables. 8. Connect power and I/O to the camera, then tighten the I/O cover. 9.
-
Page 17: Securing The Ptz Camera
Securing the PTZ Camera 1. Push the PTZ camera into the mount adapter. NOTE: Be careful not to trap any cables between the camera housing and the mount adapter. Figure 3: Pushing the camera into the wall mount adapter. Figure 4: Pushing the camera into the NPT adapter. -
Page 18: (Optional) Configuring Microsd Card Storage
The IP address settings can be changed using one of the following methods: Device's web browser interface: http://<camera IP address>/. Network Video Management software application (for example, the Avigilon Control Center™ software). ARP/Ping method. For more information, see Setting the IP Address Using the ARP/Ping Method on page 20. -
Page 19: Accessing The Live Video Stream
Live video stream can be viewed using one of the following methods: Web browser interface: http://< camera IP address>/. Network Video Management software application (for example, the Avigilon Control Center software). NOTE: The default camera username is administrator with no password. -
Page 20: Connecting To Power And External Devices
Connecting to Power and External Devices CAUTION — Be careful to only connect power to the Auxiliary Power Wires or the camera will be damaged. If PoE is not available, the camera may be powered through the auxiliary power cable using either 24 V DC or 24 V AC. - Page 21 4. Yellow (RI_1)— Digital Input, Relay 1. The input voltage must be below 0.7 V to register as a low input. The input voltage should not exceed 5 V when high. 5. Orange (RI_2)— Digital Input, Relay 2 6. Light Green (RI_3)— Digital Input, Relay 3 7.
-
Page 22: Setting The Home Preset Position
To use the rule method, you must have an Enterprise Edition or Standard Edition version of the Avigilon Control Center system. To configure the PTZ camera to automatically return to the home position, create a rule that includes the following settings: On the Select Rule Event(s) page, select PTZ idle. -
Page 23: Connection Status Led Indicator
Connection Status LED Indicator Once connected to the network, the Connection Status LED indicator will display the progress in connecting to the Network Video Management software. The following table describes what the LED indicator shows: Connection Status Connection State Description LED Indicator One short flash every Obtaining IP Address... -
Page 24: Resetting To Factory Default Settings
Resetting to Factory Default Settings If the device no longer functions as expected, you can choose to reset the device to its factory default settings. Use the firmware revert button to reset the device. The firmware revert button is shown in the following diagram: Figure 8: The firmware revert button below the SD card slot. -
Page 25: Setting The Ip Address Using The Arp/Ping Method
For more information, see the Web User Interface Guide - Avigilon High Definition H.264 IP Camera Models. 1. Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. -
Page 26: Cleaning
From the camera web interface, the washer and wiper can be activated from the Live View page. For more information, see the Avigilon High Definition H.264 Web Interface User Guide. From the Avigilon Control Center software, the washer and wiper is activated through the PTZ auxiliary command. For more information, see the software help files. -
Page 27: Specifications
Specifications Camera Lens 4.3 to 129mm, F/1.6 – F/4.7, autofocus Audio Input/Output Line level input and output microSD/microSDHC/microSDXC slot – minimum class 6; class 10/UHS-1 or better microSD Storage recommended Network Network 100Base-TX Cabling Type CAT5 Connector RJ-45 ONVIF® compliant version 1.02, 2.00, Profile S (www.onvif.org) Compliant with version 2.2.0 of the Analytics Service Specification (bounding boxes and scene descriptions not available with third-party VMS) Device Management... - Page 28 105 VA with 24 V AC power V DC: 24 V +/- 10% Power Source V AC: 24 Vrms +/- 10%, 50 or 60Hz PoE: 95 W PoE (POE-INJ2-95W) Power Connector Wire leads RTC Backup Battery 3V manganese lithium Environmental Operating -40°C to +60°C (-40 °F to 140 °F) with external power or 95 W PoE Temperature...
-
Page 29: Limited Warranty And Technical Support
Limited Warranty and Technical Support Avigilon warranty terms for this product are provided at avigilon.com/warranty. Warranty service and technical support can be obtained by contacting Avigilon Technical Support: avigilon.com/contact-us/. Limited Warranty and Technical Support...
