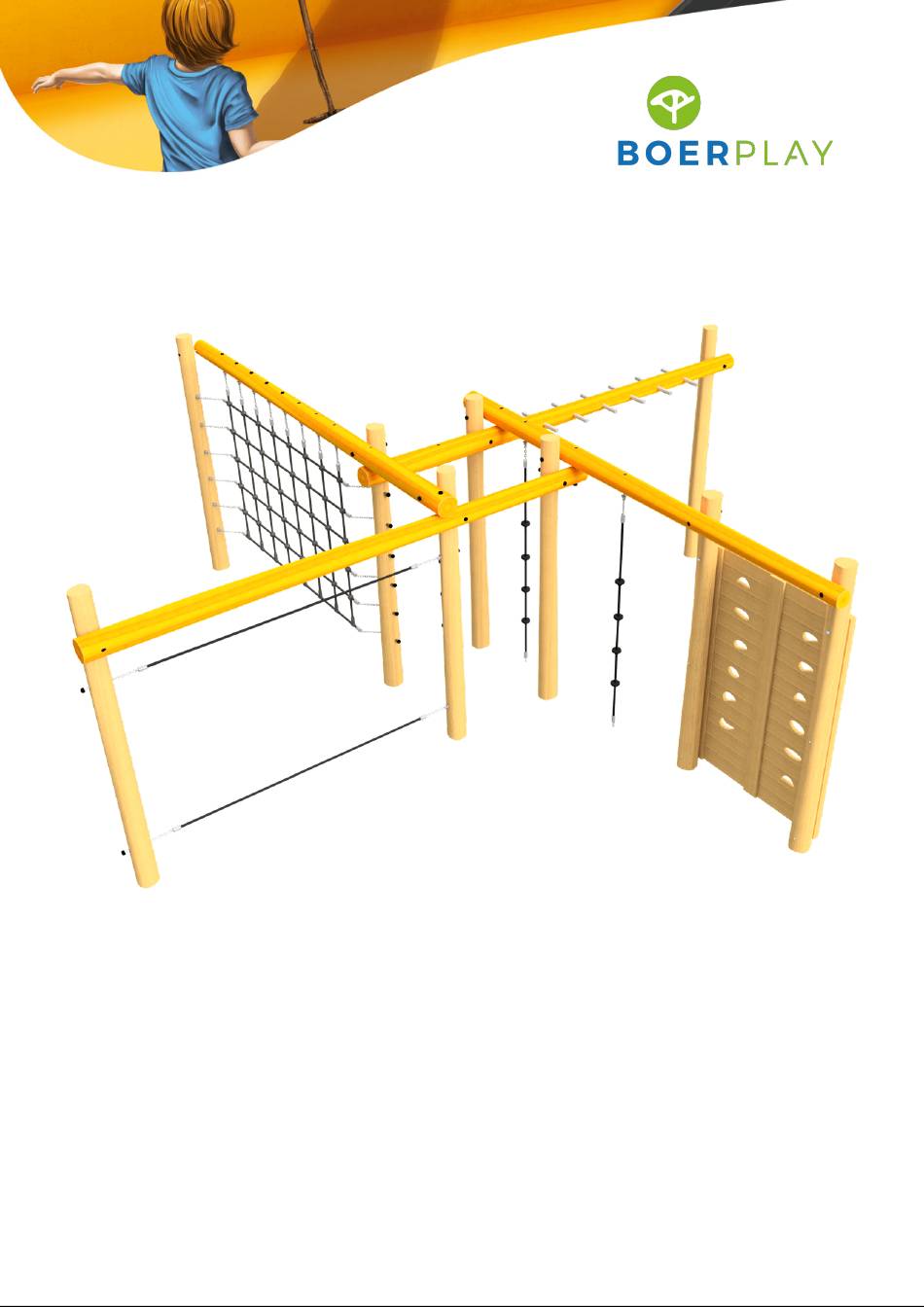

- Page 1 Windmill RBPE000.033...
- Page 2 6,10 m 5,97 m 3,79 m 3,48 m 2,62 m 2,34 m 0,11 m 0,00 m > 0,24 m 2,25 m 2,10 m 1,96 m 0,00 m > 0,40 m > 0,40 m Benaming TOE RBP 000 033 Windmolen Title Tekening Opmerking Drawing...
- Page 3 7,52 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE RBP 000 033 Windmolen Title Tekening Opmerking Drawing Comment Datum Obstakelvrije zone Obstacle free zone 8-10-2020 Date...
- Page 4 0,82 m 0,46 m 0,13 m 0,64 m 2,52 m 1,35 m 0,93 m 1,08 m 2,09 m 2,03 m Grondmarkering Ground level marker 0,75 m > 0,40 m Benaming TOE RBP 000 033 Windmolen Title Tekening Opmerking Drawing Comment Datum Bodemplan Groundplan 8-10-2020...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Speciaal gereedschap Special tools N.V.T Montageinstructie: Assembly instruction: - The main dimensions indicate the dimensions of the posts and floors - De hoofdmaten geven de maten van de staanders en vloeren aan - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections Montagevolgorde:...
- Page 6 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Palenplan Boorplan Verticaal net Ligger 3,75 m Klimwand Klimtouw 1,6 m Klimtouw L= 1,8 m hercules touw 2.0 m Beton voor staander 192 Liter cement Benaming TOE RBP 000 033 Windmolen Title Tekening Opmerking Drawing Comment...
- Page 7 Doorboren Drill through Doorboren Drill through Benaming TOE RBP 000 033 Windmolen Title Tekening Opmerking Drawing Comment Datum Modules Modules 8-10-2020 Date...
- Page 8 LOGBOOK Type indication Article number RBPE000.033 Product Name Windmill Construction year 2024 Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66 Fax: +31 (0)183 40 35 64 Installer name _______________________________________________________ _______________________________________________________ _______________________________________________________ Playground location...
- Page 9 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 10: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 11 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
