Summary of Contents for BOERPLAY SOLE030.097

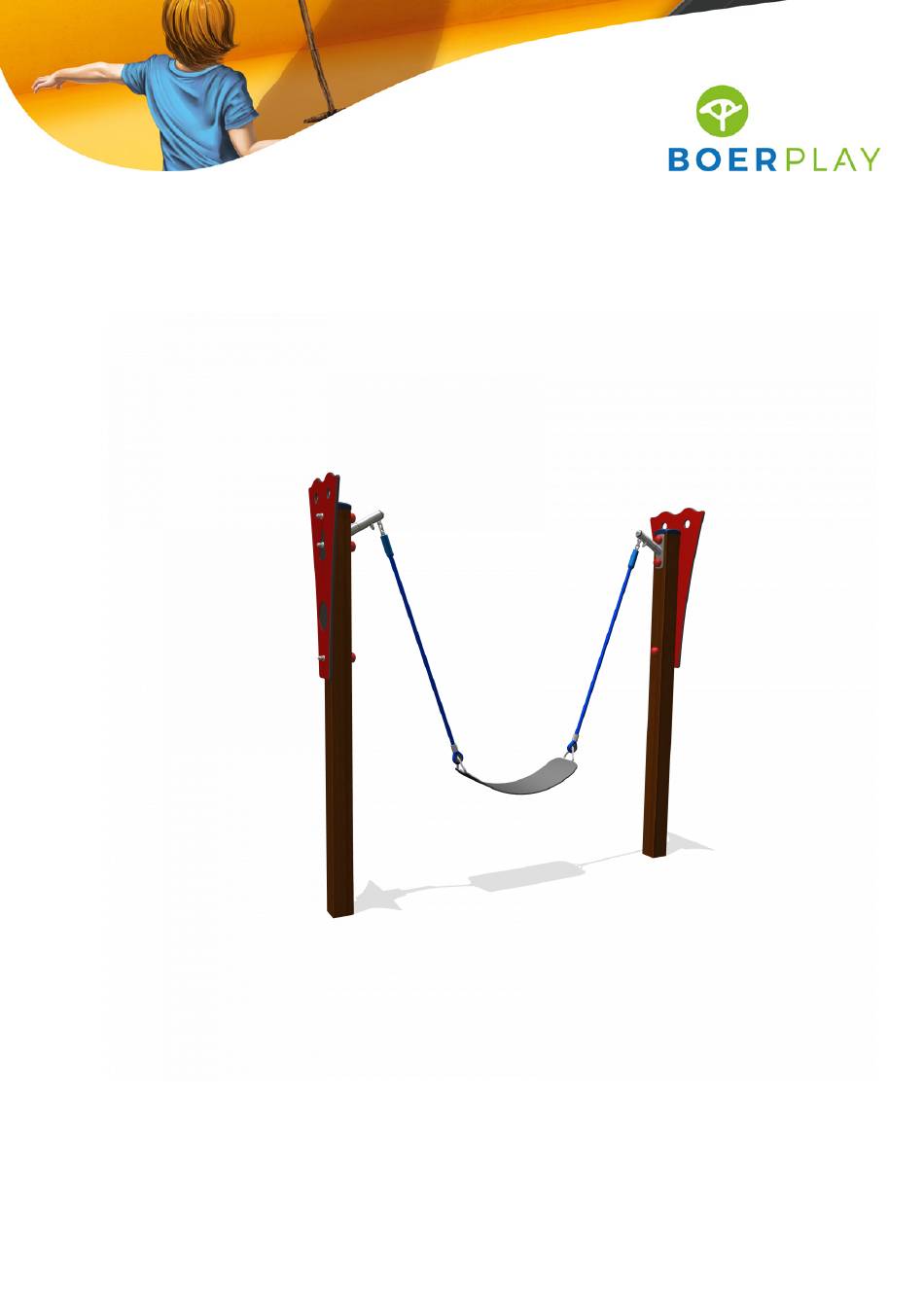

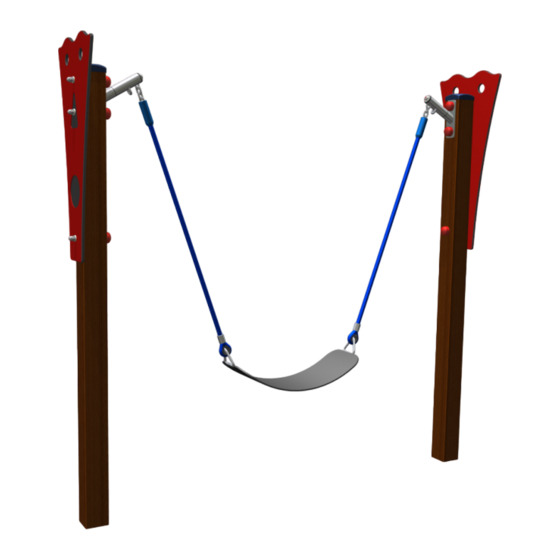

- Page 1 Mini swing SOLE030.097...
- Page 2 1,65 m 1,61 m 1,51 m 1,40 m 0,00 m Benaming TOE SOL 030 097 A Miniswoeng Title Tekening Opmerking Hardhout Drawing Comment BOER Datum Afmetingen Dimensions 3-4-2014 Date SPEELTOESTELLEN...
- Page 3 4,66 m 1,75 m Obstakelvrij EN-1176 2,75 m Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE SOL 030 097 A Miniswoeng Title Tekening Opmerking Hardhout Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 3-4-2014 Date SPEELTOESTELLEN...
- Page 4 0,50 m 0,50 m Grondmarkering Ground level marker 0,65 m Benaming TOE SOL 030 097 A Miniswoeng Title Tekening Opmerking Hardhout Drawing Comment BOER Datum Bodemplan Groundplan 3-4-2014 Date SPEELTOESTELLEN...
- Page 5 Supplied modules: Geleverde modules: See table Zie tabel Assembly instruction: Montageinstructie: - The main dimensions indicate the dimensions of the posts and floors - De hoofdmaten geven de maten van de staanders en vloeren aan - The detailed dimensions show the specific dimensions of the connections - De detailtekeningen geven specifiek de maten van de verbindingen aan - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 SOLE030.097 Mini swing LOGBOOK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Toddler Play Product code SOLE030.097 Name of equipment Miniswoeng Hardhout Maximum height of fall...
-
Page 7: Maintenance
LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear. - Page 9 A ( 1 : 10 ) 15 15 Type Progr. Volgnr Bew. Rev. Benaming Opmerking SCHROEF 5 x 50 Borgdopmoer M10 - RVS A2-70 M10 x 120 - RVS A2-70 Zeskantbout Bolkopbout ISO 7380 M10 x 16 - RVS A2-70 SLUITRING 5 mm, RVS A2-70 D-Sluiting...
