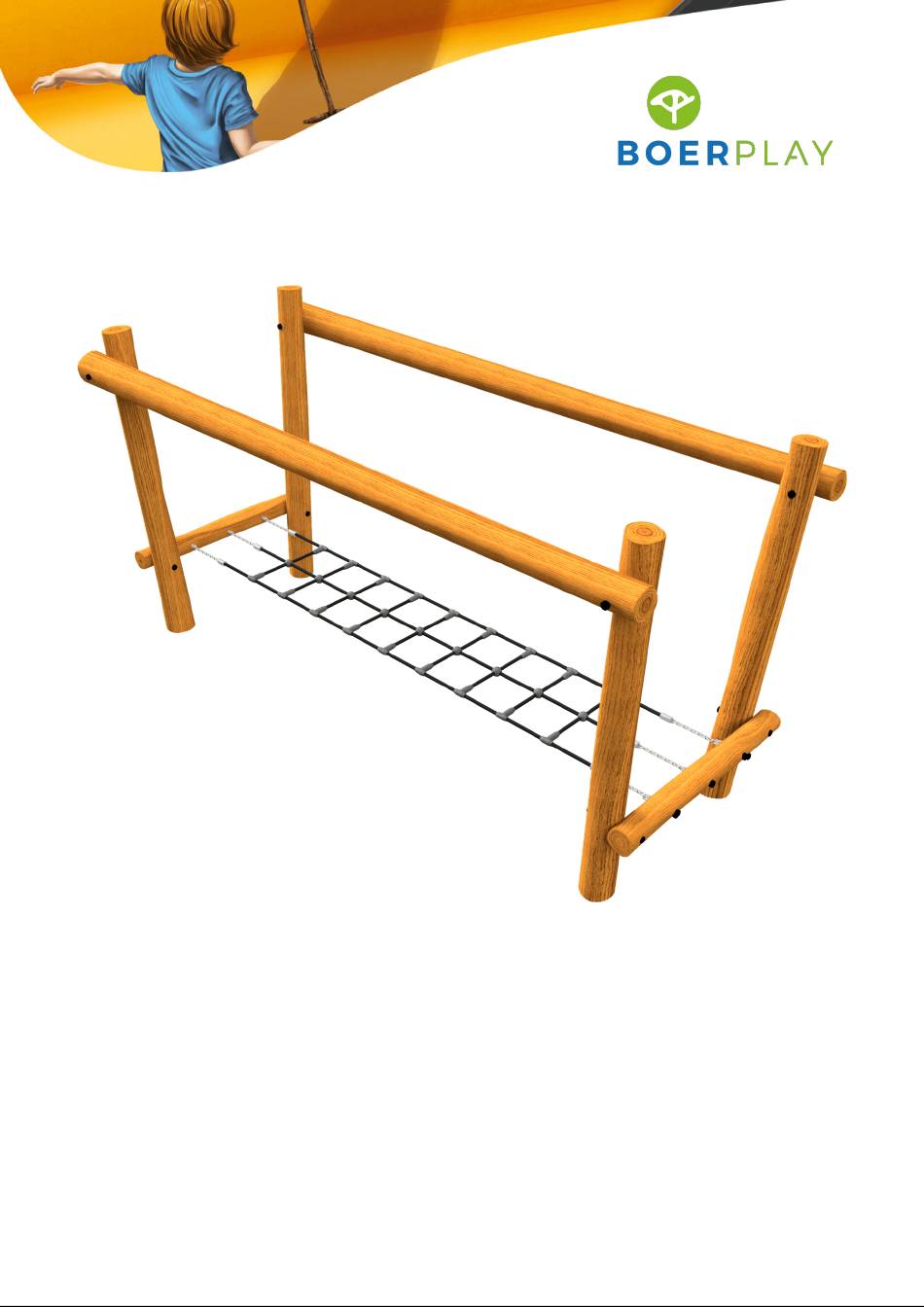

- Page 1 Wobbly bridge 3m PSTE105.105...
-
Page 2: Main Dimensions
Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 0,00 m 0,49 m 0,74 m 0,99 m 1,47 m 1,69 m 1,44 m 0,40 m 0,00 m PST 105 105 © Copyright BOERplay 2-11-2022 Revision:... - Page 3 Zona libre de obstáculos Zone libre d’obstacles 4,59 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles PST 105 105 © Copyright BOERplay 2-11-2022 Revision:...
- Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 1,89 m 1,89 m 3,00 m Grondmarkering Ground level marker > 0,20 m 0,70 m PST 105 105 © Copyright BOERplay 2-11-2022 Revision:...
-
Page 5: Order Of Assembly
2 - Controleer de afmetingen van de valbodem t.o.v. het toestel 2 - Check the dimensions of the safety area compared to the play equipment Typeplaatje Identification plate Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Wiebelbrug 3m Adventure Play PST 105 105 © Copyright BOERplay 2-11-2022 Revision:... - Page 6 LOGBOOK Type indication Adventure Play Article number PSTE105.105 Product Name Wobbly bridge 3m Maximum fall height 0,5 m Construction year 2023 Certificate 070575 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 11 1,00 m Standaard plank 120x20 Lengte = 3000 Standaard plank 120x20 Lengte = 800 Standaardplank 140x45 Lengte = 1200 Slotbout met lip M12x120 Netbrug 250 touwlengte 12m © Copyright BOERplay 2-11-2022 Revision: MOD PST 034 027...
