Cod.

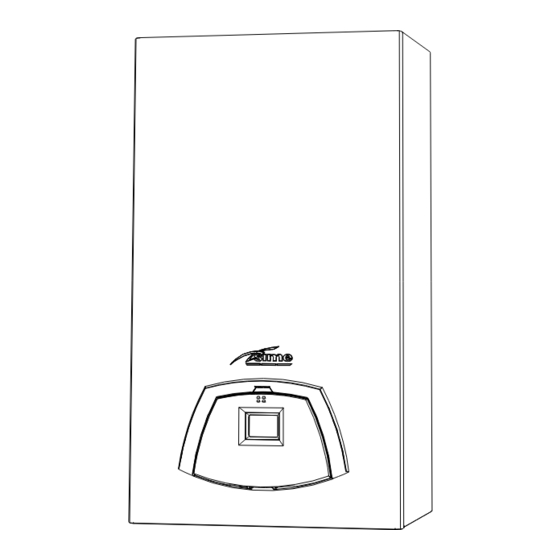

Condensing combi wall mounted boiler
EDEA HM 40
INSTALLATION AND SERVICING INSTRUCTIONS
NOT TO BE LEFT WITH THE END USER
EN
Gas Safety Certificate AS/NZS 5263.1.2: SAI-400433
Watermark Certificate AS/NZS 3498 LN: WMK - - - - -
CAUTION
This product must be installed exclusively by professionally
qualified personnel in accordance with the requirements of
the standards AS/NZS 5601, AS/NZS 3498, AS/NZS 3500.4,
To consult the documentation,
AS/NZS 3000, (current version) of the local gas, water and
visit our website www.sime.it
electricity authorities and other relevant legislation.
Fonderie SIME S.p.A.
6333526 - 02/2024 - R1
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
Advertisement
Chapters
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sime EDEA HM 40
Summary of Contents for Sime EDEA HM 40
- Page 1 Cod. Condensing combi wall mounted boiler EDEA HM 40 INSTALLATION AND SERVICING INSTRUCTIONS NOT TO BE LEFT WITH THE END USER Gas Safety Certificate AS/NZS 5263.1.2: SAI-400433 Watermark Certificate AS/NZS 3498 LN: WMK - - - - - CAUTION This product must be installed exclusively by professionally qualified personnel in accordance with the requirements of the standards AS/NZS 5601, AS/NZS 3498, AS/NZS 3500.4,...
- Page 2 Owner or User or is installed – The appliance must be used as intend- on another system. ed by Sime who is not responsible for – Installation and maintenance of this any damage caused to persons, ani- appliance must be carried out by a...
- Page 3 RESTRICTIONS IT IS FORBIDDEN IT IS FORBIDDEN – To allow children under the age of 8 to – To expose the boiler to atmospheric use the appliance. The appliance can agents. These boilers can also be in- be used by children no younger than stalled in partially covered areas, as 8 years old, by people with physical per EN 15502, with a maximum ambi-...
- Page 4 Dear Customer, MANUAL STRUCTURE Thank you for purchasing a Sime Edea HM 40 boiler, a new-gen- This manual is organized as follows. eration modulating condensing device with technical features and excellent performance, allowing you to satisfy your heating and instant domestic hot water requirements with the utmost safety and limited running costs.
-
Page 5: Table Of Contents
1.4.1 Edea HM 40 i ......7 1.11 Wiring diagram ....... . 13 1.4.2... -
Page 6: Description Of The Appliance
The main elements qualified personnel using Sime original spare parts. choices made by Sime for the Edea HM 40 boilers are: – the total pre-mix microflame burner combined with a steel heat exchanger for heating and a rapid heat exchanger for... -
Page 7: Structure
Structure 1.4.1 Edea HM 40 i 28 27 Air side heat exchanger Boiler drain Combustion chamber door System pump (PI) Oversleeve Automatic bleed valve Safety thermostat (TS) Water pressure transducer (TPAC) Boiler delivery sensor (SMC) Relief valve (FS) Air-gas mixer... -
Page 8: Edea Hm 40 E
1.4.2 Edea HM 40 e Air side heat exchanger Boiler drain Combustion chamber door System pump (PI) Oversleeve Automatic bleed valve Safety thermostat (TS) Water pressure transducer (TPAC) Boiler delivery sensor (SMC) Relief valve (FS) Air-gas mixer Boiler return probe (SRC) -
Page 9: Technical Features
Technical features Edea HM 40 DESCRIPTION 40 i 40 e CERTIFICATIONS Country of intended installation Fuel NATURAL GAS / UNIVERSAL LPG SAI GLOBAL number SAI-400433 Class NO 5 (< 70 mg/kWh) Sanitary heat flow rate MJ/h HEATING PERFORMANCE HEAT INPUT... -
Page 10: Main Water Circuit
TR=75°C → R=1925Ω TR=80°C → R=1669Ω. Expansion vessel Fig. 4 The expansion vessel installed on the boilers has the following characteristics: KEY: Edea HM 40 System delivery Description System return 40 i 40 e Domestic hot water outlet Total capacity 10.0... -
Page 11: Circulation Pump
Circulation pump The flow-head performance curve available for the heating sys- tem is shown in the graph below. RESIDUAL HEAD (mbar) 40 i-e 1000 1200 1400 WATER FLOW RATE (l/h) Fig. 5 CAUTION The appliance is equipped with a by-pass which en- sures water circulation in the boiler when the thermo- static valves or cocks are used in the system. -
Page 12: Control Panel
CAUTION This allows the user to scroll through the parameters or decrease the values. – Access to the control panel of model Edea HM 40 e > is possible after loosening screws (1) and removing This allows the user to scroll through the parameters or panel (2). -
Page 13: Wiring Diagram
1.11 Wiring diagram 4 3 2 1 4 5 6 CN12 CN13 CN15 CN14 CN11 Remote control (instead of System pump Blue air thermostat) External temperature sensor Brown Ignition / Detection electrode Smoke flue gas probe Black Diverter solenoid valve Boiler delivery sensor Green Gas solenoid valve... - Page 15 2.13.1 Coaxial duct (Ø 60/100mm and Ø 80/125mm) . . .21 2.13.2 Edea HM 40 e ......22 EXPLODED VIEWS 2.14 Electrical connections.
-
Page 16: Installation
INSTALLATION CAUTION Edea HM 40 Description The appliance must only be installed by the Sime Tech- 40 i 40 e nical Service or by qualified professionals who MUST W (mm) suitable protective safety equipment. wear D (mm) 250 (*) H (mm) -
Page 17: New Installation Or Installation Of A Replacement
When filling and restoring the system it is good practice to use placement appliance water with: – aspect: clear if possible When Edea HM 40 boilers are installed on old systems or sys- – Ph: 6÷8 tems requiring updating, it is recommended the installer checks – hardness: < 25°f. -
Page 18: Boiler Installation
For installation: – remove the coaxial duct and the casing (only for Edea HM 40 e ) – place the steel sheet template (2) (if supplied) on the wall (1) – make the holes and insert the expansion plugs (3) –... -
Page 19: Condensate Outlet/Collection
In order to collect the condensate, it is recommended that: boilers leave the factory prearranged for gas NAT- Edea HM 40 – the appliance condensate outlets and the smoke outlet are and can also work with UNIVERSAL LPG without the... -
Page 20: Connecting The Flue
2.12 Connecting the flue 2.12.1 Flue Terminal Positions Door Fig. 15 Edea HM 40 DESCRIPTION Min. Clearance (mm) Flue terminal Mechanical air inlet Gas meter Electricity meter of fuse box Shaded area indicates prohibited area Below eaves, balconies and other projections (Appliances over 50MJ/h) -
Page 21: Smoke Outlet And Combustion Air Inlet
Edea HM 40 Coaxial accessories flue ducts and combustion air inlet ducts. These ducts are con- sidered an integral part of the boiler and are provided by Sime Code Description as an accessory kit, to be ordered separately from the appliance Ø... -
Page 22: 2.13.2 Edea Hm 40 E
To facilitate introduction of the connection wires of the optional components into the boiler: – remove the coaxial fume exhaust duct of the Edea HM 40 e (see "Remove coaxial duct") – remove the screws (1), pull the front panel (2) forwards and release it from the top by lifting it Ø... -
Page 23: 2.14.1 External Temperature Sensor
CAUTION – remove the screws (3) securing the control panel (4) – move the panel (4) upwards (a) but keeping it in the side It is compulsory: guides (5) to the end of travel – to use an omnipolar cut-off switch, disconnect –... -
Page 24: 2.14.2 Chrono-Thermostat Or Air Thermostat
TA1-TA2 Fig. 26 MULTI ZONE system - with zone valve, air thermostat and ex- ternal sensor. Fig. 29 TA1-TA2 MULTI ZONE system - with pump, remote control SIME, air thermostat and optional external sensor. EVZ1 EVZ2 EVZ3 Fig. 27 Fig. 30... -
Page 25: Refilling Or Emptying
– check the pressure on the display, or on the pressure gauge, Remove the front panel: and, if necessary, top up until the correct pressure reading – disassemble the smoke outlet duct of the Edea HM 40 e appears – close the automatic bleed valve (3) –... -
Page 26: Commissioning
COMMISSIONING Preliminary operations – simultaneously press the > buttons, for roughly 10 seconds, until the symbols flash on the display WARNING – Should it be necessary to access the areas in the bottom part of the appliance, make sure that the system components and pipes are not hot (risk of burning). -
Page 27: Parameter Setting And Display
– once the required parameter has been reached, press the Parameter setting and display button for approximately 3 seconds to confirm and ac- To go into the parameter menu: cess the set value which will then flash and can then be mod- –... - Page 28 Type Description Range Step Default Domestic hot water preheating enabling (NOT 0 = OFF used) 1 = ON 0 = not used 1 = remote alarm NO 2 = remote alarm NC 3 = zone valve 4 = automatic filling Relay 1 setting 5 = external request 6 = recirculation pump...
-
Page 29: Display Of Operating Data And Counters
TABLE OF INFORMATION DISPLAYED Display of operating data and counters Type No. Description Range Step Once the boiler is operating a qualified technician can view the SW version operating data and the counters as follows:. External temperature From the operating screen in the mode enabled at that moment - 9 .. -
Page 30: Checks
This function lasts 15 minutes and is activated by proceeding as follows: – disassemble the smoke outlet duct of the Edea HM 40 e , if not already removed – if the panel (2) has not already been removed, remove the... -
Page 31: Domestic Hot Water Comfort Function (Preheating)
– press the button to exit the "Chimney sweeper Proce- The Edea HM 40 models can work at NATURAL GAS or at UNI- dure”. The boiler water delivery temperature will appear on VERSAL LPG without any mechanical transformation. It is nec- the display essary to select parameter "PAR 03"... -
Page 32: Maintenance
User calls upon the services of a Professionally Qualified Technician to carry out BI-ANNUAL maintenance. To access the internal parts of the boiler: – remove the coaxial fume exhaust duct of the Edea HM 40 e (see CAUTION "Remove coaxial duct") –... -
Page 33: Cleaning The Burner And The Combustion Chamber
4.3.2 Cleaning the burner and the combustion cham- – loosen the clips (6) and extract the air inlet pipe (7) – loosen the ring nut (8), remove the rear locking clip (9) and remove the gas pipe The combustion chamber and the burner do not require any –... -
Page 34: Unscheduled Maintenance
Unscheduled maintenance Type Fault Solution - Check the integrity of the If replacing the electronic board , the user MUST set the parame- electrode and check that it Fault in the flame ters as indicated in the table and in the sequence shown. is not grounded detection circuit - Check the integrity of the... -
Page 35: Maintenance Request
4.6.1 Maintenance request Type Fault Solution When it is time to perform maintenance on the boiler, the symbol shows on the display. Incorrect positioning of - Check delivery sensor the delivery sensor operation and position - Check second delivery Second delivery sensor sensor operation and fault position... -
Page 36: Commissioning Boiler Checklist
COMMISSIONING BOILER CHECKLIST A suggested method of commissioning the boiler; the actual method can vary according to the boiler make, type and installation. The boiler must always be installed and commissioned by an approved gas technician. The installer certifies that this Boiler has been in- stalled to the manufacturer's instructions, has been filled, commissioned and is ready for use. -
Page 37: Exploded Views
EXPLODED VIEWS Edea HM 40 i... - Page 38 Edea HM 40 e...
- Page 39 - Edea HM 40 e Edea HM 40 i...
- Page 40 - Edea HM 40 e Edea HM 40 i...
- Page 41 - Edea HM 40 e Edea HM 40 i...
- Page 42 Edea HM Edea HM Recommended Recommended Pos. Code Description Pos. Code Description spare parts spare parts 40 i 40 e 40 i 6226719 Bushing 6013182 Automatic bleed 6247710 Hexagon bolster Piracriten gasket 2030267 Ø 30x17x2 6035196 Rear insulation Flowmeter 6131440 Exchanger sensor 6278986...
- Page 43 Edea HM Recommended Pos. Code Description spare parts 40 i 6222003 D.H.W. filter 6304720 Control panel 6324984 Main P.C.B 4 pole cable 6329610 connector CN13 6 pole cable 6325822 connector CN12 4 pole cable 6323876 connector CN14 14 pole cable 6325811 connector CN15 9 pole cable...
-
Page 44: Removing Components
– make sure that no hot parts inside the appliance are touched. Remove coaxial duct CAUTION This operation is necessary for the Edea HM 40 e e be- fore accessing the front panel and internal parts of the boiler. – remove the output terminal (1) –... -
Page 45: Side Panels
7.2.2 Side panels Remove/replace sensor and thermostat – unscrew the screws (3) – pull the side panel (4) outwards to release it from the top 7.4.1 Smoke flue gas probe – Remove front panel (see "Remove panels" on page 44) –... -
Page 46: Domestic Hot Water Sensor
7.4.2 Domestic hot water sensor 7.4.3 Delivery sensor – Remove front panel (see "Remove panels" on page 44) – Remove front panel (see "Remove panels" on page 44) – move the control panel (A) into a horizontal position (see "Ro- –... -
Page 47: Heat Safety Thermostat
7.4.4 Heat safety thermostat Remove electronic board – Remove front panel (see "Remove panels" on page 44) – Remove front panel (see "Remove panels" on page 44) – disconnect the connectors (1) – move the control panel (A) into a horizontal position (see "Ro- tate control panel"... -
Page 48: Remove/Replace Combustion Head Unit And Fan
– unscrew the screws (6) and unthread the combustion head (7) Remove/replace combustion head unit and – unscrew the screws (8) and remove the fan (9) – Remove front panel (see "Remove panels" on page 44) – disconnect the fan connectors (1) –... -
Page 49: Remove/Replace The Ignition And Flame Detection
Remove/replace the ignition and flame de- Remove/replace the siphon tection electrode – Remove front panel (see "Remove panels" on page 44) CAUTION – disconnect the connectors (1) and (2) When disassembling, some residual water may leak. – Remove the panelling (see "Remove panels" on page 44) –... -
Page 50: Remove/Replace Gas Valve
Remove/replace gas valve 7.10 Remove/replace the expansion vessel – Close the gas valve – Shut-off the valves to the system and empty the boiler – remove the front panel (see "Remove panels" on page 44) – remove the front panel (see "Remove panels" on page 44) –... -
Page 51: Remove/Replace System Pump
7.11 Remove/replace system pump – Shut-off the valves to the system and empty the boiler – remove the front panel (see "Remove panels" on page 44) – lift the connector (1) using a screwdriver (2) – unscrew the screws (3) remove the spring clips (4) Fig. - Page 52 Fonderie Sime S.p.A - Via Garbo, 27 - 37045 Legnago (Vr) Tel. +39 0442 631111 - Fax +39 0442 631292 - www.sime.it...
