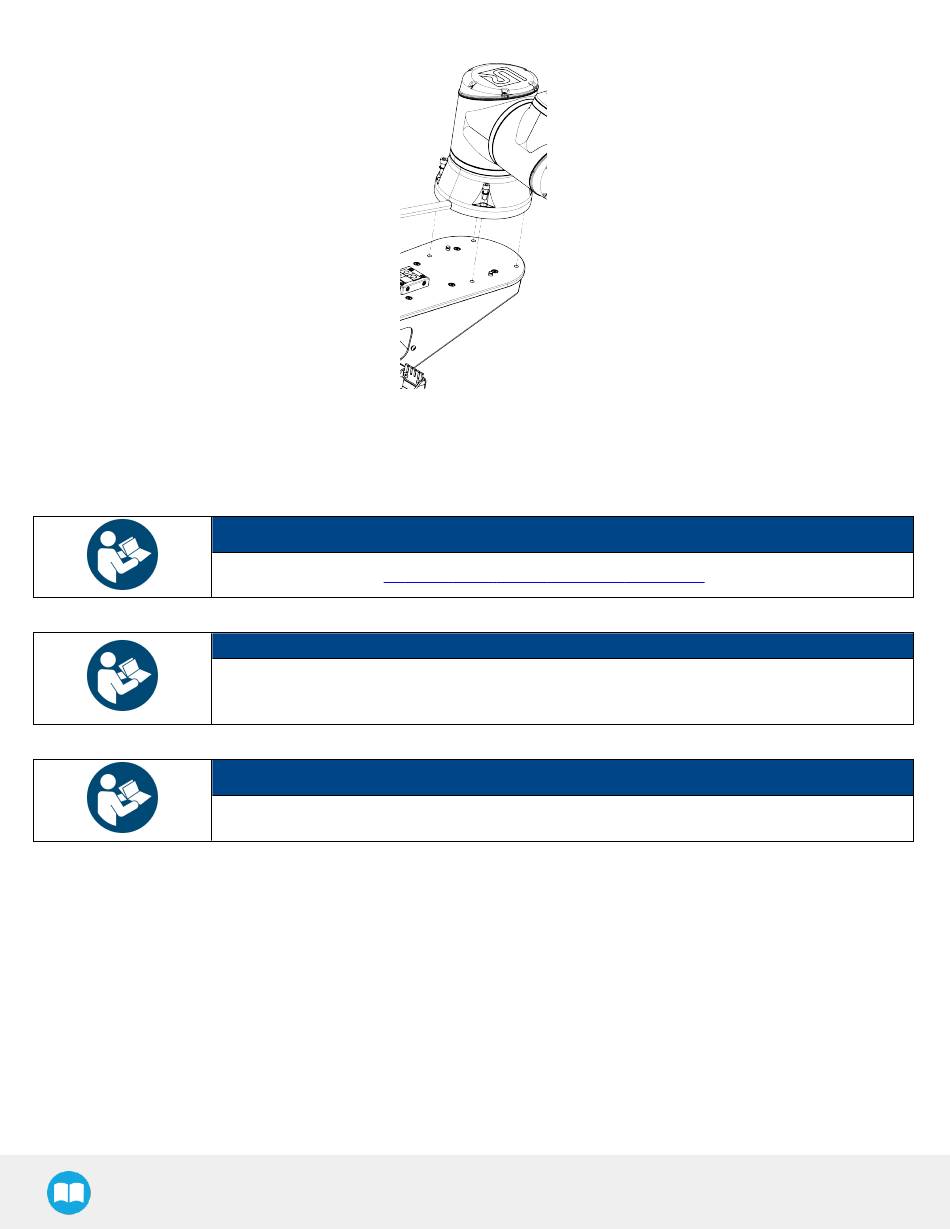

2. Disconnect the robot cable connector.
3. Open all the lids of the cable carrier using a flat screwdriver, starting with the lid that is closest to the opening on the
carriage.
4. Run the robot power cable all the way through the cable carrier.
5. Attach the robot cable to each eand of the cable carrier using two (2) cable ties.
AX10 Palletizing Solution
Please refer to the igus E2 energy chain system installation instructions
Leave the cable carrier open for now.
Do not channel the cable through the column just yet.
Do not tighten the cable ties completely.
NOTICE
for more details.
NOTICE
NOTICE
