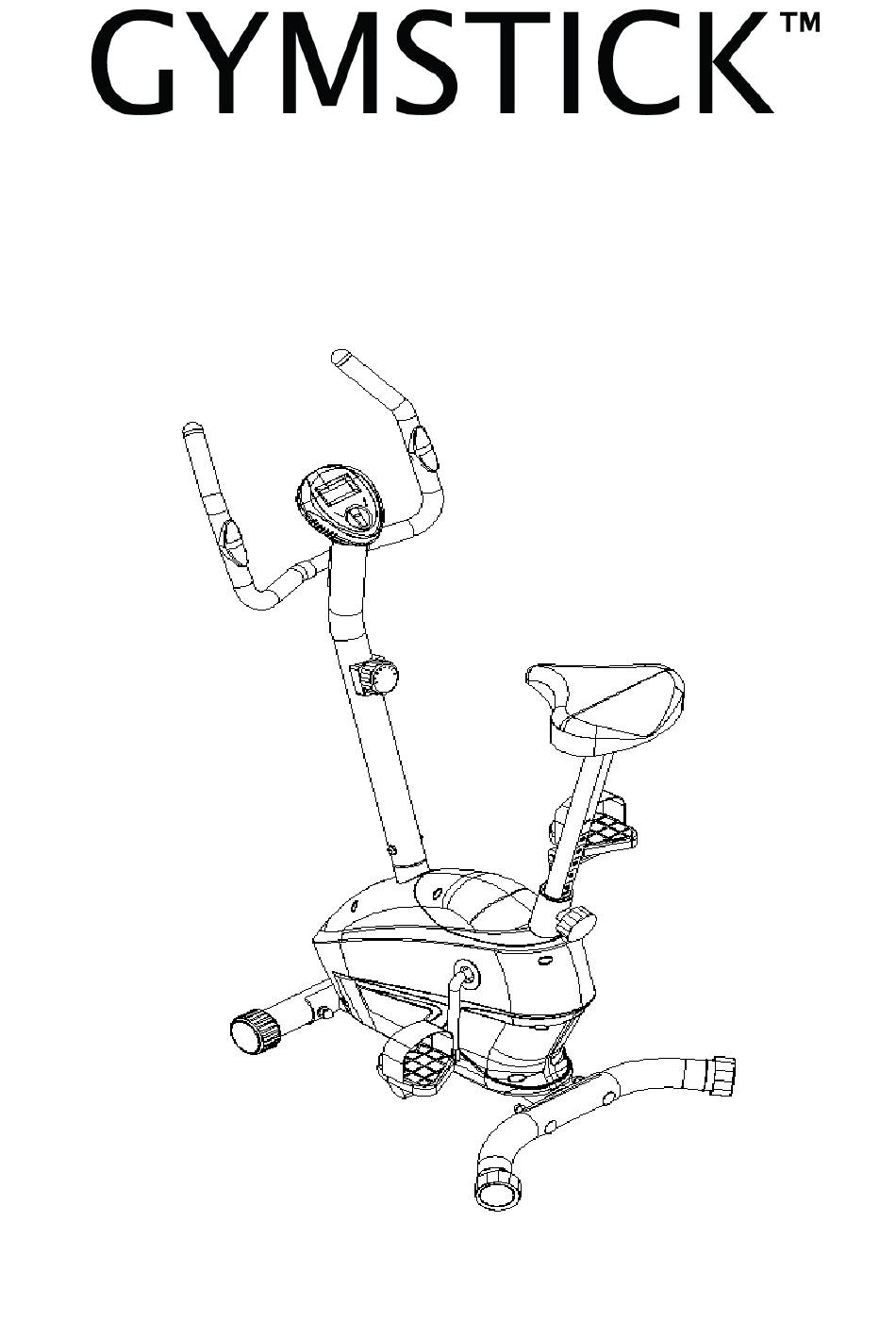

6100 Exercise bike
Owner's Manual
5/2012

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gymstick 6100

  • Page 1 6100 Exercise bike Owner’s Manual 5/2012...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS COMPUTER OPERATION PARTS LIST HARDWARE PACKING LIST OVERVIEW DRAWING ASSEMBLY INSTRUCTIONS IMPLIED WARRANTY...
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Basic precautions should always be followed, including the following safety instructions when using this equipment: Read all instructions before using this equipment. Read all the instructions in this manual and do warm up exercises before using this equipment. Before exercise, in order to avoid injuring the muscle, warming-up is recommended.
  • Page 4: Computer Operation

    COMPUTER OPERATION FUNCTION MARK 1. SCAN 2.SPEED 2.DIST 4.TIME 5.ODO 6.CAL 7.PULSE FUNCTIONS AND OPERATIONS: MODE: : : : Press Mode to choose functions AUTO ON /OFF: The monitor will start automatically when the machine is in motion. A stop over 4 minutes will turn off the monitor automatically.
  • Page 5: Parts List

    PARTS LIST Description Qty No. Description 001 Main Frame 1 031 Adjustable Bolt M6x36 002 Handlebar Ø25x1.5 1 032 Hex Nut M6 003 Handlebar Post Ø50x1.5 1 033 Spring Washer Ø6 004 Rear Stabilizer Ø50x1.5 1 034 Cap Nut M10 005 Flywheel Ø230,4kg 1 035 Bolt M10x57 006 Front Stabilizer Ø50x1.5...
  • Page 6: Hardware Packing List

    HARDWARE PACKING LIST NUTM10 BoltM10*57 Arc Washerφ Wrench Wrench Wrench...
  • Page 7: Overview Drawing

    OVERVIEW DRAWING...
  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS 1. Install the Front/Rear Stabilizers and Foot Pedals. Attach the Front Stabilizer (6) onto the front curve plate of the Main Frame (1) with two M10 Cap Nuts (34), M10x57 Bolts (35), and Ø10 Big Curve Washers (36). And mount the Rear Stabilizer (4) same as the Front Stabilizer (6) Connect the Left Foot Pedal (20) to the left Crank (19).
  • Page 9 2. Install the Seat Cushion and Seat Post. Remove three M8 Locknuts (42) and Ø8 Washers (38) from underneath of the Seat Cushion (27). Then attach the Seat Cushion (27) onto the triangle plate of Seat Post (25) with three M8 Locknuts (42) and Ø8 Washers (38) that were removed.
  • Page 10 3. Install the Handlebar Post and Tension Control Knob. Remove three M8x15 Bolt (24), Ø8 Curve Washer (55), from the tube of the Main Frame (1). Insert the Tension Cable (54) through into the bottom hole of Handlebar Post (3) and pull it out from the square hole of Handlebar Post (3).
  • Page 11: Implied Warranty

    • Non-compliance of the operating instructions Wear parts and expendable parts are also not covered. The device is only intended for home use. The warranty does not apply to commercial use of any kind. Manufactured by: Gymstick International Oy Ratavartijankatu 11 15170 Lahti, FINLAND...
