P R O 4 8
A N T I - T I P B R AC K E T
IMPORTANT NOTE: Placement of the anti-tip
bracket is critical to a stable installation. It
must be installed exactly 26" (660) from the
front of the face frame of the unit to the back
of the anti-tip bracket. Also, the centering line
on the lower flange of the anti-tip bracket must
be centered in the rough opening. Failure to
properly position the anti-tip bracket will
prevent it from engaging the unit. Be sure that
the anti-tip bracket is installed on a solid base.

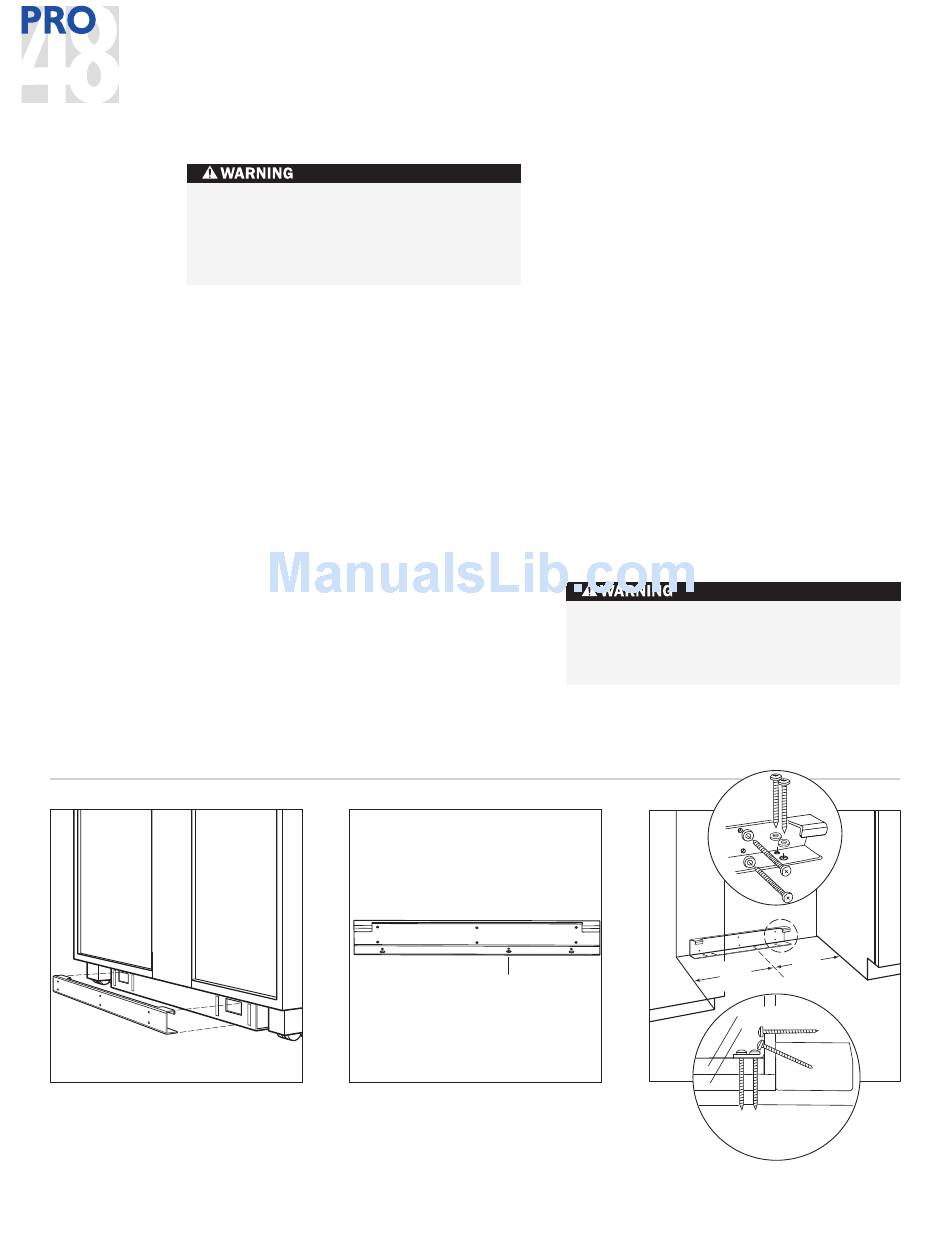

Refer to the illustrations below.
IMPORTANT NOTE: For a stable installation,
be sure to use all anti-tip bracket hardware as
instructed for wood or concrete floors to
properly secure the bracket.
Anti-tip bracket alignment
8
I N S TA L L A T I O N I N S T R U C T I O N S
I N S T A L L A T I O N
To prevent the PRO 48 from tipping
forward and provide a stable installation,
the unit must be secured in place with
the anti-tip bracket shipped with the unit.
Anti-tip bracket centerline
W O O D F L O O R A P P L I C A T I O N S
Use the twelve # 12 x 2
the twelve # 12 flat washers provided. Drill
3
pilot holes / " (5) diameter maximum and be
16
sure that the screws penetrate through the
flooring material and into the wall plate a
3
minimum of / " (19). Be sure that the screws
4
hold tight. Refer to the illustration below.
IMPORTANT NOTE: If the wood screws do not
hit a wall stud in any of the upper holes on the
anti-tip bracket, use the provided # 8–18 x 1
wood screw, # 12 flat washer and nylon zip-it
wall anchor in its place.
IMPORTANT NOTE: In some installations the
subflooring or finished floor may necessitate
angling the wood screws used to fasten the
anti-tip bracket to the back wall. Refer to the
illustration below.
Make sure that there are no electrical
wires or plumbing in the area which the
screws could penetrate.
C L
Wood floors
1
/ " wood screws and
2
1
/
4
23 3 / "
4
(603)
3
23 / "
4
(603)
C L
Finished Flooring
Underlayment
Wall Plate
Sub Flooring
WOOD
FLOOR
"
