P R O 4 8 I N S T A L L A T I O N I N S T R U C T I O N S
WAT E R L I N E C O N N E C T I O N
Approximately 3' (.9 m) of
connected to the ice maker with a preassem-
1
bled / " compression connection at the end.
4
This tubing is located under the unit.
The water line fitting connection kit, provided
with the unit, contains a
1
sleeve and a / " compression nut for connec-
4
tion to the household water line. Place the
compression nut and sleeve on the water line
and fasten to the connection at the end of the
tubing under the unit. Do not over tighten.
Check all water line fittings for leaks. Make
sure that the drain pan can be installed or
removed without any water line interference.
IMPORTANT NOTE: Be sure to purge the
water line prior to final connection to the unit.
This will remove any debris that may be
present in the tubing from installing the new
water line.
IMPORTANT NOTE: If the house has a reverse
osmosis system, the integrated water filtration
system must be placed in bypass mode. Refer
to page 7 for instructions.
IMPORTANT NOTE: Let your customer know
that the ice maker will not produce ice immedi-
ately, and that the first bucket of ice produced
should be discarded. Allow 48 hours of ice
production, before discarding the first bucket
of ice.

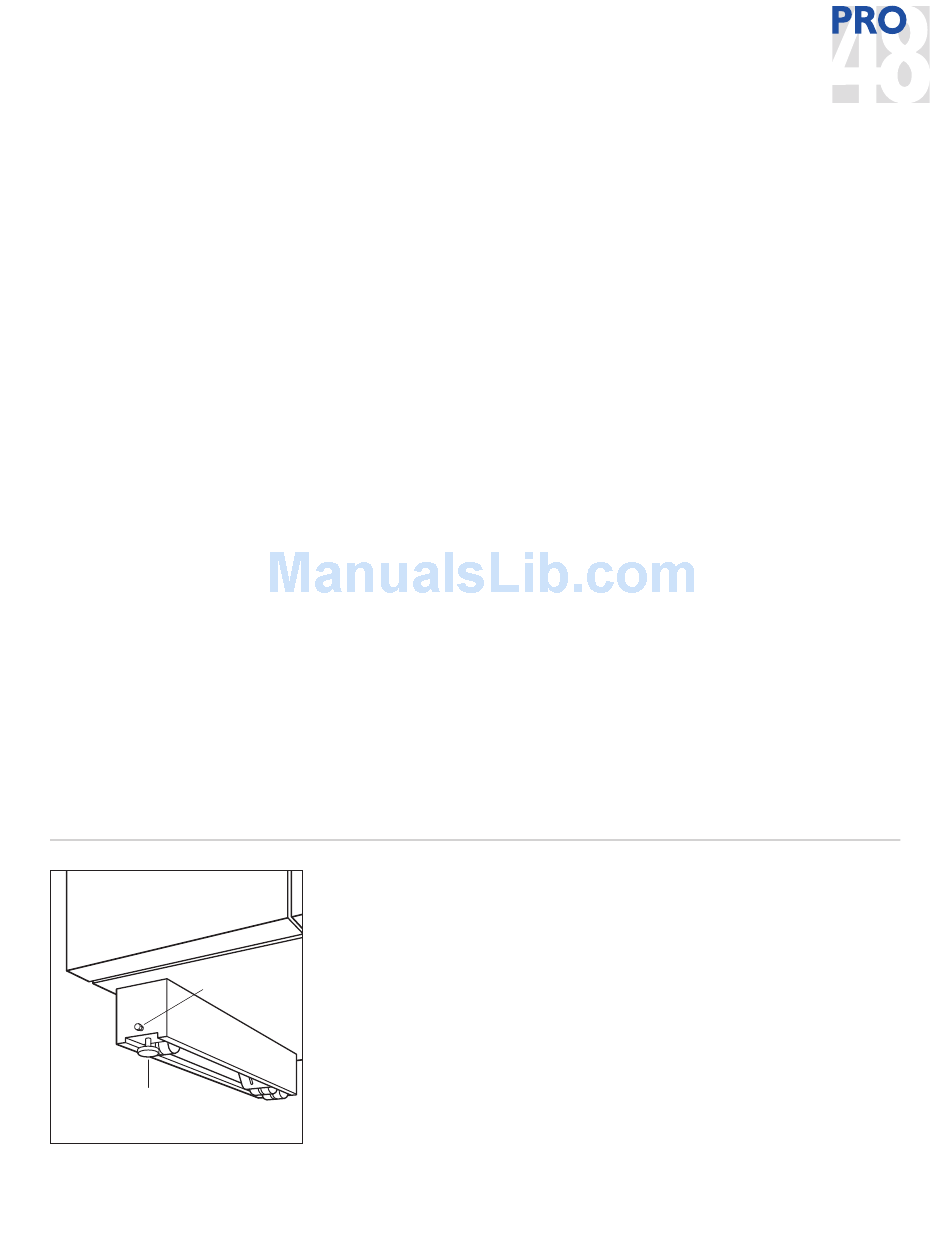

REAR
ADJUSTMENT
FRONT
LEVELING LEG
Rear roller base adjustment
Dimensions in parentheses are in
millimeters unless otherwise specified.
1
/ " plastic tubing is
4
1
/ " compression
4
L E V E L I N G T H E U N I T
Once the unit is in position, extend the front
leveling legs down by turning the legs counter-
clockwise and adjust the height. The rear
height adjustment can be made from the front
5
of the base. Use a / " socket to adjust the rear
16
5
rollers. Turn the / " hex bolt clockwise to
16
raise the unit or counterclockwise to lower it.
When the unit is leveled properly, or squared
off, door and/or drawer adjustments are less
likely to be necessary. Refer to the illustration
below for location of the rear roller base
adjustment.
IMPORTANT NOTE: Be sure to reference
leveling of the unit to the floor and not to
surrounding cabinetry. This could affect the
operation of the unit, such as doors not closing
properly.
I N S TA L L T H E K I C K P L AT E
To install, screw the kickplate to brackets
attached to the inside surface of each roller
base.
