Read the entire installation manual to ensure proper installation of your 1WCA-BF wall shower. When
finished with the installation, file this manual with the owner maintenance department. Compliance and
conformity to local codes and ordinances is the responsibility of the installer.
Consult local building and plumbing codes prior to installation. Should these codes differ from the
information in the Manual, follow the local codes. Inquire with governing authorities for additional local
requirements.
This shower complies with most, but not all, ADA dimensional requirements. Check local codes prior to
installation. For ADA compliance use the 1WCA-ADA model.
Separate parts from packaging and make sure all parts are accounted for before discarding packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
Product warranties may be found under "Products" on our website at bradleycorp.com
See separate installation sheets for information on the Wall Shower Diverter Valve Service Parts (215-1369-3a)
and Shower Hose Spray Repair Parts (215-1369-30).
215-1775 Rev. C: ECO 21-03-013
© 2021 Bradley
Page 1 of 5
6/11/2021
Installation
Bradley Barrier-Free

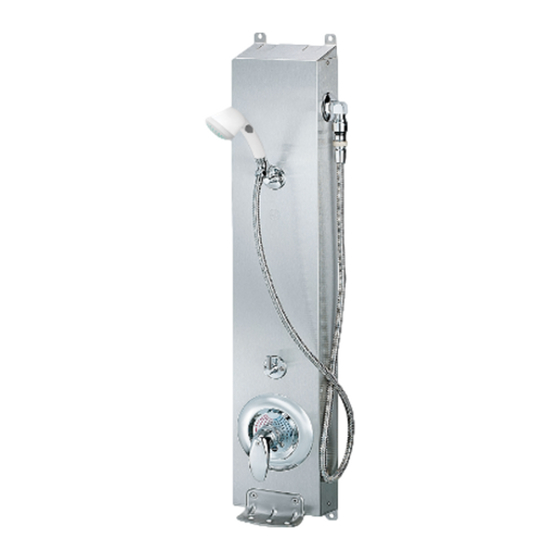

1WCA-BF Wall Shower
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Cleaning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
IMPORTANT
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
www.bradleycorp.com
