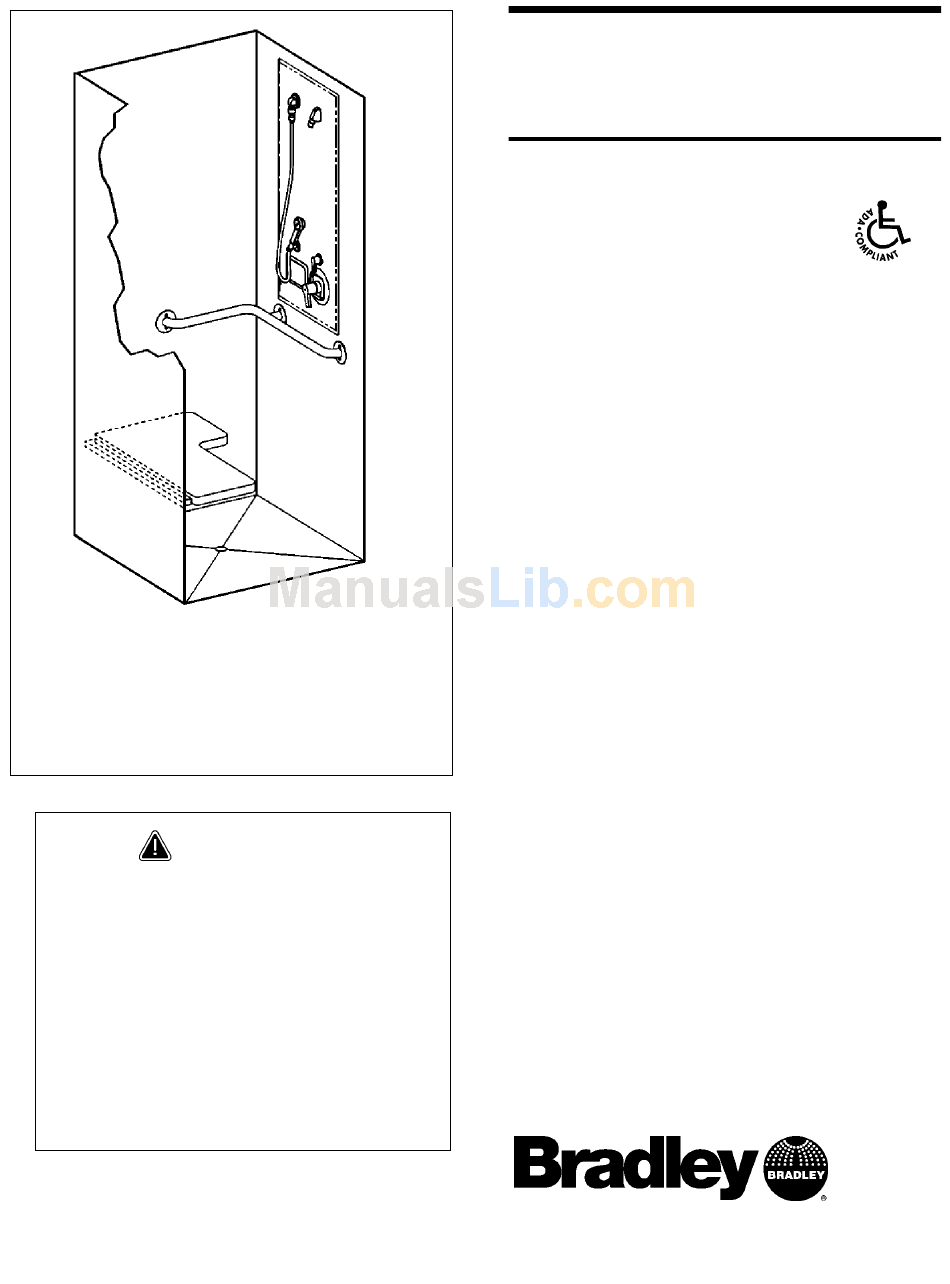

HN200
(Valve Right/Seat Left shown,
Valve Left/Seat Right is opposite)
36" x 36" enclosure is not
provided as standard equipment
IMPORTANT
Read the entire installation manual to ensure proper
installation of your HN200 shower.
This manual covers all of the HN200 variations and
options available, including shower seat and curtain
installation. Simply omit the steps which do not apply
to the unit you are installing.
Valve Left/Seat Right version is shown throughout
this manual. Valve Right/Seat Left is opposite.
Plumbing contractor shall be responsible for
installing shower face plate at the correct height to
meet accessibility requirements.
This installation manual and parts list should be filed
by the owner's maintenance department.
215-1189 Rev. F; EN 02-342
Page 1 of 8
Installation
Instructions
ADA Compliant HN200
Recess-Mounted
Shower with
• Equa Flo™
• Accu-Zone™ Infrared
Control
• Thermostatic Control
• Single Valve
• Air Metering Valve
• Touch-Time™ or
• Touch Time™ w/Battery
Table of Contents
Pre-Installation Information . . . . . . . . . . . . 2
HN200 Components . . . . . . . . . . . . . . . . . . .3
HN200 Shower Stall Dimensions . . . . . . . .3
Installation Instructions . . . . . . . . . . . . . . 4-7
Cleaning Instructions . . . . . . . . . . . . . . . . . .7
Shower Seat Repair Parts . . . . . . . . . . . . . . .8
Shower Curtain Repair Parts . . . . . . . . . . . .8
P.O. Box 309, Menomonee Falls, Wi 53052-0309
TEL. 1-800-BRADLEY
http://www.bradleycorp.com
FAX (262) 251-5817
Advertisement
Table of Contents
Related Manuals for Bradley HN200
Summary of Contents for Bradley HN200
- Page 1 Pre-Installation Information ... . 2 HN200 Components ....3 HN200 Shower Stall Dimensions ..3 Installation Instructions .
-
Page 2: Rev. F; En
Bradley unit or part thereof which our inspection shall show to have been defective within the limitations of this warranty. 2. The period during which HN200 Shower components are warranted is one (1) year, measured from the date of our invoice. -
Page 3: Hn200 Components
Installation Instructions HN200 Components and Shower Stall Dimensions Inline Backflow Preventer Quick Disconnect Stainless Steel Hose Hand-Held Hose Spray with Post-Style Bracket Recessed Soap Dish 18" (457mm) 15" (381mm) 14-1/4" (362mm) max. 4" 36" (102mm) (914mm) min. VALVE LEFT/SEAT RIGHT NOTE: Compliance and conformity to local codes and ordinance is the responsibility of the installer. -
Page 4: Installation Instructions
ADA Compliant Recess-Mounted Shower HN200 Installation Instructions NOTE: Flush the supply lines before making connections. NOTE: Install the supply inlets no lower than 48" and no higher than 60" off of finished floor. Step 1: Rough in piping for shower NOTE: When facing the wall, the supply pipe to the left of the centerline is HOT. - Page 5 Bradley Corporation • 215-1189 Rev. F; EN 02-342 ADA Compliant Recess-Mounted Shower Figure 2 NOTE: ALL WALL ANCHORS SUPPLIED BY INSTALLER. Figure 3 VALVE LEFT - SEAT RIGHT HN200 VALVE LEFT SEAT RIGHT 1/4"-20 x 3/4" BUTTON HEAD ALLEN KEY SCREW (12) PLACES (160-143)
- Page 6 ADA Compliant Recess-Mounted Shower HN200 Installation Instructions continued… Step 4: Mount shower seat NOTE: All anchoring devices (supplied by installer) must be carefully selected to insure adequate support for the shower seat, given the type of wall construction. 1. Measure and scribe a horizontal line 16-1/16" above the finished floor (see Figure 4).
- Page 7 It is emphasized that all products should be used in strict accordance with package instructions. Bradley Corporation • 215-1189 Rev. F; EN 02-342 ADA Compliant Recess-Mounted Shower HN200 ®...
-
Page 8: Shower Seat Repair Parts
ADA Compliant Recess-Mounted Shower HN200 Shower Seat Repair Parts 158-010 Left Hand Plastic Seat (Valve Right) 158-011 Right Hand Plastic Seat (Valve Left) Shower Curtain Repair Parts Curtain Pre-pack S30-068 ITEM PART NO. 170-006 170-006D 170-006E 151-001 269-367 150-157 P10-412...
