215-1641 Rev. C; EN 09-02-0005
© 2009 Bradley Corporation
Page 1 of 7
11/17/09
IMPORTANT!
Read this entire installation manual to ensure proper installation, then file
this manual with the owner or maintenance department. Compliance and
conformity to local codes and ordinances is the responsibility of the installer.
Pressurized plumbing fixtures must be installed in accordance with
manufacturer's recommendations. The supply piping to these devices must
be securely anchored to the building structure to prevent unnecessary
movement of the installed device when operated by the user. Use extreme
caution when installing the device to prevent damage to the exposed
significant surface.
Separate parts from packaging and make sure all parts are accounted for
before discarding any packaging material. If any parts are missing, do not
begin installation until you obtain the missing parts.
Flush water supply lines before making connections. DO NOT use pipe dope
on any faucet or supply connections. Possible valve contamination could
occur which will void any warranty. Teflon tape is the recommended sealant.
Product warranties may be found in the "Products" section of our web site at
www.bradleycorp.com.

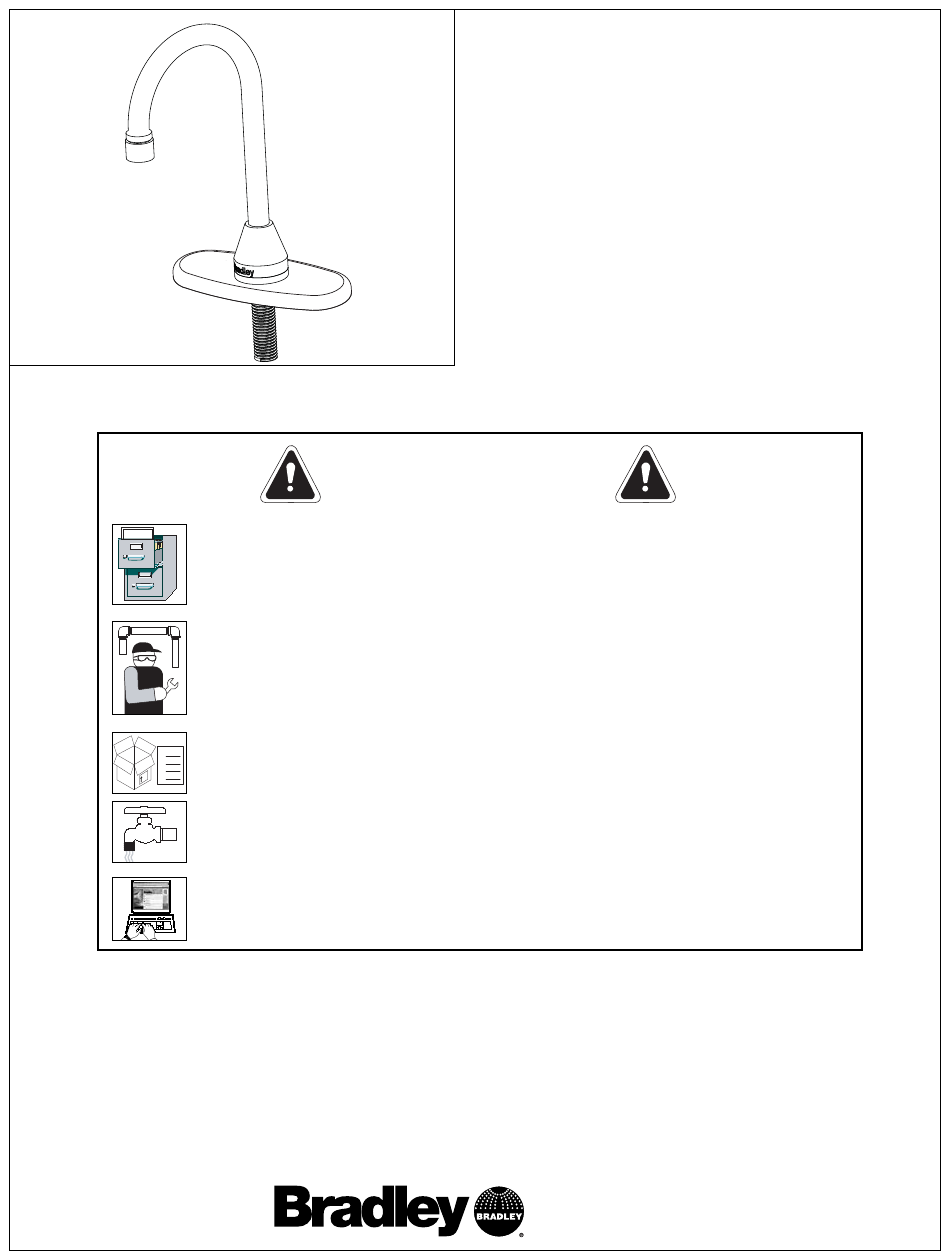

Installation
Aerada
™
1200 Series
CS Faucet
S53-325 Battery-Operated Capacitive
Sensing Gooseneck Faucet
Centershank with 4-inch Trim Plate
(Optional: 8-inch or no Trim Plate)
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 1-800-BRADLEY FAX (262) 251-5817
http://www.bradleycorp.com
