Read this entire installation manual to ensure proper installation, then file
these instructions with the owner or maintenance department.
Flush all the water supply lines before making connections, then make
sure the water supply is turned off before beginning installation.
Do not use pipe dope on faucet and supply connections. Possible
solenoid contamination could occur and will void any warranty. Teflon
tape is the recommended sealant. Use plumber's putty only to seal the
faucet to the deck.
The installation site should have access to an electrical box with 120 volt
AC, 60 Hz cycle for input to a transformer. When installing the transformer,
the electrical box should be located within six feet of the sink.
The DC faucets are powered by four "AA" factory-installed alkaline
batteries.
Product warranties may be found under "Product Information" on our web
site at www.bradleycorp.com.
Compliance and conformity to local codes and ordinances is the
responsibility of the installer.
215-1559 Rev. A; EN 04-216A
© 2004 Bradley Corporation
Page 1 of 8
9/23/04

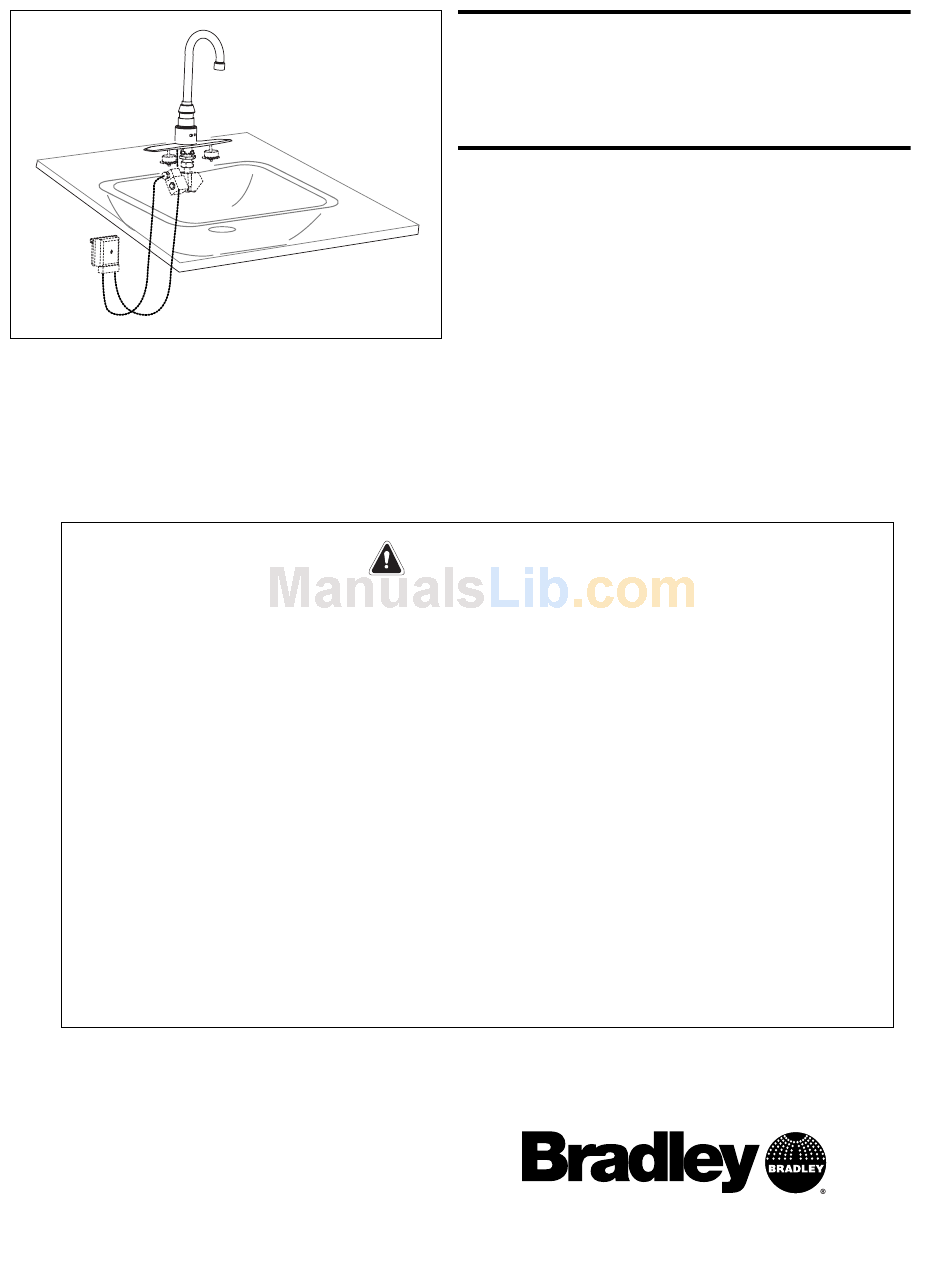

Installation
Instructions

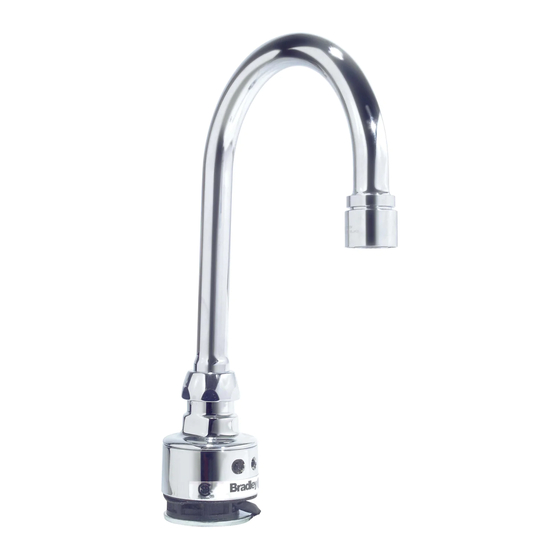

Aerada 1000 Series
Gooseneck Faucet
S53-306
DC Gooseneck with Centershank
S53-307
DC Gooseneck with 4" Trimplate
S53-308
AC Gooseneck with Centershank
S53-309
AC Gooseneck with 4" Trimplate
232-007
Plug-In Transformer for AC Gooseneck
WARNING
P.O. Box 309, Menomonee Falls, WI 53052-0309
Phone: 1-800-BRADLEY FAX: (262) 251-5817
http://www.bradleycorp.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bradley AERADA 1000 Series 232-007
Summary of Contents for Bradley AERADA 1000 Series 232-007
-
Page 1: Installation Instructions
Read this entire installation manual to ensure proper installation, then file these instructions with the owner or maintenance department. Flush all the water supply lines before making connections, then make sure the water supply is turned off before beginning installation. Do not use pipe dope on faucet and supply connections. -
Page 2: Supplies Required For Installation
Aerada 1000 Series Gooseneck Faucet Table of Contents Faucet Components .........2 Supplies Required for Installation . - Page 3 Installation Instructions Installation Instructions - Single Hole and Cover Plate Remove the locknut (1), washer (2), stilt washer (3) from the spout shank (4). Remove shank from cover plate (if supplied). Install stilt washer (1) all the way up onto shank, crown side up.
- Page 4 Aerada 1000 Series Gooseneck Faucet Installation Instructions - Solenoid Valves and Electronic Box (AC) Models S53-308 and S53-309 Thread the union nut (1) of the solenoid assembly to the faucet shank (2). Use Teflon tape on the threads to ensure a leak-free joint. Make sure the solenoid is positioned for easy access.
- Page 5 Installation Instructions Installation Instructions - Electronic Battery Box (DC) Models S53-306 and S53-307 Install the baseplate and mount the electronic box to the desired wall location. The baseplate must be mounted either level with or above solenoid valve, and within 12" of the solenoid valve.
-
Page 6: Faucet Operation
Aerada 1000 Series Gooseneck Faucet Faucet Operation Operating Modes • Normal Motion Detecting Mode: water flows within 1/4 second after activating sensor (i.e., putting hands in front of collar) and continues to stay on as long as motion is detected. Maximum time is 45 seconds (factory default setting). -
Page 7: Troubleshooting
Installation Instructions Troubleshooting Whenever new batteries are installed, AC power is applied, or a manual reset button is pressed, the LED on the electronics cover will blink and an audible indicator chirps twice per second whenever hand presence is detected. After 8 minutes, the LED and buzzer function stops. - Page 8 Aerada 1000 Series Gooseneck Faucet Troubleshooting continued . . . Problem Faucet works in reverse. Solenoid wiring on DIN connector (no beeps). Faucet turns off too soon. Faucet operating mode (no beeps) or faucet range setting. Faucet stays on longer than Dirty solenoid valve (no beeps).
