Operating Guide Termix VX with complete insulation

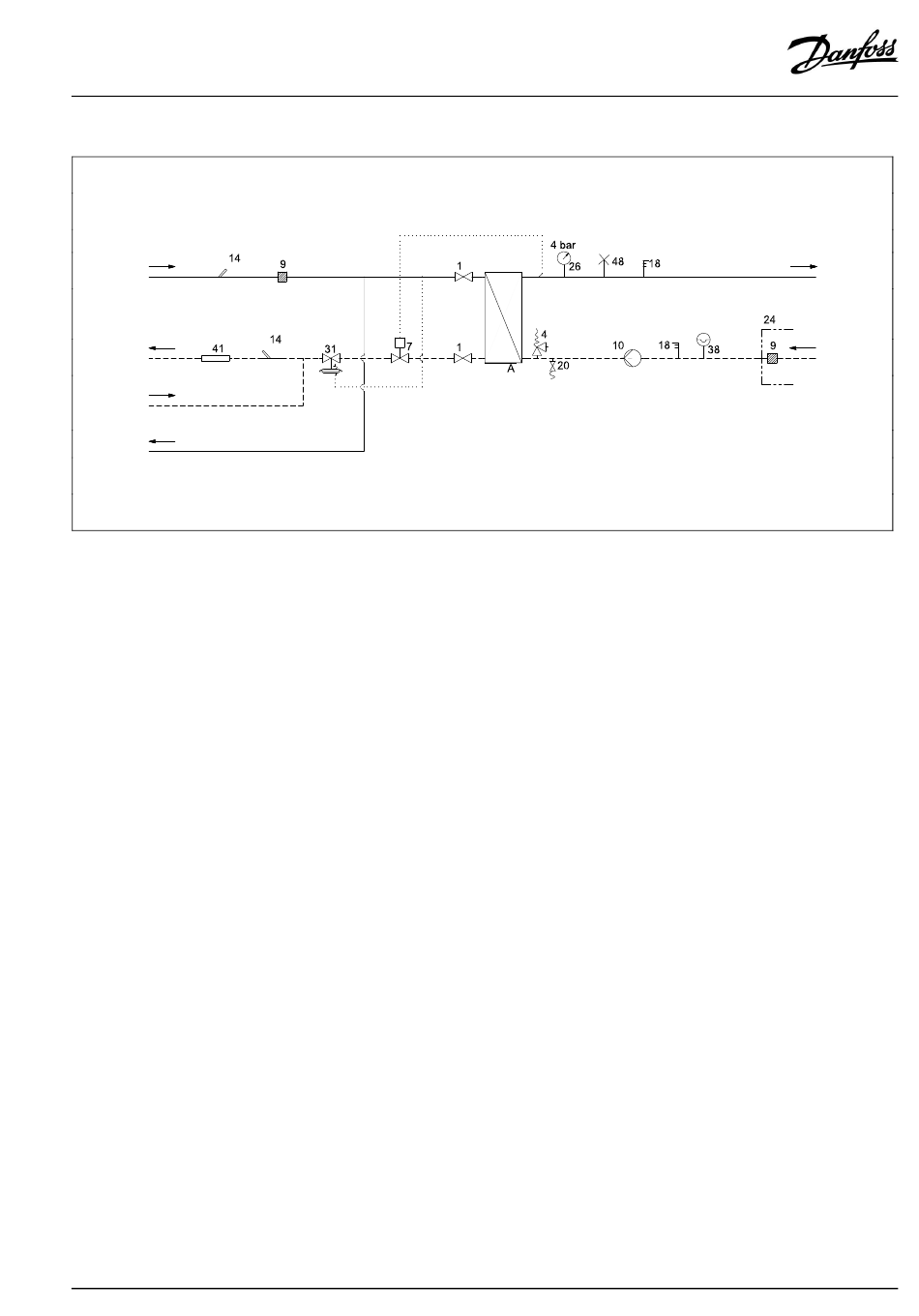

5.2 Schematic diagram

DH
Supply
DH
Return
TRL
TFL
Your substation might look different than the schematic diagram shown.
Schematic description
A Heat exchanger, HE
1
Ball valve
4
Safety valve
7
Thermostatic valve, HE
9 Strainer
DH Supply: District Heating Supply
District Heating Return
DH Return:
HE Supply: Heating Supply
HE Return: Heating Return
TFL: Tank Flow Line
TRL: Tank Return Line
5.2.1 Technical parameters
Technical parameters
Nominal pressure:
Max. DH supply temperature:
Brazing material (HEX):
Heat exchangers test pressure:
Sound level:
AQ221686472754en–010401 / LUK4030601
10 Circulator pump
14 Sensor pocket, energy meter
18 Thermometer
20 Filling/drain valve
24 Delivered loose with unit
PN 10 (PN 16 versions are available on enquiry)
120 °C
Copper
30 bar
≤ 55 dB
26 Pressure gauge
31 Differential pressure controller
38 Expansion tank
41 Fitting piece, energy meter
48 Air vent, manual
© Danfoss | 2022.11 | 11
HE
Supply
HE
Return
