- Page 1 Cylinder unit OMNIS special 6.03004.210 / 6.03004.220 Product information 8.0108.8031EN / v5 / 2023-05-12...
- Page 3 Metrohm AG Ionenstrasse CH-9100 Herisau Switzerland +41 71 353 85 85 info@metrohm.com www.metrohm.com Cylinder unit OMNIS special 6.03004.210 / 6.03004.220 Product information 8.0108.8031EN / v5 / 2023-05-12...
- Page 4 Disclaimer Deficiencies arising from circumstances that are not the responsibility of Metrohm, such as improper storage or improper use, etc., are expressly excluded from the warranty. Unauthorized modifications to the product (e.g. conversions or attachments) exclude any liability on the part of the manufacturer for resulting damage and its consequences.
-
Page 5: Table Of Contents
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of contents Table of contents 1 Overview Cylinder unit OMNIS – Product description ......1 Cylinder unit OMNIS – Product versions ......1 Cylinder unit OMNIS – Overview ......... 2 Symbols and conventions ............ 3 Further information .............. 4 Displaying accessories ............ -
Page 7: Cylinder Unit Omnis - Product Description
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Overview 1 Overview Cylinder unit OMNIS – Product description The cylinder unit is part of the dosing unit, which comprises, in addition to the cylinder unit, the dosing drive. It provides the liquid volume required for the analysis and can be equipped with different volumes. The cylinder unit OMNIS special is used in particular for dosing or titrating the following: Aqueous alkali solutions... -
Page 8: Cylinder Unit Omnis - Overview

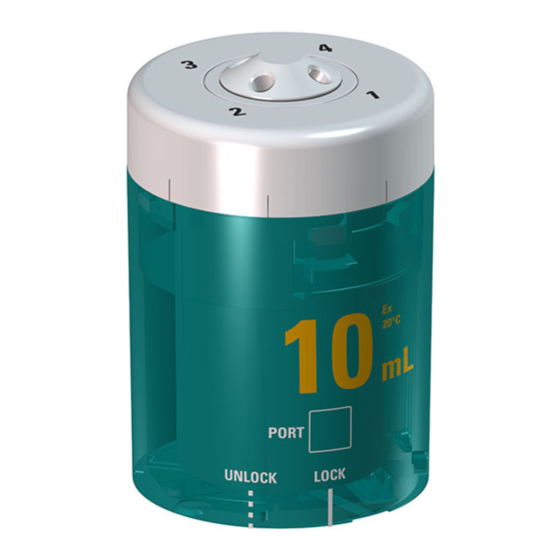

Cylinder unit OMNIS – Overview ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Cylinder unit OMNIS – Overview Figure 1 Cylinder unit – Overview Distributor with 4 ports Cylinder top piece Cylinder housing Centering tube Dosing cylinder Data chip Piston stopper Dosing piston Spring clip 10 Unlocking button ￭￭￭￭￭￭￭￭... -
Page 9: Symbols And Conventions
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Overview Figure 2 Cylinder unit – Overview from above The following table shows the standard use of the 4 ports. The use of the ports can be changed in the OMNIS Software. Port Connecting or sealing with Dosing Dosing tip Filling the cylinder Chemical bottle Not used... -
Page 10: Further Information
Displaying accessories Up-to-date information on the scope of delivery and on optional accesso- ries can be found on the Metrohm website. 1 Searching for a product on the website Go to https://www.metrohm.com. ￭... -
Page 11: Intended Use
Safety 2 Safety Intended use Metrohm products are used for the analysis and handling of chemicals. Usage therefore requires the user to have basic knowledge and experience in handling chemicals. Knowledge regarding the application of fire preven- tion measures prescribed for laboratories is also mandatory. -
Page 12: Requirements For Operating Personnel
Always have maintenance work and repairs on electrical components ￭ carried out by a regional Metrohm service representative. Disconnect the product from the energy supply immediately if at least ￭ one of the following cases occurs: –... -
Page 13: Danger From Highly Flammable Substances
Dispose of chemically contaminated materials (e.g. cleaning material) in ￭ accordance with regulations. Proceed as follows in case of a return shipment to Metrohm AG or a ￭ regional Metrohm representative: – Decontaminate the product or product component. -
Page 14: Danger During Transport Of The Product
Design of warning messages ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2.4.5 Danger during transport of the product Chemical or biological substances may be spilled during the transport of the product. Parts of the product may fall down or may be damaged. There is a risk of injury from chemical or biological substances and pieces of broken glass. -
Page 15: Meaning Of Warning Signs
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Safety CAUTION Type or source of danger Consequences when not observing the notice: A minor to moderate injury is probable. Measures to avoid the danger ￭ Meaning of warning signs This documentation uses the following warning signs: Table 2 Warning sign according to ISO 7010 Warning sign Meaning... -
Page 16: Technical Specifications
Ambient conditions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Technical specifications Ambient conditions Nominal function range +5 to +45 °C at max. 80% relative humidity, non- condensing Storage +5 to +45 °C Cylinder unit OMNIS – Dimensions Measurements 68 mm Diameter Height 100 mm Weight Type 10 mL 200 g... -
Page 17: Cylinder Unit Omnis - Connectors Specifications
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Technical specifications Distributor PCTFE Polychlorotrifluorethy- lene Degree of protection IP 40 Cylinder unit OMNIS – Connectors specifications Electrical contacts spring contacts Cylinder unit OMNIS – Liquid handling specifications Cylinder unit Cylinder volume 10, 20 mL Tubings Tubing nipple outer thread Inner diameter 2 mm Material...
