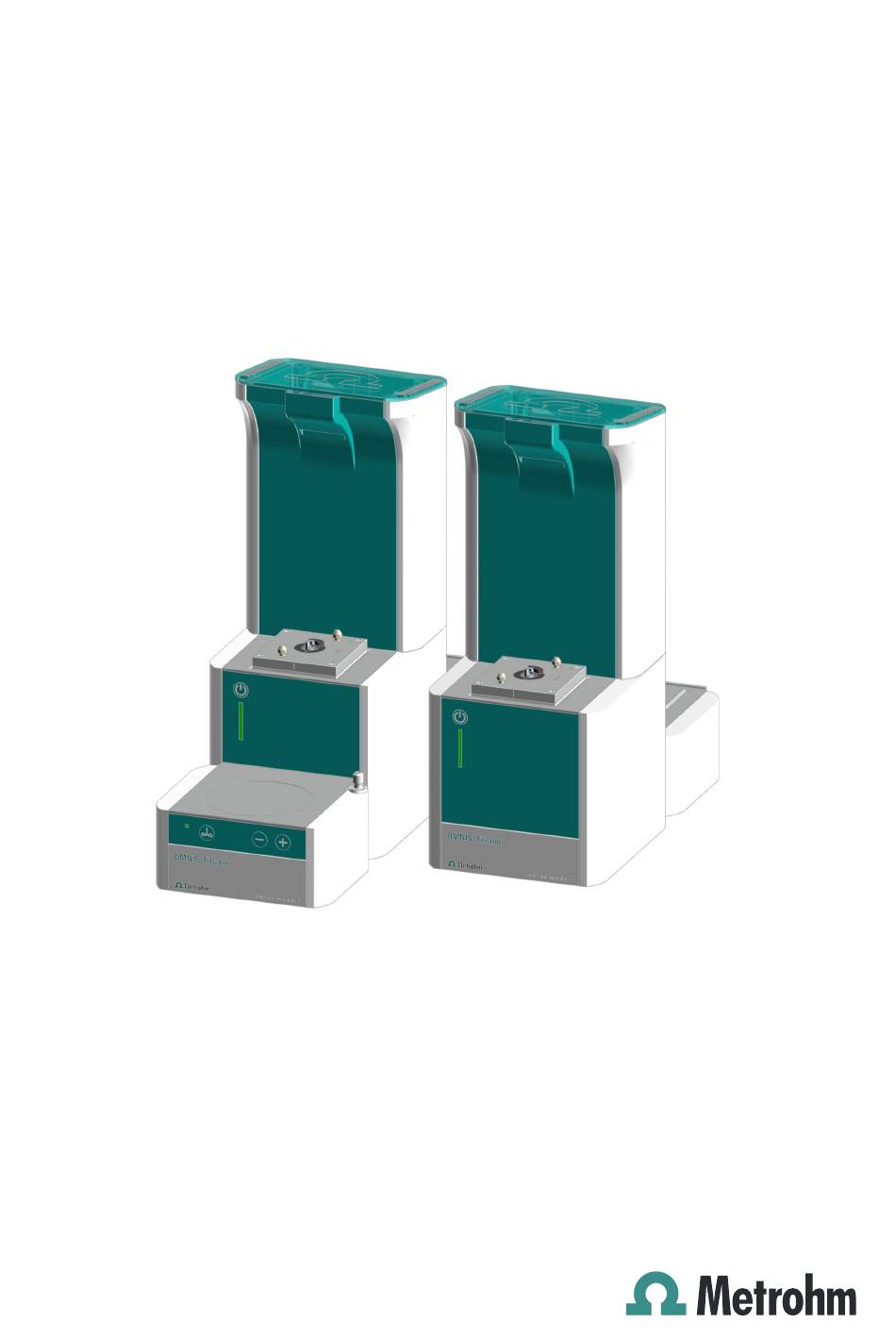

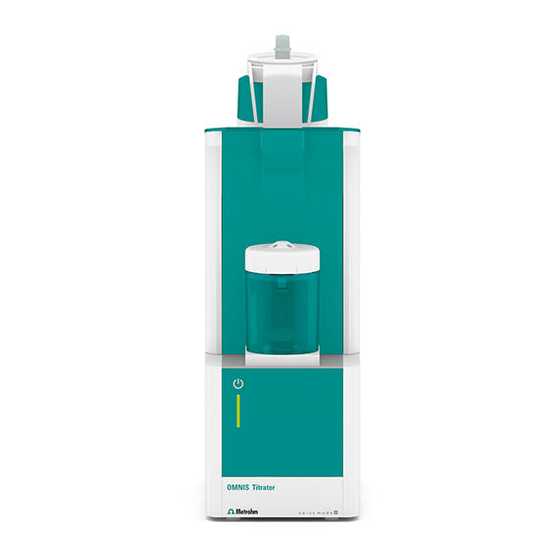

  • Page 1 OMNIS Titrator 2.1001.0XX0 Product information 8.1001.8001EN / 2021-07-23...
  • Page 3 Metrohm AG Ionenstrasse CH-9100 Herisau Switzerland +41 71 353 85 85 info@metrohm.com www.metrohm.com OMNIS Titrator 2.1001.0XX0 Product information 8.1001.8001EN / 2021-07-23...
  • Page 4 Disclaimer Deficiencies arising from circumstances that are not the responsibility of Metrohm, such as improper storage or improper use, etc., are expressly excluded from the warranty. Unauthorized modifications to the product (e.g. conversions or attachments) exclude any liability on the part of the manufacturer for resulting damage and its consequences.

  • Page 5: Table Of Contents

    Measuring module – Dimensions ........14 OMNIS Titrator – Housing ..........14 Magnetic stirrer – Housing ..........14 3.10 Measuring module – Housing ..........15 3.11 OMNIS Titrator – Connectors specifications ....15 3.12 Measuring Module Analog – Connectors specifica- tions ..................16 ￭￭￭￭￭￭￭￭...
  • Page 6 3.15 Measuring Module Analog – Display specifications ..17 3.16 Measuring Module Digital – Display specifications ..17 3.17 Measuring Module Analog – Measuring specifications .. 18 3.18 OMNIS Titrator – Liquid Handling specifications .... 19 3.19 Magnetic stirrer – Specifications ........19 ￭￭￭￭￭￭￭￭...

  • Page 7: Overview

    OMNIS Titrator – Product description The OMNIS Titrator is the central instrument of an OMNIS titration system. The OMNIS Titrator is responsible for the energy supply to all of the mod- ules in the titration system and for communication between the titration system and the OMNIS Software.

  • Page 8: Omnis Titrator - Overview

    OMNIS Titrator – Overview ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ (01) = Article number in accordance (21) = Serial number with GS1 standard (240) = Metrohm article number Certification Certification Technical specifications OMNIS Titrator – Overview Figure 1 OMNIS Titrator – Front Space for measuring modules...
  • Page 9 OMNIS Titrator – Rear Bottle holder Cable guide On the side to the right. For Liquid Adapter cable MSI connector Cable guide MSI = Metrohm Solution Identification. Con- Bottom right nection socket for Liquid Adapter cable Interfaces Cable guide Bottom left Cable guide On the side to the left.

  • Page 10: Symbols And Conventions

    Accessories Up-to-date information on the scope of delivery and on optional accesso- ries can be found on the Metrohm website. Download this information as follows: Downloading the accessories list 1 Go to https://www.metrohm.com.
  • Page 11 Overview 4 On the Included parts tab, click the link to download the PDF. The PDF file with the accessories data is loaded. NOTICE Metrohm recommends downloading the accessories list from the Internet and keeping it for reference purposes. ￭￭￭￭￭￭￭￭...

  • Page 12: Safety

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Safety Intended use Metrohm products are used for the analysis and handling of chemicals. Usage therefore requires the user to have basic knowledge and experience in handling chemicals. Knowledge regarding the application of fire preven- tion measures prescribed for laboratories is also mandatory.

  • Page 13: Requirements For Operating Personnel

    Always have maintenance work and repairs on electrical components ￭ carried out by a regional Metrohm service representative. Disconnect the product from the energy supply immediately if at least ￭ one of the following cases occurs: –...

  • Page 14: Danger From Highly Flammable Substances

    Dispose of chemically contaminated materials (e.g. cleaning material) in ￭ accordance with regulations. Proceed as follows in case of a return shipment to Metrohm AG or a ￭ regional Metrohm representative: – Decontaminate the product or product component.

  • Page 15: Danger During Transport Of The Product

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Safety 2.4.5 Danger during transport of the product Chemical or biological substances may be spilled during the transport of the product. Parts of the product may fall down or may be damaged. There is a risk of injury from chemical or biological substances and pieces of broken glass.

  • Page 16: Meaning Of Warning Signs

    Meaning of warning signs ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ WARNING Type or source of danger Consequences when not observing the notice: A serious injury that may result in death is probable. Measures to avoid the danger ￭ CAUTION Type or source of danger Consequences when not observing the notice: A minor to moderate injury is probable.
  • Page 17 ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Safety Warning sign Meaning Warning of flammable materials Warning of corrosive substances Warning of optical radiation Warning of laser beams Depending on the intended use of the product, the corresponding warn- ing sign stickers must be placed on the product. ￭￭￭￭￭￭￭￭...

  • Page 18: Technical Specifications

    +5 to +45 °C max. 80% relative humidity, non- condensing Storage +5 to +45 °C OMNIS Titrator – Energy supply Nominal voltage range 100 VAC - 240 VAC Nominal frequency range 50 Hz - 60 Hz Power consumption max. 100 W...

  • Page 19: Measuring Module - Energy Supply

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Technical specifications Measuring module – Energy supply Power consumption max. 0.6 W Energy transmission inductive coupling OMNIS Titrator – Dimensions Measurements Width 142 mm Height 358 mm Depth Without magnetic stirrer 284 mm With magnetic stirrer 400 mm Weight...

  • Page 20: Measuring Module - Dimensions

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Measuring module – Dimensions Measurements Width 105 mm Height 31 mm Depth 72 mm Weight approx. 420 g OMNIS Titrator – Housing Materials poly(ethylene tereph- thalate) Back panel AW-5754 H12/H22 aluminum, coated Base 1.4301 high-grade steel Enclosure poly(butylene tereph-...

  • Page 21: Measuring Module - Housing

    GD-ZnAl4Cu1 zinc die cast, nickel- Enclosure plated IP degree of protection IP 40 3.11 OMNIS Titrator – Connectors specifications Energy supply via power connection Socket IEC 60320, type C14, 10 A Power cord Length max. 2 m...

  • Page 22: Measuring Module Analog - Connectors Specifica- Tions

    Measuring Module Analog – Connectors specifications ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Cable type (min. FFTP) shielded Cable length max. 10 m from Metrohm accesso- ries (link) Measuring module 2 slots Power output max. 0.6 W per measuring module Energy transmission inductive coupling optical Data transmission...

  • Page 23: Measuring Module Digital - Connector Specifications

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Technical specifications Temperature Temp. measuring input for temperature sensors of the Pt1000 or NTC type for automatic tempera- ture compensation reference potential Type 2 mm (INPUT 1 - INPUT 2) pH, ISE, Redox potentiometric differen- tial measurement, with respect to REF 3.13 Measuring Module Digital –...

  • Page 24: Measuring Module Analog - Measuring Specifications

    Measuring Module Analog – Measuring specifications ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3.17 Measuring Module Analog – Measuring specifica- tions Potentiometric Measuring range –2,400 to +2,400 mV Resolution 1.56 µV Measuring accuracy ±0.5 mV in the measuring range –2,000 mV to +2,000 mV Input resistance ≥...

  • Page 25: Omnis Titrator - Liquid Handling Specifications

    100 ms 3.18 OMNIS Titrator – Liquid Handling specifications Dosing drive Dosing resolution 100,000 steps per cylinder vol- 0.01% typically, of the dosed...
