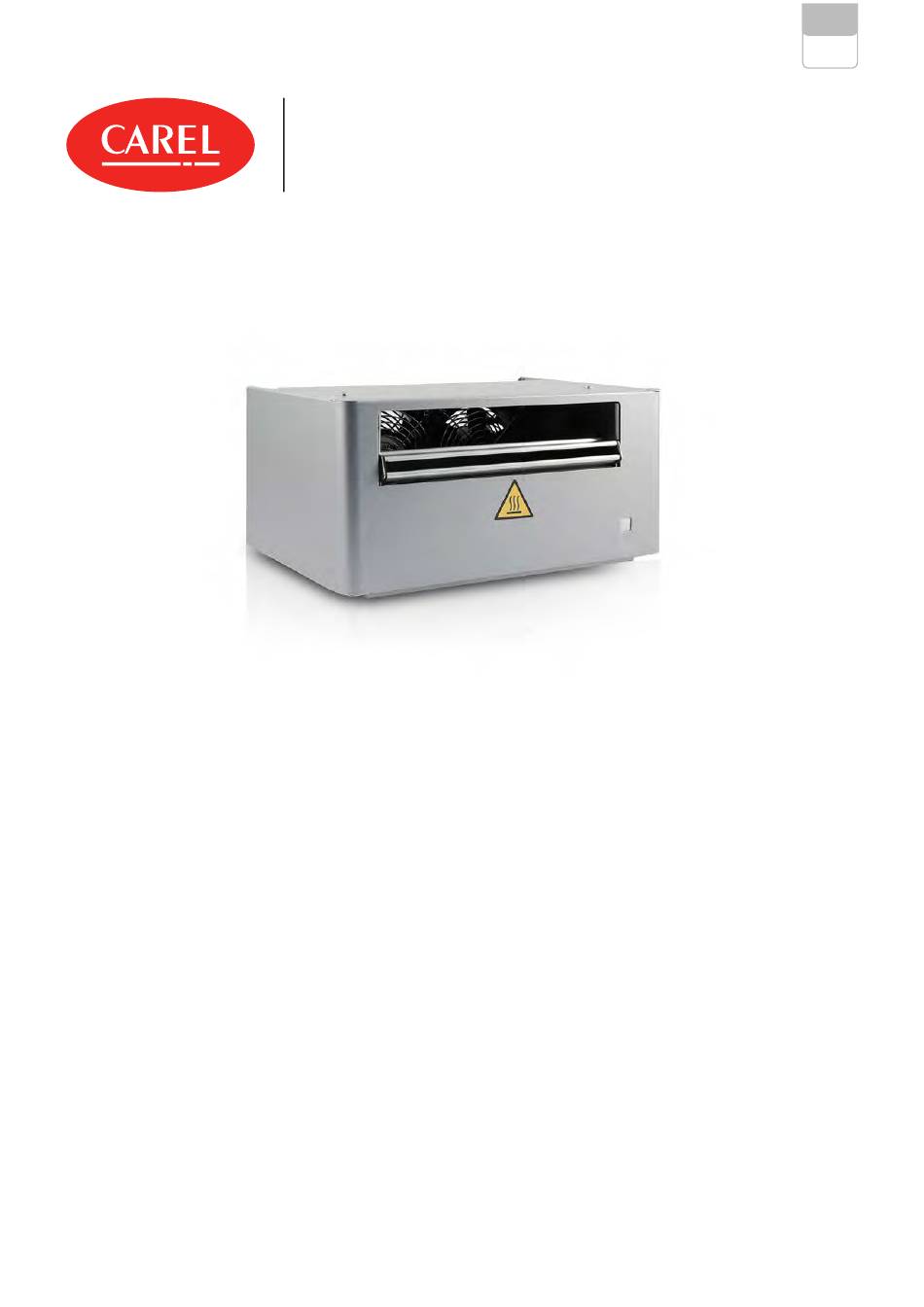

- Page 1 VSDU0A0003 Steam blower USER MANUAL LANTAVENT.RU | отдел продаж: sale@lantavent.ru Оборудование Carel: автоматика, увлажнители, комплектующие...
-
Page 2: Table Of Contents
Оборудование Carel: автоматика, увлажнители, комплектующие Index 1. INTRODUCTION 1.1 Description 2. PREPARING FOR ASSEMBLY 2.1 Requirements 3. ASSEMBLY 3.1 Preliminary operations 3.2 Assembly 4. MAINTENANCE AND SPARE PARTS 4.1 Components 4.2 Component replacement 5. TECHNICAL SPECIFICATIONS VSDU0A0003 +030222190 rel. 1.4 – 11.02.2021 | 5... -
Page 3: Introduction

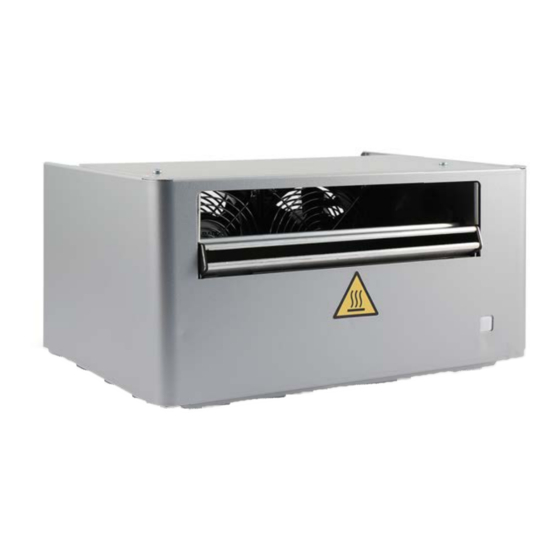

LANTAVENT.RU | отдел продаж: sale@lantavent.ru Оборудование Carel: автоматика, увлажнители, комплектующие 1. Introduction The blower for CAREL heaterSteam, humiSteam isothermal humidifiers distributes steam directly into rooms in structures that do not feature an air distribution system. The appliance can be installed on top of Description the humidifier or wall-mounted (using accessory kit P/N VSREM0003). - Page 4 1. independent of the humidifier; 2. managed directly by the humidifier (c.pHC). The controller delays blower activation for a set time. Deactivation can also be delayed to allow the blower to dry. VSDU0A0003 +030222190 rel. 1.4 – 11.02.2021 8 | 1. Introduction...
- Page 5 HUMIDIFIERS ON WHICH THE JUMPER MUST BE REMOVED Part number Humidifier model UR*******1/2 UR up to revision 2 UE*******1 UE up to revision 1 UG*******1/2/3 UG up to revision 3 VSDU0A0003 +030222190 rel. 1.4 – 11.02.2021 1. Introduction | 9...
-
Page 6: Preparing For Assembly
Requirements Follow these instructions when installing the steam hose: only use hoses supplied by CAREL; hoses made from other materials may adversely affect operation of the system; the steam hose must be secured by supports (clamps, brackets) so that it does not bend and does not weigh on the humidifier. - Page 7 Important: before starting the humidifier, fill the drain traps with water. Fig.2.b VSDU0A0003 +030222190 rel. 1.4 – 11.02.2021 2. Preparing for assembly | 11...
-
Page 8: Assembly
(9) are located in the humidifier electrical panel; 6. Make the electrical connections as specified in "Wiring diagram". 7. Mount the blower on the humidifier; 8. Insert the fixing screws (10); 9. Place the cover back on the blower. VSDU0A0003 +030222190 rel. 1.4 – 11.02.2021 12 | 3. Assembly... - Page 9 C. connect the two brackets with the crossbar. Secure the supporting structure to the wall using anchors through the two slots. Use a spirit level to check that the support is horizontal. Fig.3.c VSDU0A0003 +030222190 rel. 1.4 – 11.02.2021 3. Assembly | 13...
- Page 10 Fit the cable gland P. Install the steam hose, the condensate hose and the power cable following the steps described in the previous paragraph and the notes in chap. "Preparing for assembly". VSDU0A0003 +030222190 rel. 1.4 – 11.02.2021 14 | 3. Assembly...
-
Page 11: Maintenance And Spare Parts
Gasket kit VSDGUAR000 Tab.4.a 4.2 Component Note: Maintenance on the humidifier must be carried out by CAREL Technical Service or professionally qualified personnel. replacement Important: before proceeding: disconnect power to the humidifier by turning the main system switch to OFF;... - Page 12 Verify that when the thermostat is closed Faulty fuse there is electrical continuity Check the humidifier connection cable Blower not mounted perfectly Blower sprays droplets of Check horizontally condensate Rear air intake blocked Tab.4.b VSDU0A0003 +030222190 rel. 1.4 – 11.02.2021 16 | 4. Maintenance and spare parts...
-
Page 13: Technical Specifications
---> UG045 UG090 UG180 VSDU0A0003 (≤18kg/h) VRDXL00001 (≤45kg/h) Tab.5.c (*) use a "Y" pipe cod. UEKY40X400 to route the two steam outputs into the same pipe with Ø 40 mm. VSDU0A0003 +030222190 rel. 1.4 – 11.02.2021 5. Technical specifications | 17... - Page 14 LANTAVENT.RU | отдел продаж: sale@lantavent.ru Оборудование Carel: автоматика, увлажнители, комплектующие CAREL can accept no responsibility for possible errors in this manual. CAREL reserves the right to modify its products without notice.
