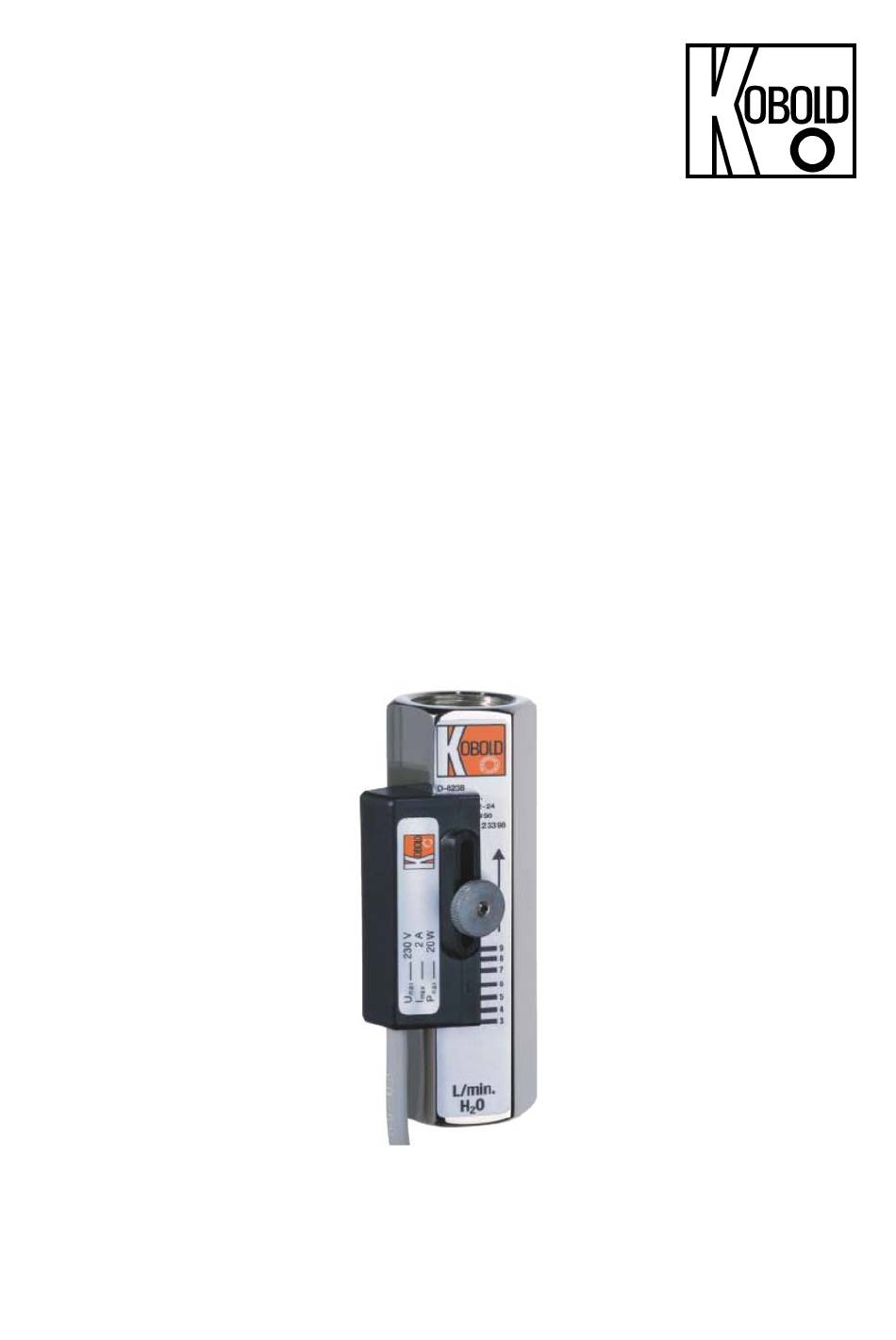

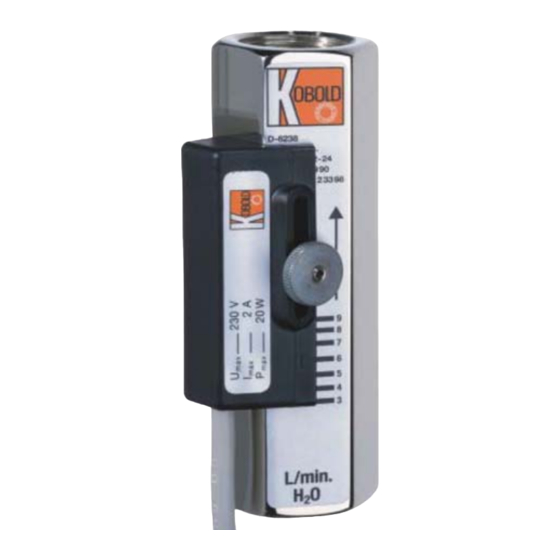

- Page 1 Operating Instructions Float Flow Meter / Monitor Model: SWK...
-
Page 2: Table Of Contents
Mechanical Connection ................. 5 Electrical Connection ..................5 Operation / Configuration / Adjustments ............6 Adjustment of Limit-Value (SWK-1...) ..........6 Adjustment of Limit-Value (SWK-2...) ..........6 Maintenance ....................7 ... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Regulation Use
4. Regulation Use These units, type SWK, are used for the purpose of measuring and monitoring liquid flow. Only clean, low-viscous and homogeneous liquids may be measured which do not chemically attack the materials used in the construction of these units. -
Page 5: Mechanical Connection
Make sure that the supply wires are de-energized. The connection of the bistable reed contact succeeds is accomplished through the cable on the contact housing. The potential-free contact closes on rising level above the adjusted flow value. SWK K12/0224 page 5... -
Page 6: Operation / Configuration / Adjustments
The unit is supplied in 'ready for operation' condition. The switching point is adjusted on the lowest scale value. 8.1 Adjustment of Limit-Value (SWK-1...) Loosen the knurled nut on the reed contact. Adjust the marking on the contact for the desired value on the scale. In once positioned the knurled nut should be tightly screwed. -
Page 7: Maintenance
9. Maintenance As long as the medium to be measured is not contaminated, the device SWK is almost maintenance-free. With lime or such depositions within inner sections the device should be cleaned regularly. Attention! Before the commencement of maintenance work, make sure that the supply wires are de-energized. -
Page 8: Disposal
(Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. „Cd" stands for cadmium 2. „Hg" stands for mercury 3. „Pb" stands for lead 4. „Li" stands for lithium Electrical and electronic equipment page 8 SWK K12/0224... -
Page 9: Eu Declaration Of Conformance
14. EU Declaration of Conformance We, KOBOLD Messring GmbH, Nordring 22-24, 65719 Hofheim, Germany, declare under our sole responsibility that the product: Float Flow Meter / Monitor Model: SWK... to which this declaration relates is in conformity with the following EU directives... -
Page 10: Declaration Of Conformity
15. UK Declaration of Conformity We, KOBOLD Messring GmbH, Nordring 22-24, 65719 Hofheim, Germany, declare under our sole responsibility that the product: Low Volume Variable Area Flowmeters/Monitors for liquids model: SWK -... to which this declaration relates is in conformity with the following UK directives stated below: S.I.
