Installation Instructions
1.
Check the accessories with your SilverSATA I. Please contact WiebeTech if any parts are
missing or damaged. The box should contain the following items:
SilverSATA I main unit
Removable tray (contained in the unit)
Aluminum Stand
eSATA cable
USB cable
AC adapter plus wall cord
Packet of keys and screws
CD with Manual and Warranty information
S i l v e r S A T A I U s e r M a n u a l

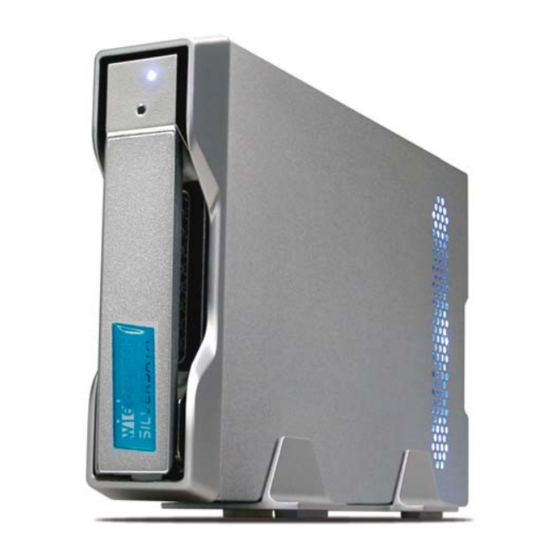

SilverSATA™ I
USER'S MANUAL
Revised 9/21/2006
Features
• Connects through either widely-compatible USB 2.0,
or fast eSATA.
• Hot-swappable tray allows you to switch drives without
shutting down the system.
• Streamlined design makes it the smallest enclosure
available for 3.5" SATA drives. It occupies only a
small footprint on your desk. Lay it flat or use the
included stand to set it upright.
• Durable, aluminum alloy case offers excellent heat
dissipation.
• Tray is compatible with other products in the
SilverSATA series. Use the SilverSATA I to easily
access one of the mirrored drives from a Silver SATA
II in RAID 1 mode.
• Simple, plug and play configuration with Windows
2000/XP/Server 2003 and Mac OS X.
1
1
1
1
1
1
1
1
Wall cord plugs into AC adapter
eSATA Cable
USB Cable
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WiebeTech SIS 1
Summary of Contents for WiebeTech SIS 1
- Page 1 SilverSATA™ I Installation Instructions Check the accessories with your SilverSATA I. Please contact WiebeTech if any parts are missing or damaged. The box should contain the following items: SilverSATA I main unit Removable tray (contained in the unit) Aluminum Stand...
- Page 2 WiebeTech LLC Take a moment to familiarize yourself with the parts of the SilverSATA I. This will help you to better understand the remaining instructions. Install your hard drive into the tray. Unlock the tray by using the plastic key. Slide the tray out of the outer casing.
- Page 3 WiebeTech LLC If you wish to stand the unit upright, mount the included aluminum cradle. Use the illustrations below as a guide: Plug in the data cable. The SilverSATA I connects to your computer through either fast eSATA or USB2. One end of the cable connects to the back of the unit. Insert the other end into an available port on your computer.
- Page 4 WiebeTech LLC Usage with Macintosh computers Compatibility The SilverSATA I is fully plug-and-play under Mac OS X. No additional drivers are needed. Mounting and Ejecting Volumes When you connect the unit to the Mac for the first time and turn on the power, you might see a message saying that the disk is unreadable.
- Page 5 90 days of free phone support (1-866-744-8722). After 90 days, email support is available at support@wiebetech.com. SilverSATA I is a trademark of WiebeTech LLC. Other marks are the property of their respective owners. © 2005 WiebeTech LLC. All rights reserved.
