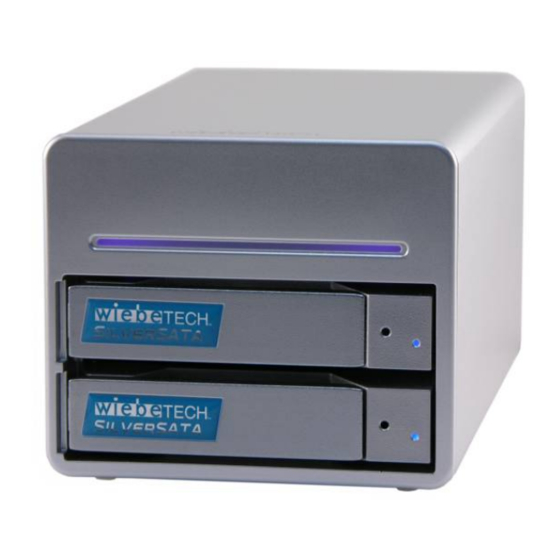

SilverSATA™ II FH
Table of Contents
Before Installation
Contents of the box
Identifying the parts of the product
Installing Hard Drives
Connecting to a Computer
Changing the RAID Type
Usage with Macs
Usage with Windows Computers
LED Indicators
Warnings and Notices
Technical Specifications
S i l v e r S A T A I I F H U s e r M a n u a l
USER'S MANUAL
Revised 9/14/2006
Features
• Triple Interface for a variety of connectivity options.
Use fast FireWire 800 (1394b), FireWire 400
(1394a), or widely-available USB 2.0.
• Use the drives independently (JBOD), or combine
them into a single volume with a hardware RAID 0.
• In JBOD mode, you can "hot swap" the trays to
change out drives quickly. The trays are
interchangeable with other products in the
SilverSATA series.
• Its attractive design takes up little desktop space,
occupying a tiny footprint for so much storage
capability (up to 1.5 Terabytes with currently
available drives).
• Sturdy aluminum case provides excellent heat
dissipation and rugged durability.
2
2
2
3
4
4
5
5
6
6
6
- 1 -
Advertisement
Table of Contents
Related Manuals for WiebeTech SIS2-FH
Summary of Contents for WiebeTech SIS2-FH
- Page 1 SilverSATA™ II FH Table of Contents Before Installation Contents of the box Identifying the parts of the product Installing Hard Drives Connecting to a Computer Changing the RAID Type Usage with Macs Usage with Windows Computers LED Indicators Warnings and Notices Technical Specifications S i l v e r S A T A I I F H U s e r M a n u a l USER’S MANUAL...
- Page 2 WiebeTech LLC Before Installation Check the accessories with your SilverSATA II FH. Please contact WiebeTech if any items are missing or damaged. The box should contain the following items: SilverSATA II FH enclosure Removable trays (inside enclosure) FireWire 800 cable...
-
Page 3: Installing Hard Drives
WiebeTech LLC Installing Hard Drives You may skip this section if you purchased the product with hard drives preinstalled. Remove a tray from the SilverSATA II FH enclosure. Insert the included key into the lock hole to release the tray’s handle and then slide the tray straight out. -
Page 4: Changing The Raid Mode
If you wish to use FireWire, but your computer does not have FireWire ports, host bus adapters are available from WiebeTech (www.wiebetech.com). Your SilverSATA II FH is now ready to use! Turn on the power switch on the back of the unit. If your drives are already formatted, you can begin using them right away. -
Page 5: Usage With Macintosh Computers
WiebeTech LLC Usage with Macintosh computers Compatibility The SilverSATA II FH is Plug-and-Play compatible under Mac OS X. No additional drivers are needed. The USB2 port is USB 1.1 compatible. Mounting and Unmounting Volumes When you connect the unit to the Mac for the first time and turn on the power, you may see a message saying that the disks are unreadable. -
Page 6: Led Indicators
90 days of free phone support (1-866-744-8722). After 90 days, email support is available at support@wiebetech.com. SilverSATA is a trademark of WiebeTech LLC. Other marks are the property of their respective owners. © 2006 WiebeTech LLC. All rights reserved. - Page 7 Use a power supply with an RFI reducing ferrite approximately 5 inches from the DC plug. If you have any questions or problems, please contact you are interested in purchasing more WiebeTech products, check our website or contact sales@wiebetech.com. We appreciate being able to serve you!
