SilverSATA I Internal™
Installation Instructions
1.
Check the accessories with your SilverSATA I Internal. Please contact WiebeTech if any parts
are missing or damaged. The box should contain the following items:
2.
Take a moment to familiarize yourself with the parts of the SilverSATA I Internal. This will help
you to better understand the remaining instructions.
Fr ont View
Key lock
S i l v e r S A T A I I n t e r n a l U s e r M a n u a l
USER'S MANUAL
Revised May 4, 2007
Features
•

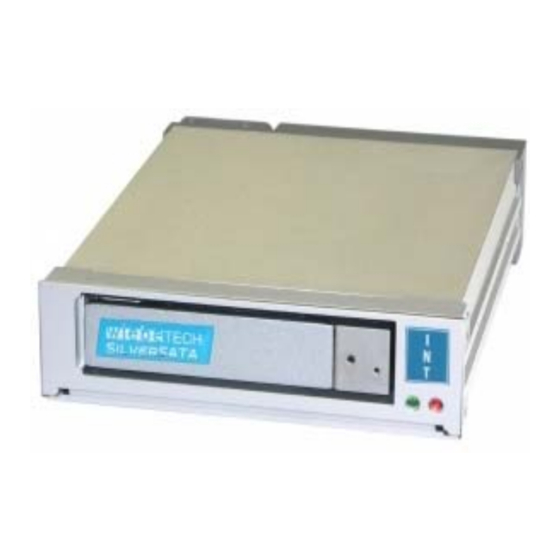

Swappable tray in a standard 5 1/4" internally mountable bay
(same size as most CD-ROM drives). A spare internal SATA
port is required.
•
Hot-swappable tray allows you to switch drives without shutting
down the system. (Assuming your computer's internal SATA
host supports this feature.)
•
Tray is compatible with other products in the SilverSATA series.
Use the SilverSATA I Internal to easily access one of the
mirrored drives from a Silver SATA II SR in RAID 1 mode.
•
Durable, aluminum alloy case offers excellent heat dissipation.
•
Integrated fan ensures the hard drive stays cool.
LED light indicating
data transfer
Power on
Drive
failure
Accessories
SilverSATA Tray
18" SATA Cable
Molex power connection
Rear View
SATA connection
Quantity
1
1
Cooling fan
- 1 -
