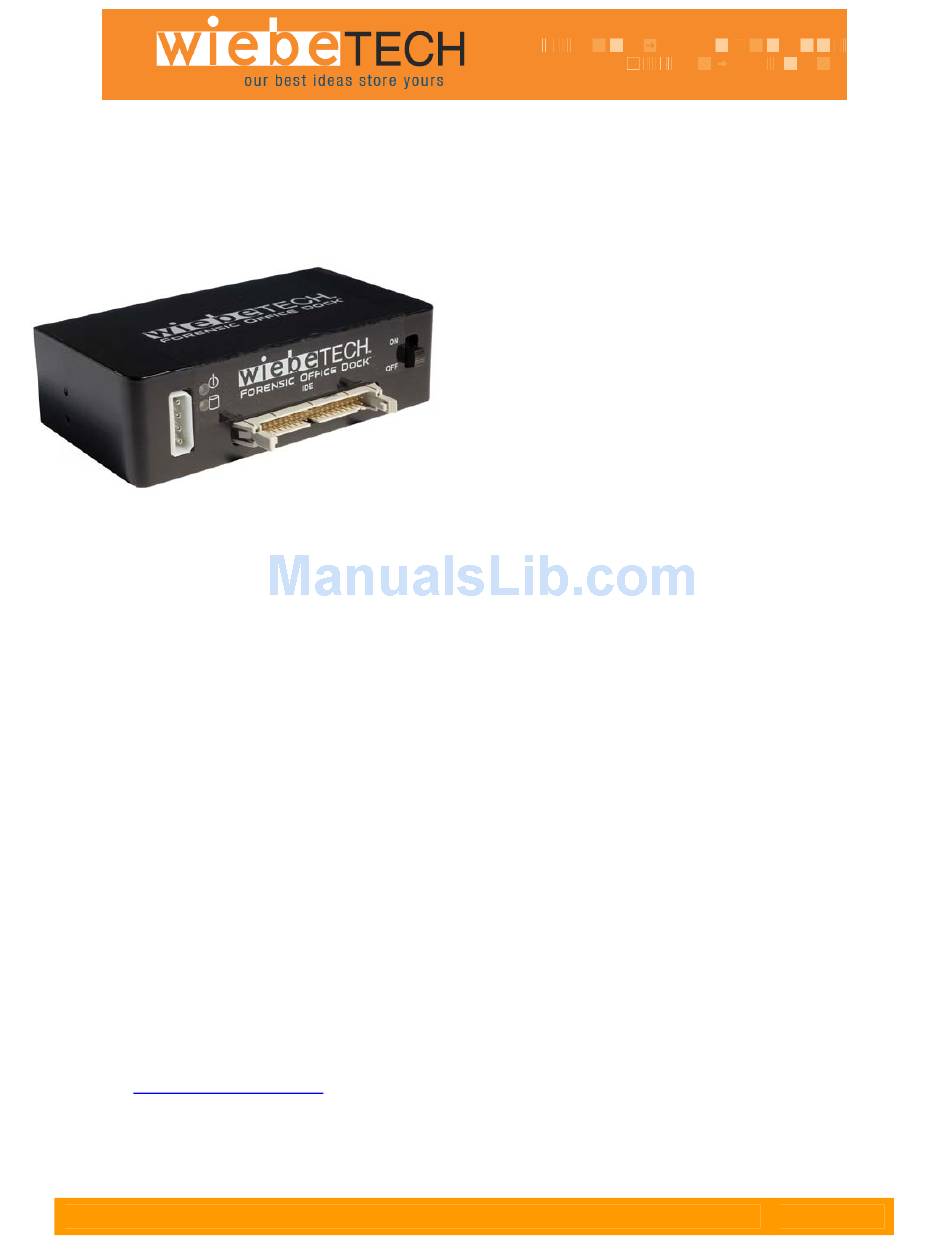

Forensic Office Dock™
• A snap to install and use – Office Dock features a SafeEject™ IDE connector to save on wear and
tear. SafeEject's special ejection levers help prevent bending IDE pins. An on/off switch and
power/access LEDs make operation easy.
• Hot-swappable – No need to restart the computer between data acquisitions. Just connect the drive,
turn on the dock, and you're ready to go!
• Optional adapters allow access to all kinds of drives – Office Dock comes ready for use with 3.5"
IDE drives, and works with many other drives (including SATA drives) via WiebeTech's lineup of Combo
Adapters.
• Aluminum design – Both durable and attractive.
Forensic Device User Advisory
We recommend that you perform a final check on this product.
Prior to first use, please verify that the write-blocking function of this product is working properly. This is
easily done: attach a known good formatted drive, and verify that the drive mounts properly on your
computer. Use a drive that has data on it that you are willing to overwrite. Transfer files to the drive. The
files will appear to transfer to the drive. Thereafter, unmount the drive and remount the drive. The files
that you wrote to the drive should not appear after the drive is remounted. If they do appear, there is a
problem with your Forensic Device, and you should contact our support department for further
instructions.
WiebeTech support may be reached at:
(866) 744-8722 (toll free)
(316) 744-8722 (international)
(316) 744-1398 (fax)
support@wiebetech.com
F o r e n s i c O f f i c e D o c k U s e r ' s M a n u a l
USER'S MANUAL
Revised September 26, 2006
Features
• Patented write-blocking technology – Uses the
same, proven technology found in our other popular
Forensic products. Write-blocking prevents
corruption of evidence and maintains the integrity of
evidentiary drives. Office Dock is compatible with
forensic acquisition and analysis software.
• Easy, read-only access to suspect drives –
Forensic Office Dock fits right in your desktop
computer bay and gives you convenient access to
power and an IDE port from the front of the unit.
(email)
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WiebeTech FOD
Summary of Contents for WiebeTech FOD
- Page 1 • Optional adapters allow access to all kinds of drives – Office Dock comes ready for use with 3.5" IDE drives, and works with many other drives (including SATA drives) via WiebeTech's lineup of Combo Adapters.
-
Page 2: Installation Instructions
WiebeTech LLC Installation Instructions Check the accessories with your Forensic Office Dock. Please contact WiebeTech if any items are missing or damaged. The box should contain: Forensic Office Dock IDE cable Power cable Case mounting screws Metal bottom plate Hard drive screws... - Page 3 WiebeTech LLC Connect one end of the FireWire cable to the internal FireWire host. Mount the Office Dock into an empty 5 ¼” Bay inside your computer. Do not screw it into place until all the cables have been connected. Connect the other end of the FireWire cable to the rear side of the Office Dock.
- Page 4 Attach a rubber bumper to each corner. Extra bottom plates are available from WiebeTech. Configure the jumpers on your hard drive. The drive must be set to the Master setting. Consult the instructions for your drive (some drives display configuration information on the drive’s label).
-
Page 5: Technical Specifications
50 – 85° Fahrenheit (10 – 30° Celsius) 5% to 95%, noncondensing Operating Humidity Compatibility 3.5-inch IDE drives (can be used in conjunction with WiebeTech’s Combo Adapters for a variety of other drive types) Operating System Windows XP Mac OS 9.2, OS X... - Page 6 WiebeTech LLC Forensic Office Dock is a trademark of WiebeTech LLC. Other marks are the property of their respective owners. © 2006 WiebeTech LLC. All rights reserved. FCC Compliance Statement. “This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”...
