NCR Ingenico Lane 7000 Kit Instructions

Pin pad mount
Hide thumbs Also See for Ingenico Lane 7000:

Advertisement

Quick Links

Download this manual
Kit Instructions
PIN Pad Mount (Ingenico Lane 7000)
7358-K401
Issue A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ingenico Lane 7000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NCR Ingenico Lane 7000

Summary of Contents for NCR Ingenico Lane 7000

  • Page 1 Kit Instructions PIN Pad Mount (Ingenico Lane 7000) 7358-K401 Issue A...
  • Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.

  • Page 3: Revision Record

    Revision Record Issue Date Remarks Sept 2021 First Issue...

  • Page 5: Kit Contents

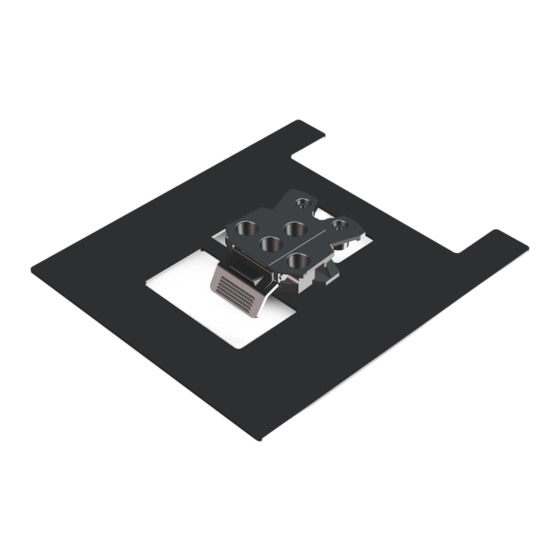

    PIN Pad Mount (Ingenico Lane 7000) This publication provides procedures for installing a K401 PIN Pad Mount (Igenico Lane 7000) to the NCR FastLane SelfServ™ Checkout (7358) R6L Plus. Kit Contents Part Number Description 497-0530329 7358-K401 PIN Pad Mount Bracket (Ingenico 7000)

  • Page 6: Installation Procedures

    Installing the PIN Pad Mount on page 5. Installing Ingenico Lane 7000 PIN Pad on page 8. Note: The Ingenico Lane 7000 PIN Pad is not included in the 7358-K401 PIN Pad Kit. For more information, contact your NCR Customer Service Representative.
  • Page 7 PIN Pad Mount (Ingenico Lane 7000) Removing Existing PIN Pad or Blanking Plate To remove the existing PIN Pad Mount or PIN PadBlanking Plate, follow these steps: 1. Open the Tower Cabinet and follow these steps: a. Insert the key into the door latch lock and turn key counterclockwise.
  • Page 8 PIN Pad Mount (Ingenico Lane 7000) c. Raise the Tower Cabinet door. 2. Remove existing PIN Pad or PIN Pad Blanking Plate by removing four (4) wing nuts. Note: Set aside the four (4) wing nuts and reuse in installing the PIN Pad Mount...
  • Page 9 PIN Pad Mount (Ingenico Lane 7000) Installing the PIN Pad Mount To install the PIN Pad Mount, follow these steps: 1. Ensure that the existing PIN Pad or PIN Pad Blanking Plate. Refer to Removing Existing PIN Pad or Blanking Plate on page 3.
  • Page 10 PIN Pad Mount (Ingenico Lane 7000) 3. Install the PIN Pad Mount assembly to the Tower Cabinet using four (4) wing nuts. 4. Close the Tower Cabinet by doing the following: a. Push down the door and then push the door latch until it closes. The Tower...
  • Page 11 PIN Pad Mount (Ingenico Lane 7000) b. Insert key in the door latch lock and then turn it clockwise to lock the door. c. Remove keys.
  • Page 12 PIN Pad Mount (Ingenico Lane 7000) Installing Ingenico Lane 7000 PIN Pad The Ingenico Lane 7000 PIN Pad is not included in the 7358-K401 PIN Pad Kit. For more information, contact your NCR Customer Service Representative. 1. Connect the PIN Pad cable to the RS232/A port of the Primary Terminal Display.
