Calibration—Type 2A61
d. Connect the voltmeter positive lead to the emitter of
Q434.
g. Connect the voltmeter positive lead to the emitter of
Q534,
e. Adjust COLLECTOR VOLTS ADJ, Fig. 6-10, for 7 volts
on the voltmeter,
h. Check for approximately 7 volts on the voltmeter.
Standard Amplitude
Calibrator
a0 Fs
"
| sameeren
S|
ae |
ieee
)
\
7
i
e
w '| ro Aid "
ov
Special
Input
Cable

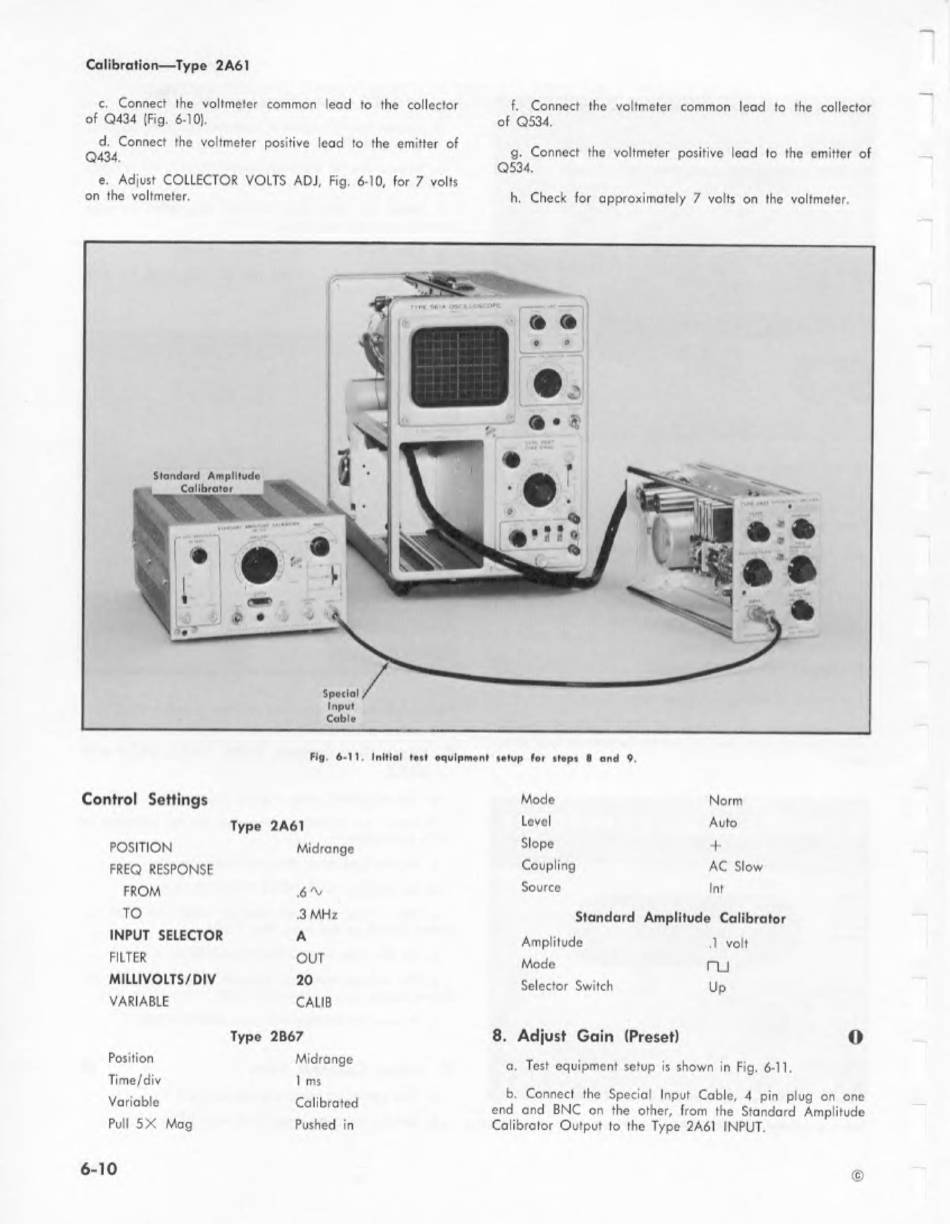

Fig. 6-11. Initial test equipment setup for steps 8 and 9,
Control Settings
Mode
Norm
Type 2A61
Level
Auto
POSITION
Midrange
Slope
4
FREQ RESPONSE
Coupling
AC Slow
FROM
6%
Source
Int
TO
3 MHz
Standard Amplitude
Calibrator
INPUT SELECTOR
A
Amplitude
1 volt
FILTER
OUT
Meda
mu
MILLIVOLTS/DIV
20
Selector Switch
Up
VARIABLE CALIB
Type 2B67 8. Adjust Gain (Preset) oO
Position
Midrange
a. Test equipment setup is shown in Fig, 6-11.
Time/ div lms :
;
;
b. Connect the Special
Input Cable, 4 pin plug on one
Variable
Calibrated
end and BNC on the other, from the Standard Amplitude
Pull 5X
Mag Pushed
in Calibrator Output
to the Type 2A6]
INPUT.
6-10
