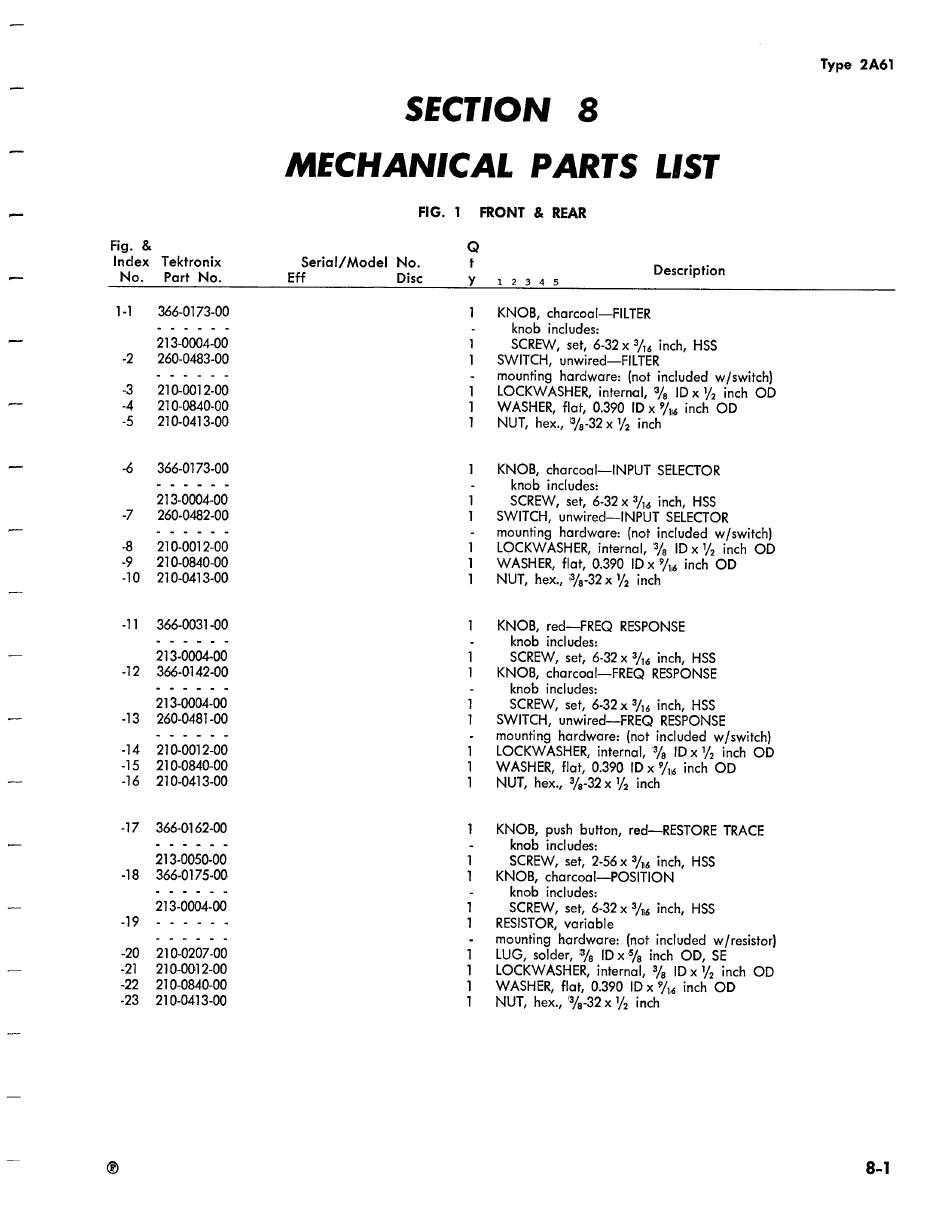

SECTION 8
MECHANICAL PARTS LIST
Type 2A61
FIG. 1 FRONT & REAR
Fig. & Q
Index Tektronix Serial/Model No. t eae
No. Part No. Eff Disc Y 12345 Description
1-1 366-0173-00 1 KNOB, charcoal—FILTER
ee eee - knob includes:
213-0004-00 7 SCREW, set, 6-32 x °/6 inch, HSS
-2 260-0483-00 1 SWITCH, unwired—FILTER
- eee
ee
- mounting hardware: (not included w/switch)
-3
210-0012-00
1 LOCKWASHER,
internal, 34 ID x Y. inch OD
-4—- 210-0840-00 1 WASHER, flat, 0.390 ID x %, inch OD
-5 —-210-0413-00 1 NUT, hex., 844-32 x Y_ inch
- 366-0173-00 1 KNOB, charcoal—INPUT SELECTOR
-- +e ee - knob includes:
213-0004-00 ] SCREW, set, 6-32 x 344 inch, HSS
-7 260-0482-00 1 SWITCH, unwired—INPUT SELECTOR
cee eee
-
mounting hardware: (not included w/switch)
-8 210-0012-00 1 LOCKWASHER, internal, 3/4, IDx Y% inch OD
- — 210-0840-00 1 WASHER, flat, 0.390 ID x %/ inch OD
-10 210-0413-00 1 NUT, hex., %/-32x % inch
-11 366-0031-00 1 KNOB, red—FREQ RESPONSE
eee eee - knob includes:
213-0004-00 1 SCREW, set, 6-32 x 3/4 inch, HSS
-12 366-0142-00 1 KNOB, charcoal—FREQ RESPONSE
eee eee - knob includes:
213-0004-00 7 SCREW, set, 6-32 x 3/4 inch, HSS
-13 260-0481-00 1 SWITCH, unwired—-FREQ RESPONSE
ete eee
- mounting hardware: (not included w/switch}
-14 210-0012-00 1 LOCKWASHER, internal, 3/4 ID x % inch OD
-15 210-0840-00 1 WASHER, flat, 0.390 ID x % inch OD
-16 210-0413-00 1 NUT, hex., 34-32 x Y inch
"17 366-0162-00 1 KNOB, push button, red—RESTORE TRACE
wees ee - knob includes:
213-0050-00 1 SCREW, set, 2-56 x 3/4 inch, HSS
-18 366-0175-00 1 KNOB, charcoal—POSITION
cee eee - knob includes:
213-0004-00 7 SCREW, set, 6-32 x 3/4 inch, HSS
9 ------ 1 RESISTOR, variable
cen eee
- mounting hardware: (not included w/resistor]
-20 210-0207-00 1 LUG, solder, 4 ID x5 inch OD, SE
-21 210-0012-00
1 LOCKWASHER, internal, 34 IDx 1% inch OD
-22 210-0840-00 1 WASHER, flat, 0.390 ID x %4. inch OD
-23 210-0413-00 1 NUT, hex., 34-32 x ¥% inch
8-1
