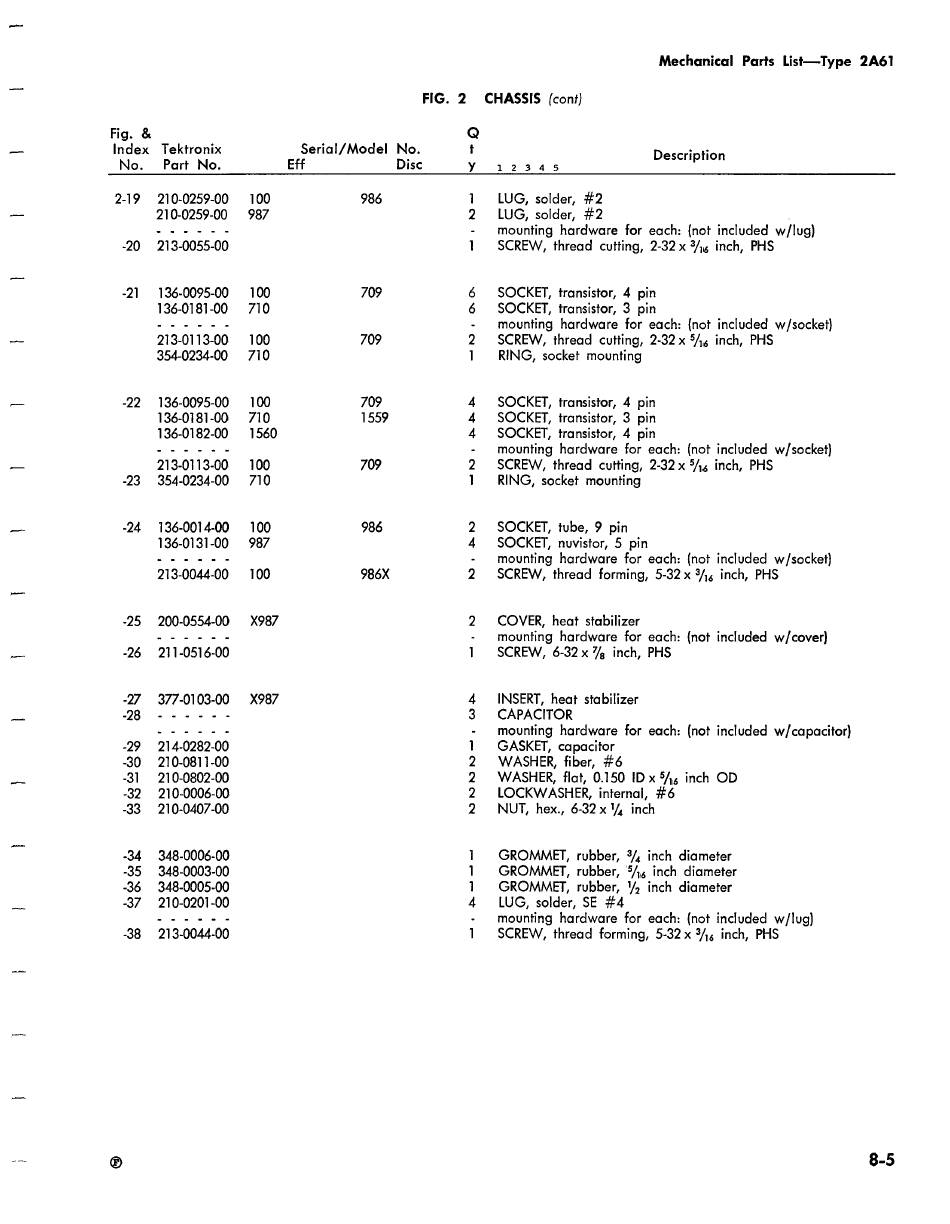

Tektronix 2A61 Instruction Manual page 72

Mechanical Parts List—Type 2A61
FIG. 2 CHASSIS (cont)
Fig. & Q
Index Tektronix Serial/Model No. t + a s
No. Part No. Eff Disc Y 12345 Description
2-19 210-0259-00 100 986 1 LUG, solder, #2
210-0259-00 987 2 LUG, solder, #2
cee eee - mounting hardware for each: (not included w/lug)
-20 213-0055-00 1 SCREW, thread cutting, 2-32 x %/1, inch, PHS
-21 136-0095-00 100 709 6 SOCKET, transistor, 4 pin
136-0181-00 710 6 SOCKET, transistor, 3 pin
cee eee - mounting hardware for each: {not included w/socket}
213-0113-00 100 709 2 SCREW, thread cutting, 2-32 x 544 inch, PHS
354-0234-00 710 1 RING, socket mounting
-22 136-0095-00 100 709 4 SOCKET, transistor, 4 pin
136-0181-00 710 1559 4 SOCKET, transistor, 3 pin
136-0182-00 1560 4 SOCKET, transistor, 4 pin
settee - mounting hardware for each: (not included w/socket)
213-0113-00 100 709 2 SCREW, thread cutting, 2-32 x 5/6 inch, PHS
-23 354-0234-00 710 1 — RING, socket mounting
-24 136-0014-00 100 986 2 SOCKET, tube, 9 pin
136-0131-00 987 4 SOCKET, nuvistor, 5 pin
wee eee - mounting hardware for each: (not included w/socket}
213-0044-00 100 986X 2 SCREW, thread forming, 5-32 x 3/,¢ inch, PHS
-25 200-0554-00 X987 2 COVER, heat stabilizer
eee ee - mounting hardware for each: (not included w/cover}
-26 211-0516-00 1 SCREW, 6-32 x % inch, PHS
-27 377-0103-00 X987 4 INSERT, heat stabilizer
28 ------ 3 CAPACITOR
wee eee - mounting hardware for each: (not included w/capacitor}
-29 214-0282-00 1 GASKET, capacitor
-30 210-0811-00 2 WASHER, fiber, #6
-31 210-0802-00 2 WASHER, flat, 0.150 ID x 5A, inch OD
-32 210-0006-00 2 LOCKWASHER, internal, #6
-33 210-0407-00 2 NUT, hex., 6-32x 4% inch
-34 348-0006-00 1 GROMMET, rubber, 34, inch diameter
-35 348-0003-00 1 GROMMET, rubber, 5/6 inch diameter
-36 348-0005-00 1 GROMMET, rubber, 1% inch diameter
-37 210-0201-00 4 LUG, solder, SE #4
es e ee - mounting hardware for each: (not included w/lug}
-38 213-0044-00 1 SCREW, thread forming, 5-32 x 34. inch, PHS
