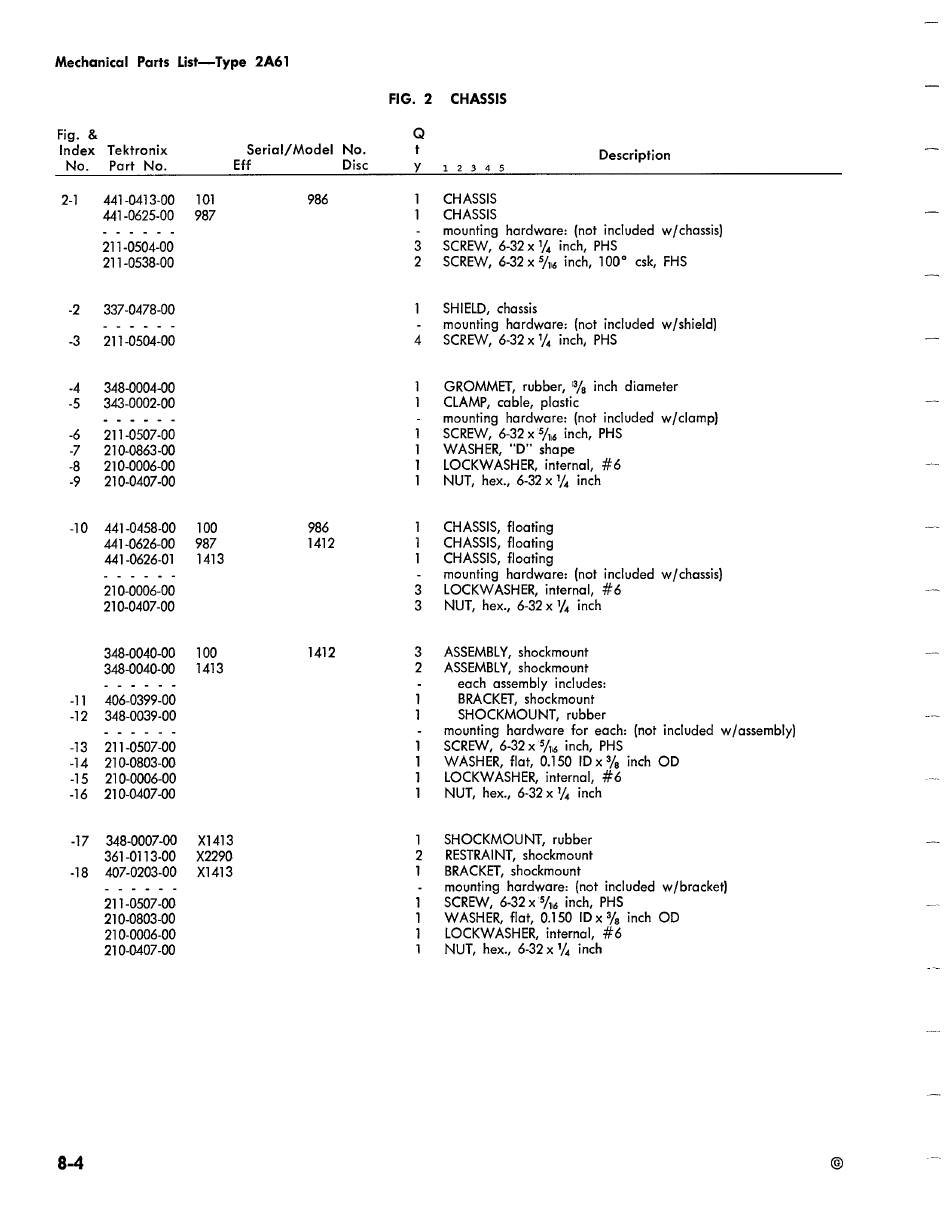

Mechanical Parts List—Type 2A61
FIG. 2. CHASSIS
Fig. & Q
Index Tektronix Serial/Model No. t + a e
No. Part No. Eff Disc Y uzsas Description
2-1 441-0413-00 101 986 1 CHASSIS
441-0625-00 987 1 CHASSIS
ese eee - mounting hardware: (not included w/chassis}
211-0504-00 3 SCREW, 6-32x 1/4, inch, PHS
211-0538-00 2 SCREW, 6-32 x 5/6 inch, 100° csk, FHS
<2 337-0478-00 1 SHIELD, chassis
- ee eee - mounting hardware: (not included w/shield)
-3 211-0504-00 4 SCREW, 6-32x 4 inch, PHS
-4 — 348-0004-00 1 GROMMET, rubber, 3% inch diameter
-5 —348-0002-00 1 CLAMP, cable, plastic
eee eee - mounting hardware: (not included w/clamp}
-~6 — 211-0507-00 1 SCREW, 6-32 x 5A¢ inch, PHS
7 — 210-0863-00 1 WASHER, "D" shape
-8 210-0006-00 1 LOCKWASHER, internal, #6
-Y 210-0407-00 1 NUT, hex., 6-32 x Y% inch
-10 441-0458-00 100 986 1 CHASSIS, floating
441-0626-00 987 1412 1 CHASSIS, floating
441-0626-01 1413 1 CHASSIS, floating
-- ee ee - mounting hardware: (not included w/chassis}
210-0006-00 3. LOCKWASHER, internal, #6
210-0407-00 3 NUT, hex., 6-32x % inch
348-0040-00 100 1412 3 ASSEMBLY, shockmount
348-0040-00 1413 2 ASSEMBLY, shockmount
-- eee - each assembly includes:
-11 406-0399-00 1 BRACKET, shockmount
-12 348-0039-00 1 SHOCKMOUNT, rubber
-- ee ee - mounting hardware for each: (not included w/assembly)
-13. 211-0507-00 1 SCREW, 6-32 x 5/¢ inch, PHS
-14 —210-0803-00 1 WASHER, flat, 0.150 ID x 3% inch OD
-15 210-0006-00 1 LOCKWASHER, internal, #6
-16 210-0407-00 1 NUT, hex., 6-32 x Y% inch
-17 348-0007-00 X1413 1 SHOCKMOUNT, rubber
361-0113-00 X2290 2 RESTRAINT, shockmount
-18 407-0203-00 X1413 1 BRACKET, shockmount
ce eee - mounting hardware: (not included w/bracket)
211-0507-00 1 SCREW, 6-32 x 5/6 inch, PHS
210-0803-00 1 WASHER, flat, 0.150 ID x 34 inch OD
210-0006-00 1 LOCKWASHER, internal, #6
210-0407-00 1 NUT, hex., 6-32x % inch
