Installation Instructions

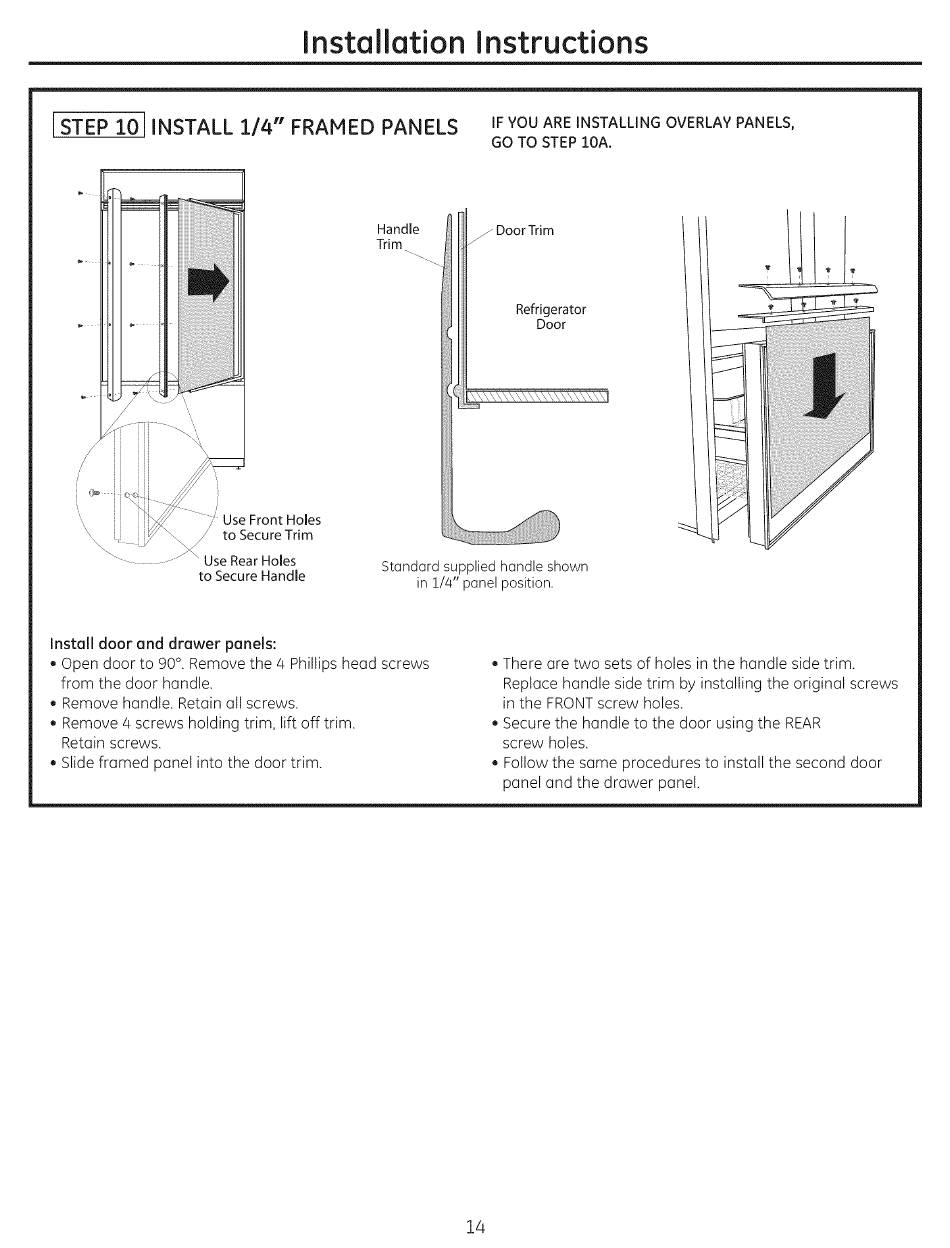

STEP 10| INSTALL 1/4" FRAMED PANELS IF YOU ARE INSTALLING OVERLAY PANELS,
| Gm...
to Secure Handle
Install door and drawer panels:
~~! Use Front Holes
to Secure Trim
GO TO STEP 10A.
Handle
Trim _
sw
Door Trim
de
Refrigerator
Door
LAA AAAS
Standard supplied handle shown
in 1/4" panel position.
* Open door to 90°. Rernove the 4 Phillips head screws * There are two sets of holes in the handle side trim.
frorn the door handle.
e Remove handle. Retain all screws.
e Remove 4 screws holding trim, lift off trim.
Retain screws.
e Slide framed panel into the door trim.
Replace handle side trim by installing the original screws
in the FRONT screw holes.
* Secure the handle to the door using the REAR
screw holes.
* Follow the same procedures to install the second door
panel and the drawer panel.
14
