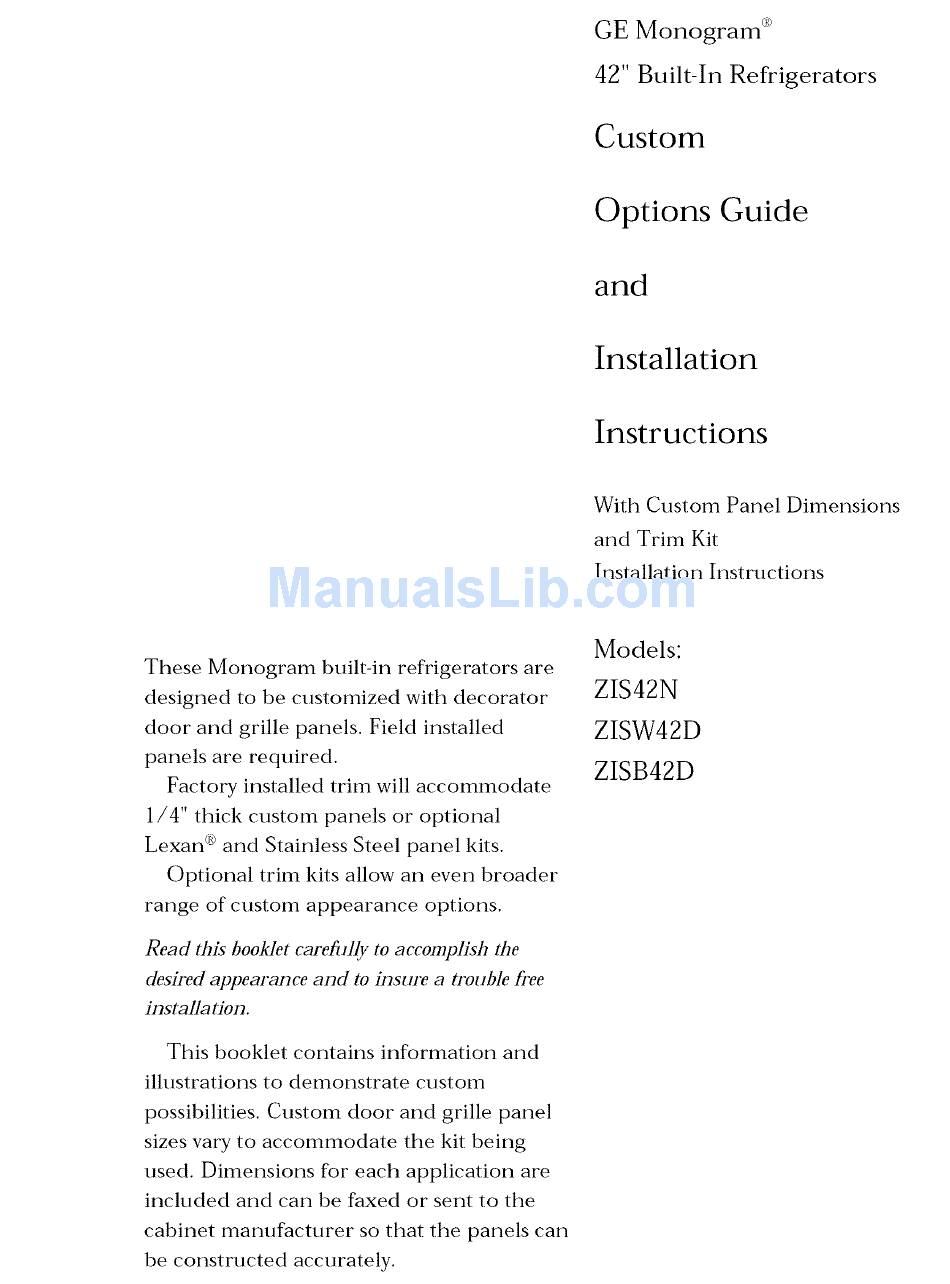

42" Built-In

Refrigerators

Custom

Options

Guide

and

Installation

Instructions

With Custom

Panel Dimensions

and Trim Kit

Installation

Instructions

These Monogram

built-in

refrigerators

are

designed

to be customized

with decorator

door and grille panels.

Field installed

panels are required.

Factory installed

trim will accommodate

1/4" thick custom

panels

or optional

Lexan <_and Stainless

Steel panel kits.

Optional

trim kits allow an even broader

range

of custom

appearance

options.

Read this booklet carefully

to accomplish

desired appearance

and to insure

a trouble free

installation.

This booklet

contains

information

and

illustrations

to demonstrate

custom

possibilities.

Custom

door and grille panel

sizes vary to accommodate

the kit being

used. Dimensions

for each application

are

included

and can be faxed or sent to the

cabinet

manufacturer

so that the panels can

be constructed

accurately.

Models:

ZIS42N

ZISW42D

ZISB42D

Table of Contents

Need help?

Do you have a question about the Monogram ZIS42N and is the answer not in the manual?

Questions and answers
