Installation Instructions

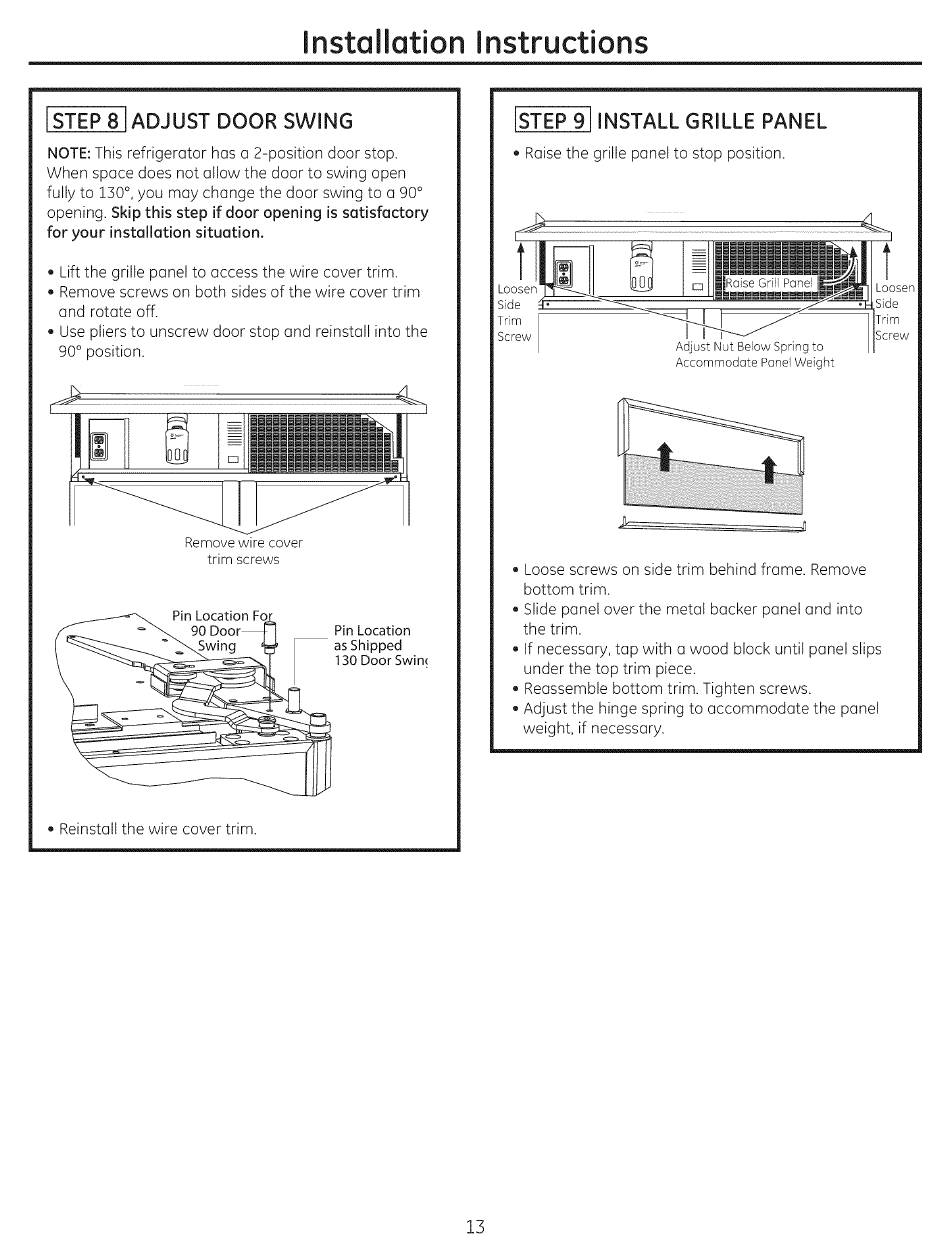

STEP 8 | ADJUST DOOR SWING
NOTE: This refrigerator has a 2-position door stop.
When space does not allow the door to swing open
fully to 130°, you may change the door swing to a 90°
opening. Skip this step if door opening is satisfactory
for your installation situation.
e Lift the grille panel to access the wire cover trim.
e Remove screws on both sides of the wire cover trim
and rotate off.
e Use pliers to unscrew door stop anc reinstall into the
90° position.
I
Ip
Remove wire cover
trim screws
Pin Location For
Pin Location
as Shipped
130 Door Swine
e Reinstall the wire cover trim.
13
STEP 9} INSTALL GRILLE PANEL
¢ Raise the grille panel to stop position.
SS <1
Ea od —l
Foy Bee eee sees eee ee)
es Ge Be ed Ge Ge Ge ee ed ee
Bee ee eee seem eee),
| ceca 2
Loosen Seems raters ae || LOOSE
Side Side
a Trim
| I / Screw
Adjust Nut Below Spring to
Accommodate Panel Weight
Trim
Screw
* Loose screws on side trim behind frame. Rernove
bottorn trim.
¢ Slide panel over the metal backer panel and into
the trim.
* |f necessary, tap with a wood block until panel slips
under the top trim piece.
e Reassermble bottorn trim. Tighten screws.
e Adjust the hinge spring to accommodate the panel
weight, if necessary.
