RF-Lambda RFLUPA06G12GD Quick Start Manual

Features
•
Wideband Solid State Power Amplifier
•
Small Signal Gain 71dB Typical
•
Output Saturation Power 51dBm Typical
•
Supply Voltage +48VDC
•
50 Ohm Matched Input/Output
•
Overvoltage Protection
•
Overcurrent Protection
•
Auto Calibration
Electrical Specifications (T
Parameter
Frequency Range
Small Signal Gain
Gain Variance
Gain Variation Over Temperature (-40⁰C to +70⁰C)
Output 1dB Compression Point (P1dB)
Saturated Output Power (Psat)
Supply Current (Vcc = +48VDC)
IM3
Weight
Impedance
Input / Output Connectors
Package
Note: Special screening is available with extra cost. Please inquire with sales..
Rev 6. 02-09-2024 | Subject to change without notice
B2 .0
Wide Band Power Amplifier
6GHz-12GHz
=+25⁰C)
A
Min
Product Description

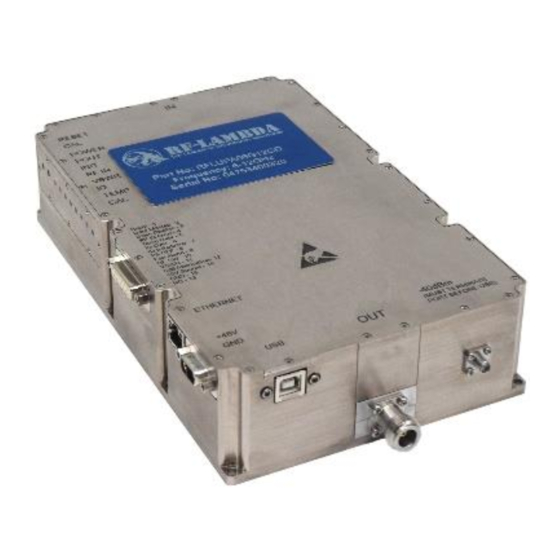

RFLUPA06G12GD is a wideband power amplifier with a frequency range of
6 to 12GHz.
The power output of this amplifier is 51dBm typical. The typical small signal
gain is 71dB with a gain flatness of ±6dB. This excellent performance is
achieved through the use of GaN devices.
The power amplifier's input connector is SMA and output connector is N-
Type. This product has a calibration feature which enables customer to
obtain great performance through time and temperature changes.
The operating temperature of this product is within -40 to +85⁰C.
Typical Applications
•
Wireless Infrastructure
•
Military and Aerospace Applications
•
Test Instrumentation
•
Radar Systems
•
5G Wireless Communications
•
Microwave Radio Systems
•
TR Modules
•
Research and Development
•
Cellular Base Stations
Typ Max Min
6 – 10
72
+/-5
+/-3
42
51
6.5 17
-64
6.4
50
SMA/N-Type Female
Screw Sealed (Standard)
Hermetically Sealed (Optional)
Sales: sales@rflambda.com
RFLUPA06G12GD
Typ Max Units
10 – 12
70
+/-4
+/-3
42
50
6.5 17
-65
Ohms
RF-LAMBDA USA LLC: www.rflambda.com
Technical: support@rflambda.com
GHz
dB
dB
dB
dBm
dBm
A
dBc
lbs.
